Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSK-S3-12-DINAC/DC DIN RAIL SUPPLY 12V 3W |
0 |
|
- |
PSK-S3 (3W) | Tray | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 100V | 370V | 12V | - | - | - | - | - | 250mA | 3W | 4 kV | ITE (Commercial) | 77% | -40°C ~ 70°C (With Derating) | Universal Input | 2.99" L x 1.24" W x 1.24" H (76.0mm x 31.5mm x 31.4mm) | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1; 61000-3-2; 62368-1 |
|
|
PSK-S3-15-DINAC/DC DIN RAIL SUPPLY 15V 3W |
0 |
|
Технический лист |
PSK-S3 (3W) | Tray | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 100V | 370V | 15V | - | - | - | - | - | 200mA | 3W | 4 kV | ITE (Commercial) | 77% | -40°C ~ 70°C (With Derating) | Universal Input | 2.99" L x 1.24" W x 1.24" H (76.0mm x 31.5mm x 31.4mm) | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1; 61000-3-2; 62368-1 |
|
|
PSK-S3-24-DINAC/DC DIN RAIL SUPPLY 24V 3W |
0 |
|
Технический лист |
PSK-S3 (3W) | Tray | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 100V | 370V | 24V | - | - | - | - | - | 125mA | 3W | 4 kV | ITE (Commercial) | 78% | -40°C ~ 70°C (With Derating) | Universal Input | 2.99" L x 1.24" W x 1.24" H (76.0mm x 31.5mm x 31.4mm) | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1; 61000-3-2; 62368-1 |
|
PSK-S25D-5-DINAC/DC DIN RAIL SUPPLY 5V 21W |
0 |
|
- |
PSK-S25D (25W) | Tray | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 100V | 370V | 5V | - | - | - | - | - | 4.1A | 21W | 4 kV | ITE (Commercial) | 79% | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | 2.13" L x 1.44" W x 3.78" H (54.0mm x 36.6mm x 96.1mm) | CB Scheme, IEC, UL | 62368-1 |
|
|
PSK-S25D-12-DINAC/DC DIN RAIL SUPPLY 12V 25W |
0 |
|
Технический лист |
PSK-S25D (25W) | Tray | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 100V | 370V | 12V | - | - | - | - | - | 2.1A | 25W | 4 kV | ITE (Commercial) | 83% | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | 2.13" L x 1.44" W x 3.78" H (54.0mm x 36.6mm x 96.1mm) | CB Scheme, IEC, UL | 62368-1 |
|
|
PSK-S25D-24-DINAC/DC DIN RAIL SUPPLY 24V 26W |
0 |
|
- |
PSK-S25D (25W) | Tray | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 100V | 370V | 24V | - | - | - | - | - | 1.1A | 26W | 4 kV | ITE (Commercial) | 85% | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | 2.13" L x 1.44" W x 3.78" H (54.0mm x 36.6mm x 96.1mm) | CB Scheme, IEC, UL | 62368-1 |
|
|
PSK-S25D-48-DINAC/DC DIN RAIL SUPPLY 48V 24W |
0 |
|
- |
PSK-S25D (25W) | Tray | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 100V | 370V | 48V | - | - | - | - | - | 500mA | 24W | 4 kV | ITE (Commercial) | 87% | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | 2.13" L x 1.44" W x 3.78" H (54.0mm x 36.6mm x 96.1mm) | CB Scheme, IEC, UL | 62368-1 |
|
|
PSK-S25D-3-DINAC/DC DIN RAIL SUPPLY 3.3V 14W |
0 |
|
Технический лист |
PSK-S25D (25W) | Tray | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 100V | 370V | 3.3V | - | - | - | - | - | 4.1A | 14W | 4 kV | ITE (Commercial) | 74% | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | 2.13" L x 1.44" W x 3.78" H (54.0mm x 36.6mm x 96.1mm) | CB Scheme, IEC, UL | 62368-1 |
|
|
PSK-S25D-9-DINAC/DC DIN RAIL SUPPLY 9V 23W |
0 |
|
Технический лист |
PSK-S25D (25W) | Tray | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 100V | 370V | 9V | - | - | - | - | - | 2.5A | 23W | 4 kV | ITE (Commercial) | 81% | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | 2.13" L x 1.44" W x 3.78" H (54.0mm x 36.6mm x 96.1mm) | CB Scheme, IEC, UL | 62368-1 |
|
|
PSK-S25D-15-DINAC/DC DIN RAIL SUPPLY 15V 24W |
0 |
|
Технический лист |
PSK-S25D (25W) | Tray | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 100V | 370V | 15V | - | - | - | - | - | 1.6A | 24W | 4 kV | ITE (Commercial) | 84% | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | 2.13" L x 1.44" W x 3.78" H (54.0mm x 36.6mm x 96.1mm) | CB Scheme, IEC, UL | 62368-1 |
|
PSK-S20C-9-DINAC/DC DIN RAIL SUPPLY 9V 20W |
0 |
|
Технический лист |
PSK-S20C (20W) | Tray | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 100V | 370V | 9V | - | - | - | - | - | 2.2A | 20W | 4 kV | ITE (Commercial) | 79% | -40°C ~ 70°C (With Derating) | Universal Input | 1.45" L x 1.24" W x 2.99" H (36.9mm x 31.5mm x 76.0mm) | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1; 61000-3-2; 62368-1 |
|

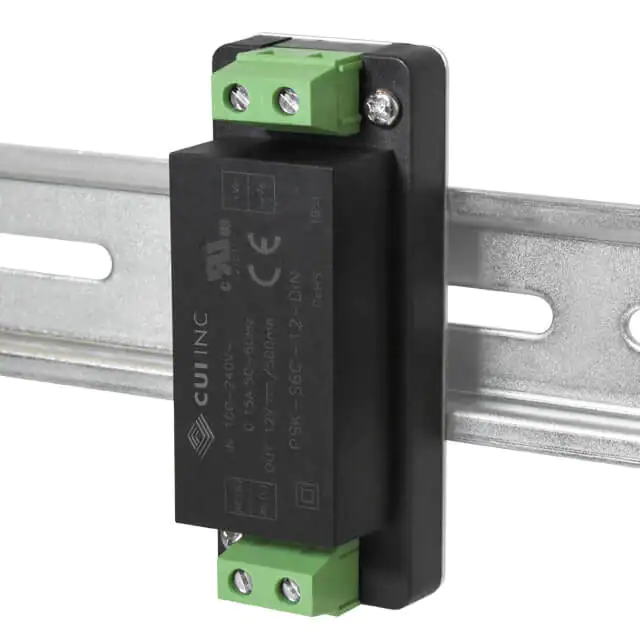

PSK-S6C-5-DINAC/DC DIN RAIL SUPPLY 5V 6W |
0 |
|
Технический лист |
PSK-S6C (6W) | Tray | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 100V | 370V | 5V | - | - | - | - | - | 1.2A | 6W | 4 kV | ITE (Commercial) | 76% | -40°C ~ 70°C (With Derating) | Universal Input | 2.99" L x 1.24" W x 1.13" H (76.0mm x 31.5mm x 28.8mm) | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1; 61000-3-2; 62368-1 |
|
|
PSK-S6C-12-DINAC/DC DIN RAIL SUPPLY 12V 6W |
0 |
|
Технический лист |
PSK-S6C (6W) | Tray | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 100V | 370V | 12V | - | - | - | - | - | 500mA | 6W | 4 kV | ITE (Commercial) | 77% | -40°C ~ 70°C (With Derating) | Universal Input | 2.99" L x 1.24" W x 1.13" H (76.0mm x 31.5mm x 28.8mm) | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1; 61000-3-2; 62368-1 |
|
|
PSK-S6C-24-DINAC/DC DIN RAIL SUPPLY 24V 6W |
0 |
|
- |
PSK-S6C (6W) | Tray | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 100V | 370V | 24V | - | - | - | - | - | 250mA | 6W | 4 kV | ITE (Commercial) | 80% | -40°C ~ 70°C (With Derating) | Universal Input | 2.99" L x 1.24" W x 1.13" H (76.0mm x 31.5mm x 28.8mm) | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1; 61000-3-2; 62368-1 |
|
|
PSK-S6C-9-DINAC/DC DIN RAIL SUPPLY 9V 6W |
0 |
|
Технический лист |
PSK-S6C (6W) | Tray | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 100V | 370V | 9V | - | - | - | - | - | 660mA | 6W | 4 kV | ITE (Commercial) | 74% | -40°C ~ 70°C (With Derating) | Universal Input | 2.99" L x 1.24" W x 1.13" H (76.0mm x 31.5mm x 28.8mm) | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1; 61000-3-2; 62368-1 |
|
|
PSK-S6C-15-DINAC/DC DIN RAIL SUPPLY 15V 6W |
0 |
|
Технический лист |
PSK-S6C (6W) | Tray | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 100V | 370V | 15V | - | - | - | - | - | 400mA | 6W | 4 kV | ITE (Commercial) | 77% | -40°C ~ 70°C (With Derating) | Universal Input | 2.99" L x 1.24" W x 1.13" H (76.0mm x 31.5mm x 28.8mm) | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1; 61000-3-2; 62368-1 |
|
SCD30S15-DNDC/DC DIN RAIL SUPPLY 15V 30W |
0 |
|
Технический лист |
SCD | Bulk | Discontinued | DC | 1 | - | 20V | 72V | 15V | - | - | - | - | - | 2A | 30W | - | Industrial, ITE (Commercial) | - | -25°C ~ 65°C | IP20 | 2.55" L x 1.29" W x 4.51" H (64.8mm x 32.8mm x 115.0mm) | CE, cULus, cURus | - |
|
SCP30S5-DNAC/DC DIN RAIL SUPPLY 5V 30W |
0 |
|
Технический лист |
SCP (30W) | Bulk | Discontinued | AC or DC | 1 | 85 ~ 264 VAC | 100V | 375V | 5V | - | - | - | - | - | 6A | 30W | - | ITE (Commercial) | 70% | -25°C ~ 65°C | IP20, Universal Input | 2.55" L x 1.29" W x 4.71" H (65.0mm x 33.0mm x 120.0mm) | CE, cURus | - |
|
SDN16-12-100PAC/DC DIN RAIL SUPPLY 12V 192W |
0 |
|
Технический лист |
SDN-P | Bulk | Obsolete | - | 1 | - | - | - | 12V | - | - | - | - | - | - | - | - | Hazardous Locations, Industrial, ITE (Commercial) | - | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 4.55" L x 3.23" W x 4.88" H (115.6mm x 82.0mm x 124.0mm) | CE, cULus, cURus | - |
|
SCP30S15-DNAC/DC DIN RAIL SUPPLY 15V 30W |
0 |
|
Технический лист |
SCP (30W) | Bulk | Discontinued | AC or DC | 1 | 85 ~ 264 VAC | 100V | 375V | 15V | - | - | - | - | - | 2A | 30W | - | ITE (Commercial) | 75% | -25°C ~ 65°C | IP20, Universal Input | 2.55" L x 1.29" W x 4.71" H (65.0mm x 33.0mm x 120.0mm) | CE, cURus | - |
