Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PDRC-10-5AC/DC DIN RAIL SUPPLY 5V 7.5W |
0 |
|
Технический лист |
PDRC-10 (10W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 5V | - | - | - | - | - | 1.5A | 7.5W | 3 kV | Industrial, ITE (Commercial) | 75% | -40°C ~ 71°C (With Derating) | IP20, Universal Input | 2.22" L x 0.71" W x 3.58" H (56.5mm x 18.0mm x 91.0mm) | EN, SIQ, TUV, UL | 1310; 8750; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61204-3; 62368-1 |
|
PDRB-5-15AC/DC DIN RAIL SUPPLY 15V 5.1W |
0 |
|
Технический лист |
PDRB-5 (5W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 15V | - | - | - | - | - | 340mA | 5.1W | 3 kV | Industrial, ITE (Commercial) | 72% | -20°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 0.89" W x 3.54" H (114.0mm x 22.5mm x 90.0mm) | EN, SIQ, TUV, UL | 508; 1310; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61000-6-3; 61204-3; 62368-1 |
|
PDRB-18-12AAC/DC DIN RAIL SUPPLY 12V 18W |
0 |
|
Технический лист |
PDRB-18 (18W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 12V | - | - | - | - | - | 1.5A | 18W | 3 kV | Industrial, ITE (Commercial) | 77% | -20°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 0.89" W x 3.54" H (114.0mm x 22.5mm x 90.0mm) | EN, SIQ, TUV, UL | 508; 1310; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61000-6-3; 61204-3; 62368-1 |
|
|
PDRB-5-5AC/DC DIN RAIL SUPPLY 5V 5W |
0 |
|
Технический лист |
PDRB-5 (5W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 5V | - | - | - | - | - | 1A | 5W | 3 kV | Industrial, ITE (Commercial) | 69% | -20°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 0.89" W x 3.54" H (114.0mm x 22.5mm x 90.0mm) | EN, SIQ, TUV, UL | 508; 1310; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61000-6-3; 61204-3; 62368-1 |
|
PDRB-18-5AC/DC DIN RAIL SUPPLY 5V 15W |
0 |
|
Технический лист |
PDRB-18 (18W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 5V | - | - | - | - | - | 3A | 15W | 3 kV | Industrial, ITE (Commercial) | 75% | -20°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 0.89" W x 3.54" H (114.0mm x 22.5mm x 90.0mm) | EN, SIQ, TUV, UL | 508; 1310; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61000-6-3; 61204-3; 62368-1 |
|
PDRB-5-12AAC/DC DIN RAIL SUPPLY 12V 5W |
0 |
|
Технический лист |
PDRB-5 (5W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 12V | - | - | - | - | - | 420mA | 5W | 3 kV | Industrial, ITE (Commercial) | 72% | -20°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 0.89" W x 3.54" H (114.0mm x 22.5mm x 90.0mm) | EN, SIQ, TUV, UL | 508; 1310; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61000-6-3; 61204-3; 62368-1 |
|
PDRB-300-24BAC/DC DIN RAIL SUPPLY 24V 300W |
0 |
|
Технический лист |
PDRB-300 (300W) | Box | Obsolete | AC or DC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 210V | 375V | 24V | - | - | - | - | - | 12.5A | 300W | 3 kV | Industrial, ITE (Commercial) | 89% | -30°C ~ 71°C (With Derating) | Adjustable Output, IP20 | 4.59" L x 3.29" W x 4.90" H (116.6mm x 83.5mm x 124.5mm) | EN, SIQ, TUV, UL | 508; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61000-6-3; 61204-3; 62368-1 |
|
|
PDRB-5-5AAC/DC DIN RAIL SUPPLY 5V 5W |
0 |
|
Технический лист |
PDRB-5 (5W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 5V | - | - | - | - | - | 1A | 5W | 3 kV | Industrial, ITE (Commercial) | 69% | -20°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 0.89" W x 3.54" H (114.0mm x 22.5mm x 90.0mm) | EN, SIQ, TUV, UL | 508; 1310; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61000-6-3; 61204-3; 62368-1 |
|
|
PDRB-18-15AC/DC DIN RAIL SUPPLY 15V 18W |
0 |
|
Технический лист |
PDRB-18 (18W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 15V | - | - | - | - | - | 1.2A | 18W | 3 kV | Industrial, ITE (Commercial) | 77% | -20°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 0.89" W x 3.54" H (114.0mm x 22.5mm x 90.0mm) | EN, SIQ, TUV, UL | 508; 1310; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61000-6-3; 61204-3; 62368-1 |
|

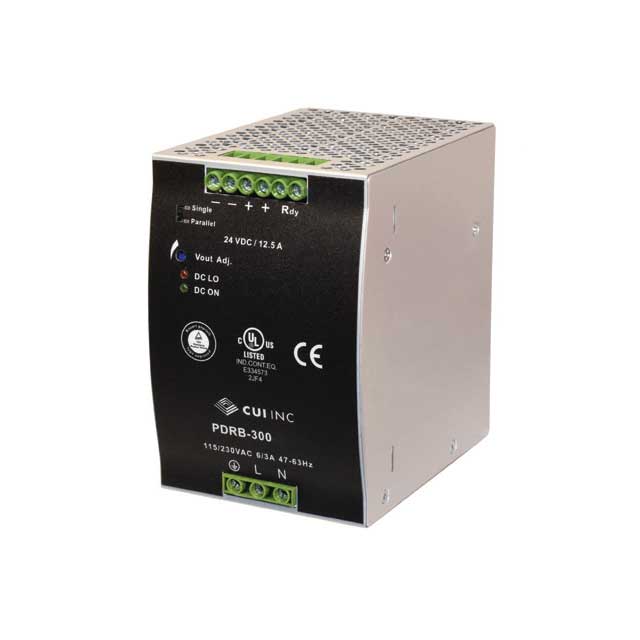

PDRB-300-24AAC/DC DIN RAIL SUPPLY 24V 300W |
0 |
|
Технический лист |
PDRB-300 (300W) | Box | Obsolete | AC or DC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 210V | 375V | 24V | - | - | - | - | - | 12.5A | 300W | 3 kV | Industrial, ITE (Commercial) | 89% | -30°C ~ 71°C (With Derating) | Adjustable Output, IP20 | 4.59" L x 3.29" W x 4.90" H (116.6mm x 83.5mm x 124.5mm) | EN, SIQ, TUV, UL | 508; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61000-6-3; 61204-3; 62368-1 |
|
|
PDRB-18-24AAC/DC DIN RAIL SUPPLY 24V 18W |
0 |
|
Технический лист |
PDRB-18 (18W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 24V | - | - | - | - | - | 750mA | 18W | 3 kV | Industrial, ITE (Commercial) | 77% | -20°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 0.89" W x 3.54" H (114.0mm x 22.5mm x 90.0mm) | EN, SIQ, TUV, UL | 508; 1310; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61000-6-3; 61204-3; 62368-1 |
|
PDRC-60-5AC/DC DIN RAIL SUPPLY 5V 35W |
0 |
|
Технический лист |
PDRC-60 (60W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 5V | - | - | - | - | - | 7A | 35W | 3 kV | Industrial, ITE (Commercial) | 80% | -40°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.80" L x 2.22" W x 3.58" H (71.0mm x 56.5mm x 91.0mm) | EN, SIQ, TUV, UL | 1310; 8750; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61204-3; 62368-1 |
|
|
PDRC-60-15AC/DC DIN RAIL SUPPLY 15V 60W |
0 |
|
Технический лист |
PDRC-60 (60W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 15V | - | - | - | - | - | 4A | 60W | 3 kV | Industrial, ITE (Commercial) | 85% | -40°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.80" L x 2.22" W x 3.58" H (71.0mm x 56.5mm x 91.0mm) | EN, SIQ, TUV, UL | 1310; 8750; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61204-3; 62368-1 |
|

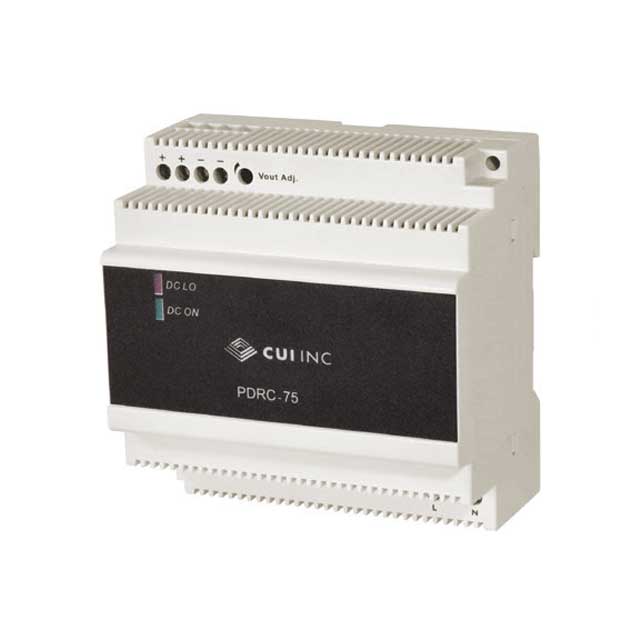

PDRC-75-24AC/DC DIN RAIL SUPPLY 24V 101W |
0 |
|
Технический лист |
PDRC-75 (75W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 24V | - | - | - | - | - | 4.2A | 101W | 3 kV | Industrial, ITE (Commercial) | 89% | -40°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.54" L x 2.24" W x 3.58" H (90.0mm x 57.0mm x 91.0mm) | EN, SIQ, TUV, UL | 1310; 8750; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61204-3; 62368-1 |
|
|
PDRC-75-5AC/DC DIN RAIL SUPPLY 5V 60W |
0 |
|
Технический лист |
PDRC-75 (75W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 5V | - | - | - | - | - | 12A | 60W | 3 kV | Industrial, ITE (Commercial) | 80% | -40°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.54" L x 2.24" W x 3.58" H (90.0mm x 57.0mm x 91.0mm) | EN, SIQ, TUV, UL | 1310; 8750; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61204-3; 62368-1 |
|
|
PDRC-10-15AC/DC DIN RAIL SUPPLY 15V 10W |
0 |
|
Технический лист |
PDRC-10 (10W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 15V | - | - | - | - | - | 670mA | 10W | 3 kV | Industrial, ITE (Commercial) | 80% | -40°C ~ 71°C (With Derating) | IP20, Universal Input | 2.22" L x 0.71" W x 3.58" H (56.5mm x 18.0mm x 91.0mm) | EN, SIQ, TUV, UL | 1310; 8750; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61204-3; 62368-1 |
|
PDRC-24-5AC/DC DIN RAIL SUPPLY 5V 15W |
0 |
|
Технический лист |
PDRC-24 (24W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 5V | - | - | - | - | - | 3A | 15W | 3 kV | Industrial, ITE (Commercial) | 82% | -40°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.22" L x 1.38" W x 3.58" H (56.5mm x 35.0mm x 91.0mm) | EN, SIQ, TUV, UL | 1310; 8750; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61204-3; 62368-1 |
|
|
PDRC-75-24-2AC/DC DIN RAIL SUPPLY 24V 91W |
0 |
|
Технический лист |
PDRC-75 (75W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 24V | - | - | - | - | - | 3.8A | 91W | 3 kV | Industrial, ITE (Commercial) | 89% | -40°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.54" L x 2.24" W x 3.58" H (90.0mm x 57.0mm x 91.0mm) | EN, SIQ, TUV, UL | 1310; 8750; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61204-3; 62368-1 |
|
SPDM482401AC/DC DIN RAIL SUPPLY 48V 240W |
0 |
|
Технический лист |
SPDM (240W) | Box | Discontinued | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 48V | - | - | - | - | - | 5A | 240W | 3 kV | Industrial, ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 5.00" L x 2.75" W x 4.89" H (127.2mm x 69.9mm x 124.4mm) | CE, cULus, cURus | - |
|
IS.AC24VDC10ADINAC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
- |
- | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | - | ITE (Commercial) | - | - | Universal Input | - | - | - |
