Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DR-15-12AC/DC DIN RAIL SUPPLY 12V 15W |
0 |
|
Технический лист |
DR-15 (15W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 1.25A | 15W | 3 kV | ITE (Commercial) | 84% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20" L x 0.98" W x 3.66" H (56.0mm x 25.0mm x 93.0mm) | CB, CE, cURus, TUV | - |
|
DR-15-15AC/DC DIN RAIL SUPPLY 15V 15W |
0 |
|
Технический лист |
DR-15 (15W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 1A | 15W | 3 kV | ITE (Commercial) | 83.5% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20" L x 0.98" W x 3.66" H (56.0mm x 25.0mm x 93.0mm) | CB, CE, cURus, TUV | - |
|
|
DR-15-24AC/DC DIN RAIL SUPPLY 24V 15W |
0 |
|
Технический лист |
DR-15 (15W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 630mA | 15W | 3 kV | ITE (Commercial) | 85% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20" L x 0.98" W x 3.66" H (56.0mm x 25.0mm x 93.0mm) | CB, CE, cURus, TUV | - |
|
|
DR-15-5AC/DC DIN RAIL SUPPLY 5V 12W |
0 |
|
Технический лист |
DR-15 (15W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 5V | - | - | - | - | - | 2.4A | 12W | 3 kV | ITE (Commercial) | 77% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20" L x 0.98" W x 3.66" H (56.0mm x 25.0mm x 93.0mm) | CB, CE, cURus, TUV | - |
|
DR-30-12AC/DC DIN RAIL SUPPLY 12V 24W |
0 |
|
Технический лист |
DR-30 (30W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 2A | 24W | 3 kV | ITE (Commercial) | 81% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20" L x 3.07" W x 3.66" H (56.0mm x 78.0mm x 93.0mm) | CB, CE, cURus, TUV | - |
|
|
DR-30-15AC/DC DIN RAIL SUPPLY 15V 30W |
0 |
|
Технический лист |
DR-30 (30W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 2A | 30W | 3 kV | ITE (Commercial) | 82% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20" L x 3.07" W x 3.66" H (56.0mm x 78.0mm x 93.0mm) | CB, CE, cURus, TUV | - |
|
|
DR-30-24AC/DC DIN RAIL SUPPLY 24V 36W |
0 |
|
Технический лист |
DR-30 (30W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 1.5A | 36W | 3 kV | ITE (Commercial) | 83% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20" L x 3.07" W x 3.66" H (56.0mm x 78.0mm x 93.0mm) | CB, CE, cURus, TUV | - |
|
|
DR-30-5AC/DC DIN RAIL SUPPLY 5V 15W |
0 |
|
Технический лист |
DR-30 (30W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 5V | - | - | - | - | - | 3A | 15W | 3 kV | ITE (Commercial) | 74% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20" L x 3.07" W x 3.66" H (56.0mm x 78.0mm x 93.0mm) | CB, CE, cURus, TUV | - |
|

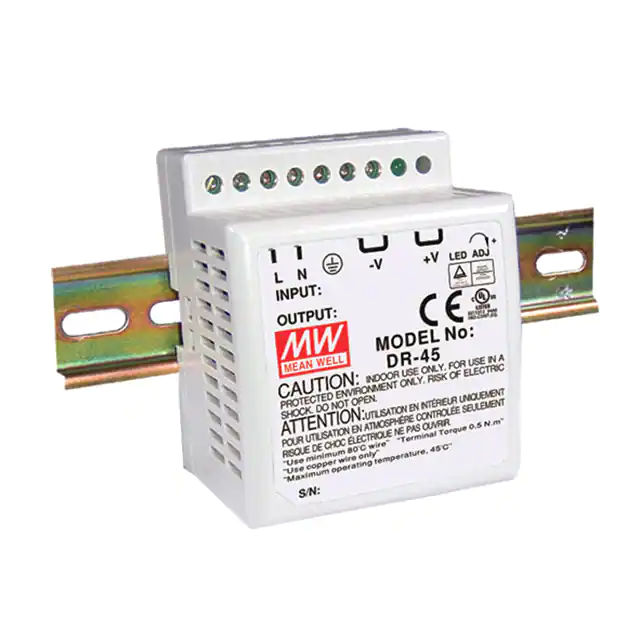

DR-4505AC/DC DIN RAIL SUPPLY 5V 25W |
0 |
|
Технический лист |
DR-45 (45W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 5V | - | - | - | - | - | 5A | 25W | 3 kV | Industrial, ITE (Commercial) | 72% | -10°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | 2.64" L x 3.07" W x 3.66" H (67.0mm x 78.0mm x 93.0mm) | CB, CE, cULus, TUV | - |
|
|
DR-4512AC/DC DIN RAIL SUPPLY 12V 42W |
0 |
|
Технический лист |
DR-45 (45W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 3.5A | 42W | 3 kV | Industrial, ITE (Commercial) | 77% | -10°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | 2.64" L x 3.07" W x 3.66" H (67.0mm x 78.0mm x 93.0mm) | CB, CE, cULus, TUV | - |
|
|
DR-4515AC/DC DIN RAIL SUPPLY 15V 42W |
0 |
|
Технический лист |
DR-45 (45W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 2.8A | 42W | 3 kV | Industrial, ITE (Commercial) | 77% | -10°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | 2.64" L x 3.07" W x 3.66" H (67.0mm x 78.0mm x 93.0mm) | CB, CE, cULus, TUV | - |
|
|
DR-4524AC/DC DIN RAIL SUPPLY 24V 48W |
0 |
|
Технический лист |
DR-45 (45W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 2A | 48W | 3 kV | Industrial, ITE (Commercial) | 80% | -10°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | 2.64" L x 3.07" W x 3.66" H (67.0mm x 78.0mm x 93.0mm) | CB, CE, cULus, TUV | - |
|
DR-60-12AC/DC DIN RAIL SUPPLY 12V 54W |
0 |
|
Технический лист |
DR-60 (60W) | Box | Obsolete | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 12V | - | - | - | - | - | 4.5A | 54W | 3 kV | Industrial, ITE (Commercial) | 82% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20" L x 3.07" W x 3.66" H (56.0mm x 78.0mm x 93.0mm) | CB, CE, cURus, TUV | - |
|
DR-60-15AC/DC DIN RAIL SUPPLY 15V 60W |
0 |
|
Технический лист |
DR-60 (60W) | Box | Obsolete | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 15V | - | - | - | - | - | 4A | 60W | 3 kV | Industrial, ITE (Commercial) | 83% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20" L x 3.07" W x 3.66" H (56.0mm x 78.0mm x 93.0mm) | CB, CE, cURus, TUV | - |
|
|
DR-60-24AC/DC DIN RAIL SUPPLY 24V 60W |
0 |
|
Технический лист |
DR-60 (60W) | Box | Obsolete | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 24V | - | - | - | - | - | 2.5A | 60W | 3 kV | Industrial, ITE (Commercial) | 84% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20" L x 3.07" W x 3.66" H (56.0mm x 78.0mm x 93.0mm) | CB, CE, cURus, TUV | - |
|
|
DR-60-5AC/DC DIN RAIL SUPPLY 5V 33W |
0 |
|
Технический лист |
DR-60 (60W) | Box | Obsolete | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 5V | - | - | - | - | - | 6.5A | 33W | 3 kV | Industrial, ITE (Commercial) | 76% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20" L x 3.07" W x 3.66" H (56.0mm x 78.0mm x 93.0mm) | CB, CE, cURus, TUV | - |
|
DR-75-12AC/DC DIN RAIL SUPPLY 12V 76W |
0 |
|
Технический лист |
DR-75 (75W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 6.3A | 76W | 3 kV | Industrial, ITE (Commercial) | 76% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 2.19" W x 4.93" H (100.0mm x 55.5mm x 125.2mm) | CB, CE, cULus, TUV | - |
|
|
DR-75-24AC/DC DIN RAIL SUPPLY 24V 77W |
0 |
|
Технический лист |
DR-75 (75W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 3.2A | 77W | 3 kV | Industrial, ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 2.19" W x 4.93" H (100.0mm x 55.5mm x 125.2mm) | CB, CE, cULus, TUV | - |
|
|

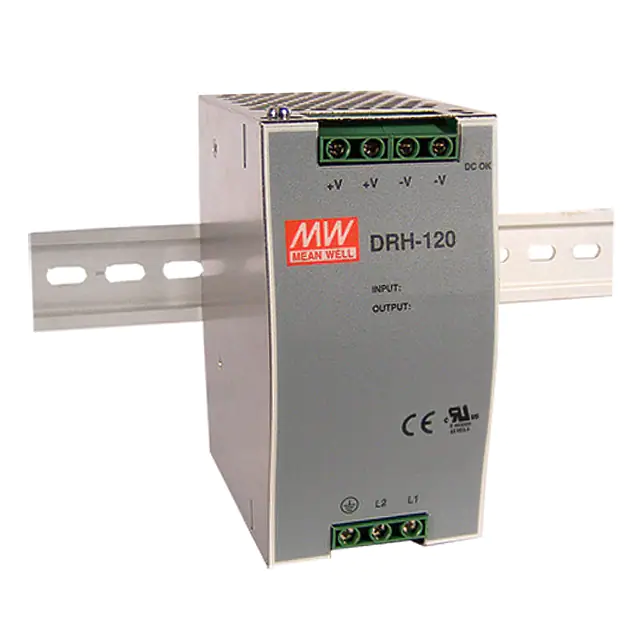

DRH-120-24AC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Технический лист |
DRH-120 (120W) | Box | Obsolete | AC or DC | 1 | 340 ~ 550 VAC | 480V | 780V | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial) | 85% | -20°C ~ 60°C (With Derating) | Adjustable Output | 3.94" L x 2.58" W x 4.93" H (100.0mm x 65.5mm x 125.2mm) | CB, CE, cURus | - |
|
DRH-120-48AC/DC DIN RAIL SUPPLY 48V 120W |
0 |
|
Технический лист |
DRH-120 (120W) | Box | Obsolete | AC or DC | 1 | 340 ~ 550 VAC | 480V | 780V | 48V | - | - | - | - | - | 2.5A | 120W | 3 kV | ITE (Commercial) | 86% | -20°C ~ 60°C (With Derating) | Adjustable Output | 3.94" L x 2.58" W x 4.93" H (100.0mm x 65.5mm x 125.2mm) | CB, CE, cURus | - |
