Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LOK4240-2RLAC/DC DIN RAIL SUPPLY 25.7V 50W |
0 |
|
Технический лист |
Melcher LOK4 (50W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 25.7V | - | - | - | - | - | 1.8A | 50W | 4.3 kV | ITE (Commercial) | 82% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.47" L x 1.50" W x 3.54" H (113.6mm x 38.0mm x 90.0mm) | cCSAus, CE, cULus, NEMKO, TUV | - |
|

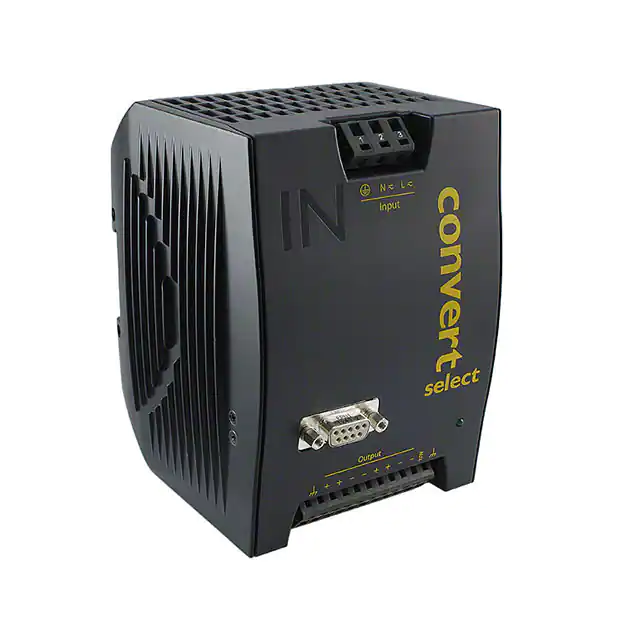

LWN1601-6ERAC/DC DIN RAIL SUPPLY 24.7V 250W |
0 |
|
Технический лист |
Melcher W (250W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24.7V | - | - | - | - | - | 10A | 250W | 2.8 kV | ITE (Commercial) | 88% | -40°C ~ 60°C | Adjustable Output, PFC, Universal Input | 4.47" L x 4.05" W x 5.43" H (113.6mm x 103.0mm x 138.0mm) | cCSAus, CE, cULus, NEMKO, TUV | - |
|
|
LWN1691-6D1K2C3AC/DC DIN RAIL SUPPLY 24.7V 250W |
0 |
|
Технический лист |
Melcher W (250W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24.7V | - | - | - | - | - | 10A | 250W | 2.8 kV | ITE (Commercial) | 88% | -40°C ~ 60°C | Adjustable Output, PFC, Universal Input | 4.47" L x 4.05" W x 5.43" H (113.6mm x 103.0mm x 138.0mm) | cCSAus, CE, cULus, NEMKO, TUV | - |
|
|
LWN1701-6EM1AC/DC DIN RAIL SUPPLY 27V 250W |
0 |
|
Технический лист |
Melcher W (250W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 27V | - | - | - | - | - | 6.6A | 250W | 2.8 kV | ITE (Commercial) | 88% | -40°C ~ 60°C | Adjustable Output, PFC, Universal Input | 4.47" L x 4.05" W x 5.43" H (113.6mm x 103.0mm x 138.0mm) | cCSAus, CE, cULus, NEMKO, TUV | - |
|
|
LWN1702-6EAC/DC DIN RAIL SUPPLY 27V 250W |
0 |
|
Технический лист |
Melcher W (250W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 27V | - | - | - | - | - | 6.6A | 250W | 2.8 kV | ITE (Commercial) | 88% | -40°C ~ 60°C | Adjustable Output, PFC, Universal Input | 4.47" L x 4.05" W x 5.43" H (113.6mm x 103.0mm x 138.0mm) | cCSAus, CE, cULus, NEMKO, TUV | - |
|
|
LWN1902-6EAC/DC DIN RAIL SUPPLY |
0 |
|
Технический лист |
Melcher W (250W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 350V | - | - | - | - | - | - | - | - | - | Industrial, ITE (Commercial), Laboratory | 88% | -40°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.47" L x 4.05" W x 5.43" H (113.5mm x 102.9mm x 137.9mm) | cCSAus, CE, cULus, NEMKO | 60950-1; 61010-1; UL 508 |
|
|
LWN2391-6D1K2C3AC/DC DIN RAIL SUPPLY 250W |
0 |
|
Технический лист |
Melcher W (250W) | Bulk | Active | AC or DC | - | 85 ~ 264 VAC | 90V | 350V | - | - | - | - | - | - | - | 250W | - | Industrial, ITE (Commercial), Laboratory | - | -40°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.47" L x 4.25" W x 5.43" H (113.5mm x 108.0mm x 137.9mm) | cCSAus, CE, cULus, NEMKO | 60950-1; 61010-1; UL 508 |
|
|
LWN2660-6EM1AC/DC DIN RAIL SUP 2X24.7V 250W |
0 |
|
Технический лист |
Melcher W (250W) | Bulk | Obsolete | AC | 2 | 85 ~ 264 VAC | - | - | 24.7V | 24.7V | - | - | - | - | 5A, 5A | 250W | 2.8 kV | ITE (Commercial) | 88% | -40°C ~ 60°C | Adjustable Output, PFC, Universal Input | 4.47" L x 4.05" W x 5.43" H (113.6mm x 103.0mm x 138.0mm) | cCSAus, CE, cULus, NEMKO, TUV | - |
|
|
LWN2663-6EAC/DC DIN RAIL SUP 2X24.7V 250W |
0 |
|
Технический лист |
Melcher W (250W) | Bulk | Obsolete | AC | 2 | 85 ~ 264 VAC | - | - | 24.7V | 24.7V | - | - | - | - | 5A, 5A | 250W | 2.8 kV | ITE (Commercial) | 88% | -40°C ~ 60°C | Adjustable Output, PFC, Universal Input | 4.47" L x 4.05" W x 5.43" H (113.6mm x 103.0mm x 138.0mm) | cCSAus, CE, cULus, NEMKO, TUV | - |
|
|
LWR1601-6EC1AC/DC DIN RAIL SUPPLY 24.7V 125W |
0 |
|
Технический лист |
Melcher W (125W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24.7V | - | - | - | - | - | 5A | 125W | 2.8 kV | ITE (Commercial) | 88% | -40°C ~ 60°C | Adjustable Output, PFC, Universal Input | 4.47" L x 4.05" W x 5.43" H (113.6mm x 103.0mm x 138.0mm) | cCSAus, CE, cULus, NEMKO, TUV | - |
|
|
LWR1606-6C1AC/DC DIN RAIL SUPPLY 125W |
0 |
|
Технический лист |
Melcher W (125W) | Bulk | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 90V | 350V | - | - | - | - | - | - | - | 125W | - | Industrial, ITE (Commercial), Laboratory | - | -40°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.47" L x 4.25" W x 5.43" H (113.5mm x 108.0mm x 137.9mm) | cCSAus, CE, cULus, NEMKO | 60950-1; 61010-1; UL 508 |
|
|
LWR1801-6ERAC/DC DIN RAIL SUPPLY 49.4V 125W |
0 |
|
Технический лист |
Melcher W (125W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 49.4V | - | - | - | - | - | 2.5A | 125W | 2.8 kV | ITE (Commercial) | 88% | -40°C ~ 60°C | Adjustable Output, PFC, Universal Input | 4.47" L x 4.05" W x 5.43" H (113.6mm x 103.0mm x 138.0mm) | cCSAus, CE, cULus, NEMKO, TUV | - |
|
LXN1601-6K2AC/DC DIN RAIL SUPPLY 24.7V 500W |
0 |
|
Технический лист |
Melcher X (500W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24.7V | - | - | - | - | - | 20A | 500W | 2.8 kV | ITE (Commercial) | 87% | -40°C ~ 60°C | Adjustable Output, Load Sharing, PFC, Universal Input | 7.64" L x 4.47" W x 5.43" H (194.0mm x 106.6mm x 138.0mm) | cCSAus, CE | - |
|
|
LXN1601-6M1AC/DC DIN RAIL SUPPLY 24.7V 500W |
0 |
|
Технический лист |
Melcher X (500W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24.7V | - | - | - | - | - | 20A | 500W | 2.8 kV | ITE (Commercial) | 87% | -40°C ~ 60°C | Adjustable Output, Load Sharing, PFC, Universal Input | 7.64" L x 4.47" W x 5.43" H (194.0mm x 106.6mm x 138.0mm) | cCSAus, CE | - |
|
|
LXN1604-6AC/DC DIN RAIL SUPPLY |
0 |
|
Технический лист |
Melcher X (500W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 350V | - | - | - | - | - | - | - | - | - | ITE (Commercial), Laboratory | - | -40°C ~ 60°C | Adjustable Output, Load Sharing, PFC, Universal Input | 7.64" L x 4.47" W x 5.43" H (194.1mm x 113.5mm x 137.9mm) | cCSAus, CE | 61010-1; 60950-1 |
|
|
LXN1701-6RAC/DC DIN RAIL SUPPLY 37V 500W |
0 |
|
Технический лист |
Melcher X (500W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 37V | - | - | - | - | - | 13.4A | 500W | 2.8 kV | ITE (Commercial) | 87% | -40°C ~ 60°C | Adjustable Output, Load Sharing, PFC, Universal Input | 7.64" L x 4.47" W x 5.43" H (194.0mm x 106.6mm x 138.0mm) | cCSAus, CE | - |
|
|
LXN1801-6K2AC/DC DIN RAIL SUPPLY 49.4V 500W |
0 |
|
Технический лист |
Melcher X (500W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 49.4V | - | - | - | - | - | 10A | 500W | 2.8 kV | ITE (Commercial) | 87% | -40°C ~ 60°C | Adjustable Output, Load Sharing, PFC, Universal Input | 7.64" L x 4.47" W x 5.43" H (194.0mm x 106.6mm x 138.0mm) | cCSAus, CE | - |
|
|
LXN2880-6RAC/DC DIN RAIL SUP 2X49.4V 500W |
0 |
|
Технический лист |
Melcher X (500W) | Bulk | Active | AC | 2 | 85 ~ 264 VAC | - | - | 49.4V | 49.4V | - | - | - | - | 5A, 5A | 500W | 2.8 kV | ITE (Commercial) | 88% | -40°C ~ 60°C | Adjustable Output, Load Sharing, PFC, Universal Input | 7.64" L x 4.47" W x 5.43" H (194.0mm x 106.6mm x 138.0mm) | cCSAus, CE | - |
|
PSK1220-7ECBDC/DC DIN RAIL SUPPLY 12V 240W |
0 |
|
Технический лист |
Melcher PSK | Bulk | Active | DC | 1 | - | 15V | 80V | 12V | - | - | - | - | - | 20A | 240W | - | ITE (Commercial), Railway | - | -25°C ~ 71°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | 6.77" L x 4.37" W x 3.15" H (171.9mm x 111.0mm x 80.0mm) | cCSAus, CE | 60950-1 |
|
|
PSK2412-9B1DC/DC DIN RAIL SUPPLY 24V 288W |
0 |
|
Технический лист |
Melcher PSK | Bulk | Active | DC | 1 | - | 31V | 144V | 24V | - | - | - | - | - | 12A | 288W | - | ITE (Commercial), Railway | 94% | -40°C ~ 71°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | 6.77" L x 4.37" W x 3.15" H (171.9mm x 111.0mm x 80.0mm) | cCSAus, CE | 60950-1 |
