Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
16111.2AC/DC DIN RAIL SUPPLY |
0 |
|
Технический лист |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RPMD30-2412DEWDC/DC DIN RAIL SUPPLY +/-12V 30W |
0 |
|
Технический лист |
POWERLINE Power Modules (30W) | Box | Active | DC | 2 | - | 10V | 40V | 12V | -12V | - | - | - | - | 1.25A, 1.25A | 30W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | - |
|
|
RPMD30-2415DEWDC/DC DIN RAIL SUPPLY +/-15V 30W |
0 |
|
Технический лист |
POWERLINE Power Modules (30W) | Box | Active | DC | 2 | - | 10V | 40V | 15V | -15V | - | - | - | - | 1A, 1A | 30W | - | ITE (Commercial) | - | - | - | 4.92" L x 0.96" W x 2.27" H (125.0mm x 24.5mm x 57.6mm) | CE, LVD | - |
|
|
RPMD30-4812DEWDC/DC DIN RAIL SUPPLY +/-12V 30W |
0 |
|
Технический лист |
POWERLINE Power Modules (30W) | Box | Active | DC | 2 | - | 18V | 75V | 12V | -12V | - | - | - | - | 1.25A, 1.25A | 30W | - | ITE (Commercial) | - | - | - | 4.92" L x 0.96" W x 2.27" H (125.0mm x 24.5mm x 57.6mm) | CE, LVD | - |
|
|
RPMD30-4815DEWDC/DC DIN RAIL SUPPLY +/-15V 30W |
0 |
|
Технический лист |
POWERLINE Power Modules (30W) | Box | Active | DC | 2 | - | 18V | 75V | 15V | -15V | - | - | - | - | 1A, 1A | 30W | - | ITE (Commercial) | - | - | - | 4.92" L x 0.96" W x 2.27" H (125.0mm x 24.5mm x 57.6mm) | CE, LVD | - |
|
PDRA-240-24AC/DC DIN RAIL SUPPLY 24V 240W |
1 |
|
Технический лист |
PDRA-240 (240W) | Bag | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 92% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | 4.72" L x 2.36" W x 4.92" H (120.0mm x 60.0mm x 125.0mm) | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1; 61000-3-2; 61000-3-3 |
|
|
RPMD30-2405SEW/NDC/DC DIN RAIL SUPPLY 5V 30W |
0 |
|
Технический лист |
POWERLINE Power Modules (30W) | Box | Active | DC | 1 | - | 10V | 40V | 5V | - | - | - | - | - | 6A | 30W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD30-2412SEW/NDC/DC DIN RAIL SUPPLY 12V 30W |
0 |
|
Технический лист |
POWERLINE Power Modules (30W) | Box | Active | DC | 1 | - | 10V | 40V | 12V | - | - | - | - | - | 2.5A | 30W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD30-2415SEW/NDC/DC DIN RAIL SUPPLY 15V 30W |
0 |
|
Технический лист |
POWERLINE Power Modules (30W) | Box | Active | DC | 1 | - | 10V | 40V | 15V | - | - | - | - | - | 2A | 30W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD30-243.3SEW/NDC/DC DIN RAIL SUPPLY 3.3V 30W |
0 |
|
Технический лист |
POWERLINE Power Modules (30W) | Box | Active | DC | 1 | - | 10V | 40V | 3.3V | - | - | - | - | - | 9.1A | 30W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD30-4805SEW/NDC/DC DIN RAIL SUPPLY 5V 30W |
0 |
|
Технический лист |
POWERLINE Power Modules (30W) | Box | Active | DC | 1 | - | 18V | 75V | 5V | - | - | - | - | - | 6A | 30W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD30-4812SEW/NDC/DC DIN RAIL SUPPLY 12V 30W |
0 |
|
Технический лист |
POWERLINE Power Modules (30W) | Box | Active | DC | 1 | - | 18V | 75V | 12V | - | - | - | - | - | 2.5A | 30W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD30-4815SEW/NDC/DC DIN RAIL SUPPLY 15V 30W |
0 |
|
Технический лист |
POWERLINE Power Modules (30W) | Box | Active | DC | 1 | - | 18V | 75V | 15V | - | - | - | - | - | 2A | 30W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD30-483.3SEW/NDC/DC DIN RAIL SUPPLY 3.3V 30W |
0 |
|
Технический лист |
POWERLINE Power Modules (30W) | Box | Active | DC | 1 | - | 18V | 75V | 3.3V | - | - | - | - | - | 9.1A | 30W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
SW247HPAC/DC DIN RAIL SUPPLY 24-32 |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

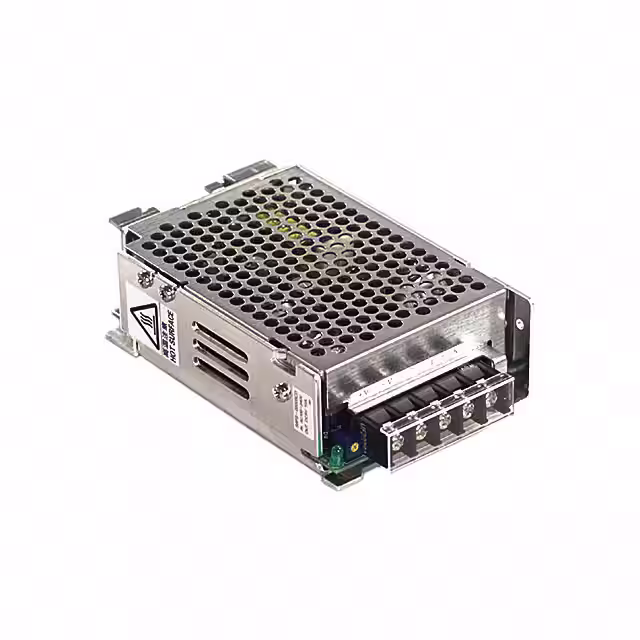

S8PS-05005CDAC/DC DIN RAIL SUPPLY 5V 50W |
0 |
|
Технический лист |
S8PS (50W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 10A | 50W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 5.00" L x 1.57" W x 3.35" H (127.0mm x 40.0mm x 85.0mm) | CE, CSA, UR, VDE | - |
|

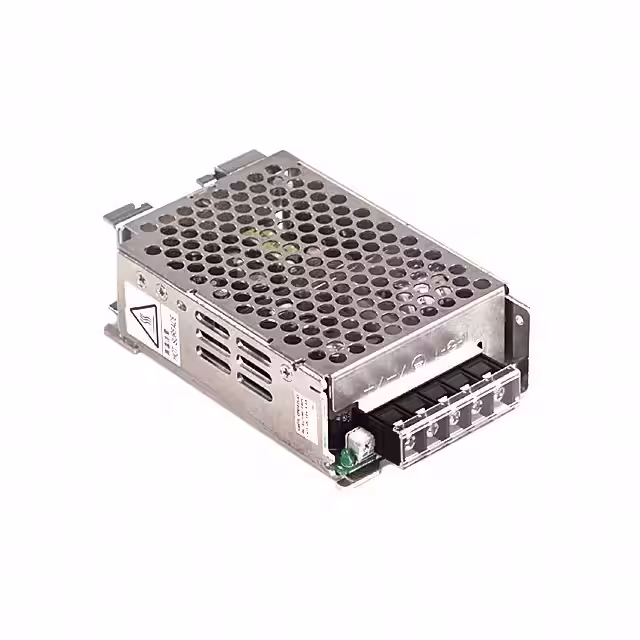

S8PS-05012CDAC/DC DIN RAIL SUPPLY 12V 50W |
0 |
|
Технический лист |
S8PS (50W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 4.2A | 50W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 5.00" L x 1.57" W x 3.35" H (127.0mm x 40.0mm x 85.0mm) | CE, CSA, UR, VDE | - |
|
|
DRL-24V480W1ASAC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
Технический лист |
LYTE (480W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 375V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Industrial, ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 5.06" L x 3.37" W x 4.87" H (128.5mm x 85.6mm x 123.7mm) | CB, CCC, CE, cULus, cURus, TUV | - |
|
LIF480-10B48R2AC/DC DIN RAIL SUPPLY 48V 480W |
0 |
|
Технический лист |
LIF480-10BxxR2 (480W) | Box | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 10A | 480W | 3 kV | Industrial, ITE (Commercial), Medical | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output | 5.18" L x 1.89" W x 4.92" H (131.5mm x 48.0mm x 125.0mm) | - | 61010-1; 62368-1; UL 508 |
|
|
SW245HPAC/DC DIN RAIL SUPPLY 24-32 |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
