Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PBA150F-15-J1N1AC/DC CONVERTER 15V |
0 |
|
Технический лист |
PBA (150W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 10A | 150W | 3 kV | ITE (Commercial) | 87% | -10°C ~ 71°C (With Derating) | DC Input Capable, PFC, Universal Input | 6.61" L x 1.34" W x 3.66" H (167.9mm x 34.0mm x 93.0mm) | CE, cURus, TUV | 60950-1; 62368-1 |
|
|
PBA150F-12-J1N1AC/DC CONVERTER 12V |
0 |
|
Технический лист |
PBA (150W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 13A | 156W | 3 kV | ITE (Commercial) | 86% | -10°C ~ 71°C (With Derating) | DC Input Capable, PFC, Universal Input | 6.61" L x 1.34" W x 3.66" H (167.9mm x 34.0mm x 93.0mm) | CE, cURus, TUV | 60950-1; 62368-1 |
|
|
PBA150F-48-J1N1AC/DC CONVERTER 48V |
0 |
|
Технический лист |
PBA (150W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 3.3A | 158W | 3 kV | ITE (Commercial) | 88% | -10°C ~ 71°C (With Derating) | DC Input Capable, PFC, Universal Input | 6.61" L x 1.34" W x 3.66" H (167.9mm x 34.0mm x 93.0mm) | CE, cURus, TUV | 60950-1; 62368-1 |
|
|
PBA150F-24-J1N1AC/DC CONVERTER 24V |
0 |
|
Технический лист |
PBA (150W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 6.5A | 156W | 3 kV | ITE (Commercial) | 88% | -10°C ~ 71°C (With Derating) | DC Input Capable, PFC, Universal Input | 6.61" L x 1.34" W x 3.66" H (167.9mm x 34.0mm x 93.0mm) | CE, cURus, TUV | 60950-1; 62368-1 |
|
|
PBA150F-36-J1N1AC/DC CONVERTER 36V |
0 |
|
Технический лист |
PBA (150W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 36V | - | - | - | - | - | 4.3A | 155W | 3 kV | ITE (Commercial) | 88% | -10°C ~ 71°C (With Derating) | DC Input Capable, PFC, Universal Input | 6.61" L x 1.34" W x 3.66" H (167.9mm x 34.0mm x 93.0mm) | CE, cURus, TUV | 60950-1; 62368-1 |
|
S82K-03012AC/DC DIN RAIL SUPPLY 12V 30W |
0 |
|
Технический лист |
S82K (30W) | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 12V | - | - | - | - | - | 2.5A | 30W | 3 kV | ITE (Commercial) | 66% | -10°C ~ 60°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | 3.58" L x 3.54" W x 2.95" H (91.0mm x 90.0mm x 75.0mm) | CE, cULus, cURus, VDE | - |
|

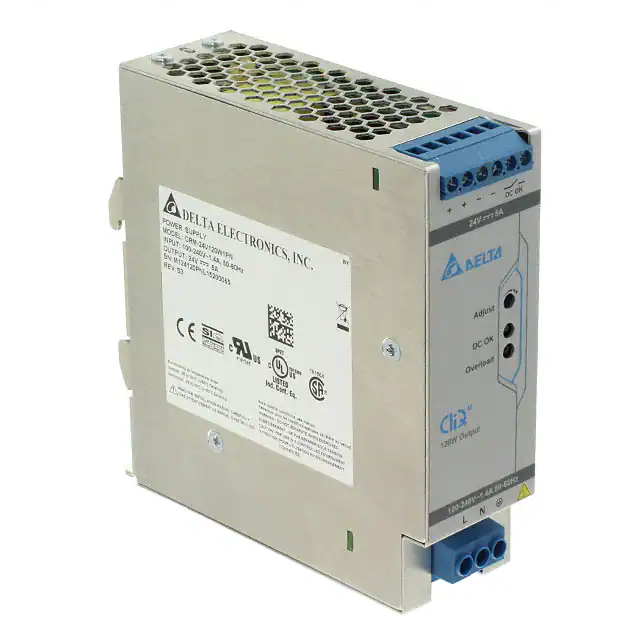

DRM-24V120W1PNAC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Технический лист |
CliQ M (120W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 4.5 kV | ITE (Commercial) | 92.8% | -25°C ~ 70°C | IP20, Universal Input | 4.60" L x 1.57" W x 4.88" H (117.0mm x 40.0mm x 124.0mm) | CB, CE, CSA, cULus, cURus | 508; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61000-6-3; 61010-1; 61204-3; 62368-1 |
|
|
S82K-03005AC/DC DIN RAIL SUPPLY 5V 30W |
0 |
|
Технический лист |
S82K (30W) | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 5V | - | - | - | - | - | 5A | 30W | 3 kV | ITE (Commercial) | 66% | -10°C ~ 60°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | 3.58" L x 3.54" W x 2.95" H (91.0mm x 90.0mm x 75.0mm) | CE, cULus, cURus, VDE | - |
|
LDN120-48PAC/DC DIN RAIL SUPPLY 48V 120W |
1 |
|
- |
LDN120 (120W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 2.5A | 120W | 4.2 kV | ITE (Commercial) | 86% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.33" L x 1.57" W x 4.53" H (110.0mm x 40.0mm x 115.0mm) | - | - |
|
|
SW243LCAC/DC-DC CONVERTERS, 3A, DIN RAI |
0 |
|
Технический лист |
- | Bulk | Active | AC or DC | 1 | 28 VAC | - | 40V | 24V | - | - | - | - | - | 3A | 72W | - | Laboratory | 88% | -10°C ~ 70°C | Adjustable Output, IP20, Universal Input | 2.40" L x 2.36" W x 3.74" H (61.0mm x 60.0mm x 95.0mm) | - | 61010-1 |
|

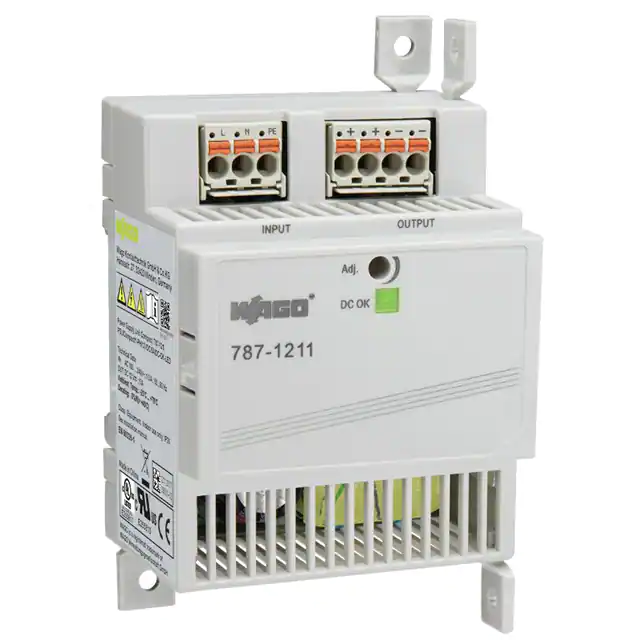

787-1211AC/DC CONVERTER 12V 60W |
0 |
|
Технический лист |
- | Box | Active | - | 1 | - | - | - | 12V | - | - | - | - | - | - | 60W | 4.242 kV | ITE (Commercial), Medical | 88.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC | 2.20" L x 2.83" W x 3.54" H (56.0mm x 72.0mm x 90.0mm) | cURus, EAC, UL | 60335-1; 60950-1; 62368-1 |
|

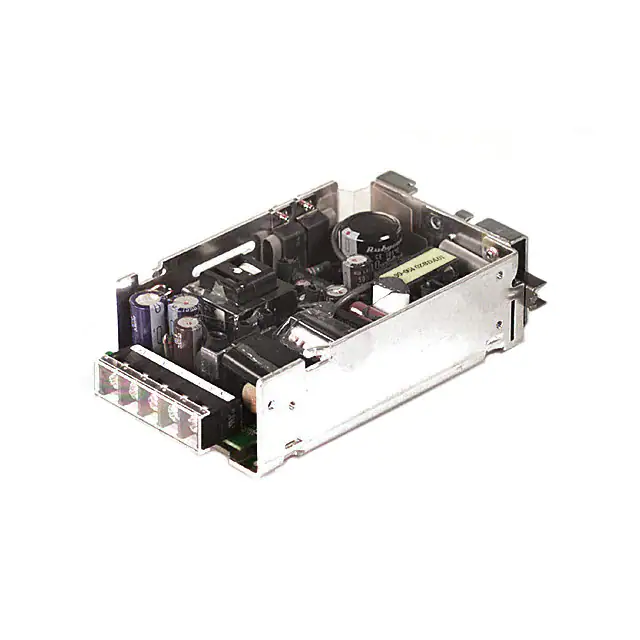

S8PS-05024CDAC/DC DIN RAIL SUPPLY 24V 50W |
0 |
|
Технический лист |
S8PS (50W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.1A | 50W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 5.00" L x 1.57" W x 3.35" H (127.0mm x 40.0mm x 85.0mm) | CE, CSA, UR, VDE | - |
|
S82K-03024AC/DC DIN RAIL SUPPLY 24V 30W |
0 |
|
Технический лист |
S82K (30W) | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 1.3A | 30W | 3 kV | ITE (Commercial) | 66% | -10°C ~ 60°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | 3.58" L x 3.54" W x 2.95" H (91.0mm x 90.0mm x 75.0mm) | CE, cULus, cURus, VDE | - |
|
|
PSS100/24/4.2POWER SUPPLY; DINRAIL;100W |
0 |
|
- |
PSS100 (100W) | Bulk | Active | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 24V | - | - | - | - | - | 4.2A | 101W | 4.242 kV | Industrial, ITE (Commercial) | 86% | -35°C ~ 71°C | Adjustable Output, Universal Input | 4.49" L x 2.13" W x 3.54" H (114.0mm x 54.0mm x 90.0mm) | CE, cULus, cURus | 60950-1; UL 508 |
|
DPX15-24WS3P3DC/DC DIN RAIL SUPPLY 3.3V 15W |
0 |
|
Технический лист |
DPX (15W) | Bulk | Active | DC | 1 | - | 9.5V | 36V | 3.3V | - | - | - | - | - | 5A | 15W | - | ITE (Commercial) | 84% | -40°C ~ 95°C | - | 4.92" L x 2.27" W x 0.97" H (125.0mm x 57.6mm x 24.5mm) | CE | - |
|

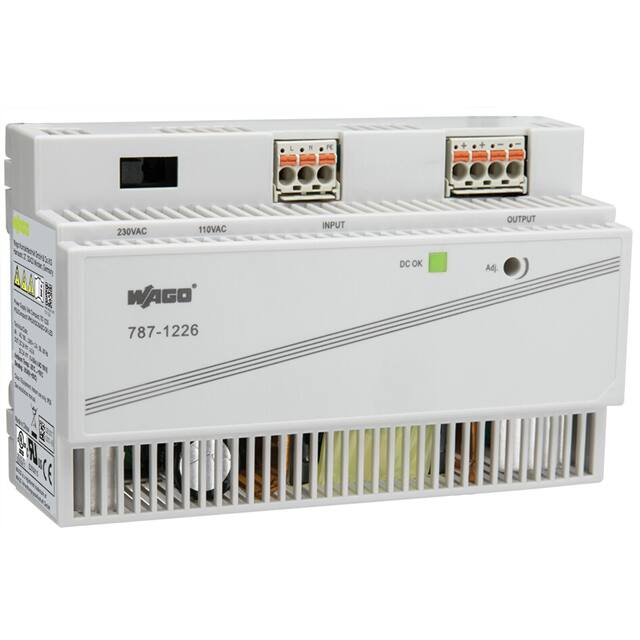

787-1226AC/DC DIN RAIL SUPPLY 24V 150W |
0 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 90 ~ 132 VAC | 250V | 375V | 24V | - | - | - | - | - | 6A | 150W | 4.242 kV | Industrial, ITE (Commercial), Laboratory | 90% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 6.07" L x 5.67" W x 3.54" H (154.1mm x 144.0mm x 90.0mm) | cURus, EAC, UL | 60950-1; 61010-1; 62368-1; UL 508 |
|
8951330000AC/DC DIN RAIL SUPPLY 24V 70W |
0 |
|
Технический лист |
Connect Power Pro-M (70W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3A | 70W | 4 kV | ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 1.30" W x 5.12" H (125.0mm x 33.0mm x 130.0mm) | CE, cULus, cURus, GOST, TUV | - |
|
787-1001AC/DC DIN RAIL SUPPLY 12V 24W |
0 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 300V | 12V | - | - | - | - | - | 2A | 24W | 4.242 kV | Industrial, ITE (Commercial), Laboratory | 85% | -25°C ~ 60°C | Adjustable Output, IP20, PFC, Universal Input | 2.17" L x 2.13" W x 3.50" H (55.0mm x 54.0mm x 89.0mm) | cURus, EAC | 60950-1; 61010-1; UL 508 |
|
SPD12301AC/DC DIN RAIL SUPPLY 12V 30W |
0 |
|
Технический лист |
SPD (30W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 12V | - | - | - | - | - | 2.5A | 30W | - | Hazardous Locations, Industrial, ITE (Commercial) | 84% | -40°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 1.59" W x 3.54" H (114.0mm x 40.5mm x 90.0mm) | CCC, CE, cULus, cURus, TUV | - |
|
SPD24301BAC/DC DIN RAIL SUPPLY 24V 30W |
0 |
|
Технический лист |
SPD (30W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 24V | - | - | - | - | - | 1.25A | 30W | - | Hazardous Locations, Industrial, ITE (Commercial) | 86% | -40°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 1.59" W x 3.54" H (114.0mm x 40.5mm x 90.0mm) | CCC, CE, cULus, cURus, TUV | - |
