Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

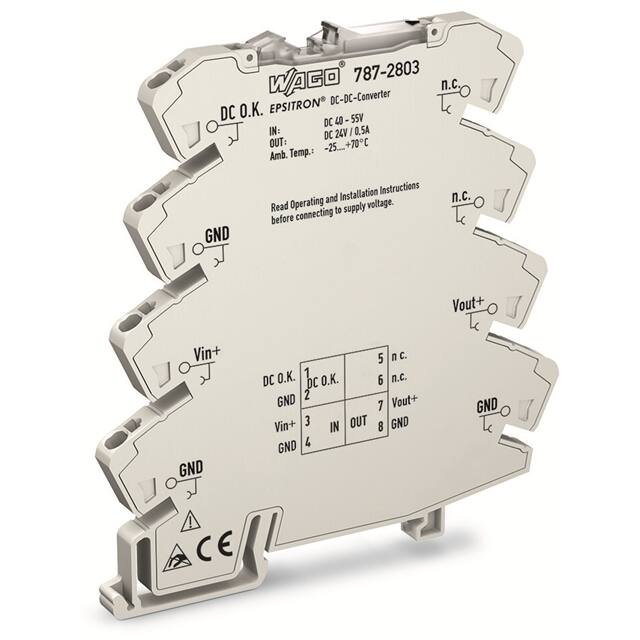

787-2803DC/DC DIN RAIL SUPPLY 24V 12W |
0 |
|
Технический лист |
- | Bag | Active | DC | 1 | - | 40V | 55V | 24V | - | - | - | - | - | 500mA | 12W | - | ITE (Commercial), Laboratory | 91% | -25°C ~ 70°C | Adjustable Output, IP20 | 3.85" L x 0.24" W x 3.70" H (97.8mm x 6.0mm x 94.0mm) | CE, EAC, UL | 60950-1; 61010-1 |
|
PSC-9624AC/DC DIN RAIL SUPPLY 24V 96W |
0 |
|
Технический лист |
PSC-96 (96W) | Box | Obsolete | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 24V | - | - | - | - | - | 4A | 96W | 4.242 kV | Industrial, ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.90" L x 2.17" W x 3.54" H (99.0mm x 55.0mm x 90.0mm) | CE, cULus, TUV, UR | 508; 60950-1 |
|

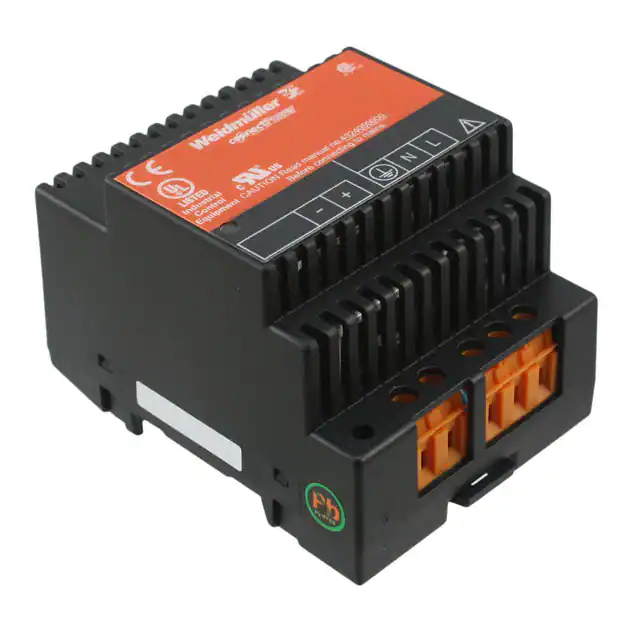

9928890005AC/DC DIN RAIL SUPPLY 5V 24W |
0 |
|
Технический лист |
Connect Power INSTA (24W) | Bulk | Obsolete | AC | 1 | 85 ~ 265 VAC | - | - | 5V | - | - | - | - | - | 2A | 24W | 3 kV | ITE (Commercial) | 78% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 2.46" L x 2.05" W x 3.56" H (62.5mm x 52.0mm x 90.5mm) | CE, cULus, cURus, GOST, TUV | - |
|
|
9928890012AC/DC DIN RAIL SUPPLY 12V 24W |
0 |
|
Технический лист |
Connect Power INSTA (24W) | Bulk | Obsolete | AC | 1 | 85 ~ 265 VAC | - | - | 12V | - | - | - | - | - | 1.5A | 24W | 3 kV | ITE (Commercial) | 78% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 2.46" L x 2.05" W x 3.56" H (62.5mm x 52.0mm x 90.5mm) | CE, cULus, cURus, GOST, TUV | - |
|
|
9928890015AC/DC DIN RAIL SUPPLY 15V 24W |
0 |
|
Технический лист |
Connect Power INSTA (24W) | Bulk | Obsolete | AC | 1 | 85 ~ 265 VAC | - | - | 15V | - | - | - | - | - | 1.5A | 24W | 3 kV | ITE (Commercial) | 78% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 2.46" L x 2.05" W x 3.56" H (62.5mm x 52.0mm x 90.5mm) | CE, cULus, cURus, GOST, TUV | - |
|
|
9928890028AC/DC DIN RAIL SUPPLY 28V 24W |
0 |
|
Технический лист |
Connect Power INSTA (24W) | Bulk | Obsolete | AC | 1 | 85 ~ 265 VAC | - | - | 28V | - | - | - | - | - | 1A | 24W | 3 kV | ITE (Commercial) | 78% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 2.46" L x 2.05" W x 3.56" H (62.5mm x 52.0mm x 90.5mm) | CE, cULus, cURus, GOST, TUV | - |
|

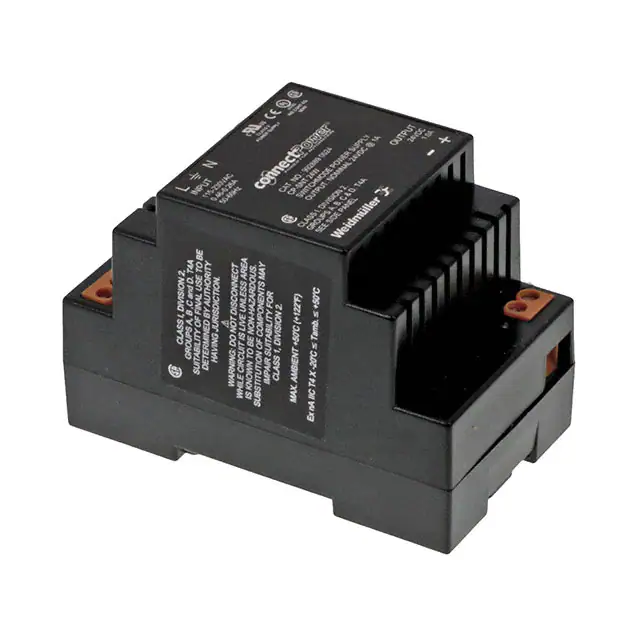

9928890024AC/DC DIN RAIL SUPPLY 24V 24W |
0 |
|
Технический лист |
Connect Power INSTA (24W) | Bulk | Obsolete | AC | 1 | 85 ~ 265 VAC | - | - | 24V | - | - | - | - | - | 1A | 24W | 3 kV | ITE (Commercial) | 78% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 2.46" L x 2.05" W x 3.56" H (62.5mm x 52.0mm x 90.5mm) | CE, cULus, cURus, GOST, TUV | - |
|
BB-SDR-120-24AC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Технический лист |
SDR-120 (120W) | Bulk | Active | AC | 1 | 88 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | Industrial, ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output | 4.47" L x 1.57" W x 4.94" H (113.5mm x 40.0mm x 125.2mm) | CB, CE, cULus, TUV | - |
|
|
FCA50F-24-N1AC/DC DIN RAIL SUPPLY 24V 50W |
0 |
|
Технический лист |
FCA (50W) | Box | Obsolete | AC or DC | 1 | 187 ~ 528 VAC | 265V | 746V | 24V | - | - | - | - | - | 2.1A | 50W | 3 kV | ITE (Commercial) | 82% | -10°C ~ 60°C (With Derating) | - | 5.91" L x 5.00" W x 4.92" H (150.0mm x 127.0mm x 125.0mm) | CE, cURus, TUV | - |
|
|
PS-10012AC/DC DIN RAIL SUPPLY 12V 90W |
0 |
|
- |
PS-100 (100W) | Bulk | Obsolete | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 12V | - | - | - | - | - | 7.5A | 90W | 3 kV | ITE (Commercial) | 87% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 2.20" W x 3.66" H (100.0mm x 56.0mm x 93.0mm) | CE, cURus | 60950-1 |
|
|
PS-10015AC/DC DIN RAIL SUPPLY 15V 98W |
0 |
|
- |
PS-100 (100W) | Bulk | Obsolete | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 15V | - | - | - | - | - | 6.5A | 98W | 3 kV | ITE (Commercial) | 87% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 2.20" W x 3.66" H (100.0mm x 56.0mm x 93.0mm) | CE, cURus | 60950-1 |
|
|
PS-10024AC/DC DIN RAIL SUPPLY 24V 101W |
0 |
|
- |
PS-100 (100W) | Bulk | Obsolete | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 24V | - | - | - | - | - | 4.2A | 101W | 3 kV | ITE (Commercial) | 89% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 2.20" W x 3.66" H (100.0mm x 56.0mm x 93.0mm) | CE, cURus | 60950-1 |
|
SPD05181AC/DC DIN RAIL SUPPLY 5V 15W |
0 |
|
Технический лист |
SPD (18W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 5V | - | - | - | - | - | 3A | 15W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 75% | -20°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 0.89" W x 3.54" H (114.0mm x 22.5mm x 90.0mm) | CCC, CE, cULus, cURus, TUV | - |
|
SPD12181AC/DC DIN RAIL SUPPLY 12V 18W |
0 |
|
Технический лист |
SPD (18W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 12V | - | - | - | - | - | 1.5A | 18W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 77% | -20°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 0.89" W x 3.54" H (114.0mm x 22.5mm x 90.0mm) | CCC, CE, cULus, cURus, TUV | - |
|
SPD24181AC/DC DIN RAIL SUPPLY 24V 18W |
0 |
|
Технический лист |
SPD (18W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 24V | - | - | - | - | - | 750mA | 18W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 77% | -20°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 0.89" W x 3.54" H (114.0mm x 22.5mm x 90.0mm) | CCC, CE, cULus, cURus, TUV | - |
|
|
SPD15181AC/DC DIN RAIL SUPPLY 15V 18W |
0 |
|
- |
SPD (18W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 15V | - | - | - | - | - | 1.2A | 18W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 77% | -20°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 0.89" W x 3.54" H (114.0mm x 22.5mm x 90.0mm) | CCC, CE, cULus, cURus, TUV | - |
|
SPMA15601AC/DC DIN RAIL SUPPLY 15V 60W |
0 |
|
Технический лист |
SPMA | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 350V | 15V | - | - | - | - | - | 4A | 60W | 4 kV | Industrial, ITE (Commercial) | 87% | -30°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.50" L x 2.10" W x 3.60" H (63.5mm x 53.3mm x 91.4mm) | CE | 62368-1; UL 508 |
|
SPD24101BAC/DC DIN RAIL SUPPLY 24V 10W |
1 |
|
Технический лист |
SPD (10W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 24V | - | - | - | - | - | 420mA | 10W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 76% | -20°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 0.89" W x 3.54" H (114.0mm x 22.5mm x 90.0mm) | CCC, CE, cULus, cURus, TUV | - |
|
XCSL1072W024VAAAC/DC DIN RAIL SUPPLY 24V 72W |
1 |
|
Технический лист |
- | Box | Discontinued | AC or DC | 1 | 120 ~ 240 VAC | 100V | 370V | 24V | - | - | - | - | - | 3A | 72W | - | Industrial | 87% | - | - | - | CB, CE | 62368-1 |
|

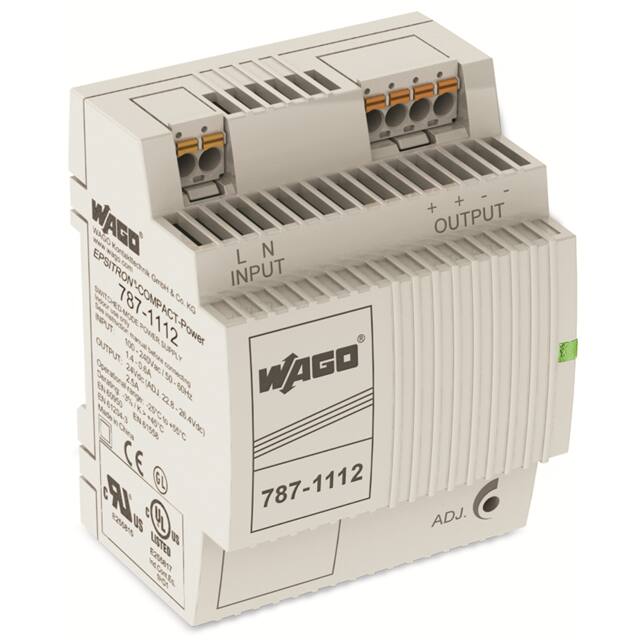

787-1112AC/DC DIN RAIL SUPPLY 24V 60W |
0 |
|
Технический лист |
- | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 300V | 24V | - | - | - | - | - | 2.5A | 60W | 4.242 kV | Industrial, ITE (Commercial), Laboratory | 88% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 2.17" L x 2.83" W x 3.50" H (55.0mm x 72.0mm x 89.0mm) | cURus, EAC, UL | 60950-1; 61010-1; UL 508 |
