Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LITF240-26B48DINRAIL AC DC CONVERTER 240W 1 O |
0 |
|
Технический лист |
LITF240-26Bxx (240W) | Box | Not For New Designs | AC or DC | 1 | 320 ~ 600 VAC (3 Phase) | 450V | 800V | 48V | - | - | - | - | - | 5A | 240W | 4 kV | Industrial, ITE (Commercial), Laboratory | 95% | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Universal Input | 5.00" L x 2.05" W x 4.88" H (127.0mm x 52.0mm x 124.0mm) | - | 61010-1; 62368-1; UL 508 |
|

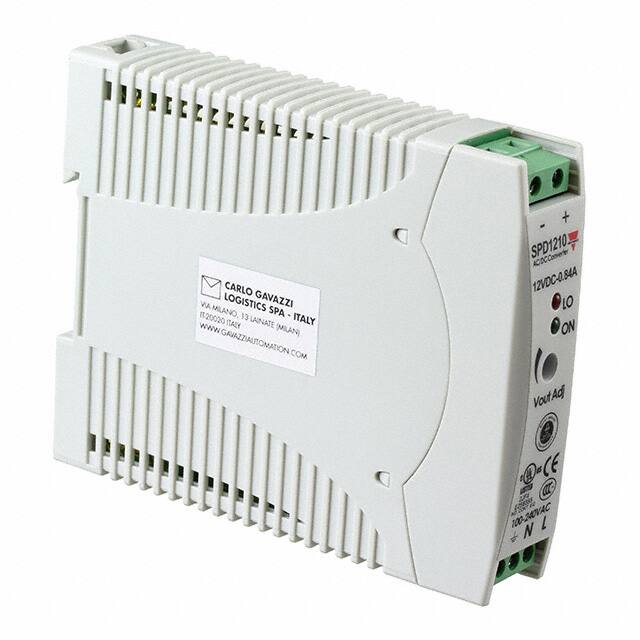

SPD12101AC/DC DIN RAIL SUPPLY 12V 10W |
0 |
|
Технический лист |
SPD (10W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 12V | - | - | - | - | - | 840mA | 10W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 75% | -20°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 0.89" W x 3.54" H (114.0mm x 22.5mm x 90.0mm) | CCC, CE, cULus, cURus, TUV | - |
|
SPD24101AC/DC DIN RAIL SUPPLY 24V 10W |
0 |
|
Технический лист |
SPD (10W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 24V | - | - | - | - | - | 420mA | 10W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 76% | -20°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 0.89" W x 3.54" H (114.0mm x 22.5mm x 90.0mm) | CCC, CE, cULus, cURus, TUV | - |
|
SPMA15301SCCAC/DC DIN RAIL SUPPLY 15V 30W |
0 |
|
Технический лист |
SPMA | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 350V | 15V | - | - | - | - | - | 2A | 30W | 4 kV | Industrial, ITE (Commercial) | 86.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.50" L x 2.10" W x 3.60" H (63.5mm x 53.3mm x 91.4mm) | CE | 62368-1; UL 508 |
|
|
SPMA05301SCCAC/DC DIN RAIL SUPPLY 5V 30W |
0 |
|
Технический лист |
SPMA | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 350V | 5V | - | - | - | - | - | 6A | 30W | 4 kV | Industrial, ITE (Commercial) | 81% | -30°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.50" L x 2.10" W x 3.60" H (63.5mm x 53.3mm x 91.4mm) | CE | 62368-1; UL 508 |
|
|
SPMA12301SCCAC/DC DIN RAIL SUPPLY 12V 25W |
0 |
|
Технический лист |
SPMA | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 350V | 12V | - | - | - | - | - | 2.1A | 25W | 4 kV | Industrial, ITE (Commercial) | 86% | -30°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.50" L x 2.10" W x 3.60" H (63.5mm x 53.3mm x 91.4mm) | CE | 62368-1; UL 508 |
|
|
SPMA24301SCCAC/DC DIN RAIL SUPPLY 24V 36W |
0 |
|
Технический лист |
SPMA | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 350V | 24V | - | - | - | - | - | 1.5A | 36W | 4 kV | Industrial, ITE (Commercial) | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.50" L x 2.10" W x 3.60" H (63.5mm x 53.3mm x 91.4mm) | CE | 62368-1; UL 508 |
|
|
DRB240-48-1AC/DC DIN RAIL SUPPLY 48V 240W |
0 |
|
Технический лист |
DRB120 (240W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 5A | 240W | 3 kV | Industrial, ITE (Commercial) | 92% | -25°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | 4.92" L x 4.88" W x 1.61" H (125.0mm x 124.0mm x 41.0mm) | CE, CSA, EN, IEC, UKCA, UL | 60950-1; 62368-1; UL 508 |
|
AK-DR-PS24AC/DC DIN RAIL SUPPLY 24V 20W |
0 |
|
Технический лист |
- | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | - | 20W | 3 kV | - | - | -40°C ~ 70°C (With Derating) | - | - | CE | - |
|
AK-RP-PS24AC/DC DIN RAIL SUPPLY 24V 20W |
0 |
|
Технический лист |
- | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 800mA | 20W | 3 kV | - | - | -40°C ~ 70°C (With Derating) | - | - | CE | - |
|
787-1201AC/DC DIN RAIL SUPPLY 12V 30W |
0 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 125V | 375V | 12V | - | - | - | - | - | 2.5A | 30W | 4.242 kV | Household Appliances, Industrial, ITE (Commercial) | 88% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 2.07" L x 2.13" W x 3.54" H (52.5mm x 54.0mm x 90.0mm) | CE, EAC, UL | 60335-1; UL 508 |
|
286-742AC/DC DIN RAIL SUPPLY 27V |
0 |
|
Технический лист |
- | Box | Active | AC | 1 | 230 VAC | - | - | 27V | - | - | - | - | - | 27mA | - | 2.5 kV | ITE (Commercial) | - | 0°C ~ 70°C | - | 2.05" L x 0.98" W x 3.25" H (52.0mm x 25.0mm x 82.6mm) | - | - |
|
|
6EP46836LB000AY0AC/DC DIN RAIL SUPPLY 100-240V |
0 |
|
Технический лист |
6EP4 | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 100 ~ 240V | - | - | - | - | - | 5A | - | - | Industrial, ITE (Commercial) | - | -40°C ~ 70°C | Adjustable Output, IP20 | 2.09" L x 0.71" W x 3.54" H (53.0mm x 18.0mm x 90.0mm) | CE, CSA, cULus, UL | 60950-1; UL 508 |
|
JVA401500S12-DDC/DC DIN RAIL SUPPLY 12V 40W |
0 |
|
Технический лист |
JVA40 (40W) | Bulk | Obsolete | DC | 1 | - | 200V | 1500V | 12V | - | - | - | - | - | 3.33A | 40W | 4 kV | ITE (Commercial) | 72% | -40°C ~ 70°C (With Derating) | Remote On/Off | 5.07" L x 4.01" W x 1.92" H (128.8mm x 101.9mm x 48.8mm) | UL | - |
|
|
JVA401500S15-DDC/DC DIN RAIL SUPPLY 15V 40W |
0 |
|
Технический лист |
JVA40 (40W) | Bulk | Obsolete | DC | 1 | - | 200V | 1500V | 15V | - | - | - | - | - | 2.67A | 40W | 4 kV | ITE (Commercial) | 72% | -40°C ~ 70°C (With Derating) | Remote On/Off | 5.07" L x 4.01" W x 1.92" H (128.8mm x 101.9mm x 48.8mm) | UL | - |
|
|
JVA401500S24-DDC/DC DIN RAIL SUPPLY 24V 40W |
0 |
|
Технический лист |
JVA40 (40W) | Bulk | Obsolete | DC | 1 | - | 200V | 1500V | 24V | - | - | - | - | - | 1.67A | 40W | 4 kV | ITE (Commercial) | 72% | -40°C ~ 70°C (With Derating) | Remote On/Off | 5.07" L x 4.01" W x 1.92" H (128.8mm x 101.9mm x 48.8mm) | UL | - |
|
PS-S10024AC/DC DIN RAIL SUPPLY 24V 96W |
0 |
|
- |
PS-S100 (100W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 4A | 96W | 3 kV | Industrial, ITE (Commercial) | 86% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 2.17" W x 3.54" H (100.0mm x 55.0mm x 90.0mm) | CE, cULus | 508; 60950-1 |
|
|
PS-S10012AC/DC DIN RAIL SUPPLY 12V 90W |
0 |
|
- |
PS-S100 (100W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 7.5A | 90W | 3 kV | Industrial, ITE (Commercial) | 85% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 2.17" W x 3.54" H (100.0mm x 55.0mm x 90.0mm) | CE, cULus | 508; 60950-1 |
|
|
PS-S10048AC/DC DIN RAIL SUPPLY 48V 96W |
0 |
|
- |
PS-S100 (100W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 2A | 96W | 3 kV | Industrial, ITE (Commercial) | 88% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 2.17" W x 3.54" H (100.0mm x 55.0mm x 90.0mm) | CE, cULus | 508; 60950-1 |
|
|
RWS150B-24/DINAC-DC, 115-230VAC, OUTPUT 24V 6. |
0 |
|
Технический лист |
RWS-B (150W) | Bulk | Active | AC or DC | 1 | 85 ~ 265 VAC | 120V | 370V | 24V | - | - | - | - | - | 6.5A | 156W | 3 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Universal Input | 5.51" L x 5.30" W x 1.69" H (139.9mm x 134.5mm x 43.0mm) | - | 60950-1; 62368-1 |
