Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E64/10/50-3C95FERRITE CORE E 3C95 |
1,258 |
|
Технический лист |
- | Bulk | Active | E | E 64 x 10 x 50 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.402" (10.20mm) | 2.520" (64.00mm) | 2.000" (50.80mm) |
|
B65881A0000R049FERRITE CORE PQ 3.3UH N49 2PCS |
191 |
|
Технический лист |
PQ35/35 | Box | Active | PQ | PQ 35 x 35 | N49 | - | 3.3 µH | -20%, +30% | Ungapped | 1225.0 | 1500 | 0.467 | 79.2 | 169.7 | 146.5 | 13440.0 | Uncoated | 0.685" (17.40mm) | 1.382" (35.10mm) | 1.024" (26.00mm) |
|
C058928A2FERRITE CORE TOROID 201NH HI FLX |
456 |
|
Технический лист |
- | Bulk | Active | Toroid | - | High Flux | 1.060" (26.92mm) | 201 nH | ±8% | Ungapped | - | 160 | - | 63.5 | 65.4 | - | 4150.0 | Coated | 0.440" (11.18mm) | - | - |
|

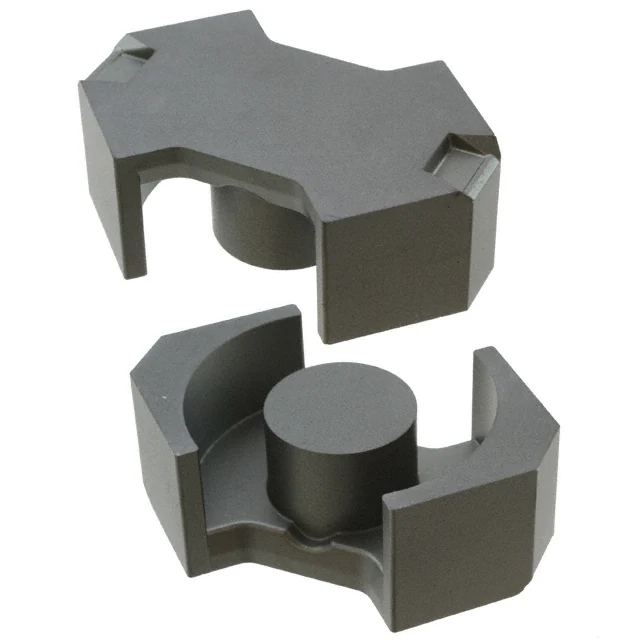

B65887E0160A041FERRITE CORE RM 160NH N41 2PCS |
338 |
|
Технический лист |
RM14 | Box | Active | RM | RM 14 | N41 | - | 160 nH | ±3% | Gapped | 45.0 | 2800 | 0.35 | 70.0 | 200.0 | 170.0 | 14000.0 | Uncoated | 0.594" (15.10mm) | 1.661" (42.20mm) | 0.748" (19.00mm) |
|

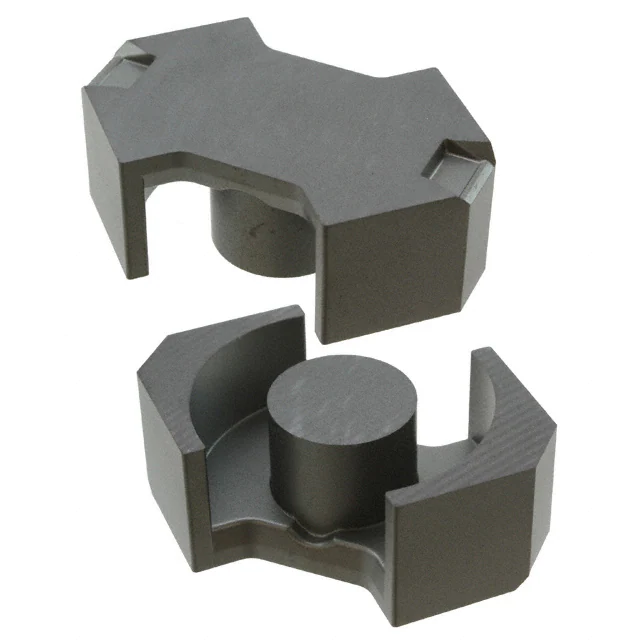

B65887E0250A041FERRITE CORE RM 250NH N41 2PCS |
175 |
|
Технический лист |
RM14 | Tray | Active | RM | RM 14 | N41 | - | 250 nH | ±3% | Gapped | 70.0 | 2800 | 0.35 | 70.0 | 200.0 | 170.0 | 14000.0 | Uncoated | 0.594" (15.10mm) | 1.661" (42.20mm) | 0.748" (19.00mm) |
|

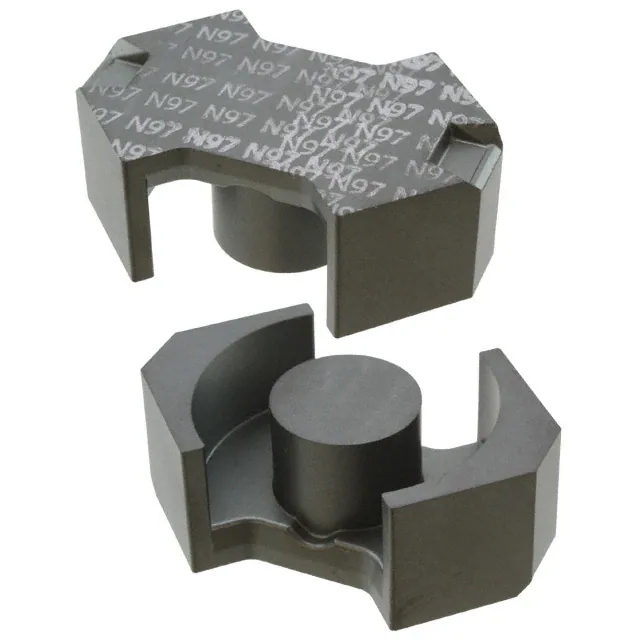

B65887E0000R097FERRITE CORE RM 6UH N97 2PCS |
234 |
|
Технический лист |
RM14 | Tray | Active | RM | RM 14 | N97 | - | 6 µH | -20%, +30% | Ungapped | 1670.0 | 2300 | 0.35 | 70.0 | 200.0 | 170.0 | 14000.0 | Uncoated | 0.594" (15.10mm) | 1.661" (42.20mm) | 0.748" (19.00mm) |
|
B64290L0082X065FERRITE CORE TOROID 10UH T65 |
198 |
|
Технический лист |
TX50/30/20 | Box | Active | Toroid | - | T65 | 2.040" (51.80mm) | 10 µH | ±30% | Ungapped | - | 4900 | 0.62 | 120.4 | 195.7 | - | 23560.0 | Epoxy | 0.839" (21.30mm) | - | - |
|
|
5979003801FERRITE CORE TOROID 1905NH 79 |
107 |
|
Технический лист |
HF | Tray | Active | Toroid | - | 79 | 2.402" (61.00mm) | 1905 nH | ±25% | Ungapped | - | 1400 | 0.00923 | 147.0 | 156.0 | - | 22300.0 | Uncoated | 0.500" (12.70mm) | - | - |
|
|
0059071A2FERRITE CORE TOROID 61NH EDGE |
809 |
|
Технический лист |
- | Bulk | Active | Toroid | - | Edge | 1.325" (33.66mm) | 61 nH | ±8% | Ungapped | - | 60 | - | 81.4 | 65.6 | - | 5340.0 | Coated | 0.450" (11.45mm) | - | - |
|
|
0059548A2FERRITE CORE TOROID 127NH EDGE |
211 |
|
Технический лист |
- | Bulk | Active | Toroid | - | Edge | 1.291" (32.80mm) | 127 nH | ±8% | Ungapped | - | 125 | - | 81.4 | 65.6 | - | 5340.0 | Coated | 0.420" (10.67mm) | - | - |
|
B66295K0000X187FERRITE CORE I N87 |
130 |
|
Технический лист |
I64/5/50 | Tray | Active | I | I 64 x 5 x 50 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.201" (5.10mm) | 2.520" (64.00mm) | 2.000" (50.80mm) |
|
B66371G0000X187FERRITE CORE E N87 1PC |
148 |
|
Технический лист |
E70/33/32 | Box | Active | E | E 70 x 33 x 32 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.307" (33.20mm) | 2.776" (70.50mm) | 1.260" (32.00mm) |
|
|
ROD10/200-4B1FERRITE CORE ROD |
949 |
|
Технический лист |
- | Bulk | Active | ROD | ROD 10 x 200 | - | 0.394" (10.00mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | - | 7.874" (200.00mm) | - |
|
|
U46/40/28-3C90FERRITE CORE U 3C90 |
220 |
|
Технический лист |
- | Bulk | Active | U | U 46 x 40 x 28 | 3C90 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.551" (39.40mm) | 1.811" (46.00mm) | 1.102" (28.00mm) |
|
|
C055894A2FERRITE CORE TOROID 75NH MPP |
940 |
|
Технический лист |
- | Bulk | Active | Toroid | - | MPP | 1.060" (26.92mm) | 75 nH | ±8% | Ungapped | - | 60 | - | 63.5 | 65.4 | - | 4150.0 | Coated | 0.440" (11.18mm) | - | - |
|
5975003821FERRITE CORE TOROID 6.85UH 75 |
286 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 75 | 2.472" (62.80mm) | 6.85 µH | -30%, +25% | Ungapped | - | 5000 | 0.91627 | 145.0 | 158.0 | - | 22800.0 | Plastic | 0.539" (13.70mm) | - | - |
|
|
5980003801FERRITE CORE TOROID 816NH 80 |
139 |
|
Технический лист |
HF | Tray | Active | Toroid | - | 80 | 2.402" (61.00mm) | 816 nH | ±25% | Ungapped | - | 550 | 0.00923 | 144.0 | 156.0 | - | 22350.0 | Uncoated | 0.500" (12.70mm) | - | - |
|
|
0079191A7FERRITE CORE TOROID 60NH KOOL MU |
347 |
|
Технический лист |
- | Bulk | Active | Toroid | - | Kool Mu MAX | 2.250" (57.15mm) | 60 nH | ±8% | Ungapped | - | 26 | - | 125.0 | 229.0 | - | 28600.0 | Coated | 0.600" (15.24mm) | - | - |
|

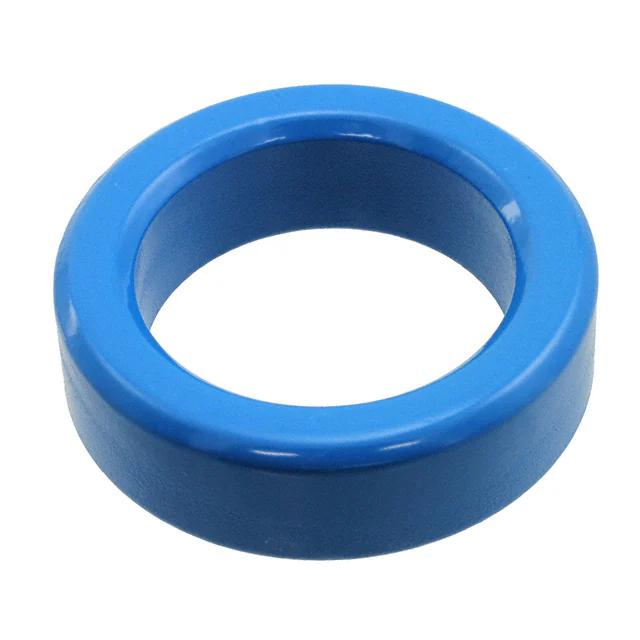

B64290L0040X087FERRITE CORE TOROID 2.76UH N87 |
318 |
|
Технический лист |
TX58.3/40.8/17.6 | Box | Active | Toroid | - | N87 | 2.366" (60.10mm) | 2.76 µH | ±25% | Ungapped | - | 2200 | 1.0 | 152.4 | 152.4 | - | 23230.0 | Epoxy | 0.740" (18.80mm) | - | - |
|
B66293G0000X187FERRITE CORE ELP N87 1PC |
171 |
|
Технический лист |
ELP58/11/38 | Box | Active | ELP | ELP 58 x 11 x 38 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.413" (10.50mm) | 2.299" (58.40mm) | 1.500" (38.10mm) |
