Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E64/10/50-3F4FERRITE CORE E 3F4 |
1,062 |
|
Технический лист |
- | Bulk | Active | E | E 64 x 10 x 50 | 3F4 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.402" (10.20mm) | 2.520" (64.00mm) | 2.000" (50.80mm) |
|

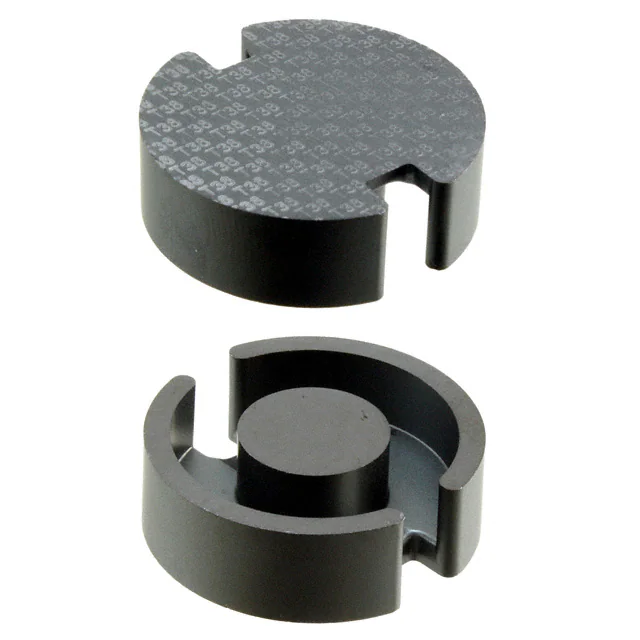

B65701W0000Y038FERRITE CORE P 28UH T38 2PCS |
934 |
|
Технический лист |
P30/19 | Box | Active | P (Pot Core) | P 30 x 19 | T38 | 1.200" (30.50mm) | 28 µH | -30%, +40% | Ungapped | 7070.0 | 10000 | 0.32 | 46.0 | 145.0 | 117.0 | 6670.0 | Uncoated | 0.374" (9.50mm) | - | - |
|
0059894A2FERRITE CORE TOROID 75NH EDGE |
111 |
|
Технический лист |
- | Bulk | Active | Toroid | - | Edge | 1.060" (26.92mm) | 75 nH | ±8% | Ungapped | - | 60 | - | 63.5 | 65.4 | - | 4150.0 | Coated | 0.440" (11.18mm) | - | - |
|
5977003821FERRITE CORE TOROID 2.95UH 77 |
110 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 77 | 2.472" (62.80mm) | 2.95 µH | -30%, +25% | Ungapped | - | 2000 | 0.9136 | 144.0 | 157.0 | - | 22797.0 | Plastic | 0.539" (13.70mm) | - | - |
|
|
0P47313TCFERRITE CORE TOROID 4.024UH P |
133 |
|
Технический лист |
- | Bulk | Active | Toroid | - | P | 2.902" (73.70mm) | 4.024 µH | ±25% | Ungapped | - | 2500 | - | 165.0 | 210.0 | - | 34771.0 | Uncoated | 0.492" (12.50mm) | - | - |
|
B66375G0000X127FERRITE CORE E N27 1PC |
200 |
|
Технический лист |
E80/38/20 | Box | Active | E | E 80 x 38 x 20 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.516" (38.50mm) | 3.150" (80.00mm) | 0.795" (20.20mm) |
|
PQ40/40-3C97FERRITE CORE PQ 3C97 2PC SET |
520 |
|
Технический лист |
- | Bulk | Active | PQ | PQ 40 x 40 | 3C97 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.567" (39.80mm) | 1.634" (41.50mm) | 1.102" (28.00mm) |
|
|
PQ40/40-3C95FERRITE CORE PQ 3C95 2PC SET |
344 |
|
Технический лист |
- | Bulk | Active | PQ | PQ 40 x 40 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.567" (39.80mm) | 1.634" (41.50mm) | 1.102" (28.00mm) |
|
|
C058348A2FERRITE CORE TOROID 135NH HI FLX |
728 |
|
Технический лист |
- | Bulk | Active | Toroid | - | High Flux | 0.958" (24.33mm) | 135 nH | ±8% | Ungapped | - | 160 | - | 58.8 | 38.8 | - | 2280.0 | Coated | 0.380" (9.65mm) | - | - |
|

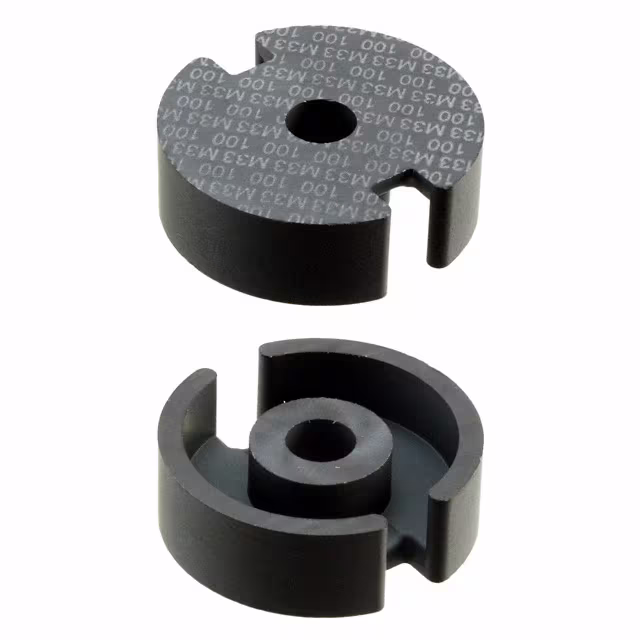

B65671T0100A033FERRITE CORE P 100NH M33 2PCS |
1,062 |
|
Технический лист |
P26/16 | Bulk | Active | P (Pot Core) | P 26 x 16 | M33 | 1.024" (26.00mm) | 100 nH | ±3% | Gapped | 32.0 | 750 | 0.4 | 37.2 | 93.0 | 76.5 | 3460.0 | Uncoated | 0.321" (8.15mm) | - | - |
|
PLT58/38/4-4F1FERRITE CORE PLT |
344 |
|
Технический лист |
- | Bulk | Active | PLT | PLT 58 x 38 x 4 | - | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.496" (38.00mm) | - | 0.157" (4.00mm) |
|
B66397G2000X187FERRITE CORE ETD N87 1PC |
179 |
|
Технический лист |
ETD59/31/22 | Box | Active | ETD | ETD 59 x 31 x 22 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 1.228" (31.20mm) | 2.354" (59.80mm) | 0.870" (22.10mm) |
|
|
0059930A2FERRITE CORE TOROID 157NH EDGE |
414 |
|
Технический лист |
- | Bulk | Active | Toroid | - | Edge | 1.090" (27.69mm) | 157 nH | ±8% | Ungapped | - | 125 | - | 63.5 | 65.4 | - | 4150.0 | Coated | 0.470" (11.94mm) | - | - |
|
B66375G0000X187FERRITE CORE E N87 1PC |
564 |
|
Технический лист |
E80/38/20 | Box | Active | E | E 80 x 38 x 20 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.516" (38.50mm) | 3.150" (80.00mm) | 0.795" (20.20mm) |
|
B65881A0000R097FERRITE CORE PQ 4.7UH N97 2PCS |
377 |
|
Технический лист |
PQ35/35 | Box | Active | PQ | PQ 35 x 35 | N97 | - | 4.7 µH | -20%, +30% | Ungapped | 1750.0 | 2300 | 0.467 | 79.2 | 169.7 | 146.5 | 13440.0 | Uncoated | 0.685" (17.40mm) | 1.382" (35.10mm) | 1.024" (26.00mm) |
|
|
CMC040025015HNANOCRYSTAL CORE TOROID 101UH |
192 |
|
Технический лист |
- | Bulk | Active | Toroid | - | Nanocrystalline | 1.575" (40.00mm) | 101 µH | ±30% | Ungapped | - | 80000 | - | 102.0 | 92.0 | - | - | Polyester | 0.591" (15.00mm) | - | - |
|
B65881Q0150K097FERRITE CORE PQ 150NH N97 |
151 |
|
Технический лист |
PQ35/35 | Tray | Active | PQ | PQ 35 x 35 | N97 | - | 150 nH | ±10% | Distributed Gapped | - | - | 0.47 | 79.7 | 171.0 | 161.0 | 13650.0 | Uncoated | 0.685" (17.40mm) | 1.382" (35.10mm) | 1.024" (26.00mm) |
|
|
C058548A2FERRITE CORE TOROID 127NH HI FLX |
228 |
|
Технический лист |
- | Bulk | Active | Toroid | - | High Flux | 1.291" (32.80mm) | 127 nH | ±8% | Ungapped | - | 125 | - | 81.4 | 65.6 | - | 5340.0 | Coated | 0.420" (10.67mm) | - | - |
|
|
0P46420UCFERRITE CORE UR 4.098UH P |
190 |
|
Технический лист |
- | Bulk | Active | UR | - | P | - | 4.098 µH | - | Ungapped | - | 2500 | - | 210.0 | 290.0 | - | 61000.0 | Uncoated | 1.594" (40.50mm) | 2.520" (64.00mm) | 0.945" (24.00mm) |
|
B64290A0040X830FERRITE CORE TOROID 5.4UH N30 |
131 |
|
Технический лист |
T58/41/18 | Box | Active | Toroid | R 58.3 x 40.8 x 17.6 | N30 | 2.295" (58.30mm) | 5.4 µH | ±25% | Ungapped | - | 4300 | 1.0 | 152.4 | 152.4 | - | 23230.0 | Uncoated | 0.693" (17.60mm) | - | - |
