Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B65879B0000R095FERRITE CORE PQ 6.1UH N95 2PCS |
210 |
|
Технический лист |
PQ32/30 | Box | Active | PQ | PQ 32 x 30 | N95 | - | 6.1 µH | -20%, +30% | Ungapped | 2140.0 | 2000 | 0.441 | 67.8 | 153.8 | 127.5 | 10440.0 | Uncoated | 0.597" (15.17mm) | 1.260" (32.00mm) | 0.866" (22.00mm) |
|
0077090A7KOOL MU 060 PERM BLACK 089 SIZE |
240 |
|
Технический лист |
- | Bulk | Active | Toroid | - | Kool Mu | 1.840" (46.74mm) | 86 nH | ±8% | Ungapped | - | 60 | - | 116.0 | 134.0 | - | 15600.0 | Uncoated | 0.600" (15.24mm) | - | - |
|
E58/11/38-3C95FERRITE CORE E 3C95 |
629 |
|
Технический лист |
- | Bulk | Active | E | E 58 x 11 x 38 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.413" (10.50mm) | 2.299" (58.40mm) | 1.500" (38.10mm) |
|
B66367G0000X197FERRITE CORE ETD N97 1PC |
251 |
|
Технический лист |
ETD49/25/16 | Box | Active | ETD | ETD 49 x 25 x 16 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.980" (24.90mm) | 1.909" (48.50mm) | 0.657" (16.70mm) |
|
|
PQ40/40-3C96FERRITE CORE PQ 3C96 2PC SET |
251 |
|
Технический лист |
- | Bulk | Active | PQ | PQ 40 x 40 | 3C96 | - | - | ±25% | Ungapped | 1690.0 | - | 0.507 | 102.0 | 201.0 | 175.0 | 20500.0 | Uncoated | 1.567" (39.80mm) | 1.634" (41.50mm) | 1.102" (28.00mm) |
|
5943018601FERRITE CORE TOROID 43 |
566 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 43 | - | - | ±25% | Ungapped | - | 800 | - | 98.0 | 178.0 | - | 17500.0 | Uncoated | - | - | - |
|
|
C058071A2FERRITE CORE TOROID 61NH HIGH FL |
642 |
|
Технический лист |
- | Bulk | Active | Toroid | - | High Flux | 1.325" (33.66mm) | 61 nH | ±8% | Ungapped | - | 60 | - | 81.4 | 65.6 | - | 5340.0 | Coated | 0.450" (11.45mm) | - | - |
|
|
0078439A7FERRITE CORE TOROID 135NH XFLUX |
285 |
|
Технический лист |
- | Bulk | Active | Toroid | - | XFlux | 1.840" (46.74mm) | 135 nH | ±8% | Ungapped | - | 60 | - | 107.0 | 199.0 | - | 21300.0 | Coated | 0.710" (18.03mm) | - | - |
|
|
0070071A7KOOL MU ULTRA 060 PERM BLACK |
200 |
|
Технический лист |
- | Tray | Active | Toroid | - | Kool Mµ | 1.291" (32.80mm) | 61 nH | ±8% | Ungapped | - | 60 | - | 81.4 | 65.6 | - | 5340.0 | Uncoated | 0.420" (10.67mm) | - | - |
|
|
CMC030020015HNANOCRYSTALLINE CORE TOROID 88UH |
128 |
|
Технический лист |
- | Bulk | Active | Toroid | - | Nanocrystalline | 1.181" (30.00mm) | 88 µH | ±30% | Ungapped | - | 80000 | - | 79.0 | 63.0 | - | - | Polyester | 0.591" (15.00mm) | - | - |
|
|
C058930A2FERRITE CORE TOROID 157NH |
805 |
|
Технический лист |
- | Bulk | Active | Toroid | - | - | 1.060" (26.92mm) | 157 nH | ±8% | Ungapped | - | 125 | - | 63.5 | 65.4 | - | 4150.0 | Coated | 0.440" (11.18mm) | - | - |
|
PC95PQ20/20Z-12FERRITE CORE PQ 4UH PCS95 2PC |
267 |
|
Технический лист |
PQ | Tray | Active | PQ | PQ 20 x 20 | PC95 | - | 4 µH | ±25% | Ungapped | - | - | 0.74 | 45.4 | 62.0 | - | 2790.0 | Uncoated | 0.795" (20.20mm) | 0.807" (20.50mm) | 0.551" (14.00mm) |
|

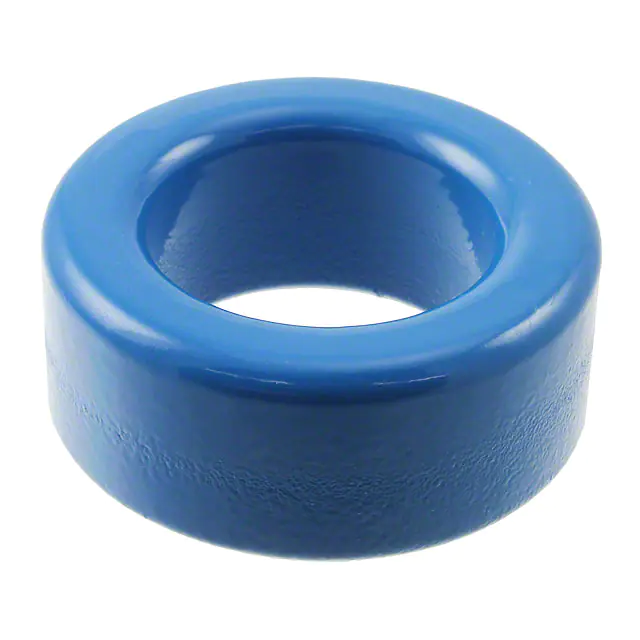

B64290L0674X037FERRITE CORE TOROID 8UH T37 |
268 |
|
Технический лист |
TX36/23/15 | Box | Active | Toroid | - | T37 | 1.476" (37.50mm) | 8 µH | ±25% | Ungapped | - | 6000 | 0.94 | 89.65 | 95.89 | - | 8597.0 | Epoxy | 0.638" (16.20mm) | - | - |
|
|
C055059A2FERRITE CORE TOROID 43NH MPP |
673 |
|
Технический лист |
- | Bulk | Active | Toroid | - | MPP | 0.930" (23.62mm) | 43 nH | ±8% | Ungapped | - | 60 | - | 56.7 | 31.7 | - | 1800.0 | Coated | 0.330" (8.38mm) | - | - |
|
|
0077111A7FERRITE CORE TOROID 33NH KOOL MU |
354 |
|
Технический лист |
- | Bulk | Active | Toroid | - | Kool Mu | 2.250" (57.15mm) | 33 nH | ±8% | Ungapped | - | 26 | - | 143.0 | 144.0 | - | 20700.0 | Coated | 0.550" (13.97mm) | - | - |
|
|
0077109A7FERRITE CORE TOROID 156NH KOOLMU |
255 |
|
Технический лист |
- | Bulk | Active | Toroid | - | Kool Mu | 2.285" (58.04mm) | 156 nH | ±8% | Ungapped | - | 125 | - | 143.0 | 144.0 | - | 20700.0 | Coated | 0.585" (14.86mm) | - | - |
|
B65661N0160A048FERRITE CORE P 160NH N48 |
1,039 |
|
Технический лист |
P22/13 | Tray | Active | P (Pot Core) | P 22 x 13 | N48 | 0.866" (22.00mm) | 160 nH | ±3% | Gapped | 64.0 | - | 0.5 | 31.6 | 63.0 | - | 1990.0 | Uncoated | 0.268" (6.80mm) | - | - |
|
PC95SP50X50X5FERRITE CORE SP PCS95 1PCS |
420 |
|
Технический лист |
SP | Tray | Active | SP | SP 50 x 50 x 5 | PC95 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.197" (5.00mm) | 1.969" (50.00mm) | 1.969" (50.00mm) |
|
E58/11/38-4F1FERRITE CORE E |
377 |
|
Технический лист |
- | Bulk | Active | E | - | - | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.433" (11.00mm) | - | 1.496" (38.00mm) |
|
PQ40/30-3C97FERRITE CORE PQ 3C97 2PC SET |
193 |
|
Технический лист |
- | Bulk | Active | PQ | PQ 40 x 30 | 3C97 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.181" (30.00mm) | 1.634" (41.50mm) | 1.102" (28.00mm) |
