Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
_3C91.jpg)
|
P18/11-3C91FERRITE CORE P 3C91 2PC SET |
435 |
|
Технический лист |
- | Bulk | Active | P (Pot Core) | P 18 x 11 | 3C91 | 0.724" (18.40mm) | 4000 nH | - | - | - | - | - | - | - | - | - | Uncoated | 0.417" (10.60mm) | - | - |
|

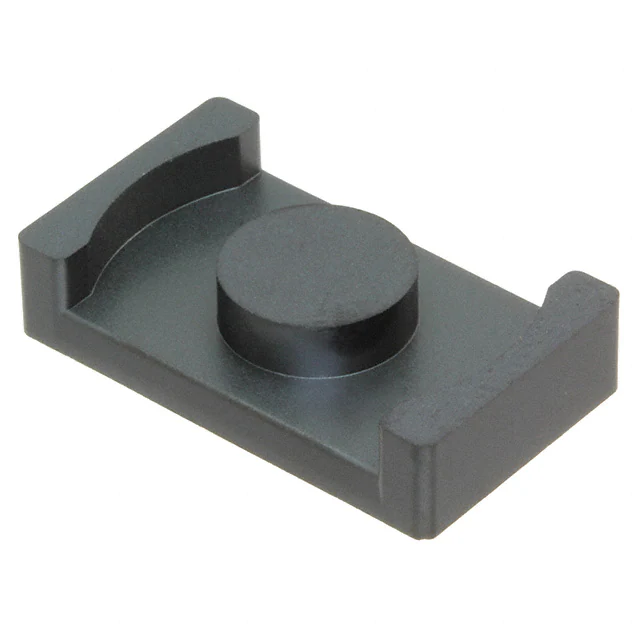

B66484G0000X149FERRITE CORE ER N49 1PC |
1,655 |
|
Технический лист |
ER25/6/15 | Box | Active | ER | ER 25 x 6 x 15 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.216" (5.50mm) | 0.984" (25.00mm) | 0.583" (14.80mm) |
|
0077930A7FERRITE CORE TOROID 157NH KOOLMU |
983 |
|
Технический лист |
- | Bulk | Active | Toroid | - | Kool Mu | 1.090" (27.69mm) | 157 nH | ±8% | Ungapped | - | 125 | - | 63.5 | 65.4 | - | 4150.0 | Coated | 0.470" (11.94mm) | - | - |
|
PQ20/20-3C95FERRITE CORE PQ 3C95 2PC SET |
491 |
|
Технический лист |
- | Bulk | Active | PQ | PQ 20 x 20 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.795" (20.20mm) | 0.839" (21.30mm) | 0.551" (14.00mm) |
|
B66363G0000X187FERRITE CORE ETD N87 1PC |
384 |
|
Технический лист |
ETD39/20/13 | Tray | Active | ETD | ETD 39 x 20 x 13 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.787" (20.00mm) | 1.531" (38.90mm) | 0.504" (12.80mm) |
|
|
0077932A7FERRITE CORE TOROID 32NH KOOL MU |
2,008 |
|
Технический лист |
- | Bulk | Active | Toroid | - | Kool Mu | 1.090" (27.69mm) | 32 nH | ±8% | Ungapped | - | 26 | - | 63.5 | 65.4 | - | 4150.0 | Coated | 0.470" (11.94mm) | - | - |
|
|
0077894A7FERRITE CORE TOROID 75NH |
1,259 |
|
Технический лист |
- | Bulk | Active | Toroid | - | - | 1.060" (26.92mm) | 75 nH | ±8% | Ungapped | - | 60 | - | 63.0 | 65.4 | - | 4150.0 | Coated | 0.440" (11.18mm) | - | - |
|
|
0077934A7FERRITE CORE TOROID 113NH KOOLMU |
1,067 |
|
Технический лист |
- | Bulk | Active | Toroid | - | Kool Mu | 1.060" (26.92mm) | 113 nH | ±8% | Ungapped | - | 90 | - | 63.5 | 65.4 | - | 4150.0 | Coated | 0.440" (11.18mm) | - | - |
|
|
263180180231 ROUND SUPPRESSION CORE |
646 |
|
Технический лист |
- | Tray | Active | Toroid | - | 31 | 0.854" (21.70mm) | - | - | Ungapped | - | - | - | 54.2 | 26.1 | - | 1415.0 | Uncoated | 0.240" (6.10mm) | - | - |
|
PLT32/20/3.2/R-3F36FERRITE CORE PLT 3F36 |
744 |
|
Технический лист |
- | Bulk | Active | PLT | PLT 32 x 20 x 3.2 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.125" (3.18mm) | 1.250" (31.75mm) | 0.800" (20.32mm) |
|
|
B66455G0000X608FERRITE CORE ELP 2100NH PCS200 |
1,100 |
|
Технический лист |
ELP22/6/16 | Box | Active | ELP | ELP 22 x 6 x 16 | PC200 | - | 2100 nH | ±25% | Ungapped | 640.0 | 800 | 0.41 | 32.5 | 78.3 | 77.9 | 2540.0 | Uncoated | 0.224" (5.70mm) | 0.858" (21.80mm) | 0.622" (15.80mm) |
|
PLT38/25/3.8-3C95FERRITE CORE PLT 3C95 |
8,355 |
|
Технический лист |
- | Bulk | Active | PLT | PLT 38 x 25 x 3.8 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.150" (3.81mm) | 1.500" (38.10mm) | 1.000" (25.40mm) |
|
B66339G0000X127FERRITE CORE EC N27 1PC |
1,048 |
|
Технический лист |
EC41/20/12 | Box | Active | EC | EC 41 x 20 x 12 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.469" (11.90mm) | 1.598" (40.60mm) | 0.774" (19.65mm) |
|
|
C055047A2FERRITE CORE TOROID 90NH MPP |
5,406 |
|
Технический лист |
- | Bulk | Active | Toroid | - | MPP | 0.500" (12.70mm) | 90 nH | ±8% | Ungapped | - | 200 | - | 31.2 | 10.9 | - | 340.0 | Coated | 0.187" (4.75mm) | - | - |
|
B65807J0000R087FERRITE CORE RM 2.4UH N87 2PCS |
2,082 |
|
Технический лист |
RM6 | Box | Active | RM | RM 6 | N87 | - | 2.4 µH | -20%, +30% | Ungapped | 1490.0 | 2200 | 0.78 | 28.6 | 36.6 | 31.0 | 1050.0 | Uncoated | 0.246" (6.25mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|
|
0070051A7KOOL MU ULTRA 060 PERM BLACK |
409 |
|
Технический лист |
- | Bag | Active | Toroid | - | Kool Mµ | 0.500" (12.70mm) | 26 nH | ±8% | Ungapped | - | 60 | - | 31.2 | 10.9 | - | 340.0 | Uncoated | 0.187" (4.75mm) | - | - |
|
EQ30-3C95FERRITE CORE EQ 3C95 |
710 |
|
Технический лист |
- | Bulk | Active | EQ | EQ 30 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.315" (8.00mm) | 1.181" (30.00mm) | 0.787" (20.00mm) |
|
RM7/I-3C95FERRITE CORE RM 3C95 2PC SET |
1,250 |
|
Технический лист |
- | Bulk | Active | RM | RM 7 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.528" (13.40mm) | 0.799" (20.30mm) | - |
|
5978002701FERRITE CORE TOROID 78 |
678 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 78 | 1.400" (35.56mm) | - | ±25% | Ungapped | - | 2300 | - | 89.0 | 79.0 | - | 7000.0 | Uncoated | 0.500" (12.70mm) | - | - |
|

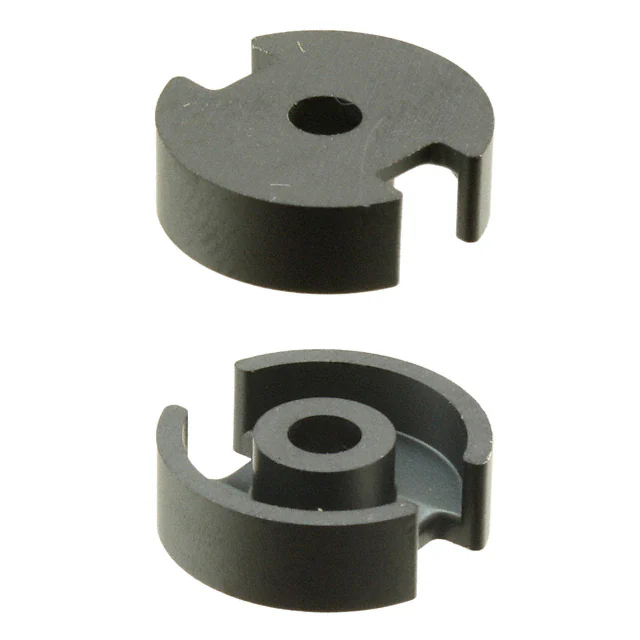

B65541D0000R048FERRITE CORE P 2.1UH N48 2PCS |
1,466 |
|
Технический лист |
P14/8 | Box | Active | P (Pot Core) | P 14 x 8 | N48 | 0.563" (14.30mm) | 2.1 µH | -20%, +30% | Ungapped | 1340.0 | - | 0.8 | 20.0 | 25.0 | 20.0 | 500.0 | Uncoated | 0.167" (4.25mm) | - | - |
