Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

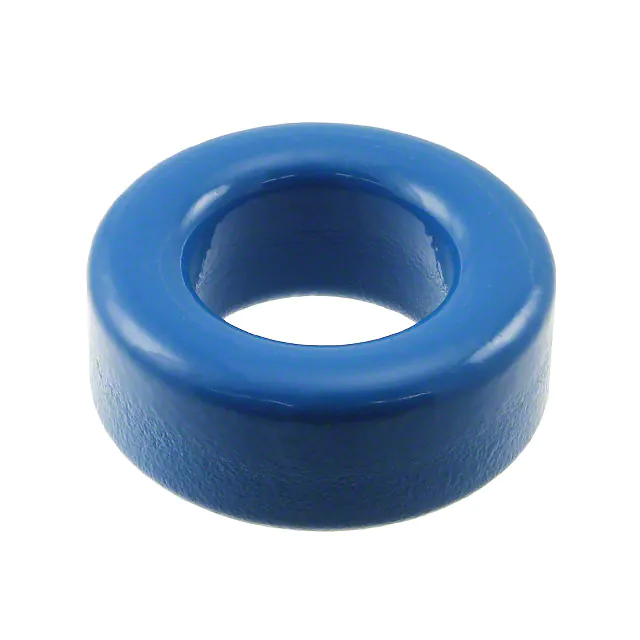

B64290L0618X087FERRITE CORE TOROID 2.36UH N87 |
12,208 |
|
Технический лист |
TX25.3/14.8/10 | Box | Active | Toroid | - | N87 | 1.047" (26.60mm) | 2.36 µH | ±25% | Ungapped | - | 2200 | 1.17 | 60.07 | 51.26 | - | 3079.0 | Epoxy | 0.433" (11.00mm) | - | - |
|

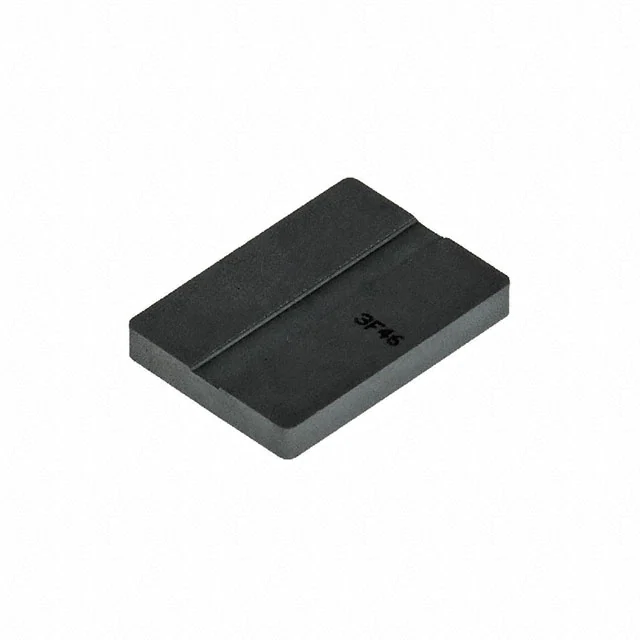

PLT22/16/2.5/S-3F36FERRITE CORE PLT 3F36 |
7,103 |
|
Технический лист |
- | Bulk | Active | PLT | PLT 22 x 16 x 2.5 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.114" (2.90mm) | 0.858" (21.80mm) | 0.622" (15.80mm) |
|
B66285K0000X187FERRITE CORE I N87 |
2,160 |
|
Технический лист |
I22/2.5/16 | Tray | Active | I | I 22 x 2.5 x 16 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.098" (2.50mm) | 0.858" (21.80mm) | 0.622" (15.80mm) |
|
PLT22/16/2.5/S-3F46FERRITE CORE PLT 3F46 |
156 |
|
Технический лист |
- | Bulk | Active | PLT | PLT 22 x 16 x 2.5 | 3F46 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.114" (2.90mm) | 0.858" (21.80mm) | 0.622" (15.80mm) |
|
5975004921FERRITE CORE TOROID 3.225UH 75 |
898 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 75 | 0.665" (16.90mm) | 3.225 µH | -25%, +20% | Ungapped | - | 5000 | 1.937 | 38.5 | 19.9 | - | 766.0 | Plastic | 0.280" (7.11mm) | - | - |
|
B64290A0719X049FERRITE CORE TOROID 1.13UH N49 |
1,150 |
|
Технический лист |
T22.1/13.7/7.9 | Box | Active | Toroid | R 22.1 x 13.7 x 7.9 | N49 | 0.870" (22.10mm) | 1.13 µH | ±25% | Ungapped | - | 1500 | 1.66 | 54.2 | 32.6 | - | 1763.0 | Uncoated | 0.311" (7.90mm) | - | - |
|
B66229G0000X187FERRITE CORE E N87 1PC |
4,092 |
|
Технический лист |
E32/16/9 | Box | Active | E | E 32 x 16 x 9 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.646" (16.40mm) | 1.260" (32.00mm) | 0.374" (9.50mm) |
|
|
PLT25/18/2-3C95FERRITE CORE PLT 3C95 |
3,187 |
|
Технический лист |
- | Bulk | Active | PLT | PLT 25 x 18 x 2 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.091" (2.30mm) | 0.984" (25.00mm) | 0.709" (18.00mm) |
|
E32/6/20/R-3F4FERRITE CORE E 3F4 |
612 |
|
Технический лист |
- | Bulk | Active | E | E 32 x 6 x 20 | 3F4 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.250" (6.35mm) | 1.250" (31.75mm) | 0.800" (20.32mm) |
|
PQ20/16-3C95FERRITE CORE PQ 3C95 2PC SET |
2,834 |
|
Технический лист |
- | Bulk | Active | PQ | PQ 20 x 16 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.638" (16.20mm) | 0.839" (21.30mm) | 0.551" (14.00mm) |
|
B64290L0618X830FERRITE CORE TOROID 4.62UH N30 |
2,980 |
|
Технический лист |
TX25.3/14.8/10 | Bulk | Active | Toroid | - | N30 | 1.047" (26.60mm) | 4.62 µH | ±25% | Ungapped | - | 4300 | 1.17 | 60.07 | 51.26 | - | 3079.0 | Epoxy | 0.433" (11.00mm) | - | - |
|

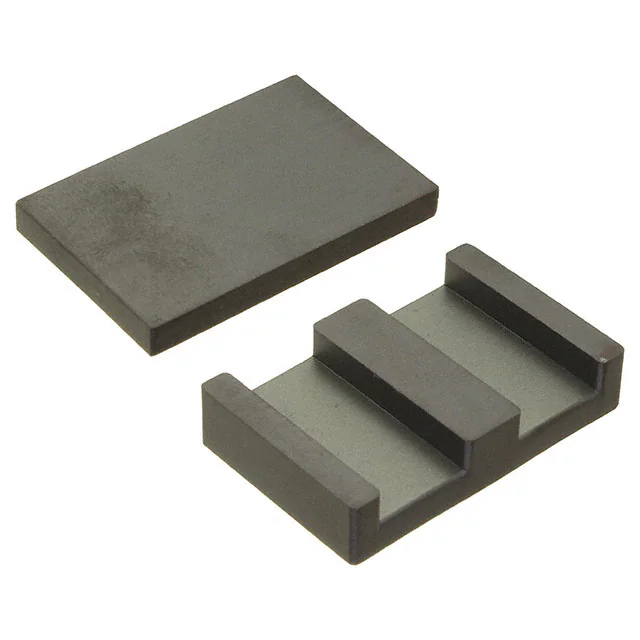

7895400421FERRITE CORE PLANAR E/I SET |
332 |
|
Технический лист |
- | Bulk | Active | Planar E/I | - | 95 | - | 8.7 µH | ±25% | Ungapped | - | 3000 | 27.0 | 35.2 | 130.0 | 129.0 | 4570.0 | Uncoated | 0.250" (6.35mm) | 1.250" (31.75mm) | 0.800" (20.32mm) |
|
EFD30/15/9-3C96FERRITE CORE EFD 3C96 |
3,693 |
|
Технический лист |
- | Bulk | Active | EFD | EFD 30 x 15 x 9 | 3C96 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.591" (15.00mm) | 1.181" (30.00mm) | 0.358" (9.10mm) |
|
5943001001FERRITE CORE TOROID 43 |
2,072 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 43 | 1.142" (29.00mm) | - | ±20% | Ungapped | - | 800 | - | 73.0 | 37.0 | - | 2700.0 | Uncoated | 0.295" (7.50mm) | - | - |
|
E22/6/16/R-3C90FERRITE CORE E 3C90 |
483 |
|
Технический лист |
- | Bulk | Active | E | E 22 x 6 x 16 | 3C90 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.224" (5.70mm) | 0.858" (21.80mm) | 0.622" (15.80mm) |
|
|
5961000621FERRITE CORE TOROID 75NH 61 |
2,994 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 61 | 0.860" (21.84mm) | 75 nH | ±25% | Ungapped | - | 125 | 213.0 | 52.0 | 24.3 | - | 1260.0 | Plastic | 0.280" (7.11mm) | - | - |
|
RM6S/I-3C95FERRITE CORE RM 3C95 2PC SET |
3,149 |
|
Технический лист |
- | Bulk | Active | RM | RM 6 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.488" (12.40mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|

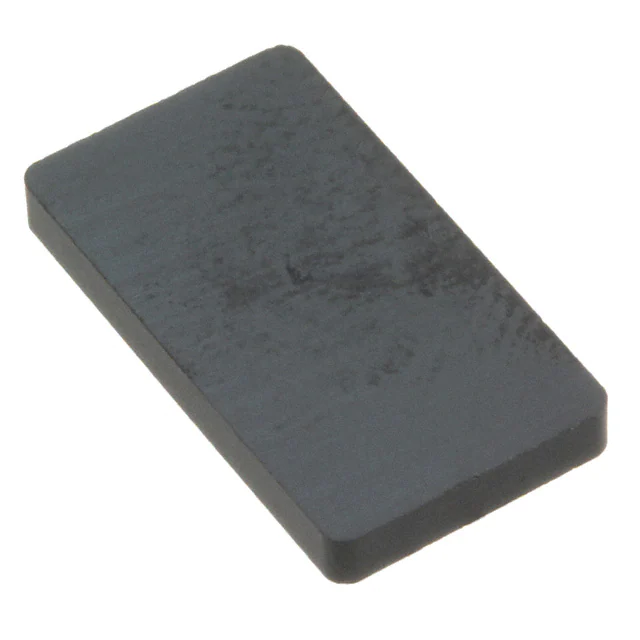

B66453K0000X187FERRITE CORE I N87 |
2,637 |
|
Технический лист |
I18/2/10 | Tray | Active | I | I 18 x 2 x 10 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.079" (2.00mm) | 0.709" (18.00mm) | 0.394" (10.00mm) |
|
B66283K0000X187FERRITE CORE I N87 |
2,344 |
|
Технический лист |
I18/2/10 | Tray | Active | I | I 18 x 2 x 10 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.079" (2.00mm) | 0.709" (18.00mm) | 0.394" (10.00mm) |
|
B66358G0100X187FERRITE CORE ETD N87 1PC |
458 |
|
Технический лист |
ETD29/16/10 | Box | Active | ETD | ETD 29 x 16 x 10 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.630" (16.00mm) | 1.205" (30.60mm) | 0.386" (9.80mm) |
