Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4077375211FERRITE CORE ROD 77 |
8,654 |
|
Технический лист |
- | Bulk | Active | ROD | - | 77 | 0.372" (9.45mm) | - | - | Ungapped | 29.0 | 2000 | - | 25.0 | 7.07 | - | - | Uncoated | - | 2.000" (50.80mm) | - |
|
B64290L0632X035FERRITE CORE TOROID 5UH T35 |
698 |
|
Технический лист |
TX20/10/7 | Bulk | Active | Toroid | - | T35 | 0.835" (21.20mm) | 5 µH | ±25% | Ungapped | - | 5100 | 1.3 | 43.55 | 33.63 | - | 1465.0 | Epoxy | 0.319" (8.10mm) | - | - |
|
P18/11/I-3C91FERRITE CORE P 3C91 2PC SET |
272 |
|
Технический лист |
- | Bulk | Active | P (Pot Core) | P 18 x 11 | 3C91 | 0.701" (17.90mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.417" (10.60mm) | - | - |
|
5977001201FERRITE CORE TOROID 77 |
1,651 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 77 | 1.142" (29.00mm) | - | ±25% | Ungapped | - | 2000 | - | 73.0 | 68.0 | - | 5000.0 | Uncoated | 0.545" (13.84mm) | - | - |
|
9277024002FERRITE CORE U 77 |
218 |
|
Технический лист |
- | Bulk | Active | U | - | 77 | - | - | - | Ungapped | - | 2000 | 112.0 | 93.0 | 83.0 | - | 7700.0 | Uncoated | 0.729" (18.60mm) | 1.237" (31.42mm) | 0.394" (10.00mm) |
|
TX22/14/13-3C90FERRITE CORE TOROID 3C90 |
1,620 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 22 x 14 x 13 | 3C90 | 0.880" (22.35mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.510" (12.95mm) | - | - |
|
E22/6/16/R-3F36FERRITE CORE E 3F36 |
23,698 |
|
Технический лист |
- | Bulk | Active | E | E 22 x 6 x 16 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.224" (5.70mm) | 0.858" (21.80mm) | 0.622" (15.80mm) |
|
|
E22/6/16/R-3F46FERRITE CORE E 3F46 |
5,342 |
|
Технический лист |
- | Bulk | Active | E | E 22 x 6 x 16 | 3F46 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.224" (5.70mm) | 0.858" (21.80mm) | 0.622" (15.80mm) |
|
ZL42206TCFERRITE CORE TOROID 455NH |
1,966 |
|
Технический лист |
- | Bulk | Active | Toroid | - | - | 0.900" (22.86mm) | 455 nH | ±25% | Ungapped | - | 900 | - | 54.1 | 25.8 | - | 1395.0 | Epoxy | 0.272" (6.91mm) | - | - |
|
5961001821FERRITE CORE TOROID 75NH 61 |
179 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 61 | 0.906" (23.00mm) | 75 nH | ±25% | Ungapped | - | 125 | 2.0692 | 54.2 | 26.2 | - | 1416.0 | Plastic | 0.280" (7.11mm) | - | - |
|
|
ZF42206TCFERRITE CORE TOROID 1.812UH |
1,603 |
|
Технический лист |
- | Bulk | Active | Toroid | - | - | 0.900" (22.86mm) | 1.812 µH | ±20% | Ungapped | - | 3000 | - | 54.1 | 25.8 | - | 1395.0 | Epoxy | 0.272" (6.91mm) | - | - |
|
3061990901FERRITE CORE ROD 61 |
1,182 |
|
Технический лист |
- | Tray | Active | ROD | - | 61 | 0.236" (6.00mm) | - | - | Ungapped | 22.0 | 125 | - | - | 28.3 | - | - | Uncoated | - | 1.575" (40.00mm) | - |
|
4077485111FERRITE CORE ROD 77 |
6,152 |
|
Технический лист |
- | Bulk | Active | ROD | - | 77 | 0.484" (12.30mm) | - | - | Ungapped | 29.0 | 2000 | - | 25.0 | 7.07 | - | - | Uncoated | - | 1.250" (31.75mm) | - |
|

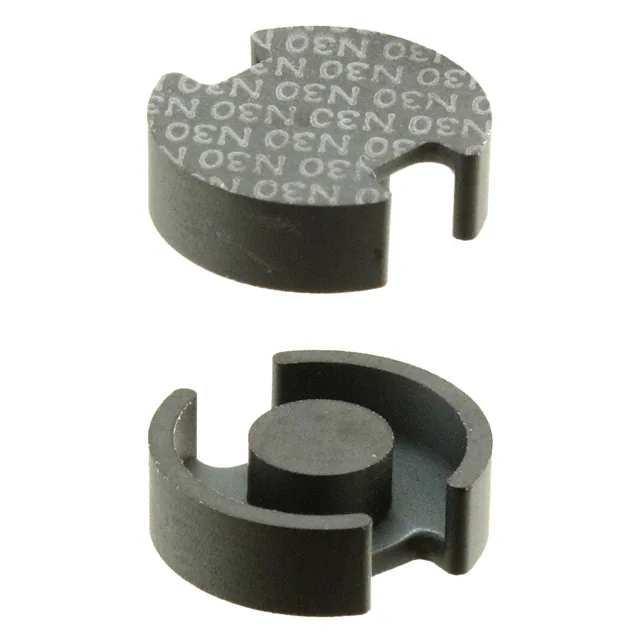

B65541W0000R030FERRITE CORE P 4.6UH N30 2PCS |
787 |
|
Технический лист |
P14/8 | Box | Active | P (Pot Core) | P 14 x 8 | N30 | 0.563" (14.30mm) | 4.6 µH | -20%, +30% | Ungapped | 2680.0 | 4300 | 0.73 | 21.0 | 28.7 | 23.6 | 603.0 | Uncoated | 0.167" (4.25mm) | - | - |
|
|
ZW42207TCFERRITE CORE TOROID 7.4UH W |
1,662 |
|
Технический лист |
- | Bulk | Active | Toroid | - | W | 0.908" (23.07mm) | 7.4 µH | ±30% | Ungapped | - | 10000 | - | 54.1 | 32.5 | - | 1740.0 | Epoxy | 0.342" (8.69mm) | - | - |
|
TX25/15/10-3C90FERRITE CORE TOROID 3C90 |
1,336 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 25 x 15 x 10 | 3C90 | 1.007" (25.95mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.429" (10.90mm) | - | - |
|
|
ZW42508TCFERRITE CORE TOROID 9.66UH W |
2,456 |
|
Технический лист |
- | Bulk | Active | Toroid | - | W | 1.045" (26.55mm) | 9.66 µH | ±30% | Ungapped | - | 10000 | - | 61.5 | 48.0 | - | 2967.0 | Epoxy | 0.424" (10.77mm) | - | - |
|
|
C055050A2FERRITE CORE TOROID 56NH MPP |
2,087 |
|
Технический лист |
- | Bulk | Active | Toroid | - | MPP | 0.530" (13.45mm) | 56 nH | ±8% | Ungapped | - | 125 | - | 31.2 | 10.9 | - | 340.0 | Coated | 0.217" (5.51mm) | - | - |
|
B66361G0200X187FERRITE CORE ETD N87 1PC |
1,022 |
|
Технический лист |
ETD34/17/11 | Box | Active | ETD | ETD 34 x 17 x 11 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.689" (17.50mm) | 1.339" (34.00mm) | 0.433" (11.00mm) |
|

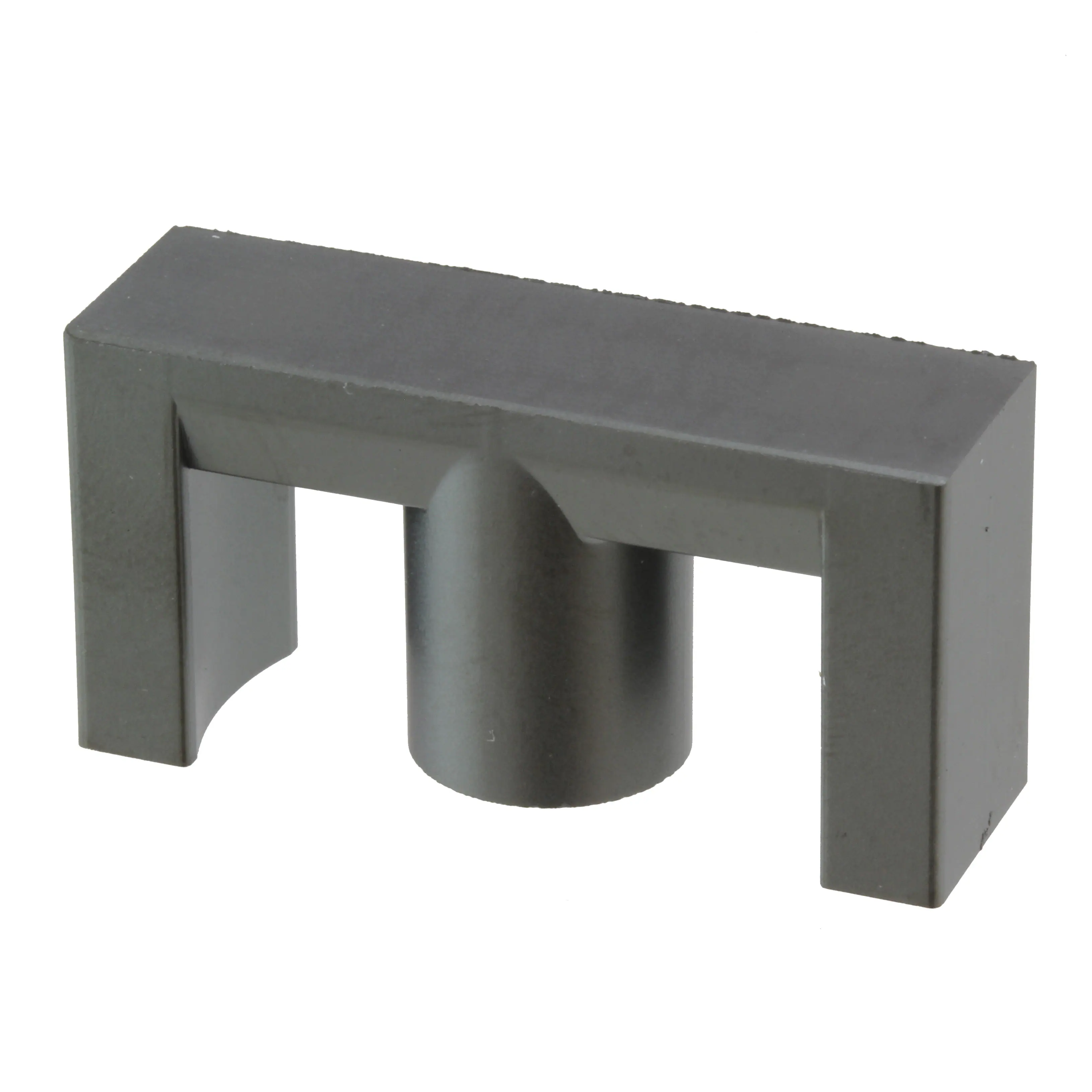

B66361G1000X187FERRITE CORE ETD N87 1PC |
300 |
|
Технический лист |
ETD34/17/11 | Box | Active | ETD | ETD 34 x 17 x 11 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.689" (17.50mm) | 1.339" (34.00mm) | 0.433" (11.00mm) |
