Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5678221421FERRITE CORE PS 78 SET |
69 |
|
Технический лист |
- | Bulk | Active | PS | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 48.0 | 31.2 | 64.8 | - | 2000.0 | Uncoated | - | - | - |
|
PC95EL13X4.4-ZFERRITE CORE EL 3.16UH PCS95 2PC |
87 |
|
Технический лист |
Planar | Tray | Active | EL | EI 13 x 4.4 | PC95 | - | 3.16 µH | ±25% | Ungapped | - | - | 0.67 | 23.1 | 15.4 | 22.4 | 357.0 | Uncoated | 0.089" (2.25mm) | 0.512" (13.00mm) | 0.409" (10.40mm) |
|
|
PC95EL15.5X5.8-ZFERRITE CORE EL 3.68UH PCS95 2PC |
99 |
|
Технический лист |
Planar | Tray | Active | EL | EI 15.5 x 5.8 | PC95 | - | 3.68 µH | ±25% | Ungapped | - | - | 0.6 | 32.9 | 19.6 | 31.9 | 646.0 | Uncoated | 0.115" (2.92mm) | 0.610" (15.50mm) | 0.488" (12.40mm) |
|
|
PC95EL20X7.7-ZFERRITE CORE EL 5.63UH PCS95 2PC |
62 |
|
Технический лист |
Planar | Tray | Active | EL | EL 20 x 7.7 | PC95 | - | 5.63 µH | ±25% | Ungapped | - | - | 0.47 | 54.6 | 25.6 | 52.9 | 1400.0 | Uncoated | 0.151" (3.83mm) | 0.787" (20.00mm) | 0.630" (16.00mm) |
|
B65807J0250A048FERRITE CORE RM 250NH N48 2PCS |
37 |
|
Технический лист |
RM6 | Strip | Active | RM | RM 6 | N48 | - | 250 nH | ±3% | Gapped | 171.0 | - | 0.78 | 28.6 | 36.6 | 31.0 | 1050.0 | Uncoated | 0.246" (6.25mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|
B66335G1500X127FERRITE CORE E N27 1PC |
82 |
|
Технический лист |
E55/28/21 | Box | Active | E | E 55 x 28 x 21 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 1.094" (27.80mm) | 2.165" (55.00mm) | 0.827" (21.00mm) |
|

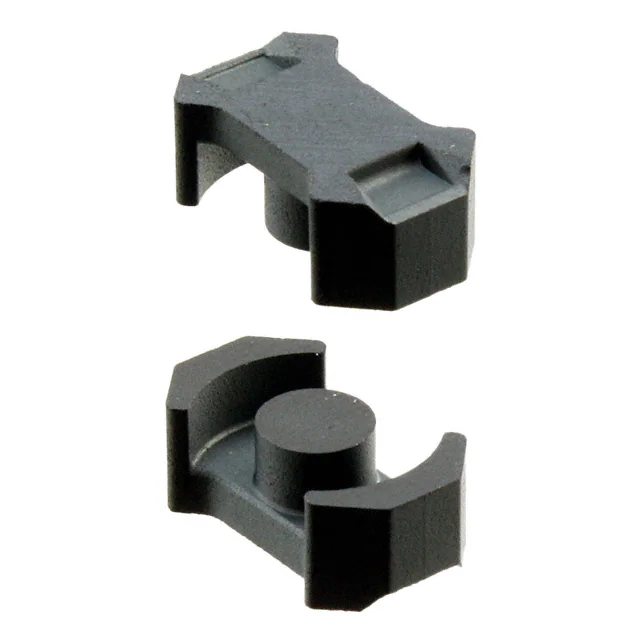

B65803P0000Y038FERRITE CORE RM 5UH T38 2PCS |
53 |
|
Технический лист |
RM4/LP | Box | Active | RM | RM 4 LP | T38 | - | 5 µH | -30%, +40% | Ungapped | 4750.0 | 2300 | 1.2 | 17.3 | 14.5 | 11.3 | 251.0 | Uncoated | 0.154" (3.90mm) | 0.433" (11.00mm) | 0.181" (4.60mm) |
|
6698404121FERRITE CORE PQ PCS |
37 |
|
Технический лист |
- | Bulk | Active | PQ | - | - | - | - | ±25% | Ungapped | - | 2400 | 52.3 | 103.6 | 198.0 | 170.0 | 20500.0 | Uncoated | - | - | - |
|
B66457K0000X187FERRITE CORE I N87 |
92 |
|
Технический лист |
I32/3/20 | Tray | Active | I | I 32 x 3 x 20 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.124" (3.15mm) | 1.250" (31.75mm) | 0.801" (20.35mm) |
|
6698353621FERRITE CORE PQ SET |
75 |
|
Технический лист |
- | Bulk | Active | PQ | - | - | - | - | ±25% | Ungapped | - | 2400 | 48.2 | 88.2 | 183.0 | 161.7 | 16130.0 | Uncoated | 0.685" (17.40mm) | 1.382" (35.10mm) | - |
|
B66461G0000X192FERRITE CORE ELP N92 1PC |
53 |
|
Технический лист |
ELP43/10/28 | Box | Active | ELP | ELP 43 x 10 x 28 | N92 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.374" (9.50mm) | 1.700" (43.20mm) | 1.098" (27.90mm) |
|
TX26/15/20-3E12FERRITE CORE TOROID |
91 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 26 x 15 x 20 | - | 1.061" (26.95mm) | - | ±30% | Ungapped | 12000.0 | - | 0.538 | 60.1 | 112.0 | - | 6720.0 | Epoxy | 0.827" (21.00mm) | - | - |
|
6278420121FERRITE CORE RM 78 SET |
72 |
|
Технический лист |
- | Bulk | Active | RM | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 38.0 | 73.8 | 195.0 | 170.9 | 14370.0 | Uncoated | - | - | - |
|
PC47EI40-ZFERRITE CORE E 4.86UH PCS47 1SET |
66 |
|
Технический лист |
E | Tray | Active | E | - | PC47 | - | 4.86 µH | ±25% | Ungapped | - | 2500 | 0.52 | 77.0 | 148.0 | - | 11400.0 | Uncoated | - | 1.575" (40.00mm) | - |
|
TX42/26/13-3E10-MFERRITE CORE TOROID |
53 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 42 x 26 x 13 | - | 1.697" (43.15mm) | - | ±30% | Ungapped | 10000.0 | - | 1.076 | 103.0 | 95.8 | - | 9860.0 | Epoxy | 0.531" (13.50mm) | - | - |
|
PC47EER42-ZFERRITE CORE E 4.69UH PCS47 2PC |
49 |
|
Технический лист |
E | Tray | Active | E | EER 42 | PC47 | - | 4.69 µH | ±25% | Ungapped | - | - | 0.51 | 98.8 | 194.0 | - | 19200.0 | Uncoated | 0.882" (22.40mm) | 1.654" (42.00mm) | 0.610" (15.50mm) |
|
HF60T44.5X13X30FERRITE CORE TOROID |
56 |
|
Технический лист |
T | Tray | Active | Toroid | - | - | 1.752" (44.50mm) | - | - | Ungapped | - | 1600 | - | - | - | - | - | Uncoated | 0.512" (13.00mm) | - | - |
|
9595494902FERRITE CORE ETD 95 SET |
98 |
|
Технический лист |
- | Bulk | Active | ETD | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 53.0 | 114.4 | 213.5 | 209.0 | 24420.0 | Uncoated | - | - | - |
|
6678505021FERRITE CORE PQ 78 SET |
45 |
|
Технический лист |
- | Bulk | Active | PQ | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 35.9 | 114.7 | 319.0 | 314.2 | 36630.0 | Uncoated | - | 1.969" (50.00mm) | 1.260" (32.00mm) |
|
|
6698505021FERRITE CORE PQ SET |
92 |
|
Технический лист |
- | Bulk | Active | PQ | - | - | - | - | ±25% | Ungapped | - | 2400 | 35.9 | 114.7 | 319.0 | 314.2 | 36630.0 | Uncoated | - | 1.969" (50.00mm) | 1.260" (32.00mm) |
