Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3228CABLE GRIP 2.92-7.93MM 3/8" NPT |
384 |
|
Технический лист |
Cable Grip | 0.115" (2.92mm) | 0.312" (7.93mm) | 3/8" NPT | 0.530" (13.46mm) | - | 0.669" (17.0mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
50.620 PA7035CABLE GLAND 8-13MM M20 POLYAMIDE |
1,430 |
|
Технический лист |
Cable Gland | 0.315" (8.00mm) | 0.512" (13.00mm) | M20x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
IPG-222114-GCABLE GLAND 5.08-9.91MM PG11 |
223 |
|
Технический лист |
Cable Gland | 0.200" (5.08mm) | 0.390" (9.91mm) | PG11 | 0.590" (14.99mm) | - | 0.710" (18.0mm) | Polyamide (PA), Nylon | Gasket | Gray | IP66 - Dust Tight, Water Resistant | -20°C ~ 65°C | |
|
50.11213PARSWCABLE GLAND 5-9MM 1/2" NPT |
195 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.354" (9.00mm) | 1/2" NPT | 0.571" (14.50mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
3207CABLE GRIP 2.9-6.35MM PG7 |
3,852 |
|
Технический лист |
Cable Grip | 0.114" (2.90mm) | 0.250" (6.35mm) | PG7 | 0.330" (8.38mm) | - | 0.492" (12.5mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
|
CG-P-16CABLE GLAND 8-13MM PG16 POLYAMID |
1,582 |
|
Технический лист |
Cable Gland | 0.315" (8.00mm) | 0.512" (13.00mm) | PG16 | 0.394" (10.00mm) | - | 0.898" (22.8mm) | Polyamide (PA66), Nylon 6/6 | Locknut, Seal | - | IP68 - Dust Tight, Waterproof | - | |
|
|
CG-P-M22CABLE GLAND 8-13MM M22 POLYAMIDE |
669 |
|
Технический лист |
Cable Gland | 0.315" (8.00mm) | 0.512" (13.00mm) | M22 | 0.394" (10.00mm) | - | 0.878" (22.3mm) | Polyamide (PA66), Nylon 6/6 | Locknut, Seal | - | IP68 - Dust Tight, Waterproof | - | |
|
M4330CABLE GRIP 1.65-5.33MM M12 |
18,891 |
|
Технический лист |
Cable Grip | 0.065" (1.65mm) | 0.210" (5.33mm) | M12 | 0.320" (8.13mm) | - | 0.472" (12.0mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
CG-PG7-1-BKCABLE GLAND 2-5MM PG7 POLYAMIDE |
1,076 |
|
Технический лист |
Cable Gland | 0.079" (2.00mm) | 0.197" (5.00mm) | PG7 | 0.315" (8.00mm) | - | 0.500" (12.7mm) | Polyamide (PA), Nylon | Sealing Gland, Sealing Nut | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|

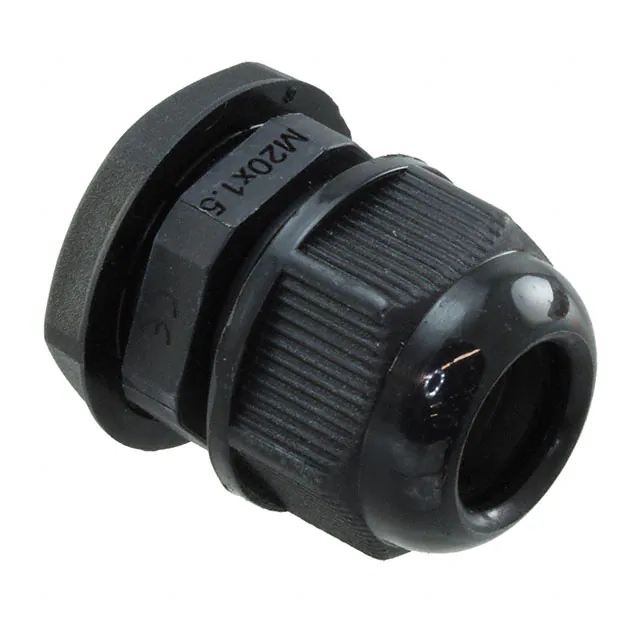

GC1000-CCABLE GLAND 7-12MM M20 POLYAMIDE |
570 |
|
Технический лист |
Cable Gland | 0.276" (7.00mm) | 0.472" (12.00mm) | M20x1.5 | 0.354" (9.00mm) | - | 0.807" (20.5mm) | Polyamide (PA), Nylon | Locknut, O-Ring, Seal | Black | IP67 - Dust Tight, Waterproof | -30°C ~ 120°C | |
|
CG-M25-1-BKCABLE GLAND 7.87-17.02MM M25 |
1,218 |
|
Технический лист |
Cable Gland | 0.310" (7.87mm) | 0.670" (17.02mm) | M25x1.5 | 0.315" (8.00mm) | - | 0.992" (25.2mm) | Polyamide (PA), Nylon | Inner and Outer Sealing Gland, Sealing Nut | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
M3207CABLE GRIP 2.92-6.35MM PG7 |
2,355 |
|
Технический лист |
Cable Grip | 0.115" (2.92mm) | 0.250" (6.35mm) | PG7 | 0.320" (8.13mm) | - | 0.492" (12.5mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
IPG-22216CABLE GLAND 9.91-13.97MM PG16 |
1,232 |
|
Технический лист |
Cable Gland | 0.390" (9.91mm) | 0.550" (13.97mm) | PG16 | 0.390" (9.91mm) | - | 0.890" (22.6mm) | Polyamide (PA), Nylon | Gasket | Black | IP66 - Dust Tight, Water Resistant | -20°C ~ 65°C | |
|
|
M4332CABLE GRIP 2.92-6.35MM M12 |
637 |
|
Технический лист |
Cable Grip | 0.115" (2.92mm) | 0.250" (6.35mm) | M12 | 0.320" (8.13mm) | - | 0.472" (12.0mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
M4818CABLE GRIP 6.35-11.43MM |
541 |
|
Технический лист |
Cable Grip | 0.250" (6.35mm) | 0.450" (11.43mm) | - | - | - | 0.875" (22.2mm), 7/8" | Polyamide (PA66), Nylon 6/6 | Strain Relief | Black | - | -18°C ~ 105°C | |
|
50.112 PA/RSWCABLE GLAND 7-12MM 1/2" NPT |
182 |
|
Технический лист |
Cable Gland | 0.276" (7.00mm) | 0.472" (12.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
CG-PG13.5-1-BKCABLE GLAND 6-12MM PG13.5 |
5,991 |
|
Технический лист |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | PG13.5 | 0.354" (8.99mm) | - | 0.815" (20.7mm) | Polyamide (PA), Nylon | Sealing Gland, Sealing Nut | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
3210CABLE GRIP 4.6-7.93MM PG9 |
2,093 |
|
Технический лист |
Cable Grip | 0.181" (4.60mm) | 0.312" (7.93mm) | PG9 | 0.340" (8.64mm) | - | 0.600" (15.2mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
M4800CABLE GRIP 6.1-6.35MM POLYAMID |
836 |
|
Технический лист |
Cable Grip | 0.240" (6.10mm) | 0.250" (6.35mm) | - | - | - | 0.500" (12.7mm) | Polyamide (PA66), Nylon 6/6 | Strain Relief | Black | - | -18°C ~ 105°C | |
|
|
M4806CABLE GRIP 5.33-8MM POLYAMIDE |
4,491 |
|
Технический лист |
Cable Grip | 0.210" (5.33mm) | 0.315" (8.00mm) | - | - | - | 0.625" (15.9mm) | Polyamide (PA66), Nylon 6/6 | Strain Relief | Black | - | -18°C ~ 105°C |
