Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M4812CABLE GRIP 5.84-10.16MM |
1,985 |
|
Технический лист |
Cable Grip | 0.230" (5.84mm) | 0.400" (10.16mm) | - | - | - | 0.752" (19.1mm) | Polyamide (PA66), Nylon 6/6 | Strain Relief | Black | - | -18°C ~ 105°C | |
|
50013M20BSSWCABLE GLAND 6-12MM M20 POLYAMIDE |
114 |
|
Технический лист |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | M20x1.5 | 0.433" (11.00mm) | - | - | Polyamide (PA6), Nylon 6 | Strain Relief | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
CG-M-PG13.5CABLE GLAND 6-12MM PG13.5 BRASS |
268 |
|
Технический лист |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | PG13.5 | 0.315" (8.00mm) | - | 0.803" (20.4mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
CG-M12-1-BKCABLE GLAND 2-5MM M12 POLYAMIDE |
140 |
|
Технический лист |
Cable Gland | 0.079" (2.00mm) | 0.197" (5.00mm) | M12 | 0.315" (8.00mm) | - | 0.480" (12.2mm) | Polyamide (PA), Nylon | Inner and Outer Sealing Gland, Sealing Nut | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
M3217CABLE GRIP 4.32-11.43MM PG13.5 |
2,370 |
|
Технический лист |
Cable Grip | 0.170" (4.32mm) | 0.450" (11.43mm) | PG13.5 | 0.410" (10.41mm) | - | 0.803" (20.4mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
M4340CABLE GRIP 4.32-11.43MM M20 |
765 |
|
Технический лист |
Cable Grip | 0.170" (4.32mm) | 0.450" (11.43mm) | M20 | 0.410" (10.41mm) | - | 0.787" (20.0mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|

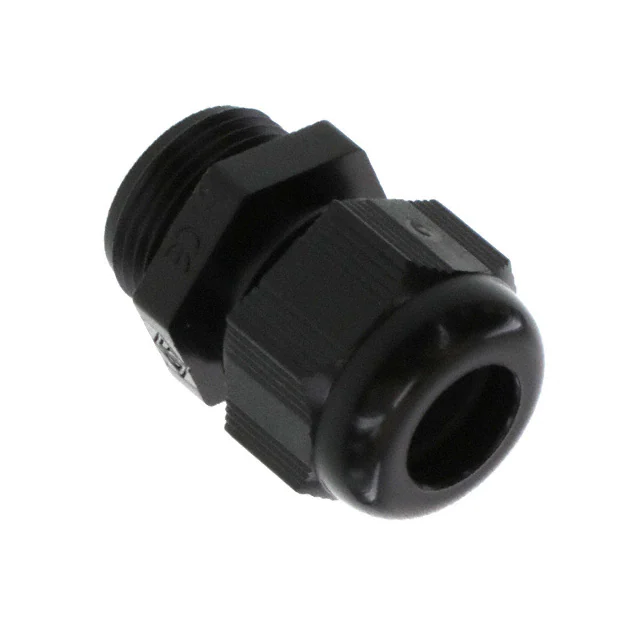

5308 513CABLE GLAND 5-12MM PG13.5 |
698 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.472" (12.00mm) | PG13.5 | 0.354" (9.00mm) | - | 0.803" (20.4mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
3251CABLE GRIP 4.32-11.94MM 1/2" NPT |
617 |
|
Технический лист |
Cable Grip | 0.170" (4.32mm) | 0.470" (11.94mm) | 1/2" NPT | 0.620" (15.75mm) | - | 0.875" (22.2mm), 7/8" | Polyamide (PA66), Nylon 6/6 | Strain Relief | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
|
V3207CABLE GRIP 2.92-6.35MM |
1,561 |
|
Технический лист |
Cable Grip | 0.115" (2.92mm) | 0.250" (6.35mm) | - | 0.320" (8.13mm) | - | 0.492" (12.5mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
|
CG-P-M25CABLE GLAND 13-18.01MM M25 |
1,086 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | M25 | 0.472" (12.00mm) | - | 0.996" (25.3mm) | Polyamide (PA66), Nylon 6/6 | Locknut, Seal | - | IP68 - Dust Tight, Waterproof | - | |
|
3448CABLE GRIP 1.75-6.6MM PG11 |
774 |
|
Технический лист |
Cable Grip | 0.069" (1.75mm) | 0.260" (6.60mm) | PG11 | 0.390" (9.91mm) | - | 0.732" (18.6mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
3464CABLE GRIP 1.63-5.33MM PG7 |
2,736 |
|
Технический лист |
Cable Grip | 0.064" (1.63mm) | 0.210" (5.33mm) | PG7 | 0.330" (8.38mm) | - | 0.492" (12.5mm) | Polyamide (PA66), Nylon 6/6 | Locknut, Strain Relief | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|

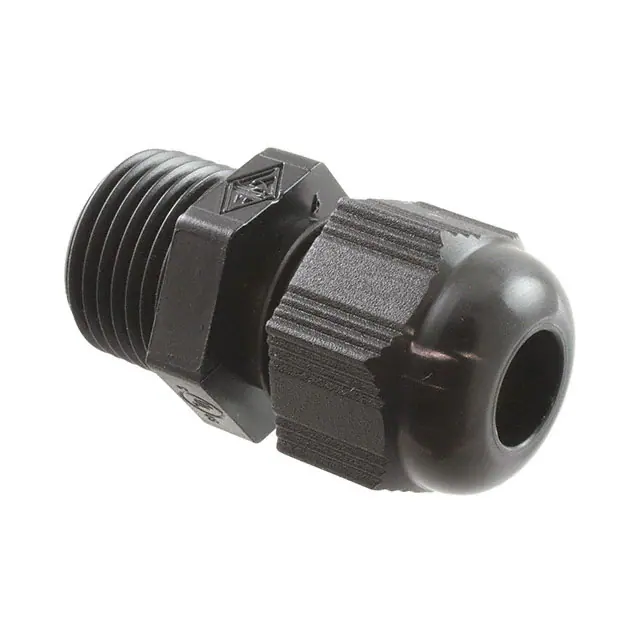

5308 924CABLE GLAND 1.5-6MM 3/8" NPT |
466 |
|
Технический лист |
Cable Gland | 0.059" (1.50mm) | 0.236" (6.00mm) | 3/8" NPT | 0.433" (11.00mm) | - | 0.673" (17.1mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
3219CABLE GRIP 5.84-13.87MM PG16 |
1,711 |
|
Технический лист |
Cable Grip | 0.230" (5.84mm) | 0.546" (13.87mm) | PG16 | 0.450" (11.43mm) | - | 0.886" (22.5mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
5309 113CABLE GLAND 3-9MM PG13.5 |
325 |
|
Технический лист |
Cable Gland | 0.118" (3.00mm) | 0.354" (9.00mm) | PG13.5 | 0.354" (9.00mm) | - | 0.803" (20.4mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
M3251CABLE GRIP 4.32-11.43MM 1/2" NPT |
4,125 |
|
Технический лист |
Cable Grip | 0.170" (4.32mm) | 0.450" (11.43mm) | 1/2" NPT | 0.610" (15.49mm) | - | 0.875" (22.2mm), 7/8" | Polyamide (PA66), Nylon 6/6 | Strain Relief | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
NG-9513CABLE GLAND 5-7.5MM PG11 |
331 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.295" (7.50mm) | PG11 | 0.323" (8.20mm) | - | 0.732" (18.6mm) | Polyamide (PA), Nylon | Gasket, Nut, Seal | Black | - | -40°C ~ 105°C | |
|
IPG-22221CABLE GLAND 12.95-18.03MM PG21 |
209 |
|
Технический лист |
Cable Gland | 0.510" (12.95mm) | 0.710" (18.03mm) | PG21 | 0.390" (9.91mm) | - | 1.110" (28.2mm) | Polyamide (PA), Nylon | Gasket | Black | IP66 - Dust Tight, Water Resistant | -20°C ~ 65°C | |
|
5308 901CABLE GLAND 5-12MM 1/2" NPT |
547 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.472" (12.00mm) | 1/2" NPT | 0.551" (14.00mm) | - | 0.835" (21.2mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
CG-M-M22-1.5CABLE GLAND 10-14MM M22 BRASS |
128 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | M22x1.5 | 0.315" (8.00mm) | - | 0.866" (22.0mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C |
