Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M3321GBX-SMCABLE GRIP 2" NPT POLYAMIDE |
337 |
|
Технический лист |
Cable Grip, Multi-Hole | - | - | 2" NPT | 0.790" (20.07mm) | - | 2.400" (61.0mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 112°C | |
|
53112640CABLE GLAND 9-16.99MM M25 BRASS |
153 |
|
Технический лист |
Cable Gland | 0.354" (9.00mm) | 0.669" (16.99mm) | M25x1.5 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4, 6, 12 | -40°C ~ 100°C | |
|
19000005094CABLE GLAND 13-20MM M32 BRASS |
108 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.787" (20.00mm) | M32 | - | - | - | Brass | Clamping Ring | - | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|

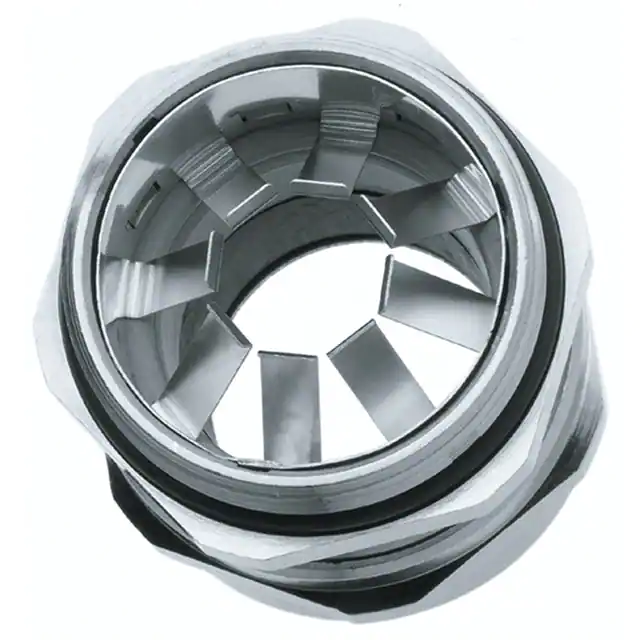

53112650CABLE GLAND 11-21MM M32 BRASS |
263 |
|
Технический лист |
Cable Gland | 0.433" (11.00mm) | 0.827" (21.00mm) | M32x1.5 | 0.354" (9.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4, 6, 12 | -40°C ~ 100°C | |
|
BG212VACPCABLE GLAND 5-7MM M12 S STEEL |
37 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.276" (7.00mm) | M12x1.5 | 0.276" (7.00mm) | - | 0.472" (12.0mm) | Stainless Steel | Sealing Ring | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | |
|

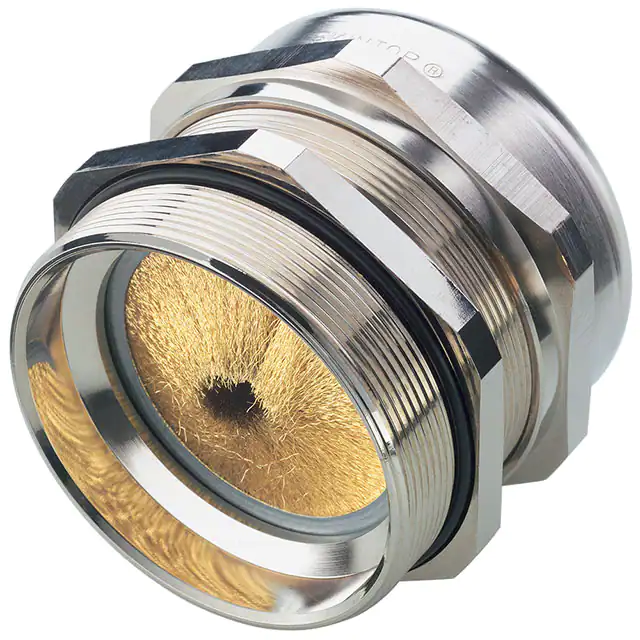

53112676CABLE GLAND 9-16.99MM M25 BRASS |
81 |
|
Технический лист |
Cable Gland | 0.354" (9.00mm) | 0.669" (16.99mm) | M25x1.5 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4, 6, 12 | - | |
|
19000005098CABLE GLAND 22-32MM M40 BRASS |
61 |
|
Технический лист |
Cable Gland | 0.866" (22.00mm) | 1.260" (32.00mm) | M40 | - | - | - | Brass | Clamping Ring | - | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
53112677CABLE GLAND 11-21MM M32 BRASS |
227 |
|
Технический лист |
Cable Gland | 0.433" (11.00mm) | 0.827" (21.00mm) | M32x1.5 | 0.354" (9.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4, 6, 12 | - | |
|
USG 22554 ZNCABLE GLAND M25 ZINC |
29 |
|
Технический лист |
Cable Gland - Splittable Body | - | - | M25x1.5 | 0.433" (11.00mm) | - | - | Zinc | - | Silver | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C | |
|
53806780CABLE GLAND 7-13MM 1/2" NPT |
70 |
|
Технический лист |
Cable Gland | 0.276" (7.00mm) | 0.512" (13.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | - | Stainless Steel | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 2, 4X, 6, 12 | -40°C ~ 100°C | |
|

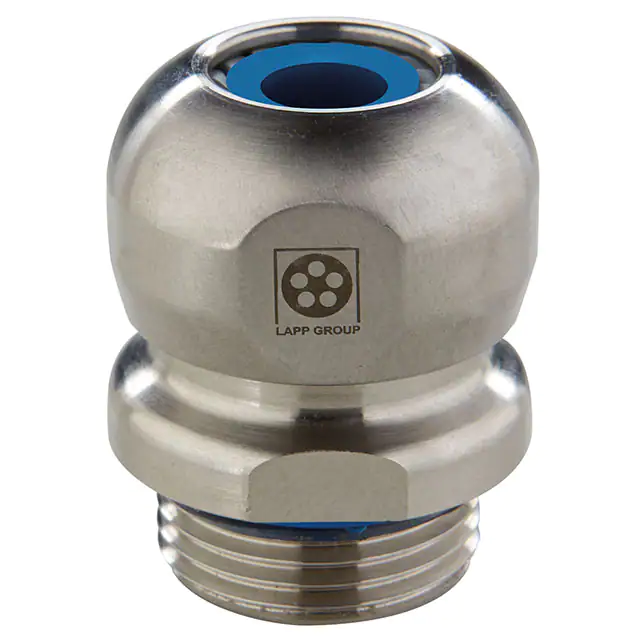

53806781CABLE GLAND 9-16.99MM 3/4" NPT |
42 |
|
Технический лист |
Cable Gland | 0.354" (9.00mm) | 0.669" (16.99mm) | 3/4" NPT | 0.591" (15.00mm) | - | - | Stainless Steel | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 2, 4X, 6, 12 | -40°C ~ 100°C | |
|
|
1SNG601036R0000CABLE GLAND 4-8MM M16 POLYAMIDE |
1,763 |
|
Технический лист |
Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | M16x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
CG-P-7CABLE GLAND 4-6.5MM PG7 POLYAMID |
6,507 |
|
Технический лист |
Cable Gland | 0.157" (4.00mm) | 0.256" (6.50mm) | PG7 | 0.354" (9.00mm) | - | 0.504" (12.8mm) | Polyamide (PA66), Nylon 6/6 | Locknut, Seal | - | IP68 - Dust Tight, Waterproof | - | |
|
|
1SNG601012R0000CABLE GLAND 3-6.5MM M12 POLYAMID |
3,385 |
|
Технический лист |
Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | M12x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
50.007 PA7035CABLE GLAND 3-6.5MM PG7 POLYAMID |
1,101 |
|
Технический лист |
Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | PG7 | 0.315" (8.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
CG-P-M16CABLE GLAND 4.5-8.5MM M16 |
1,481 |
|
Технический лист |
Cable Gland | 0.177" (4.50mm) | 0.335" (8.50mm) | M16 | 0.354" (9.00mm) | - | 0.642" (16.3mm) | Polyamide (PA66), Nylon 6/6 | Locknut, Seal | - | IP68 - Dust Tight, Waterproof | - | |
|
|
CG-P-M12-1.5CABLE GLAND 4-6.5MM M12 POLYAMID |
1,413 |
|
Технический лист |
Cable Gland | 0.157" (4.00mm) | 0.256" (6.50mm) | M12 | 0.354" (9.00mm) | - | 0.484" (12.3mm) | Polyamide (PA66), Nylon 6/6 | Locknut, Seal | - | IP68 - Dust Tight, Waterproof | - | |
|
|
1411133CABLE GLAND 6-12MM M20 POLYAMIDE |
2,791 |
|
Технический лист |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | M20 | 0.394" (10.00mm) | - | - | Polyamide (PA), Nylon | Seal | Black | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
1SNG601057R0000CABLE GLAND 6-12MM M20 POLYAMIDE |
1,121 |
|
Технический лист |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | M20x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
GC1000-ACABLE GLAND 2.5-6.5MM M12 |
3,390 |
|
Технический лист |
Cable Gland | 0.098" (2.50mm) | 0.256" (6.50mm) | M12x1.5 | 0.335" (8.50mm) | - | 0.492" (12.5mm) | Polyamide (PA), Nylon | Locknut, O-Ring, Seal | Black | IP67 - Dust Tight, Waterproof | -30°C ~ 120°C |
