Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM75-20B24AC/DC CONVERTER 24V 77W |
949 |
|
Технический лист |
LM75-20Bxx (75W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 77W | Household Appliances, ITE (Commercial) | 4 kV | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CCC, CE, cURus |
|

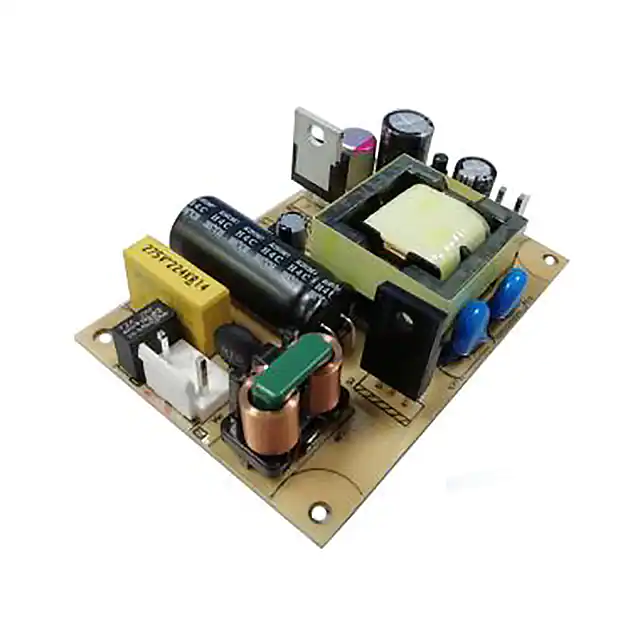

LO30-10B24AC/DC CONVERTER 24V 30W |
107 |
|
Технический лист |
LO30-10Bxx (30W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 24V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | 87% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.06" H (76.2mm x 50.8mm x 27.0mm) | CB, CE, cURus |
|

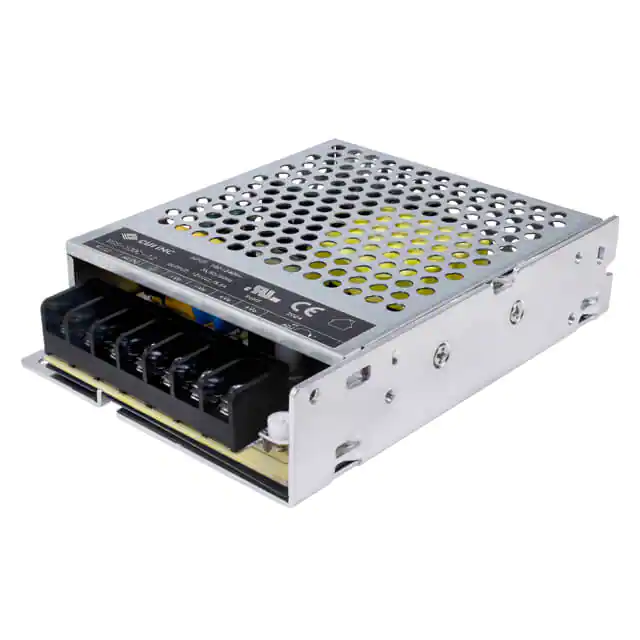

VGS-100C-12AC/DC CONVERTER 12V 102W |
103 |
|
Технический лист |
VGS-100C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 102W | Household Appliances, ITE (Commercial) | 4 kV | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | CE, cURus |
|
|
LM75-20B12AC/DC CONVERTER 12V 72W |
185 |
|
Технический лист |
LM75-20Bxx (75W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 12V | - | - | - | - | - | 6 A | - | - | - | - | - | 72W | Household Appliances, ITE (Commercial) | 4 kV | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CCC, CE, cURus |
|

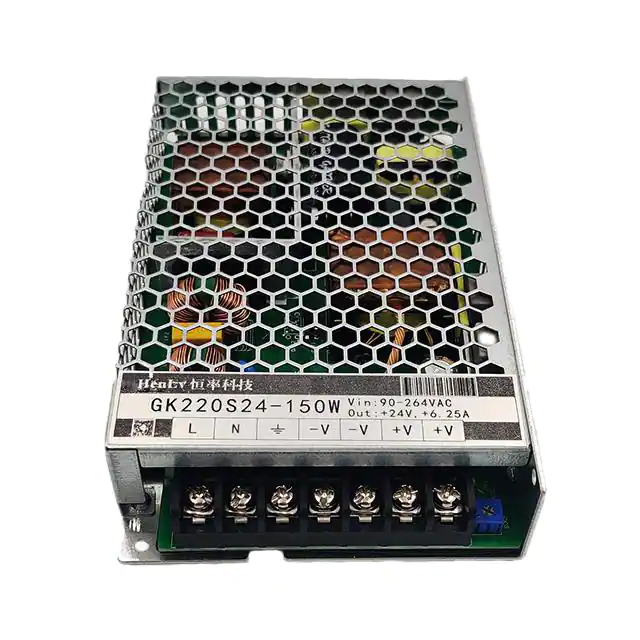

GK220S12-150WAC/DC CONVERTER 12V 150W |
20,000 |
|
Технический лист |
- | Case | Active | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | - | - | - | - | - | - | 150W | - | 3000 V | 84% | - | - | - | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | - |
|
|
GK220S24-150WAC/DC CONVERTER 24V 150W |
20,000 |
|
Технический лист |
- | Case | Active | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | - | - | - | - | - | - | - | - | 150W | - | 3000 V | 84% | - | - | - | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | - |
|
|
GK220S15-150WAC/DC CONVERTER 15V 150W |
20,000 |
|
Технический лист |
- | Case | Active | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | - | - | - | - | - | - | - | - | 150W | - | 3000 V | 84% | - | - | - | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | - |
|
|
GK220S05-150WAC/DC CONVERTER 5V 150W |
19,999 |
|
Технический лист |
- | Case | Active | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | - | - | - | - | - | - | - | - | 150W | - | 3000 V | 84% | - | - | - | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | - |
|
GB40S05K01AC/DC CONVERTER 5V 25W |
0 |
|
Технический лист |
GB40S (40W) | Bulk | Active | Open Frame | 1 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 5 A | - | - | - | - | - | 25W | ITE (Commercial), Medical | 4 kV | 88% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 1.90" W x 1.00" H (101.6mm x 48.3mm x 25.4mm) | CE, cURus, UL |
|

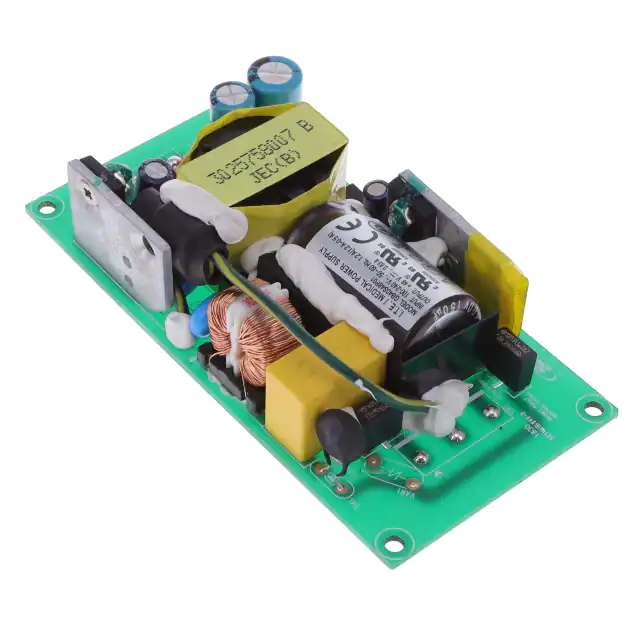

GB40S48P01AC/DC CONVERTER 48V 40W |
0 |
|
- |
GB40S (40W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 830 mA | - | - | - | - | - | 40W | ITE (Commercial), Medical | 4 kV | 88% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.81" H (101.6mm x 50.8mm x 20.6mm) | CE, cURus, DEMKO |
|
LM100-20B24AC/DC CONVERTER 24V 108W |
364 |
|
Технический лист |
LM100-20Bxx (100W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 24V | - | - | - | - | - | 4.5 A | - | - | - | - | - | 108W | Household Appliances, ITE (Commercial) | 4 kV | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | CB, CCC, CE, cURus |
.jpg)
|
GTM43007-A6048-F(R)AC/DC CONVERTER 48V 60W |
123 |
|
Технический лист |
GTM43007-A6048-F | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 60W | Household Appliances, ITE (Commercial), Medical | 4 kV | 89% | -10°C ~ 45°C | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.89" H (76.2mm x 50.8mm x 22.5mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, NEMKO, S-Mark, UkrSEPRO, VCCI |
.jpg)
|
GTM43007-A3005-F(R)AC/DC CONVERTER 5V 30W |
122 |
|
Технический лист |
GTM43007-A3005-F | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 6 A | - | - | - | - | - | 30W | Household Appliances, ITE (Commercial), Medical | 4 kV | 89% | -10°C ~ 45°C | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.93" H (76.2mm x 50.8mm x 23.6mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, NEMKO, S-Mark, UkrSEPRO, VCCI |
|
|
LM100-20B12AC/DC CONVERTER 12V 102W |
103 |
|
Технический лист |
LM100-20Bxx (100W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 102W | Household Appliances, ITE (Commercial) | 4 kV | 87.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | CB, CCC, CE, cURus |
|

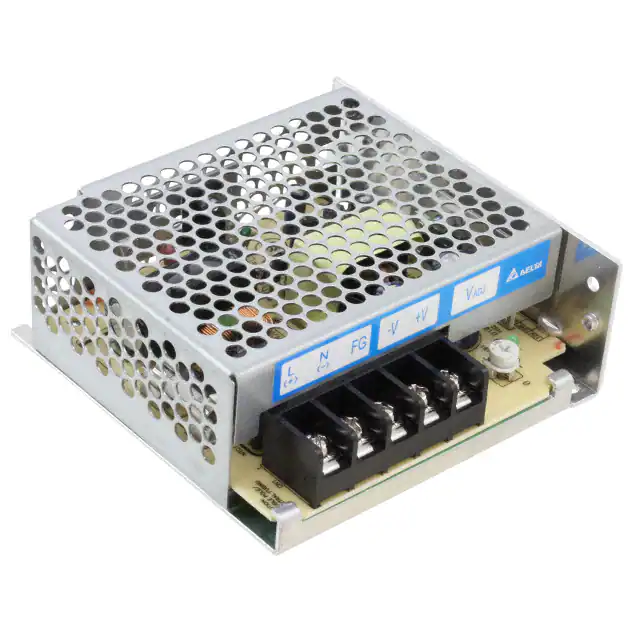

PMT-12V35W1AAAC/DC CONVERTER 12V 35W |
287 |
|
Технический лист |
PMT (35W) | Bulk | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 2.92 A | - | - | - | - | - | 35W | ITE (Commercial) | 3 kV | 84% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.86" L x 3.86" W x 1.50" H (98.0mm x 98.0mm x 38.0mm) | CB, CCC, CE, cURus, TUV |
|
LO65-10B24AC/DC CONVERTER 24V 65W |
564 |
|
Технический лист |
LO65-10Bxx (65W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 24V | - | - | - | - | - | 2.7 A | - | - | - | - | - | 65W | ITE (Commercial) | 3 kV | 87% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) | CB, CE, cURus |
|

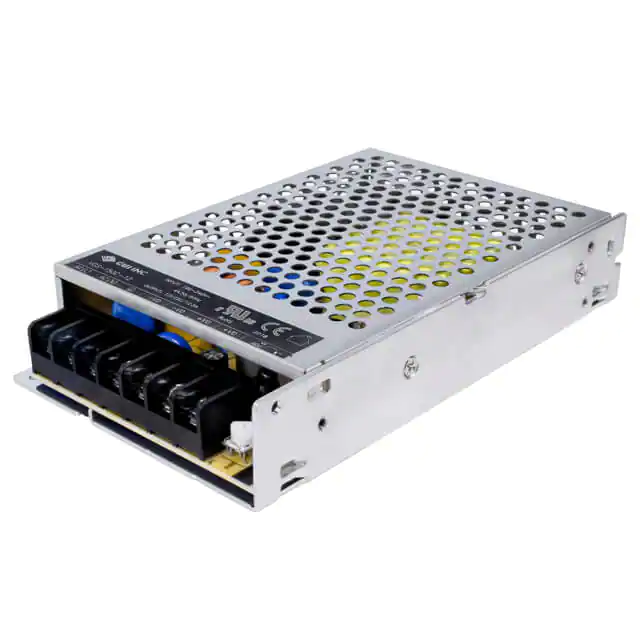

VGS-150C-24AC/DC CONVERTER 24V 156W |
297 |
|
Технический лист |
VGS-150C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 24V | - | - | - | - | - | 6.5 A | - | - | - | - | - | 156W | Household Appliances, ITE (Commercial) | 4 kV | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | CE, cURus |
|
RAC04-12SC/WAC/DC CONVERTER 12V 4W |
1,710 |
|
Технический лист |
POWERLINE RAC04-SC/W (4W) | Box | Obsolete | Enclosed | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 333 mA | - | - | - | - | - | 4W | ITE (Commercial) | 3 kV | 77% | -25°C ~ 85°C (With Derating) | DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 1.49" L x 0.94" W x 0.65" H (37.8mm x 23.9mm x 16.4mm) | CB, CE, cURus |
|
LMF75-23B24-QAC/DC CONVERTER 24V 77W |
112 |
|
Технический лист |
LMF75-23Bxx (75W) | Bulk | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 77W | Household Appliances, ITE (Commercial) | 4 kV | 86% | -30°C ~ 70°C | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input | Chassis Mount | 6.62" L x 3.82" W x 1.18" H (168.1mm x 97.0mm x 30.0mm) | CE |
|

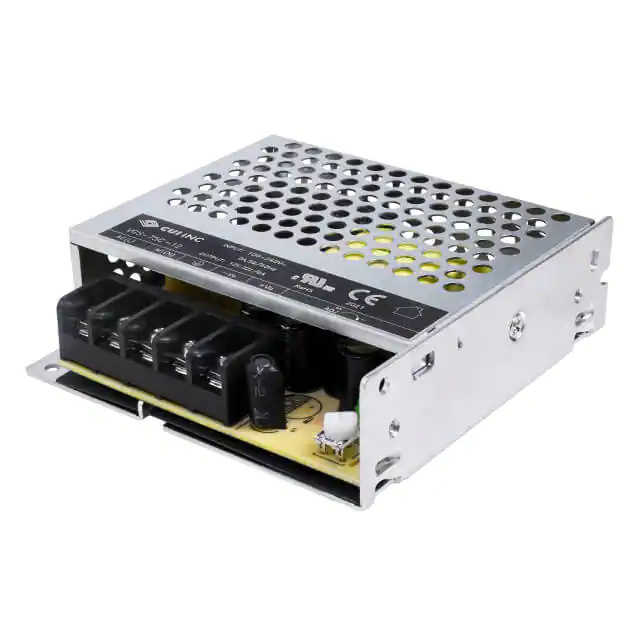

VGS-75C-15AC/DC CONVERTER 15V 75W |
134 |
|
Технический лист |
VGS-75C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 15V | - | - | - | - | - | 5 A | - | - | - | - | - | 75W | Household Appliances, ITE (Commercial) | 4 kV | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | CE, cURus |
