Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GK220S05-15WAC/DC CONVERTER 5V 15W |
20,000 |
|
Технический лист |
- | Case | Active | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | - | - | - | - | - | - | - | - | 15W | - | 3000 V | 85% | - | - | - | 3.31" L x 2.28" W x 1.50" H (84.0mm x 58.0mm x 38.0mm) | - |
|
|
GK220S12-15WAC/DC CONVERTER 12V 15W |
19,990 |
|
Технический лист |
- | Case | Active | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | - | - | - | - | - | - | 15W | - | 3000 V | 85% | - | - | - | 3.31" L x 2.28" W x 1.50" H (84.0mm x 58.0mm x 38.0mm) | - |
|
LD03-23B05WR23W AC-DC Board Mount Power Supply Module, Output: 5V DC, wide range |
274 |
|
Технический лист |
305RAC / LD-WR2 | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | - | - | 600 mA | - | - | - | - | - | 3W | Household Appliances, ITE (Commercial) | 4 kV | 76% | -40°C ~ 85°C (With Derating) | Adjustable Output | Chassis Mount | 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm) | CB, CE, cURus, UL |
|
|
LD03-23B12WR23W AC-DC Board Mount Power Supply Module, Output: 12V DC, wide range |
1,220 |
|
Технический лист |
305RAC / LD-WR2 | Tray | Original | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 250 mA | - | - | - | - | - | 3W | industrial, power, home appliances, instrumentation, communication and civil applications | 4 kV | 78% | -40°C ~ 85°C (With Derating) | ultra-wide AC input andat thesametime accepts DC input voltage, low power consumption, high efficiency, high reliability, reinforced isolation | Chassis Mount | 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm) | CB, CE, cURus, UL |
|
RACM15E-24SK/OF15W AC/DC-CONVERTER 'POWERLINE' |
216 |
|
Технический лист |
RACM15E-K (15W) | Tray | Active | Open Frame | 1 | 80 ~ 275 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 625 mA | - | - | - | - | - | 15W | Household Appliances, ITE (Commercial), Medical | 4.2 kV | 86% | -40°C ~ 85°C (With Derating) | Baseplate, DC Input Capable, PFC, Universal Input | Chassis Mount | 3.10" L x 0.90" W x 0.80" H (78.7mm x 22.9mm x 20.3mm) | CB Scheme, CE, cURus, FCC, UKCA |
|

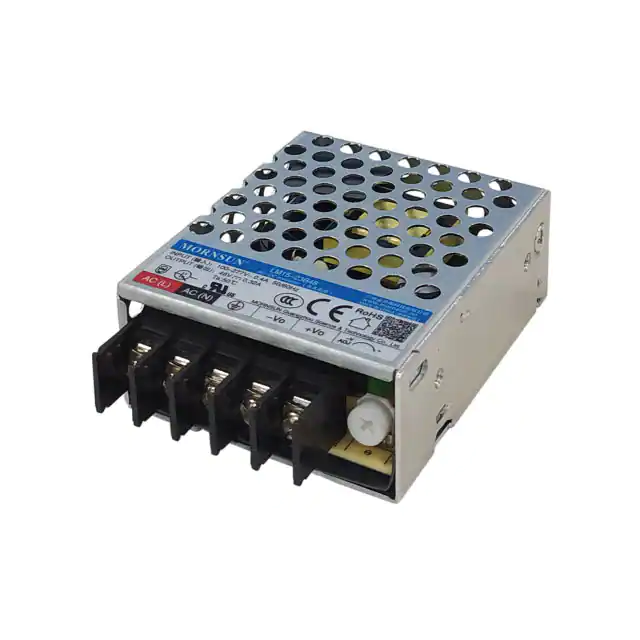

LM15-23B05AC/DC CONVERTER 5V 15W |
3,424 |
|
Технический лист |
305RAC / LM-23B | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | ITE (Commercial) | 4 kV | 78% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) | CB, CCC, CE, UL |
|
|
LM15-23B12AC/DC CONVERTER 12V 16W |
307 |
|
Технический лист |
305RAC / LM-23B | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 16W | ITE (Commercial) | 4 kV | 82% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) | CB, CCC, CE, UL |
|
|
LM15-23B24AC/DC CONVERTER 24V 15W |
336 |
|
Технический лист |
305RAC / LM-23B | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | - | - | 625 mA | - | - | - | - | - | 15W | ITE (Commercial) | 4 kV | 83% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) | CB, CCC, CE, UL |
|
|
LM15-23B48AC/DC CONVERTER 48V 15W |
106 |
|
Технический лист |
305RAC / LM-23B | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 48V | - | - | - | - | - | 320 mA | - | - | - | - | - | 15W | ITE (Commercial) | 4 kV | 83% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) | CB, CCC, CE, UL |
|
LD05-23B05WR2AC/DC CONVERTER 5V 5W |
229 |
|
Технический лист |
305RAC / LD-WR2 | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | - | - | 1 A | - | - | - | - | - | 5W | Household Appliances, ITE (Commercial) | 4 kV | 77.5% | -40°C ~ 85°C (With Derating) | Adjustable Output | Chassis Mount | 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm) | CB, CE, cURus, UL |
|
LO15-10B24AC/DC CONVERTER 24V 15W |
524 |
|
Технический лист |
LO15-10Bxx (15W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 24V | - | - | - | - | - | 625 mA | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | 82% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.50" L x 1.80" W x 0.75" H (63.5mm x 45.7mm x 19.0mm) | CB, CE, cURus |
|
|
LO15-10B12AC/DC CONVERTER 12V 15W |
437 |
|
Технический лист |
LO15-10Bxx (15W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 12V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | 81% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.50" L x 1.80" W x 0.75" H (63.5mm x 45.7mm x 19.0mm) | CB, CE, cURus |
|
|
LO15-10B05AC/DC CONVERTER 5V 14W |
212 |
|
Технический лист |
LO15-10Bxx (15W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 5V | - | - | - | - | - | 2.8 A | - | - | - | - | - | 14W | ITE (Commercial) | 3 kV | 76% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.50" L x 1.80" W x 0.75" H (63.5mm x 45.7mm x 19.0mm) | CB, CE, cURus |
|
GK220S15-35WAC/DC CONVERTER 15V 35W |
19,995 |
|
Технический лист |
- | Case | Active | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | - | - | - | - | - | - | - | - | 35W | - | 3000 V | 85% | - | - | - | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | - |
|

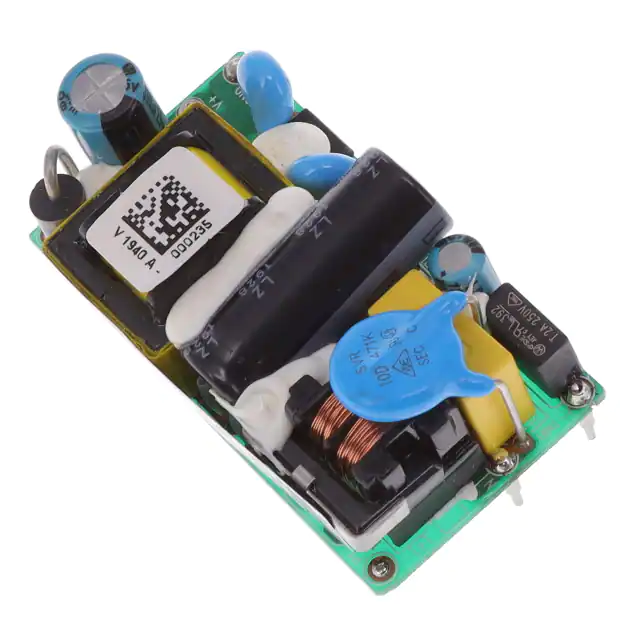

GB10S15P01AC/DC CONVERTER 15V 12W |
0 |
|
Технический лист |
GB10S (10W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 800 mA | - | - | - | - | - | 12W | ITE (Commercial), Medical | 4 kV | 88% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.05" L x 1.07" W x 0.71" H (52.0mm x 27.3mm x 18.0mm) | CE, cURus, DEMKO |
|
GB10S09P01AC/DC CONVERTER 9V 9W |
0 |
|
Технический лист |
GB10S (10W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 9V | - | - | - | - | - | 1 A | - | - | - | - | - | 9W | ITE (Commercial), Medical | 4 kV | 88% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.05" L x 1.07" W x 0.71" H (52.0mm x 27.3mm x 18.0mm) | CE, cURus, DEMKO |
|
GB10S07P01AC/DC CONVERTER 7.5V 9.8W |
0 |
|
Технический лист |
GB10S (10W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 7.5V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 9.8W | ITE (Commercial), Medical | 4 kV | 88% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.05" L x 1.07" W x 0.71" H (52.0mm x 27.3mm x 18.0mm) | CE, cURus, DEMKO |
|

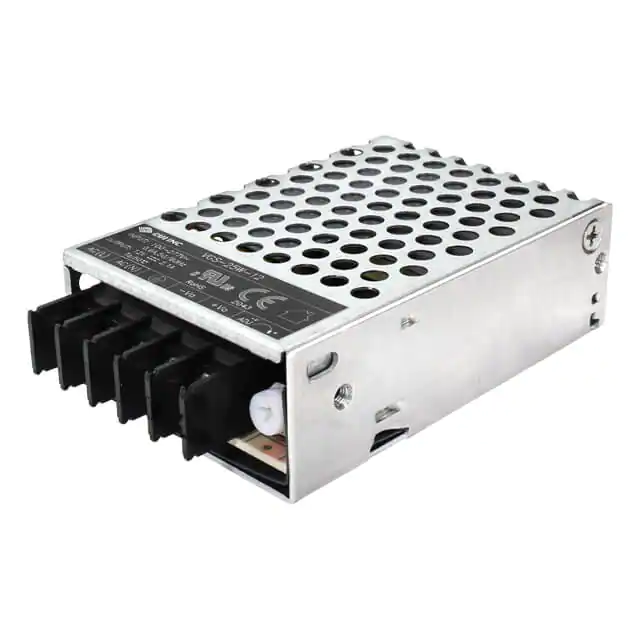

VGS-25W-12AC/DC CONVERTER 12V 25W |
159 |
|
Технический лист |
VGS-25W (25W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 25W | ITE (Commercial) | 4 kV | 85% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) | CE, cURus, EN, IEC, UL |
|
|
VGS-25W-5AC/DC CONVERTER 5V 25W |
101 |
|
Технический лист |
VGS-25W (25W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | - | - | 5 A | - | - | - | - | - | 25W | ITE (Commercial) | 4 kV | 81% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) | CE, cURus, EN, IEC, UL |
|
LM25-23B24AC/DC CONVERTER 24V 26W |
2,602 |
|
Технический лист |
305RAC / LM-23B | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | - | - | 1.1 A | - | - | - | - | - | 26W | ITE (Commercial) | 4 kV | 87% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) | CB, CCC, CE, UL |
