Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSP500M-80PDAC DC, 500W, MEDICAL PC |
93 |
|
Технический лист |
PD (500W) | Box | Active | ATX | 6 | 90 ~ 264 VAC | 3.3V | 5V | 12V | 12V | 12V | -12V | 24 A | 20 A | 16 A | 16 A | 16 A | 500 mA | 500W | ITE (Commercial), Medical | 4 kV | 87% | 0°C ~ 50°C | PFC, Standby Output, Universal Input | Benchtop | 5.91" L x 5.51" W x 3.39" H (150.0mm x 140.0mm x 86.0mm) | CE, cURus, TUV |
|

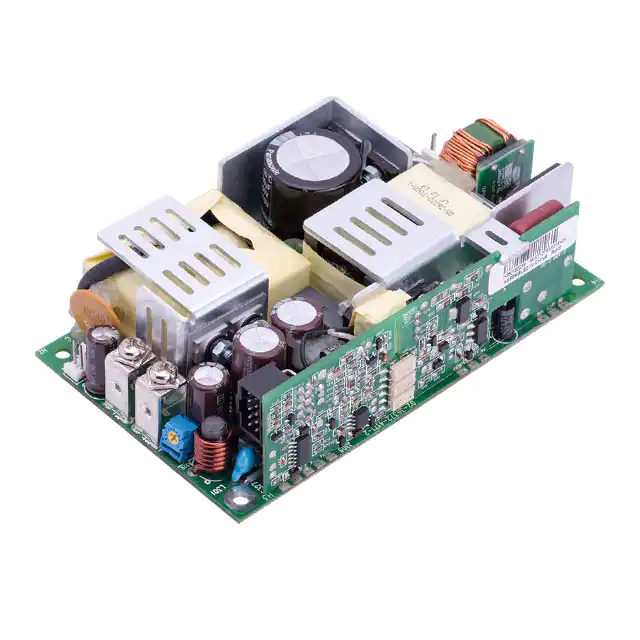

MINT1275A2414K01AC/DC CONVERTER 24V 180W |
0 |
|
Технический лист |
MINT1275 (275W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 7.5 A | - | - | - | - | - | 180W (275W Forced Air) | Medical | 4 kV | 92% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) | CE |
|
HD28-4-A+GAC/DC CONVERTER 28V 112W |
0 |
|
Технический лист |
Linear D | Bulk | Active | Linear | 1 | 100 ~ 240 VAC | 28V | - | - | - | - | - | 3 A | - | - | - | - | - | 112W | ITE (Commercial) | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 9.00" L x 4.88" W x 2.75" H (228.6mm x 124.0mm x 69.9mm) | CE, cURus, TUV |
|
MBC250-1048GAC/DC CONVERTER 48V 250W |
59 |
|
Технический лист |
MBC250 (250W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 5.25 A | - | - | - | - | - | 250W | Medical | 4 kV | 90% | -20°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | - |
|
LPS366-MAC/DC CONVERTER 36V 360W |
53 |
|
Технический лист |
LPS360-M (360W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 360W | ITE (Commercial), Medical | - | 93% | -20°C ~ 70°C (With Derating) | I2C Interface, Remote Sense, Standby Output | Chassis Mount | 5.00" L x 3.00" W x 4.55" H (127.0mm x 76.2mm x 115.6mm) | CB, CCC, CE, cULus, TUV, UL |
|
|
CCP550PS12-AACDC 550W OPEN FRAME |
74 |
|
Технический лист |
CCP550 (550W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 45.8 A | - | - | - | - | - | 300W (550W Forced Air) | ITE (Commercial), Medical | 4 kV | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.48" H (127.0mm x 76.2mm x 37.6mm) | CB, CE, EN, UKCA, UL |
|
|
CNS655-MEAC/DC CONVERTER 24V 350W |
27 |
|
Технический лист |
CNS650-M | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 350 VDC | 24V | - | - | - | - | - | 27.1 A | - | - | - | - | - | 401W (650W Forced Air) | ITE (Commercial), Medical | 4 kV | - | -20°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, I2C Interface, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.57" H (177.8mm x 101.6mm x 40.0mm) | CE |
|

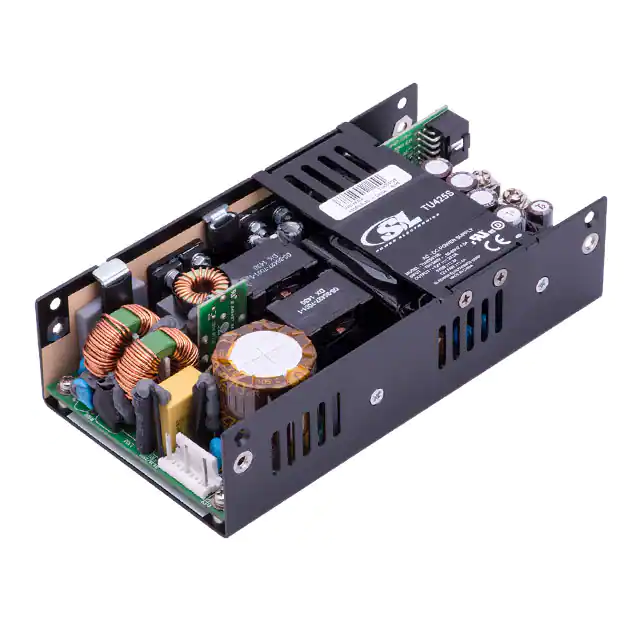

TU425S24EAC/DC CONVERTER 24V 300W |
0 |
|
Технический лист |
TU425 (425W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 11.9 A | - | - | - | - | - | 300W (425W Forced Air) | ITE (Commercial) | 4 kV | 90% | -10°C ~ 70°C (With Derating) | DC Input Capable, Load Sharing, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.20" L x 3.30" W x 1.62" H (157.4mm x 83.8mm x 41.1mm) | CE, cURus, DEMKO |
|
MU425S48ECAC/DC CONVERTER 48V 283W |
0 |
|
Технический лист |
MU425 (425W) | Bulk | Active | Enclosed | 1 | 90 ~ 264 VAC, 120 ~ 300 VDC | 48V | - | - | - | - | - | 5.9 A | - | - | - | - | - | 283W (403W Forced Air) | Medical | 1.5 kV | 88% | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.20" L x 3.30" W x 1.62" H (157.5mm x 83.8mm x 41.1mm) | CE |
|
|
MAP42-1024GAC/DC CONVERTER 24V 40W |
40 |
|
Технический лист |
MAP42 (42W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 1.7 A | - | - | - | - | - | 40W | ITE (Commercial) | 2.6 kV | 70% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | CE |
|
|
TXN 800-124800W COST EFFICIENT, METAL ENCAS |
50 |
|
Технический лист |
TXN800 (800W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 140 ~ 340 VDC | 24V | - | - | - | - | - | 33 A | - | - | - | - | - | 800W | ITE (Commercial) | 3 kV | 91% | -30°C ~ 70°C | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.06" L x 5.00" W x 1.59" H (230.0mm x 127.0mm x 40.5mm) | CB, CE, cURus, UKCA |
|
|
TXN 800-148800W COST EFFICIENT, METAL ENCAS |
49 |
|
Технический лист |
TXN800 (800W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 140 ~ 340 VDC | 48V | - | - | - | - | - | 16.6 A | - | - | - | - | - | 800W | ITE (Commercial) | 3 kV | 91% | -30°C ~ 70°C | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.06" L x 5.00" W x 1.59" H (230.0mm x 127.0mm x 40.5mm) | CB, CE, cURus, UKCA |
|
|
TXN 800-112800W COST EFFICIENT, METAL ENCAS |
30 |
|
Технический лист |
TXN800 (800W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 140 ~ 340 VDC | 12V | - | - | - | - | - | 63 A | - | - | - | - | - | 800W | ITE (Commercial) | 3 kV | 90% | -30°C ~ 70°C | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.06" L x 5.00" W x 1.59" H (230.0mm x 127.0mm x 40.5mm) | CB, CE, cURus, UKCA |
|

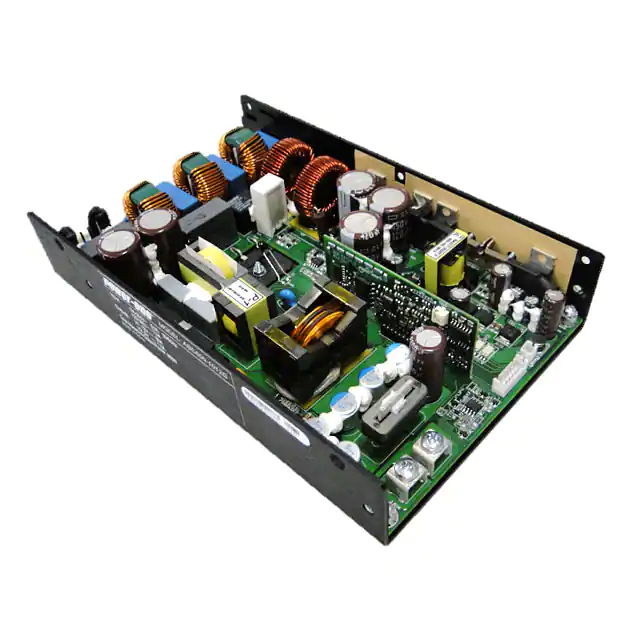

ABC600-1048GAC/DC CONVERTER 48V 420W |
33 |
|
Технический лист |
ABC600 (600W) | Box | Active | Open Frame | 1 | 90 ~ 277 VAC | 48V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 420W (600W Forced Air) | ITE (Commercial) | 4.242 kV | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, PMBus™ Interface, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 8.00" L x 5.00" W x 1.60" H (203.2mm x 127.0mm x 40.6mm) | CE |
|
|
ABC600-1024GAC/DC CONVERTER 24V 420W |
36 |
|
Технический лист |
ABC600 (600W) | Box | Active | Open Frame | 1 | 90 ~ 277 VAC | 24V | - | - | - | - | - | 25 A | - | - | - | - | - | 420W (600W Forced Air) | ITE (Commercial) | 4.242 kV | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, PMBus™ Interface, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 8.00" L x 5.00" W x 1.60" H (203.2mm x 127.0mm x 40.6mm) | CE |
|
MAP80-1012GAC/DC CONVERTER 12V 80W |
36 |
|
Технический лист |
MAP80 (80W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 7.5 A | - | - | - | - | - | 80W | ITE (Commercial) | 2.6 kV | 80% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.20" L x 4.20" W x 1.80" H (182.9mm x 106.7mm x 45.7mm) | CE |
|
|
MAP110-1024GAC/DC CONVERTER 24V 90W |
98 |
|
Технический лист |
MAP110 (110W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 3.8 A | - | - | - | - | - | 90W (120W Forced Air) | ITE (Commercial) | 4.242 kV | 80% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.30" W x 1.97" H (177.8mm x 109.2mm x 50.0mm) | CB, cCSAus, CE |
|
|
MAP110-1012GAC/DC CONVERTER 12V 90W |
39 |
|
Технический лист |
MAP110 (110W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 7.5 A | - | - | - | - | - | 90W (120W Forced Air) | ITE (Commercial) | 4.242 kV | 80% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.30" W x 1.97" H (177.8mm x 109.2mm x 50.0mm) | CB, cCSAus, CE |
|
|
MAP110-4011GAC/DC CNVRTR 5V +/-12V 24V 80W |
33 |
|
Технический лист |
MAP110 (110W) | Bulk | Active | Open Frame | 4 | 85 ~ 264 VAC | 5V | 12V | -12V | 24V | - | - | 12 A | 5 A | 1 A | 1 A | - | - | 80W (110W Forced Air) | ITE (Commercial) | 4.242 kV | 80% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.30" W x 1.97" H (177.8mm x 109.2mm x 50.0mm) | CB, cCSAus, CE |
|
|
MBC600-1024GAC/DC CONVERTER 24V 420W |
27 |
|
Технический лист |
MBC600 (600W) | Bulk | Active | Open Frame | 1 | 90 ~ 277 VAC | 24V | - | - | - | - | - | 17.5 A | - | - | - | - | - | 420W (600W Forced Air) | Medical | 4.607 kV | 93% | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, PMBus™ Interface, Remote Sense, Standby Output, Universal Input | Chassis Mount | 8.00" L x 5.01" W x 1.60" H (203.2mm x 127.2mm x 40.6mm) | CE |
