Подстроечные потенциометры
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Сопротивление | Мощность (Вт) | Допуск | Температурный коэффициент | Количество оборотов | Тип регулировки | Резистивный материал | Тип крепления | Тип вывода | Размер/измерение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3292P-1-752TRIMMER 7.5KOHM 0.5W PC PIN SIDE |
0 |
|
Технический лист |
Trimpot® 3292 - Sealed | Tube | Active | 7.5 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) |
|

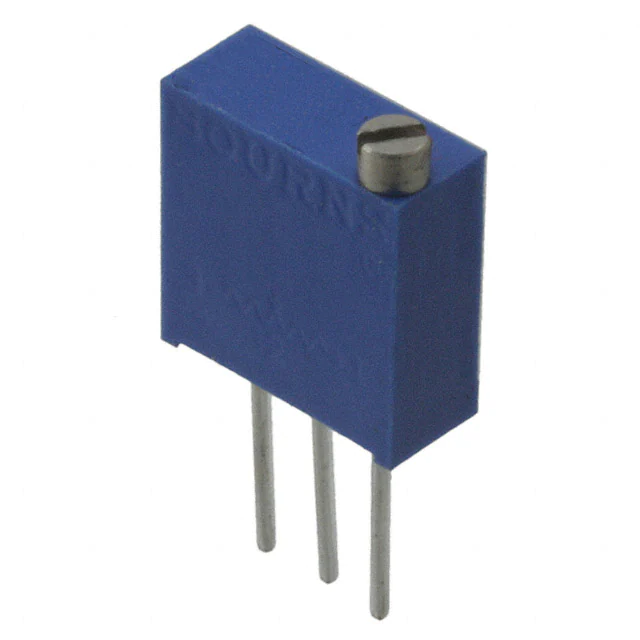

3292W-1-205TRIMMER 2M OHM 0.5W PC PIN TOP |
0 |
|
Технический лист |
Trimpot® 3292 - Sealed | Tube | Active | 2 MOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) |
|
|
3292W-1-502MTRIMMER 5K OHM 0.5W PC PIN TOP |
0 |
|
Технический лист |
Trimpot® 3292 - Sealed | Tube | Active | 5 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Panel Mount, Through Hole | PC Pins | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) |
|

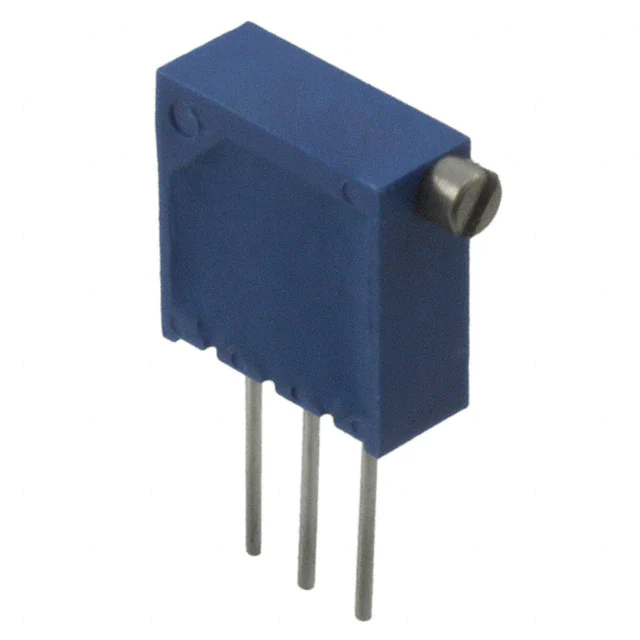

3292X-1-101MTRIMMER 100 OHM 0.5W PC PIN SIDE |
0 |
|
Технический лист |
Trimpot® 3292 - Sealed | Tube | Active | 100 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Side Adjustment | Cermet | Panel Mount, Through Hole | PC Pins | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) |
|
|
3292X-1-103MTRIMMER 10K OHM 0.5W PC PIN SIDE |
0 |
|
Технический лист |
Trimpot® 3292 - Sealed | Tube | Active | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Side Adjustment | Cermet | Panel Mount, Through Hole | PC Pins | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) |
|
3296W-1-221ATRIMMER 220 OHM 0.5W PC PIN TOP |
0 |
|
Технический лист |
Trimpot® 3296 - Sealed | Tape & Box (TB) | Active | 220 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
|
3296W-1-225TRIMMER 2.2M OHM 0.5W PC PIN TOP |
0 |
|
Технический лист |
Trimpot® 3296 - Sealed | Tube | Active | 2.2 MOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
|
3296W-1-474TRIMMER 470K OHM 0.5W PC PIN TOP |
0 |
|
Технический лист |
Trimpot® 3296 - Sealed | Tube | Active | 470 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
|
3296W-1-474LFTRIMMER 470K OHM 0.5W PC PIN TOP |
0 |
|
Технический лист |
Trimpot® 3296 - Sealed | Tube | Active | 470 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
3296X-1-473TRIMMER 47K OHM 0.5W PC PIN SIDE |
0 |
|
Технический лист |
Trimpot® 3296 - Sealed | Tube | Active | 47 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.395" x 0.190" Face (10.03mm x 4.83mm) |
|
3296Y-11-103LFTRIMMER 10K OHM 0.5W PC PIN TOP |
0 |
|
Технический лист |
Trimpot® 3296 - Sealed | Tube | Active | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|
|
3296Y-1-251TRIMMER 250 OHM 0.5W PC PIN TOP |
0 |
|
Технический лист |
Trimpot® 3296 - Sealed | Tube | Active | 250 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.190" Face (9.53mm x 4.83mm) |
|

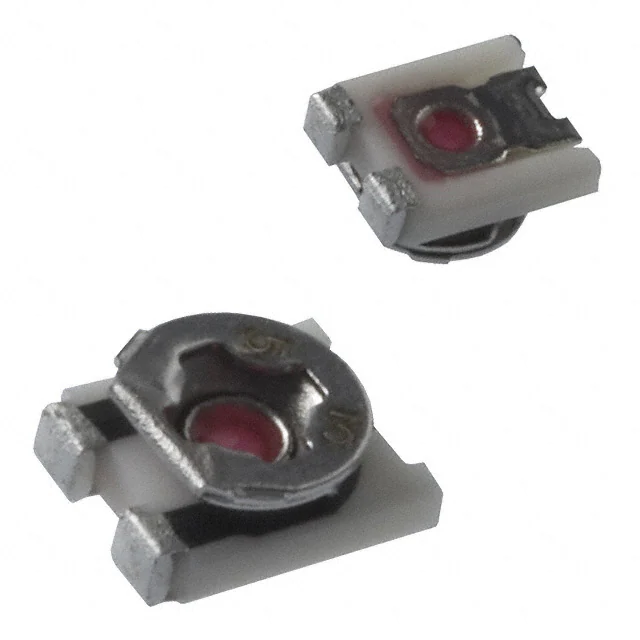

3302W-3-102ETRIMMER 1K OHM 0.15W J LEAD TOP |
0 |
|
Технический лист |
Trimpot® 3302 - Open Frame | Tape & Reel (TR) | Obsolete | 1 kOhms | 0.15W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.108" x 0.087" Face (2.75mm x 2.20mm) |
|
|
3302W-3-104ETRIMMER 100KOHM 0.15W J LEAD TOP |
0 |
|
Технический лист |
Trimpot® 3302 - Open Frame | Tape & Reel (TR) | Obsolete | 100 kOhms | 0.15W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.108" x 0.087" Face (2.75mm x 2.20mm) |
|
|
3302W-3-105ETRIMMER 1M OHM 0.15W J LEAD TOP |
0 |
|
Технический лист |
Trimpot® 3302 - Open Frame | Tape & Reel (TR) | Obsolete | 1 MOhms | 0.15W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.108" x 0.087" Face (2.75mm x 2.20mm) |
|
|
3302W-3-201ETRIMMER 200 OHM 0.15W J LEAD TOP |
0 |
|
Технический лист |
Trimpot® 3302 - Open Frame | Tape & Reel (TR) | Obsolete | 200 Ohms | 0.15W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.108" x 0.087" Face (2.75mm x 2.20mm) |
|
|
3302W-3-204ETRIMMER 200KOHM 0.15W J LEAD TOP |
0 |
|
Технический лист |
Trimpot® 3302 - Open Frame | Tape & Reel (TR) | Obsolete | 200 kOhms | 0.15W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.108" x 0.087" Face (2.75mm x 2.20mm) |
|
|
3302W-3-501ETRIMMER 500 OHM 0.15W J LEAD TOP |
0 |
|
Технический лист |
Trimpot® 3302 - Open Frame | Tape & Reel (TR) | Obsolete | 500 Ohms | 0.15W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.108" x 0.087" Face (2.75mm x 2.20mm) |
|
|
3302W-3-503ETRIMMER 50K OHM 0.15W J LEAD TOP |
0 |
|
Технический лист |
Trimpot® 3302 - Open Frame | Tape & Reel (TR) | Obsolete | 50 kOhms | 0.15W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.108" x 0.087" Face (2.75mm x 2.20mm) |
|
|
3302W-3-504ETRIMMER 500KOHM 0.15W J LEAD TOP |
0 |
|
Технический лист |
Trimpot® 3302 - Open Frame | Tape & Reel (TR) | Obsolete | 500 kOhms | 0.15W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.108" x 0.087" Face (2.75mm x 2.20mm) |
