Подстроечные потенциометры
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Сопротивление | Мощность (Вт) | Допуск | Температурный коэффициент | Количество оборотов | Тип регулировки | Резистивный материал | Тип крепления | Тип вывода | Размер/измерение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3059P-1-100TRIMMER 10 OHM 1W PC PIN SIDE |
0 |
|
Технический лист |
Trimpot® 3059 - Sealed | Tube | Active | 10 Ohms | 1W | ±10% | ±100ppm/°C | 22.0 | Side Adjustment | Cermet | Chassis Mount | PC Pins | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) |
|
|
3059P-1-505TRIMMER 5M OHM 1W PC PIN SIDE |
0 |
|
Технический лист |
Trimpot® 3059 - Sealed | Tube | Active | 5 MOhms | 1W | ±10% | ±100ppm/°C | 22.0 | Side Adjustment | Cermet | Chassis Mount | PC Pins | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) |
|
|
3059P-1-754TRIMMER 750K OHM 1W PC PIN SIDE |
0 |
|
Технический лист |
Trimpot® 3059 - Sealed | Tube | Active | 750 kOhms | 1W | ±10% | ±100ppm/°C | 22.0 | Side Adjustment | Cermet | Chassis Mount | PC Pins | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) |
|
3059Y-1-201MTRIMMER 200 OHM 1W PC PIN SIDE |
0 |
|
Технический лист |
Trimpot® 3059 - Sealed | Tube | Active | 200 Ohms | 1W | ±10% | ±100ppm/°C | 22.0 | Side Adjustment | Cermet | Panel Mount, Through Hole | PC Pins | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) |
|
|
3059Y-1-222TRIMMER 2.2K OHM 1W PC PIN SIDE |
0 |
|
Технический лист |
Trimpot® 3059 - Sealed | Tube | Active | 2.2 kOhms | 1W | ±10% | ±100ppm/°C | 22.0 | Side Adjustment | Cermet | Chassis Mount | PC Pins | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) |
|
|
3059Y-1-501MTRIMMER 500 OHM 1W PC PIN SIDE |
0 |
|
Технический лист |
Trimpot® 3059 - Sealed | Tube | Active | 500 Ohms | 1W | ±10% | ±100ppm/°C | 22.0 | Side Adjustment | Cermet | Panel Mount, Through Hole | PC Pins | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) |
|
|
3059Y-1-502MTRIMMER 5K OHM 1W PC PIN SIDE |
0 |
|
Технический лист |
Trimpot® 3059 - Sealed | Tube | Active | 5 kOhms | 1W | ±10% | ±100ppm/°C | 22.0 | Side Adjustment | Cermet | Panel Mount, Through Hole | PC Pins | Rectangular - 0.315" x 0.190" Face (8.00mm x 4.83mm) |
|

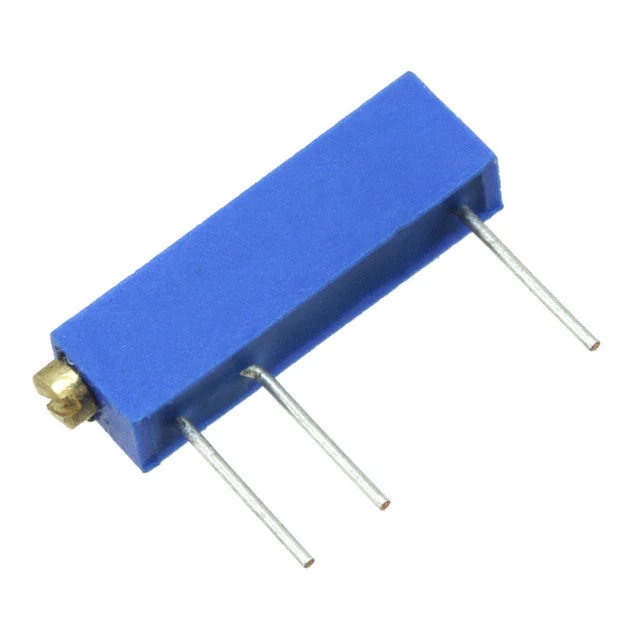

3082P-1-105TRIMMER 1M OHM 0.3W PC PIN SIDE |
0 |
|
Технический лист |
Trimpot® 3082 - Sealed | Tube | Active | 1 MOhms | 0.3W | ±10% | ±100ppm/°C | 10.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.150" x 0.115" Face (3.80mm x 2.92mm) |
|
|
3082P-1-202TRIMMER 2K OHM 0.3W PC PIN SIDE |
0 |
|
Технический лист |
Trimpot® 3082 - Sealed | Tube | Active | 2 kOhms | 0.3W | ±10% | ±100ppm/°C | 10.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.150" x 0.115" Face (3.80mm x 2.92mm) |
|
|
3082P-1-205TRIMMER 2M OHM 0.3W PC PIN SIDE |
0 |
|
Технический лист |
Trimpot® 3082 - Sealed | Tube | Active | 2 MOhms | 0.3W | ±10% | ±100ppm/°C | 10.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.150" x 0.115" Face (3.80mm x 2.92mm) |
|
|
3082P-45-104TRIMMER 100KOHM 0.3W PC PIN SIDE |
0 |
|
Технический лист |
Trimpot® 3082 - Sealed | Tube | Active | 100 kOhms | 0.3W | ±10% | ±100ppm/°C | 10.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.169" x 0.115" Face (4.30mm x 2.92mm) |
|
|
3082P-45-105TRIMMER 1M OHM 0.3W PC PIN SIDE |
0 |
|
Технический лист |
Trimpot® 3082 - Sealed | Tube | Active | 1 MOhms | 0.3W | ±10% | ±100ppm/°C | 10.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.169" x 0.115" Face (4.30mm x 2.92mm) |
|
|
3082P-45-203TRIMMER 20K OHM 0.3W PC PIN SIDE |
0 |
|
Технический лист |
Trimpot® 3082 - Sealed | Tube | Active | 20 kOhms | 0.3W | ±10% | ±100ppm/°C | 10.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.169" x 0.115" Face (4.30mm x 2.92mm) |
|

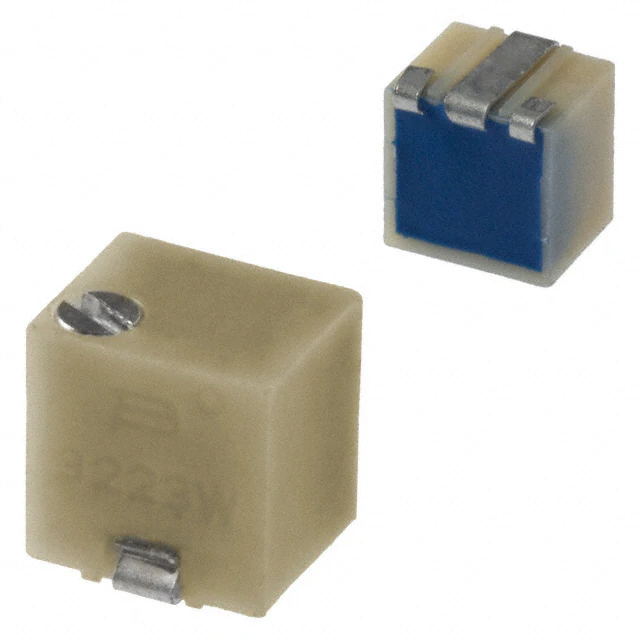

3223W-1-204TRIMMER 200K OHM 0.125W J LEAD |
0 |
|
Технический лист |
Trimpot® 3223 - Sealed | Tube | Active | 200 kOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.154" x 0.125" Face (3.90mm x 3.18mm) |
|

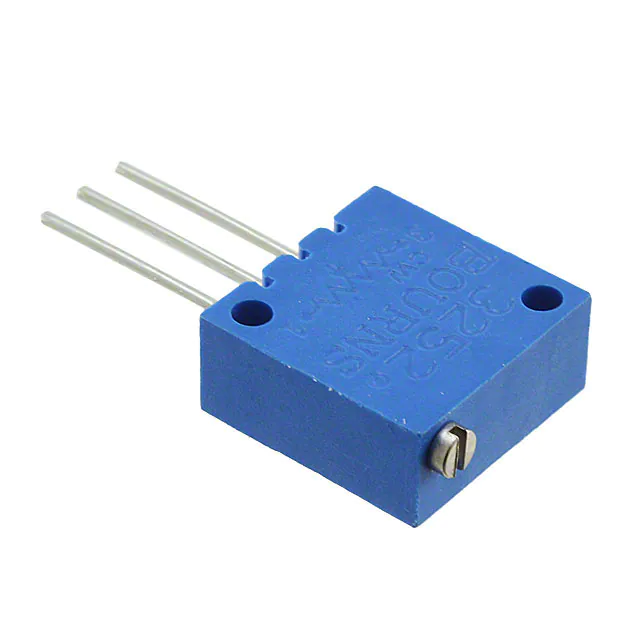

3252W-1-253TRIMMER 25K OHM 0.75W PC PIN TOP |
0 |
|
Технический лист |
Trimpot® 3252 - Sealed | Tube | Active | 25 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Chassis Mount | PC Pins | Rectangular - 0.500" x 0.220" Face (12.70mm x 5.59mm) |
|
|
3252W-1-253MTRIMMER 25K OHM 0.75W PC PIN TOP |
0 |
|
Технический лист |
Trimpot® 3252 - Sealed | Tube | Active | 25 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Panel Mount, Through Hole | PC Pins | Rectangular - 0.500" x 0.220" Face (12.70mm x 5.59mm) |
|
3252X-1-104MTRIMMER 100K OHM 0.75W PC PIN |
0 |
|
Технический лист |
Trimpot® 3252 - Sealed | Tube | Active | 100 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 25.0 | Side Adjustment | Cermet | Panel Mount, Through Hole | PC Pins | Rectangular - 0.500" x 0.220" Face (12.70mm x 5.59mm) |
|
3292L-1-504TRIMMER 500K OHM 0.5W WIRE LEADS |
0 |
|
Технический лист |
Trimpot® 3292 - Sealed | Bulk | Active | 500 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Chassis Mount | Wire Leads | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) |
|
3292L-1-504MTRIMMER 500K OHM 0.5W WIRE LEADS |
0 |
|
Технический лист |
Trimpot® 3292 - Sealed | Bulk | Active | 500 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Top Adjustment | Cermet | Panel Mount, Wire Leads | Wire Leads | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) |
|
3292P-1-200TRIMMER 20 OHM 0.5W PC PIN SIDE |
0 |
|
Технический лист |
Trimpot® 3292 - Sealed | Tube | Active | 20 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 25.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.150" Face (9.53mm x 3.81mm) |
