Жидкостное охлаждение, отопление
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип продукта | Мощность - Охлаждение | Ток | Напряжение | Скорость потока | Входная мощность | Тепловое сопротивление @ GPM | Емкость жидкости | Рабочая температура | Тип соединения | Вес | Размеры - общие | Номинальные значения |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-TCP-1000TUBED COLD PLATE |
148 |
|
Технический лист |
ATS-TCP | Box | Active | Passive, Cold Plate | 400 W | - | - | 0.50 - 2.00GPM (1.9-7.6LPM) | - | 0.063°C/W @ 2 GPM | - | - | - | - | 2.24" L x 2.24" W x 0.59" H (57.0mm x 57.0mm x 15.0mm) | - |
|

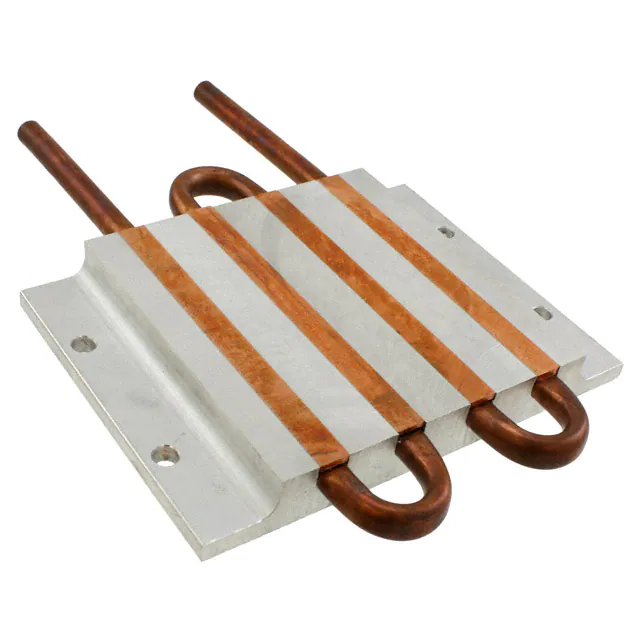

CP4A-114C-108ECOLD PLATE HEAT SINK 0.018 C/W |
45 |
|
Технический лист |
CP | Bulk | Active | Passive, Cold Plate | - | - | - | - | - | 0.018°C/W @ 1.5 GPM | - | - | - | 1.8 lbs (816.5 g) | 4.50" L x 6.00" W x 0.75" H (114.3mm x 152.4mm x 19.1mm) | - |
|
ATS-TCP-1019STAINLESS STEEL TUBED COLD PLATE |
361 |
|
Технический лист |
ATS-TCP | Bulk | Active | Passive, Cold Plate | 400 W | - | - | 0.50 - 2.00GPM (1.9-7.6LPM) | - | - | - | - | - | - | 5.98" L x 5.00" W x 0.59" H (152.0mm x 127.0mm x 15.0mm) | - |
|
ATS-TCP-1001TUBED COLD PLATE |
90 |
|
Технический лист |
ATS-TCP | Box | Active | Passive, Cold Plate | 400 W | - | - | 0.50 - 2.00GPM (1.9-7.6LPM) | - | 0.024°C/W @ 2.0 GPM | - | - | - | - | 5.98" L x 5.00" W x 0.59" H (152.0mm x 127.0mm x 15.0mm) | - |
|
ATS-CP-1002-DIYMINI CHANNEL COLD PLATE |
436 |
|
Технический лист |
ATS-CP | Box | Active | Passive, Cold Plate | 1000 W | - | - | 1.06GPM (4.0LPM) | - | 0.007°C/W @ 1.0 GPM | - | - | - | 2.4 lbs (1.1 kg) | 6.38" L x 5.35" W x 0.79" H (162.0mm x 136.0mm x 20.0mm) | - |
|
ATS-TCP-1004TUBED COLD PLATE |
34 |
|
Технический лист |
ATS-TCP | Box | Active | Passive, Cold Plate | 400 W | - | - | 0.50 - 2.00GPM (1.9-7.6LPM) | - | 0.008°C/W @ 2.0 GPM | - | - | - | - | 12.01" L x 7.01" W x 0.59" H (305.0mm x 178.0mm x 15.0mm) | - |
|
M05-050SB0HEAT EXCHANGER |
28 |
|
Технический лист |
- | Box | Active | Active, Heat Exchanger | - | - | - | - | - | - | 115ML (3.9 oz) | 200°C | - | - | - | - |
|
416601U00000GCOLD PLATE HEAT SINK |
70 |
|
Технический лист |
Hi-Contact™ | Box | Active | Passive, Cold Plate | - | - | - | - | - | - | - | - | - | - | 15.00" L x 5.00" W x 0.60" H (381.0mm x 127.0mm x 15.2mm) | - |
|
ATS-CP-1000-DIYMINI CHANNEL COLD PLATE |
44 |
|
Технический лист |
ATS-CP | Box | Active | Passive, Cold Plate | 1000 W | - | - | 1.06GPM (4.0LPM) | - | 0.007°C/W @ 1.0 GPM | - | - | - | 2.9 lbs (1.3 kg) | 7.95" L x 5.12" W x 0.79" H (202.0mm x 130.0mm x 20.0mm) | - |
|

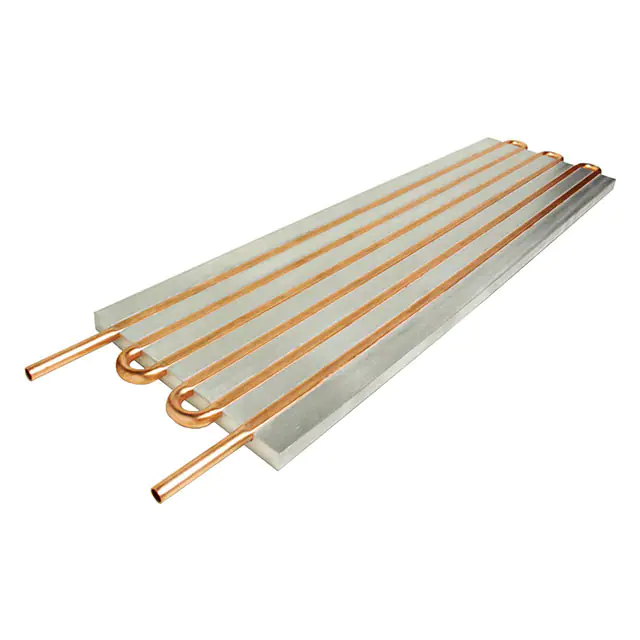

ATS-TCP-1005TUBED COLD PLATE |
35 |
|
Технический лист |
ATS-TCP | Box | Active | Passive, Cold Plate | 400 W | - | - | 0.50 - 2.00GPM (1.9-7.6LPM) | - | 0.005°C/W @ 2.0 GPM | - | - | - | - | 24.02" L x 7.01" W x 0.59" H (610.0mm x 178.0mm x 15.0mm) | - |
|
ATS-CP-1001-DIYMINI CHANNEL COLD PLATE |
45 |
|
Технический лист |
ATS-CP | Box | Active | Passive, Cold Plate | 1000 W | - | - | 1.06GPM (4.0LPM) | - | 0.007°C/W @ 1.0 GPM | - | - | - | 3.1 lbs (1.4 kg) | 7.80" L x 5.79" W x 0.79" H (198.0mm x 147.0mm x 20.0mm) | - |
|
|
ATS-CP-1000MINI CHANNEL COLD PLATE |
28 |
|
Технический лист |
ATS-CP | Box | Active | Passive, Cold Plate | 1000 W | - | - | 1.06GPM (4.0LPM) | - | 0.007°C/W @ 1.0 GPM | - | - | - | 2.4 lbs (1.1 kg) | 7.95" L x 5.12" W x 0.79" H (202.0mm x 130.0mm x 20.0mm) | - |
|
|
AS04-05G01SBHEAT EXCHANGER |
99 |
|
Технический лист |
ASPEN | Box | Active | Active, Heat Exchanger | - | - | - | - | - | - | 45.9ML (1.6 oz) | 200°C | - | - | - | - |
|
|
M10-080SB0HEAT EXCHANGER |
58 |
|
Технический лист |
- | Box | Active | Active, Heat Exchanger | - | - | - | - | - | - | 320ML (10.8 oz) | 200°C | - | - | - | - |
|
180-10-6CCOLD PLATE HEAT SINK 0.084C/W |
42 |
|
Технический лист |
180 | Bulk | Active | Passive, Cold Plate | - | - | - | - | - | 0.084°C/W @ 1.5 GPM | - | - | - | 0.85 lb (385.55 g) | 13.41" L x 3.00" W x 0.63" H (340.5mm x 76.2mm x 15.9mm) | - |
|
|
CP4A-114B-108ECOLD PLATE HEAT SINK 0.018C/W |
29 |
|
Технический лист |
CP | Bulk | Active | Passive, Cold Plate | - | - | - | - | - | 0.018°C/W @ 1.5 GPM | - | - | - | 1.8 lbs (816.5 g) | 4.50" L x 6.00" W x 0.75" H (114.3mm x 152.4mm x 19.1mm) | - |
|

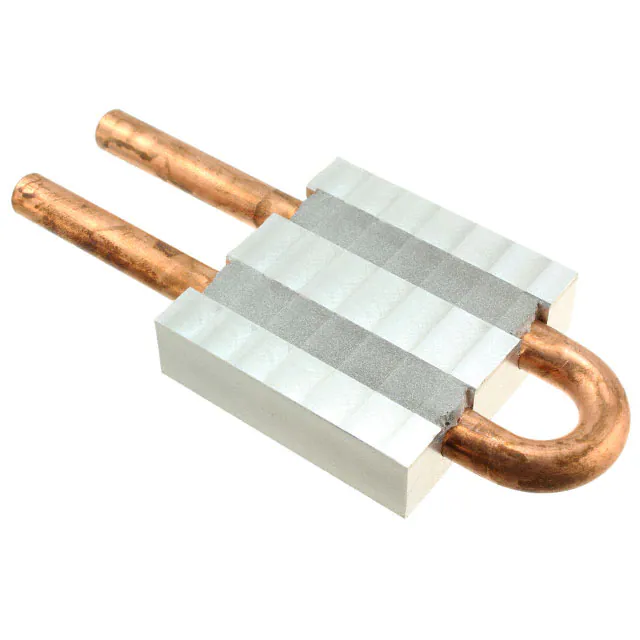

120959COLD PLATE HEAT SINK BURIED |
35 |
|
Технический лист |
- | Box | Active | Passive, Cold Plate | - | - | - | - | - | - | - | - | - | - | 5.25" L x 2.25" W x 0.60" H (133.4mm x 57.2mm x 15.2mm) | - |
|

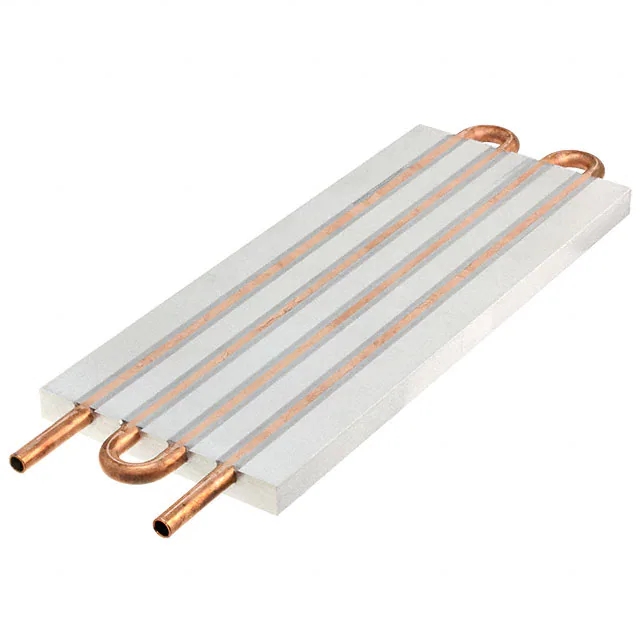

120961COLD PLATE HEAT SINK BURIED |
30 |
|
Технический лист |
- | Box | Active | Passive, Cold Plate | - | - | - | - | - | - | - | - | - | - | 15.00" L x 5.00" W x 0.60" H (381.0mm x 127.0mm x 15.2mm) | - |
|
|
6110G1SBHEAT EXCHANGER |
34 |
|
Технический лист |
6000 | Box | Active | Active, Heat Exchanger | - | - | - | - | - | - | 131ML (4.4 oz) | 200°C | - | - | - | - |
|
416401U00000GCOLD PLATE HEAT SINK 0.06C/W |
69 |
|
Технический лист |
Hi-Contact™ | Box | Active | Passive, Cold Plate | - | - | - | - | - | 0.060°C/W @ 1.5 GPM | - | - | - | - | 5.25" L x 2.25" W x 0.60" H (133.4mm x 57.2mm x 15.2mm) | - |
