Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

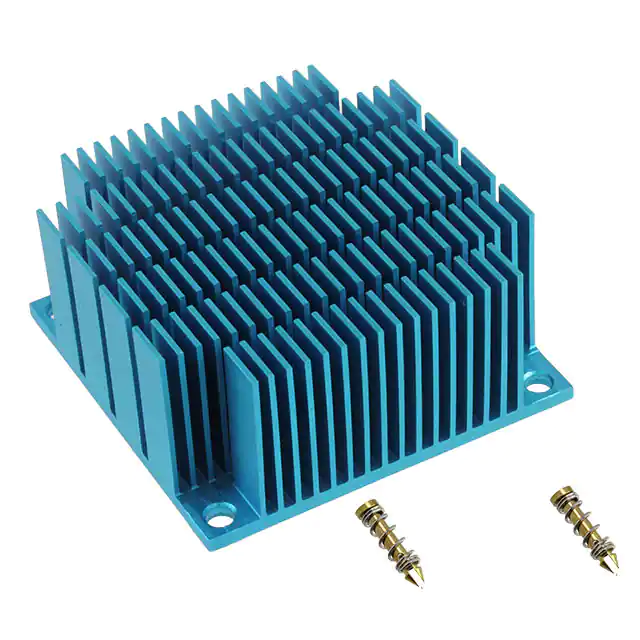

ATS-21D-20-C2-R0HEATSINK 54X54X25MM XCUT T766 |
111 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.984" (25.00mm) | - | 7.14°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
UNI-H40051-33W/2.6YAL HEAT SINK 40X40X33MM WITH ELL |
108 |
|
Технический лист |
Uni-Holder Elliptical Fin | Tray | Active | Top Mount | BGA | Clip | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.181" (30.00mm) | - | 1.55°C/W @ 200 LFM | 6.87°C/W | Aluminum Alloy | Black Anodized |
|
CS8674510B145X45X10MM, INTERACE MATERIAL |
286 |
|
- |
CS86 | Box | Active | Top Mount | - | Push Pin, Thermal Material | Square, Pin Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | - | - | Aluminum | Black Anodized |
|
ATS-12B-06-C2-R0HEATSINK 45X45X10MM XCUT T766 |
300 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 20.17°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
693-75HEATSINK TO220 W/CLIP 75MM |
235 |
|
Технический лист |
693 | Box | Active | Board Level, Vertical | TO-220 | Clip and PC Pin | Rectangular, Fins | 2.953" (75.00mm) | 0.870" (22.10mm) | - | 1.380" (35.05mm) | - | - | - | Aluminum | Black Anodized |
|
ATS-P1-177-C2-R0HEATSINK 35X35X20MM R-TAB T766 |
119 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.790" (20.00mm) | - | 6.21°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
OMNI-220-18-25-1CHEATSINK 18X25MM 1-CLIP TO-220 |
2,245 |
|
Технический лист |
OmniKlip™ | Tray | Active | Board Level, Vertical | TO-220 | Clip, Solder Foot | Rectangular, Fins | 0.984" (25.00mm) | 0.710" (18.03mm) | - | 1.500" (38.10mm) | - | - | - | Aluminum | Black Anodized |
|
|
MBA37.5002-28P/CU/3.2YCU HEAT SINK 37.5X37.5X28MM WITH |
117 |
|
- |
MBA | Tray | Active | Top Mount | BGA | Clip | Square, Pin Fins | 1.476" (37.50mm) | 1.476" (37.50mm) | - | 0.984" (25.00mm) | - | - | - | Copper | - |
|
RAS-HS-AHEATSINK FOR RASPBERRY PI ALUM |
1,242 |
|
Технический лист |
- | Retail Package | Active | Top Mount Kit | Raspberry Pi 2B, 3B, 3B+, 4B, B+ | Thermal Tape, Adhesive (Included) | Rectangular, Fins; Square, Fins | - | - | - | - | - | - | - | Aluminum | - |
|
693-100HEATSINK TO220 W/CLIP 100MM |
150 |
|
Технический лист |
693 | Box | Active | Board Level, Vertical | TO-220 | Clip and PC Pin | Rectangular, Fins | 3.937" (100.00mm) | 0.870" (22.10mm) | - | 1.380" (35.05mm) | - | - | - | Aluminum | Black Anodized |
|
ATS-07E-07-C2-R0HEATSINK 45X45X12.7MM XCUT T766 |
297 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.500" (12.70mm) | - | 17.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
OMNI-UNI-34-50HEATSINK TO-247 TO-264 TO-220 |
1,948 |
|
Технический лист |
OmniKlip™ | Bulk | Active | Board Level, Vertical | TO-220, TO-247, TO-264 | Clip, Solder Foot | Rectangular, Fins | 1.969" (50.00mm) | 1.339" (34.00mm) | - | 2.953" (75.00mm) | - | - | - | Aluminum | Black Anodized |
|
694-75HEATSINK TO247 W/CLIP 75MM |
135 |
|
Технический лист |
694 | Box | Active | Board Level, Vertical | TO-247 | Clip and PC Pin | Rectangular, Fins | 2.953" (75.00mm) | 0.870" (22.10mm) | - | 1.380" (35.05mm) | - | - | - | Aluminum | Black Anodized |
|
|
780153U04600G78015 4.6 |
1,739 |
|
Технический лист |
- | Bulk | Active | Board Level, Vertical, Extrusion | - | Clip and PC Pin | Rectangular, Pin Fins | - | - | - | 1.969" (50.00mm) | - | - | - | Aluminum Alloy | - |
|
|
MBA42.5002-15P/CU/2.6YCU HEAT SINK 42.5X42.5X15MM WITH |
121 |
|
Технический лист |
MBA | Tray | Active | Top Mount | BGA | Clip | Square, Pin Fins | 1.673" (42.50mm) | 1.673" (42.50mm) | - | 0.472" (12.00mm) | - | - | - | Copper | - |
|
OMNI-UNI-18-50HEATSINK 18X50MM TO-247 TO-264 |
1,991 |
|
Технический лист |
OmniKlip™ | Tray | Active | Board Level, Vertical | TO-247, TO-264 | Clip, Solder Foot | Rectangular, Fins | 1.969" (50.00mm) | 0.710" (18.03mm) | - | 1.500" (38.10mm) | - | - | - | Aluminum | Black Anodized |
|
ATS-55290R-C0-R0HEATSINK 29X29X19.5MM W/OUT TIM |
2,484 |
|
- |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.768" (19.50mm) | - | 5.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
OMNI-UNI-30-75-DHEATSINK TO-247 TO-264 TO-220 |
494 |
|
Технический лист |
OmniKlip™ | Bulk | Active | Board Level, Vertical | TO-220, TO-247, TO-264 | Clip, Solder Foot | Rectangular, Fins | 2.953" (75.00mm) | 1.181" (30.00mm) | - | 2.362" (60.00mm) | - | - | - | Aluminum | Black Anodized |
|
960-31-23-F-AB-0HEATSINK 31X23MM FRONT PUSH PIN |
374 |
|
Технический лист |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 0.905" (23.00mm) | - | 2.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-14G-127-C2-R0HEATSINK 54X54X20MM XCUT T766 |
299 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.790" (20.00mm) | - | 3.84°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
