Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
UNI-H29051-15W/2.6YAL HEAT SINK 29X29X15MM WITH ELL |
165 |
|
Технический лист |
Uni-Holder Elliptical Fin | Tray | Active | Top Mount | BGA | Clip | Square, Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.472" (12.00mm) | - | 3.81°C/W @ 200 LFM | 11.86°C/W | Aluminum Alloy | Black Anodized |
|
CS8674510B045X45 X10MM |
709 |
|
- |
CS86 | Box | Active | Top Mount | - | Push Pin | Square, Pin Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | - | - | Aluminum | Black Anodized |
|
|
CS8674520B145X45X20MM, INTERFACE MATERIAL |
251 |
|
- |
CS86 | Box | Active | Top Mount | - | Push Pin, Thermal Material | Square, Pin Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.787" (20.00mm) | - | - | - | Aluminum | Black Anodized |
|
|
MBH14002-09P/CU/2CU HEAT SINK 14X14X9MM WITH PIN |
604 |
|
- |
MBH | Tray | Active | Top Mount | BGA | Clip, Thermal Tape, Adhesive (Not included) | Square, Pin Fins | 0.551" (14.00mm) | 0.551" (14.00mm) | - | 0.276" (7.00mm) | - | - | - | Copper | - |
|
|
MBH14002-09P/CU/2-1CU HEAT SINK 10X10X9MM W/ BLACK |
490 |
|
Технический лист |
MBH | Tray | Active | Top Mount | BGA | Clip, Thermal Tape, Adhesive (Not included) | Square, Pin Fins | 0.551" (14.00mm) | 0.551" (14.00mm) | - | 0.275" (7.00mm) | - | - | - | Copper | Black Coating |
|
|
UNI-H31052-18P/2.6YAL HEAT SINK 31X31X18MM WITH PIN |
126 |
|
Технический лист |
Uni-Holder Elliptical Fin | Tray | Active | Top Mount | BGA | Clip | Square, Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 0.590" (15.00mm) | - | 2.93°C/W @ 200 LFM | 9.57°C/W | Aluminum Alloy | Black Anodized |
|

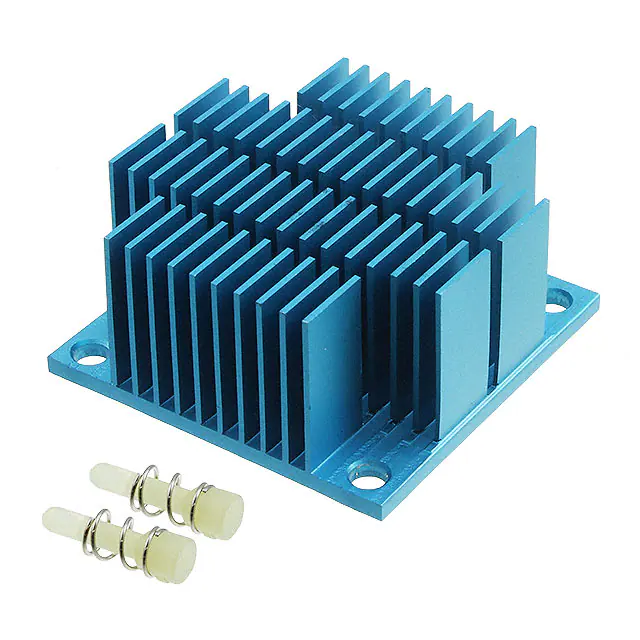

ATS-P1-167-C2-R0HEATSINK 25X25X20MM R-TAB T766 |
496 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.790" (20.00mm) | - | 9.10°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
621KHEATSINK FOR TO3 |
137 |
|
Технический лист |
621 | Bulk | Active | Board Level | TO-3 | Press Fit | Rectangular, Fins | 1.500" (38.10mm) | 4.750" (120.65mm) | - | 0.461" (11.70mm) | 15.0W @ 75°C | 2.00°C/W @ 250 LFM | - | Aluminum Alloy | Black Anodized |
|
|
CS8674010B140X40X10MM, INTERFACE MATERIAL |
166 |
|
- |
CS86 | Box | Active | Top Mount | - | Push Pin, Thermal Material | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | - | - | Aluminum | Black Anodized |
|
|
HBA27031-06/CU/BUCU HEAT SINK 27X27X6MM WITH LINE |
390 |
|
- |
HBA | Tray | Active | Top Mount | BGA | Clip | Square, Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0181" (4.60mm) | - | - | - | Copper | - |
|
|
MBH14002-14P/CU/2CU HEAT SINK 14X14X14MM |
318 |
|
Технический лист |
MBH | Tray | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.551" (14.00mm) | 0.551" (14.00mm) | - | 0.551" (14.00mm) | - | - | - | Copper | Red Anodized |
|
|
UNI-H35052-23P/2.6YAL HEAT SINK 35X35X23MM WITH PIN |
168 |
|
Технический лист |
Uni-Holder Elliptical Fin | Tray | Active | Top Mount | BGA | Clip | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.787" (20.00mm) | - | 2.19°C/W @ 200 LFM | 8.32°C/W | Aluminum Alloy | Black Anodized |
|
ATS-09E-166-C2-R0HEATSINK 25X25X15MM R-TAB T766 |
500 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.590" (15.00mm) | - | 12.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX045045025-190-C3-R0HEATSINK 45X45X25MM R-TAB CP |
182 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 3.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

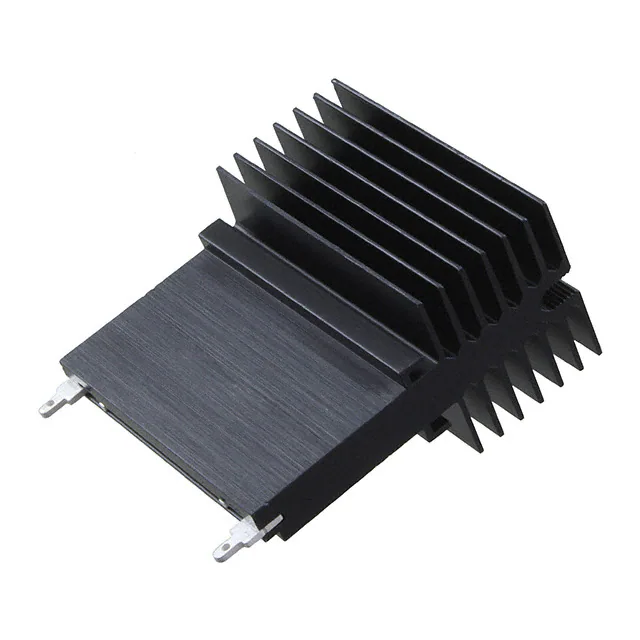

OMNI-UNI-30-50-DHEATSINK TO-247 TO-264 TO-220 |
500 |
|
Технический лист |
OmniKlip™ | Bulk | Active | Board Level, Vertical | TO-220, TO-247, TO-264 | Clip, Solder Foot | Rectangular, Fins | 1.969" (50.00mm) | 1.181" (30.00mm) | - | 2.362" (60.00mm) | - | - | - | Aluminum | Black Anodized |
|
|
ATS-05G-138-C2-R0HEATSINK 25X25X15MM L-TAB T766 |
495 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.590" (15.00mm) | - | 12.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
692-100HEATSINK TO126 W/CLIP 100MM |
254 |
|
Технический лист |
692 | Box | Active | Board Level, Vertical | TO-126 | Clip and PC Pin | Rectangular, Fins | 3.937" (100.00mm) | 0.430" (10.92mm) | - | 1.100" (27.94mm) | - | - | - | Aluminum | Black Anodized |
|
|
ATS-05H-44-C2-R0HEATSINK 25X25X15MM L-TAB T766 |
490 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.590" (15.00mm) | - | 20.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
SAR110ASX150MMEXTRUDED HEATSINK 78X150MM |
498 |
|
Технический лист |
110AS | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive | Rectangular, Fins | 5.906" (150.00mm) | 3.071" (78.00mm) | - | 0.787" (20.00mm) | - | - | - | Aluminum | Black Anodized |
|
ATS-15F-113-C2-R0HEATSINK 40X40X10MM XCUT T766 |
503 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 11.79°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
