Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
301NHEATSINK COMPACT |
222 |
|
Технический лист |
301 | Bulk | Active | Board Level, Vertical | Stud Mounted Semiconductor Cases | Press Fit | Rectangular, Fins | 2.000" (50.80mm) | 0.750" (19.05mm) | - | 2.000" (50.80mm) | 15.0W @ 70°C | 2.50°C/W @ 250 LFM | - | Aluminum Alloy | Black Anodized |
|

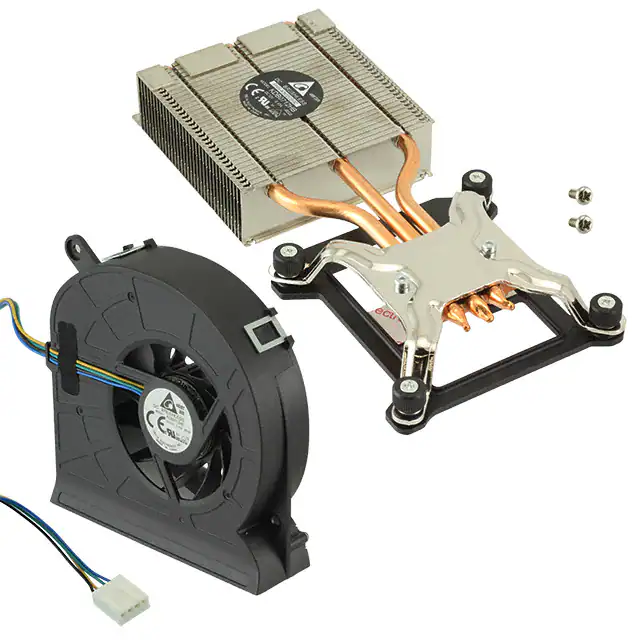

FHS-K8020S00FAN CPU COOLER 80X22MM 12VDC |
143 |
|
Технический лист |
FHS | Box | Active | Board Level | Intel LGA1155 CPU Cooler | Bolt On | Rectangular | 7.843" (199.21mm) | 3.481" (88.42mm) | - | 1.035" (26.30mm) | - | - | 0.37°C/W | Aluminum, Copper, Plastic | - |
|
HSF-48-30-B-FFANSINK 5VDC 47.5X47.5X29.5MM |
108 |
|
Технический лист |
HSF | Bulk | Active | Top Mount | BGA | Clip | Square, Fins | 1.870" (47.50mm) | 1.870" (47.50mm) | - | 1.083" (27.50mm) | - | - | 0.83°C/W | Aluminum Alloy | Black Anodized |
|
|
HSF-50-40-B-FFANSINK 5VDC 50X50X39.5MM |
34 |
|
Технический лист |
HSF | Bulk | Active | Top Mount | BGA | Clip | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 1.358" (34.50mm) | - | - | 0.67°C/W | Aluminum Alloy | Black Anodized |
|
|
SM320-21001YINTEL CPU COOLER MODULE 118X78X3 |
503 |
|
Технический лист |
- | Box | Active | Top Mount | Intel LGA4677 1U Passive CPU Cooler | Push Pin | Rectangular, Fins | 4.646" (118.00mm) | 3.071" (78.00mm) | - | 1.198" (30.43mm) | - | - | - | Aluminum, Copper | Nickel |
|
|
SM421-21002YINTEL CPU COOLER MODULE 118X78X6 |
474 |
|
Технический лист |
- | Box | Active | Top Mount | Intel LGA4677 2U Passive CPU Cooler | Push Pin | Rectangular, Fins | 4.646" (118.00mm) | 3.071" (78.00mm) | - | 2.519" (64.00mm) | - | - | - | Aluminum, Copper | Nickel |
|

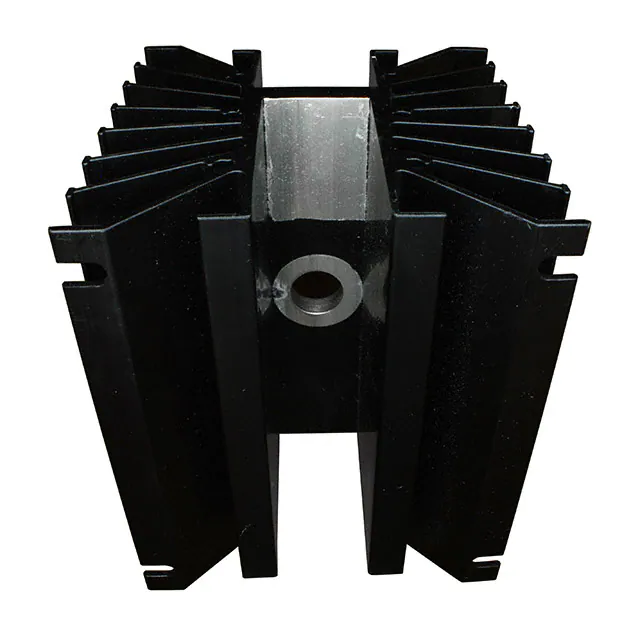

476WHEATSINK NATURAL CONVECTIONC2025 |
28 |
|
Технический лист |
476 | Bulk | Active | Board Level | Stud Mounted Diode | Bolt On | Rectangular, Fins | 6.000" (152.40mm) | 5.000" (127.00mm) | - | 5.000" (127.00mm) | 50.0W @ 25°C | 0.20°C/W @ 500 LFM | 0.50°C/W | Aluminum | Black Anodized |
|
|
131686PROFILE # 17155 CUT TO 1FT LENGT |
50 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
131687PROFILE # 17155 CUT TO 3FT LENGT |
27 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
262-75ABE-05HEATSINK VERT/HORIZ BLACK TO-220 |
4,000 |
|
Технический лист |
262 | Bulk | Active | Board Level | TO-220 | Press Fit and PC Pin | Rectangular, Fins | 0.750" (19.05mm) | 0.570" (14.47mm) | - | 0.500" (12.70mm) | 3.0W @ 80°C | 10.00°C/W @ 200 LFM | 26.70°C/W | Aluminum | Black Anodized |
|
|
FK 230 SA L 1 TO 220Fans, Blower, Thermal Management |
10,000 |
|
Технический лист |
FK 230 | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular | 0.748" (19.00mm) | 0.827" (21.00mm) | - | 0.709" (18.00mm) | 3.8W | - | 21.00°C/W | Aluminum | - |
|
574502B03200GHEATSINK TO-220 CLIP-ON/TAB |
3,642 |
|
Технический лист |
- | Bulk | Active | Board Level, Vertical | TO-220 | Clip and PC Pin | Rectangular, Fins | 0.750" (19.05mm) | 0.860" (21.84mm) | - | 0.395" (10.03mm) | 3.0W @ 60°C | 6.00°C/W @ 600 LFM | 21.20°C/W | Aluminum | Black Anodized |
|
MPC101020TCERAMIC HEAT SINK - FLAT TYPE |
1,850 |
|
Технический лист |
MPC | Bulk | Active | Top Mount | - | - | Square | 0.394" (10.00mm) | 0.394" (10.00mm) | - | 0.089" (2.25mm) | - | - | - | Ceramic | - |
|
|
MPC151525TCERAMIC HEAT SINK - FLAT TYPE |
2,500 |
|
Технический лист |
MPC | Bulk | Active | Top Mount | - | - | Square | 0.591" (15.00mm) | 0.590" (15.00mm) | - | 0.098" (2.50mm) | - | - | - | Ceramic | - |
|
|
FK 244 13 D3 PAK D3PAK (TO-268)Fans, Blower, Thermal Management |
9,900 |
|
Технический лист |
FK 244 | Bulk | Active | Board Level | D³PAK (TO-268) | Solderable Feet | Rectangular | 0.512" (13.00mm) | 1.220" (31.00mm) | - | - | 4.1W | - | 19.50°C/W | Copper | - |
|
|
MPC202025TCERAMIC HEAT SINK - FLAT TYPE |
2,500 |
|
Технический лист |
MPC | Bulk | Active | Top Mount | - | - | Square | 0.787" (20.00mm) | 0.787" (20.00mm) | - | 0.098" (2.50mm) | - | - | - | Ceramic | - |
|
|
MPC222225TCERAMIC HEAT SINK - FLAT TYPE |
222 |
|
Технический лист |
MPC | Bulk | Active | Top Mount | - | - | Square | 0.866" (22.00mm) | 0.866" (22.00mm) | - | 0.108" (2.75mm) | - | - | - | Ceramic | - |
|
|
ALB-821AS-60.827'' (21mm) Wide Heatsink |
490 |
|
Технический лист |
ALB-821AS | Retail Package | Active | Top Mount | - | Thermal Tape, Adhesive (Not Included) | Rectangular, Fins | 6.000" (152.40mm) | 0.827" (21.00mm) | - | 0.295" (7.50mm) | - | - | 9.62°C/W | Aluminum Alloy | Unfinished |
|
M48059B011000GMAX CLIP HEATSINK |
2,550 |
|
Технический лист |
Max Clip System™ | Bulk | Active | Board Level, Vertical | TO-126, TO-220, TO-247 | Clip and PC Pin | Rectangular, Angled Fins | 0.591" (15.00mm) | 0.866" (22.00mm) | - | 1.516" (38.50mm) | - | - | - | Aluminum | Black Anodized |
|
|
MPC303025TCERAMIC HEAT SINK - FLAT TYPE |
298 |
|
Технический лист |
MPC | Bulk | Active | Top Mount | - | - | Square | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.108" (2.75mm) | - | - | - | Ceramic | - |
