Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-PCB1027HEATSINK TO-3 BLACK |
0 |
|
Технический лист |
- | Bulk | Obsolete | Board Level | TO-220 | Bolt On | Rectangular, Fins | 2.100" (53.34mm) | 1.680" (42.67mm) | - | 1.522" (38.67mm) | - | 6.00°C/W @ 200 LFM | 10.00°C/W | Aluminum | Black Anodized |
|
ATS-PCB1028HEATSINK CLIP-ON TO-220 BLACK |
0 |
|
Технический лист |
- | Bulk | Obsolete | Board Level | TO-220 | Adhesive | Rectangular | 1.035" (26.29mm) | 0.799" (20.30mm) | - | 0.241" (6.11mm) | - | 6.50°C/W @ 200 LFM | 23.00°C/W | Aluminum | Black Anodized |
|
ATS-PCB1030HEATSINK TO-220 BLACK |
0 |
|
Технический лист |
- | Bulk | Obsolete | Board Level, Vertical | TO-220 | Bolt On and Board Mounts | Rectangular, Angled Fins | 1.250" (31.75mm) | 0.875" (22.22mm) | - | 0.250" (6.35mm) | - | 9.90°C/W @ 200 LFM | 22.00°C/W | Aluminum | Black Anodized |
|
ATS-PCB1031HEATSINK BRIDGE RECTIFIER |
0 |
|
Технический лист |
- | Bulk | Obsolete | Board Level | Bridge Rectifiers | Bolt On | Square, Fins | 1.125" (28.58mm) | 1.125" (28.58mm) | - | 1.375" (34.93mm) | - | 4.80°C/W @ 200 LFM | 9.00°C/W | Aluminum | Black Anodized |
|

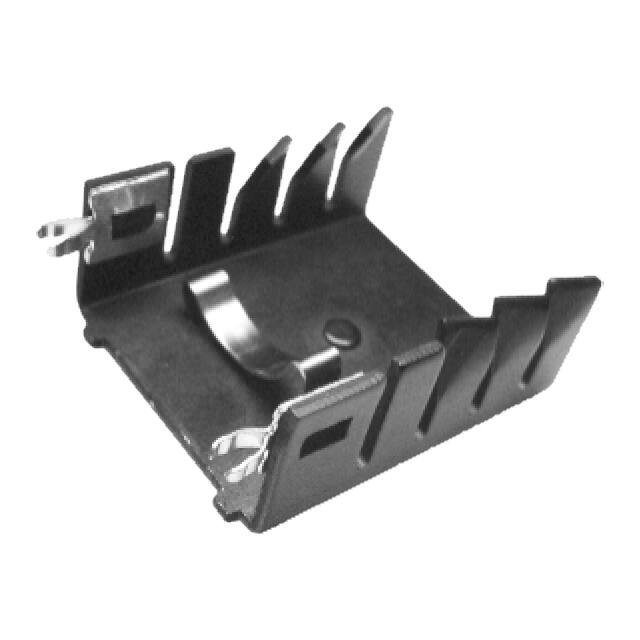

ATS-PCB1038HEATSINK TO-220 W/TAB BLACK |
0 |
|
Технический лист |
- | Bulk | Obsolete | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Angled Fins | 1.181" (30.00mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | - | 7.00°C/W @ 200 LFM | 13.40°C/W | Aluminum | Black Anodized |
|
ATS-PCB1045HEATSINK TO-220/TO-218/TO-247 |
0 |
|
Технический лист |
- | Bulk | Obsolete | Board Level, Vertical | TO-218, TO-220, TO-247 | Bolt On and PC Pin | Rectangular, Fins | 1.640" (41.66mm) | 1.700" (43.18mm) | - | 0.500" (12.70mm) | - | 6.30°C/W @ 200 LFM | 8.60°C/W | Aluminum | Black Anodized |
|

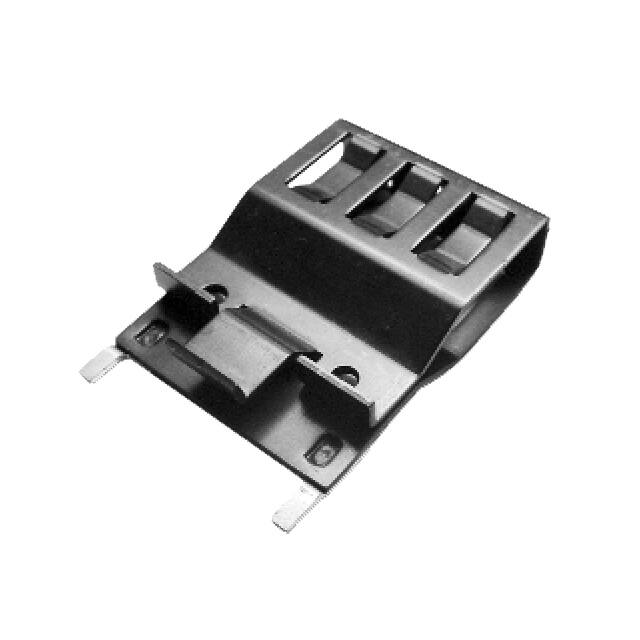

ATS-PCB1051HEATSINK 12-SIP W/TAB BLACK |
0 |
|
Технический лист |
- | Bulk | Obsolete | Board Level, Vertical | 12-SIP | Bolt On and PC Pin | Rectangular | 1.700" (43.18mm) | 1.250" (31.75mm) | - | 0.400" (10.16mm) | - | 4.50°C/W @ 200 LFM | 10.00°C/W | Aluminum | Black Anodized |
|
ATS-PCB1053HEATSINK TO-220 HIGH RISE |
0 |
|
Технический лист |
- | Bulk | Obsolete | Board Level, Vertical | TO-220 | Clip and Board Mounts | Rectangular, Fins | 1.760" (44.70mm) | 0.697" (17.70mm) | - | 1.772" (45.00mm) | - | 2.70°C/W @ 200 LFM | 6.30°C/W | Aluminum | Black Anodized |
|
ATS-PCB1063HEATSINK TO-220 COPPER W/TAB |
0 |
|
Технический лист |
- | Bulk | Obsolete | Board Level, Vertical | TO-220 | Bolt On and Board Mounts | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | - | 13.00°C/W @ 200 LFM | 18.00°C/W | Copper | Tin |
|
ATS-PCB1067HEATSINK TO-220 W/TAB BLACK |
0 |
|
Технический лист |
- | Bulk | Obsolete | Board Level, Vertical | TO-220 | Clip and PC Pin | Rectangular, Fins | 0.752" (19.10mm) | 0.860" (21.84mm) | - | 0.390" (9.91mm) | - | 10.50°C/W @ 200 LFM | 21.20°C/W | Aluminum | Black Anodized |
|
132-10BHEATSINK EXTRUDED |
0 |
|
Технический лист |
132 | Bulk | Active | Board Level | - | Bolt On | Rectangular, Fins | 10.000" (254.00mm) | 5.000" (127.00mm) | - | 2.250" (57.15mm) | - | 0.13°C/W @ 500 LFM | 0.38°C/W | Aluminum Alloy | Black Anodized |
|
|
132-10GHEATSINK EXTRUDED |
0 |
|
Технический лист |
132 | Bulk | Active | Board Level | - | Bolt On | Rectangular, Fins | 10.000" (254.00mm) | 5.000" (127.00mm) | - | 2.250" (57.15mm) | - | 0.13°C/W @ 500 LFM | 0.38°C/W | Aluminum Alloy | Gold Anodized |
|
|
132-11B9HEATSINK EXTRUDED |
0 |
|
Технический лист |
132 | Bulk | Active | Board Level | - | Bolt On | Rectangular, Fins | 11.000" (279.40mm) | 5.000" (127.00mm) | - | 2.250" (57.15mm) | - | 0.12°C/W @ 500 LFM | 0.37°C/W | Aluminum Alloy | Black Anodized |
|
|
132-11G9HEATSINK EXTRUDED |
0 |
|
Технический лист |
132 | Bulk | Active | Board Level | - | Bolt On | Rectangular, Fins | 11.000" (279.40mm) | 5.000" (127.00mm) | - | 2.250" (57.15mm) | - | 0.12°C/W @ 500 LFM | 0.37°C/W | Aluminum Alloy | Gold Anodized |
|
|
132-15.5BHEATSINK EXTRUDED |
0 |
|
Технический лист |
132 | Bulk | Active | Board Level | - | Bolt On | Rectangular, Fins | 15.500" (393.70mm) | 5.000" (127.00mm) | - | 2.250" (57.15mm) | - | 0.10°C/W @ 500 LFM | 0.28°C/W | Aluminum Alloy | Black Anodized |
|
|
132-15.5GHEATSINK EXTRUDED |
0 |
|
Технический лист |
132 | Bulk | Active | Board Level | - | Bolt On | Rectangular, Fins | 15.500" (393.70mm) | 5.000" (127.00mm) | - | 2.250" (57.15mm) | - | 0.10°C/W @ 500 LFM | 0.28°C/W | Aluminum Alloy | Gold Anodized |
|
|
132-4.5BHEATSINK EXTRUDED |
0 |
|
Технический лист |
132 | Bulk | Active | Board Level | - | Bolt On | Rectangular, Fins | 4.500" (114.30mm) | 5.000" (127.00mm) | - | 2.250" (57.15mm) | - | 0.17°C/W @ 500 LFM | 0.61°C/W | Aluminum Alloy | Black Anodized |
|
|
132-4.5GHEATSINK EXTRUDED |
0 |
|
Технический лист |
132 | Bulk | Active | Board Level | - | Bolt On | Rectangular, Fins | 4.500" (114.30mm) | 5.000" (127.00mm) | - | 2.250" (57.15mm) | - | 0.17°C/W @ 500 LFM | 0.61°C/W | Aluminum Alloy | Gold Anodized |
|
|
132-5B9HEATSINK EXTRUDED |
0 |
|
Технический лист |
132 | Bulk | Active | Board Level | - | Bolt On | Square, Fins | 5.000" (127.00mm) | 5.000" (127.00mm) | - | 2.250" (57.15mm) | - | 0.17°C/W @ 500 LFM | 0.61°C/W | Aluminum Alloy | Black Anodized |
|
|
133-10BHEATSINK EXTRUDED |
0 |
|
Технический лист |
133 | Bulk | Active | Board Level | - | Bolt On | Rectangular, Fins | 10.000" (254.00mm) | 7.000" (177.80mm) | - | 3.125" (79.38mm) | - | 0.08°C/W @ 500 LFM | 0.26°C/W | Aluminum Alloy | Black Anodized |
