Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5-1542008-229MM HS ASSY ULTEM CLIP |
0 |
|
Технический лист |
- | Tray | Active | Top Mount | BGA | Clip | Cylindrical | - | - | 1.500" (38.10mm) OD | 0.787" (19.99mm) | - | - | - | Aluminum | Black Anodized |
|
|
6-1542008-329MM HS ASSY ULTEM CLIP BS FAN |
0 |
|
Технический лист |
- | Tray | Active | Top Mount with Fan | BGA | Clip | Cylindrical, Pin Fins | - | - | 2.000" (50.80mm) OD | 0.750" (19.05mm) | - | 4.20°C/W @ 200 LFM | 7.66°C/W | Aluminum | Black Anodized |
|
|
680-75KHEATSINK PASSIVE ALUMINUM BLACK |
0 |
|
- |
680 | Bulk | Active | Board Level | TO-3 | Bolt On | Square, Pin Fins | 1.810" (45.97mm) | 1.810" (45.97mm) | - | 0.750" (19.05mm) | 7.5W @ 58°C | 2.40°C/W @ 400 LFM | - | Aluminum | Black Anodized |
|
ATS-61270W-C1-R0MAXIGRIP FANSINK 27X27X24.5MM |
0 |
|
Технический лист |
fanSINK, maxiGRIP | Bulk | Discontinued | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.965" (24.50mm) | - | 1.90°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-61400W-C1-R0MAXIGRIP FANSINK 40X40X24.5MM |
0 |
|
Технический лист |
fanSINK, maxiGRIP | Bulk | Obsolete | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.965" (24.50mm) | - | 1.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-61425W-C1-R0MAXIGRIP FANSINK 42.5X24.5MM |
0 |
|
Технический лист |
fanSINK, maxiGRIP | Bulk | Discontinued | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.673" (42.50mm) | 1.673" (42.50mm) | - | 0.965" (24.50mm) | - | 1.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

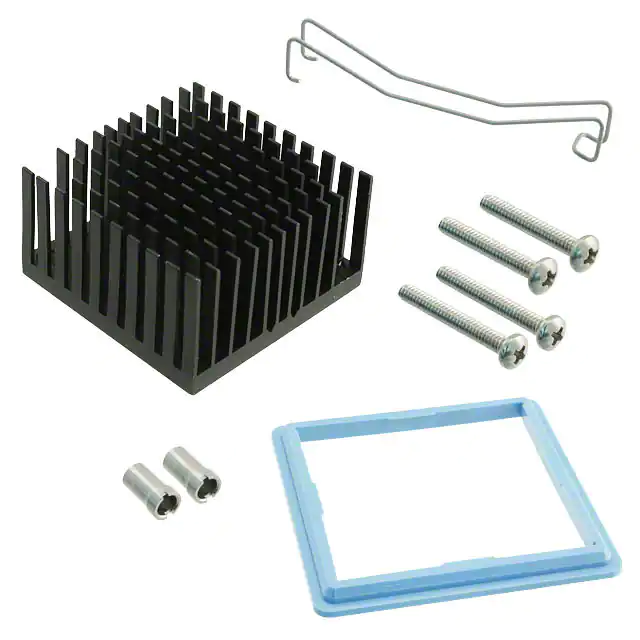

ATS-61450W-C1-R0MAXIGRIP FANSINK 45X45X24.5MM |
0 |
|
Технический лист |
fanSINK, maxiGRIP | Bulk | Discontinued | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.965" (24.50mm) | - | 1.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

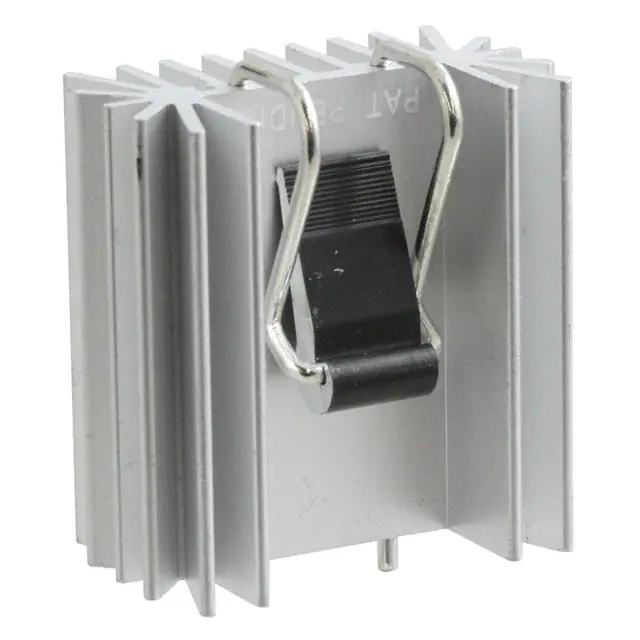

R2V-CT2-38EHEATSINK FOR TO-220 |
0 |
|
Технический лист |
R2 | Box | Obsolete | Board Level | TO-220 | Clip and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 1.380" (35.05mm) | - | 0.870" (22.10mm) | - | - | 9.80°C/W | Aluminum | Degreased |
|
R2A-CT2-38EHEATSINK FOR TO-220 |
0 |
|
Технический лист |
R2 | Box | Obsolete | Board Level | TO-220 | Clip and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 1.380" (35.05mm) | - | 0.870" (22.10mm) | - | - | 8.60°C/W | Aluminum | Black Anodized |
|
PH3-100-100-0.21-1AIR HEAT SPREADER/EMITTER W/ADH |
0 |
|
Технический лист |
PH3 | Box | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | Adhesive | Square | 3.937" (100.00mm) | 3.937" (100.00mm) | - | 0.008" (0.21mm) | - | - | - | Copper | Polyester |
|
PH3-150-150-0.21-1AIR HEAT SPREADER/EMITTER W/ADH |
0 |
|
Технический лист |
PH3 | Box | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | Adhesive | Square | 5.906" (150.00mm) | 5.910" (150.00mm) | - | 0.008" (0.21mm) | - | - | - | Copper | Polyester |
|
PH3-300-300-0.21-1AIR HEAT SPREADER/EMITTER W/ADH |
0 |
|
Технический лист |
PH3 | Box | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | Adhesive | Square | 11.811" (300.00mm) | 11.811" (300.00mm) | - | 0.008" (0.21mm) | - | - | - | Copper | Polyester |
|

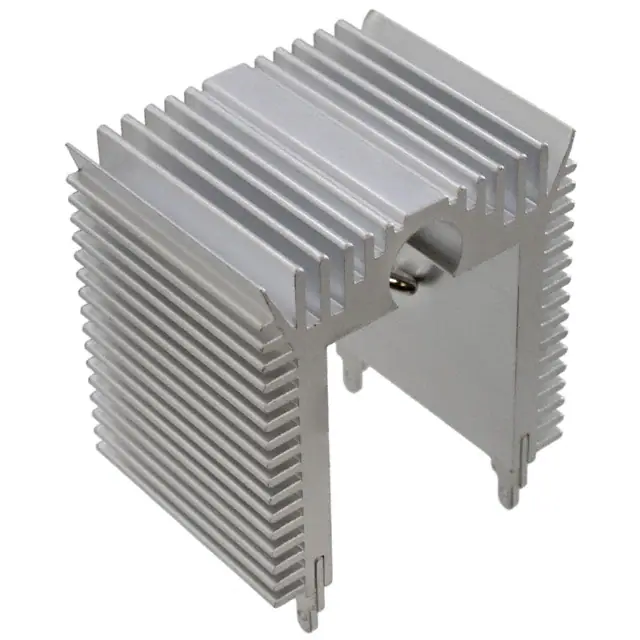

MV-101-27EHEATSINK W/CLIP - TO-247/TO-264 |
0 |
|
Технический лист |
M | Box | Obsolete | Top Mount | TO-247, TO-264 | Clip and PC Pin | Rectangular, Fins | 1.060" (26.92mm) | 1.350" (34.30mm) | - | 1.520" (38.61mm) | - | - | 9.60°C/W | Aluminum | Unfinished |
|

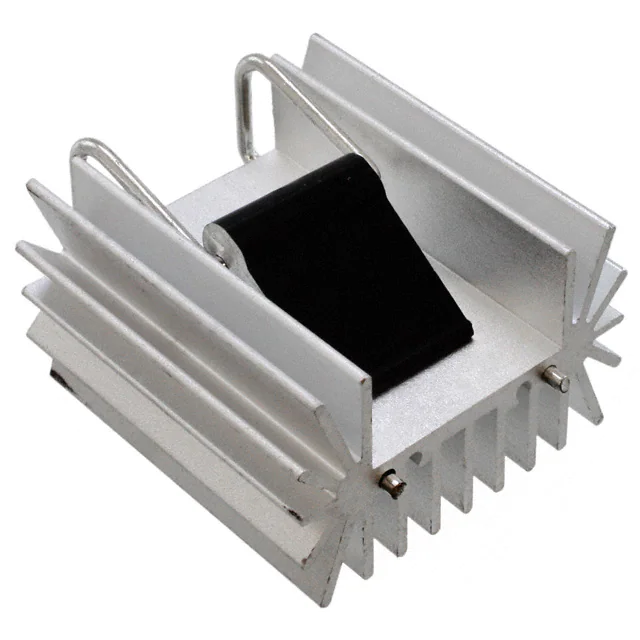

R2V-CT6-38EHEATSINK W/CLIP FOR TO-264 |
0 |
|
Технический лист |
R2 | Box | Obsolete | Board Level | TO-264 | Clip and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 1.380" (35.05mm) | - | 0.870" (22.10mm) | - | - | 9.80°C/W | Aluminum | Unfinished |
|

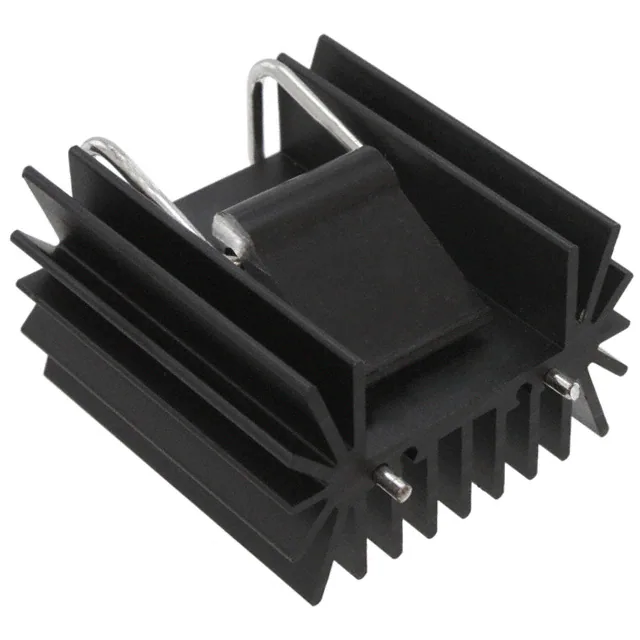

R2A-CT6-38EHEATSINK W/CLIP FOR TO-264 |
0 |
|
Технический лист |
R2 | Box | Obsolete | Board Level | TO-264 | Clip and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 1.380" (35.05mm) | - | 0.870" (22.10mm) | - | - | 8.60°C/W | Aluminum | Black Anodized |
|
XL25-40-40-2.0XL25 CERAMIC BOARD 40X40X2MM |
0 |
|
Технический лист |
XL-25 | Box | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | - | Square | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.079" (2.00mm) | - | - | - | Ceramic | - |
|
|
XL25-10-10-2.0XL25 CERAMIC BOARD 10X10X2MM |
0 |
|
Технический лист |
XL-25 | Box | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | - | Square | 0.394" (10.00mm) | 0.394" (10.00mm) | - | 0.079" (2.00mm) | - | - | - | Ceramic | - |
|
|
XL25-30-30-2.0XL25 CERAMIC BOARD 30X30X2MM |
0 |
|
Технический лист |
XL-25 | Box | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | - | Square | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.079" (2.00mm) | - | - | - | Ceramic | - |
|
|
3-1542012-3HEAT SINK AND CLIP ASSEMBLY NORT |
0 |
|
Технический лист |
- | Bag | Active | Board Level | - | Clip | Square, Fins | 1.667" (42.34mm) | 1.667" (42.34mm) | - | 1.142" (29.00mm) | - | - | - | Aluminum | Nickel |
|
|
3-1542012-4HEAT SINK AND CLIP ASSEMBLY SOUT |
0 |
|
Технический лист |
- | Bag | Active | Board Level | - | Clip | Square, Fins | 2.362" (60.00mm) | 1.665" (42.30mm) | - | 0.810" (20.57mm) | - | - | - | Aluminum | Nickel |
