Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IBR117 HEATSINKHEATSINK;HSIBR117-B V-A |
1 |
|
- |
- | Box | Active | Top Mount | IBR117 | Push Pin | Rectangular, Fins | 2.480" (63.00mm) | 2.421" (61.50mm) | - | 0.551" (14.00mm) | - | - | - | - | - |
|
|
IBR210 HEATSINKHEATSINK;HSIBR210-B V-A |
1 |
|
- |
- | Box | Active | Top Mount | IBR210 | Push Pin | - | - | - | - | 0.512" (13.00mm) | - | - | - | - | - |
|
|
3751241-PAM14010-P03751241-PAM14010-P0 |
0 |
|
- |
- | Bulk | Active | Top Mount | BGA | Solder Anchor | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.984" (25.00mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
517-95AB-MET725HEATSINK DC/DC HALF BRICK VERT |
0 |
|
Технический лист |
517 | Bulk | Active | Board Level | Half Brick DC/DC Converter | Bolt On, Thermal Material | Rectangular, Fins | 2.280" (57.91mm) | 2.400" (60.96mm) | - | 0.950" (24.13mm) | 11.0W @ 60°C | 2.00°C/W @ 300 LFM | - | Aluminum | Black Anodized |
|
|
9-1542006-137.5MM HS ASSY ULTE |
0 |
|
Технический лист |
- | Box | Obsolete | Top Mount | BGA | Clip | Cylindrical, Pin Fins | - | - | 1.376" (34.95mm) OD | 0.500" (12.70mm) | - | 5.74°C/W @ 200 LFM | 10.20°C/W | Aluminum | Black Anodized |
|
ATS-H1-42-C3-R0HEATSINK 57.9X60.96X22.86MM T412 |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.900" (22.86mm) | - | 7.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

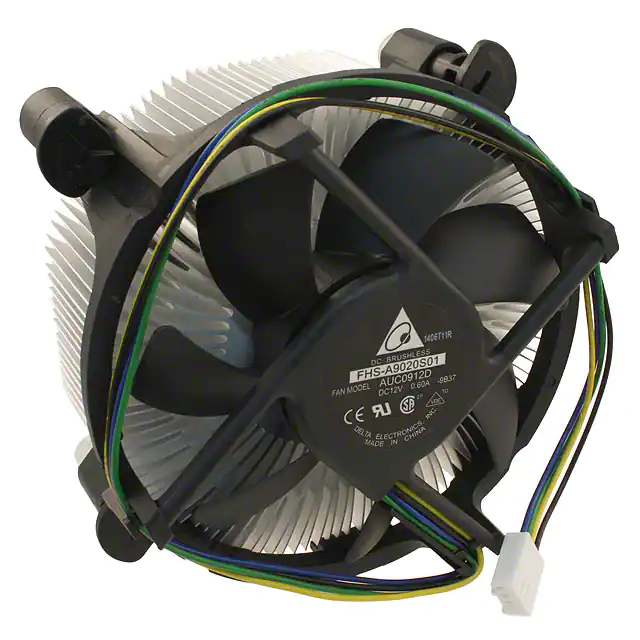

FHS-A9020S01FAN CPU COOLER 100X40MM 12VDC |
0 |
|
Технический лист |
FHS | Bulk | Obsolete | Board Level | Intel LGA1366 CPU Cooler | Bolt On | Round | - | - | 4.094" (104.00mm) OD | 2.480" (63.00mm) | - | - | 0.25°C/W | Aluminum, Copper, Plastic | - |
|
|
5-1542003-025MM HS ASSY ULTEM CL |
0 |
|
Технический лист |
- | Tray | Obsolete | Top Mount | BGA | Clip | Cylindrical | - | - | 1.375" (34.92mm) OD | 0.571" (14.50mm) | - | 5.26°C/W @ 200 LFM | 12.30°C/W | Aluminum | Black Anodized |
|
|
MFH70-40L1/5.0AL HEAT SINK 70X70X40MM |
0 |
|
- |
- | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
241409B91200G241409B91200G |
0 |
|
- |
- | Bulk | Active | Top Mount | Quarter Brick DC/DC Converter | Bolt On | Rectangular, Fins | 1.858" (47.20mm) | 1.457" (37.00mm) | - | 0.902" (22.90mm) | - | 1.00°C/W @ 400 LFM | 1.80°C/W | - | - |
|
|
1130BGHEATSINK |
0 |
|
Технический лист |
- | Bulk | Active | Board Level | TO-5 | Press Fit | Cylindrical | 0.400" (10.16mm) | 0.375" (9.50mm) | 0.450" (11.43mm) | 0.450" (11.43mm) | - | - | 15°C/W | Aluminum | Black Anodized |
|
|
2-1542000-221MM HS ASSY PPA CLIP |
0 |
|
Технический лист |
- | Box | Active | Top Mount | BGA | Clip | Cylindrical | - | - | 1.375" (34.92mm) OD | 0.658" (16.71mm) | - | 4.75°C/W @ 200 LFM | 11.90°C/W | Aluminum | Black Anodized |
|
|
8-1542001-0HTS339-P21MM HS ASSY CLIP |
0 |
|
Технический лист |
- | Box | Active | Top Mount | BGA | Clip | Cylindrical | - | - | 1.375" (34.92mm) OD | 0.865" (21.97mm) | - | 3.80°C/W @ 200 LFM | 10.56°C/W | Aluminum | Black Anodized |
|
|
MK-923RASPBERRY PI COMPUTE MODULE |
0 |
|
Технический лист |
- | Box | Discontinued | Top Mount | Raspberry Pi | Bolt On | Rectangular, Fins | 2.700" (68.58mm) | 1.100" (27.94mm) | - | 0.300" (7.62mm) | 2.0W @ 40°C | 6.90°C/W @ 300 LFM | 20.20°C/W | Aluminum | Silver |
|
|
1.25GY50THM,ZA1527 ISS 2 |
0 |
|
- |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 2.362" (60.00mm) | 0.630" (16.00mm) | - | 1.260" (32.00mm) | - | - | 6.80°C/W | Aluminum | - |
|
|
114070241ICE TOWER CPU COOL FAN RASPBERRY |
2 |
|
- |
- | Box | Discontinued | Top Mount with Fan | Raspberry Pi 5 | Bolt On and Thermal Tape, Adhesive (Included) | Rectangular, Fins | 1.673" (42.50mm) | 1.378" (35.00mm) | - | 1.575" (40.00mm) | - | - | - | - | - |
|
|
403FHEATSINK POWER TO-3 |
0 |
|
Технический лист |
403 | Bulk | Active | Board Level, Extrusion | TO-3 | Press Fit | Rectangular, Fins | 3.000" (76.20mm) | 4.750" (120.65mm) | - | 1.250" (31.75mm) | 30.0W @ 55°C | 0.90°C/W @ 250 LFM | - | Aluminum | Black Anodized |
|
|
CR202-95VECR202 HEATSINK 95.25MM LONG |
0 |
|
- |
CR | Box | Active | Board Level, Vertical | TO-202 | Clip and PC Pin | Rectangular, Fins | 3.740" (95.00mm) | - | - | - | - | - | - | Aluminum Alloy | Degreased |
|
|
FHS-A090025S42DHA-A STANDARD COOLER |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
413AHEATSINK POWER TO-3 |
0 |
|
Технический лист |
413 | Bulk | Active | Board Level, Extrusion | TO-3, DO-5, Stud Mount | Press Fit | Rectangular, Fins | 3.000" (76.20mm) | 4.750" (120.65mm) | - | 2.625" (66.67mm) | 50.0W @ 72°C | 0.85°C/W @ 250 LFM | - | Aluminum | Black Anodized |
