Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C60-075-AEHEATSINK FOR TO-247 TO-264 |
0 |
|
Технический лист |
C60 | Box | Active | Board Level, Vertical | TO-220, TO-247, TO-264 | Clip, Solder Foot | Rectangular, Fins | 2.950" (74.93mm) | 2.480" (62.99mm) | - | 1.610" (40.89mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
403VHEATSINK POWER TO-3 |
0 |
|
Технический лист |
403 | Bulk | Active | Board Level, Extrusion | TO-3 | Press Fit | Rectangular, Fins | 3.000" (76.20mm) | 4.750" (120.65mm) | - | 1.250" (31.75mm) | 30.0W @ 55°C | 0.90°C/W @ 250 LFM | - | Aluminum | Black Anodized |
|
|
7-1542006-8HEAT SINK BGA 29MM 7FIN RADIAL |
0 |
|
Технический лист |
- | Tray | Active | - | BGA | Clip | Cylindrical | - | - | 2.000" (50.80mm) OD | 0.892" (22.65mm) | - | 1.50°C/W @ 400 LFM | - | Aluminum | Black Anodized |
|
ATS-H1-40-C3-R0HEATSINK 57.9X60.96X11.43MM T412 |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.450" (11.43mm) | - | 14.61°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

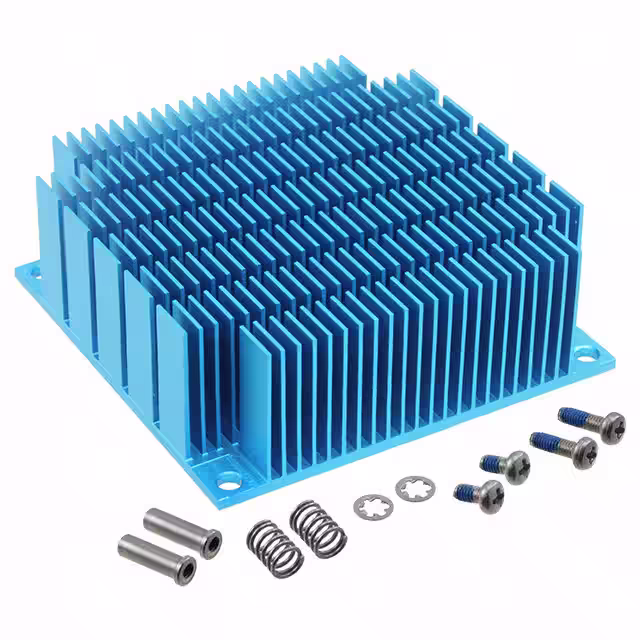

ATS-H1-30-C3-R0HEATSINK 70X70X25MM XCUT T412 |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
HSIBQ800-1HEAT SPREADER FOR IBQ800 (H051HS |
1 |
|
Технический лист |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2334BGHEAT SINK |
0 |
|
Технический лист |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ATS-H1-42-C1-R0HEATSINK 57.9X60.96X22.86MM |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.900" (22.86mm) | - | 7.30°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
1542779-4SALEABLE PACKAGED VERSION. |
0 |
|
Технический лист |
- | Tray | Active | Top Mount | - | - | Cylindrical | - | - | 0.984" (24.99mm) OD | 1.007" (25.58mm) | - | - | - | - | - |
|
|
5-1542009-535MM HEAT SINK ASSY .008" LIP |
0 |
|
Технический лист |
- | Box | Obsolete | Top Mount | BGA | Clip | Cylindrical | - | - | 1.375" (34.92mm) OD | 0.357" (9.07mm) | - | 6.32°C/W @ 200 LFM | 12.00°C/W | Aluminum | Black Anodized |
|
|
FHS-A090025S43DHA-B STANDARD COOLER |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4-1542004-425MM HS ASSY ULTEM CL |
0 |
|
Технический лист |
- | Box | Active | Top Mount | BGA | Clip | Cylindrical | - | - | 1.750" (44.45mm) OD | 0.442" (11.23mm) | - | 5.34°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

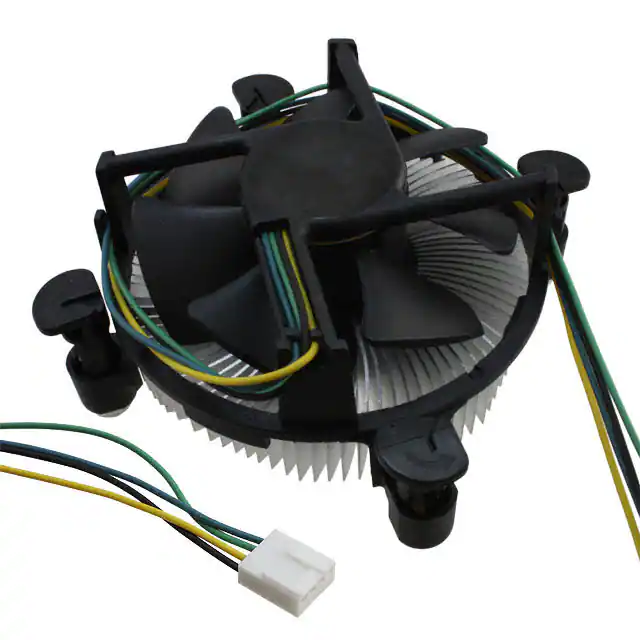

FHS-A9025S19FAN CPU COOLER 90X19.1MM 12VDC |
0 |
|
Технический лист |
FHS | Bulk | Obsolete | Board Level | Intel LGA1156 CPU Cooler | Bolt On | Round | - | - | 3.657" (92.90mm) OD | 1.811" (46.00mm) | - | - | 0.36°C/W | Aluminum, Copper, Plastic | - |
|
|
MFH70-25W2/3.0-1AL HEAT SINK 70X70X25MM |
0 |
|
- |
- | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
ATS-H1-41-C3-R0HEATSINK 57.9X60.96X17.78MM T412 |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.700" (17.78mm) | - | 10.07°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
8-1542005-832.5MM HS ASSY ULTEM |
0 |
|
Технический лист |
- | Box | Active | Top Mount | BGA | Clip | Cylindrical | - | - | 1.375" (34.92mm) OD | 0.357" (9.07mm) | - | 6.32°C/W @ 200 LFM | 12.00°C/W | Aluminum | Black Anodized |
|
|
8-1542003-123MM HS ASSY A-TEMP C |
0 |
|
Технический лист |
- | Tray | Obsolete | Top Mount | BGA | Clip | Cylindrical | - | - | 1.375" (34.92mm) OD | 0.571" (14.50mm) | - | 5.26°C/W @ 200 LFM | 12.30°C/W | Aluminum | Black Anodized |
|

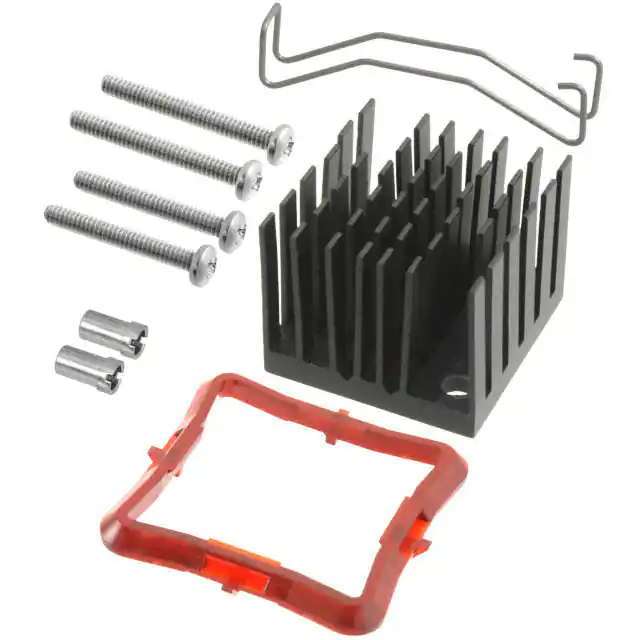

ATS-61300W-C1-R0MAXIGRIP FANSINK 30X30X24.5MM |
0 |
|
Технический лист |
fanSINK, maxiGRIP | Bulk | Discontinued | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.965" (24.50mm) | - | 1.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
8-1542003-635MM LOW P HS ASSY A- |
0 |
|
Технический лист |
- | Tray | Active | Top Mount | BGA | Clip | Cylindrical | - | - | 1.375" (34.92mm) OD | 0.479" (12.17mm) | - | 5.74°C/W @ 200 LFM | 11.00°C/W | Aluminum | Black Anodized |
|
110991228EXTREME COOLING FAN KIT FOR RASP |
0 |
|
Технический лист |
- | Bulk | Active | Board Level | Raspberry Pi 3 B+ | Thermal Tape, Adhesive (Included) | Rectangular | - | - | - | - | - | - | - | Copper | - |
