Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-CPX035035035-180-C3-R0HEATSINK 35X35X35MM R-TAB CP |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 3.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX050050020-14-C3-R0HEATSINK 50X50X20MM XCUT FP |
18 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.790" (20.00mm) | - | 10.05°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-CPX035035035-152-C3-R0HEATSINK 35X35X35MM L-TAB CP |
15 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 3.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX060060010-21-C1-R0HEATSINK 60X60X10MM XCUT FP |
3 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 16.26°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX040040020-63-C3-R0HEATSINK 40X40X20MM L-TAB FP |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | - | 12.42°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-FPX040040020-93-C3-R0HEATSINK 40X40X20MM R-TAB FP |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | - | 12.42°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX045045015-68-C3-R0HEATSINK 45X45X15MM L-TAB FP |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 15.39°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX045045010-187-C3-R0HEATSINK 45X45X10MM R-TAB CP |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 10.78°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX045045015-98-C3-R0HEATSINK 45X45X15MM R-TAB FP |
22 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 15.39°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-CPX045045010-159-C3-R0HEATSINK 45X45X10MM L-TAB CP |
21 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 10.78°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX030030010-169-C1-R0HEATSINK 30X30X10MM R-TAB CP |
4 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.394" (10.00mm) | - | 15.66°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX040040025-184-C3-R0HEATSINK 40X40X25MM R-TAB CP |
15 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.984" (25.00mm) | - | 4.24°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX040040013-104-C1-R1HEATSINK 40X40X12.7MM XCUT SFP |
8 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount, Skived | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.500" (12.70mm) | - | 25.21°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

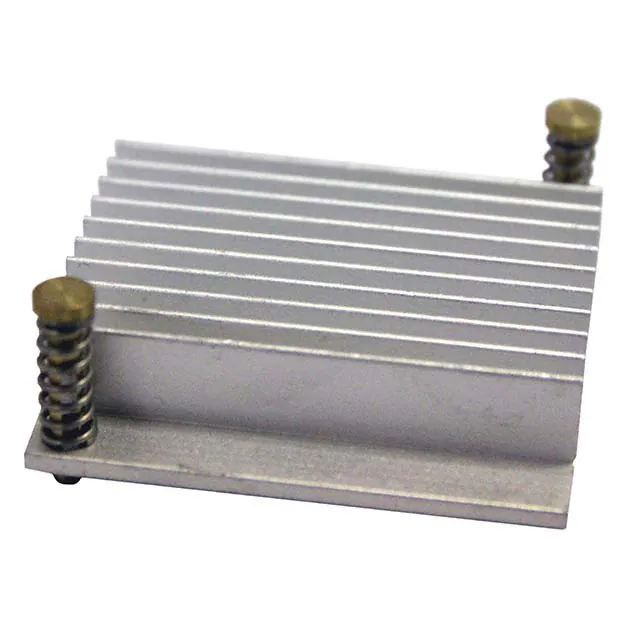

SA000-13007PUSHPIN HEATSINK 43X43X10MM |
0 |
|
Технический лист |
- | Bulk | Active | Top Mount | - | Push Pin | Square, Fins | 1.705" (43.30mm) | 1.713" (43.50mm) | - | 0.394" (10.00mm) | - | - | - | Aluminum | - |
|
ATS-FPX025025010-73-C3-R0HEATSINK 25X25X10MM R-TAB FP |
21 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.394" (10.00mm) | - | 29.12°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX045045030-71-C1-R0HEATSINK 45X45X30MM L-TAB FP |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.181" (30.00mm) | - | 6.67°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-FPX045045030-101-C1-R0HEATSINK 45X45X30MM R-TAB FP |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.181" (30.00mm) | - | 6.67°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX040040010-61-C1-R0HEATSINK 40X40X10MM L-TAB FP |
3 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 21.94°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-166-C2-R0HEATSINK 25X25X15MM R-TAB T766 |
11 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.590" (15.00mm) | - | 12.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX030030015-50-C1-R0HEATSINK 30X30X15MM L-TAB FP |
7 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.590" (15.00mm) | - | 18.99°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
