Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-CPX054054012-204-C3-R0HEATSINK 54X54X12MM XCUT CP |
5 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.472" (12.00mm) | - | 7.54°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

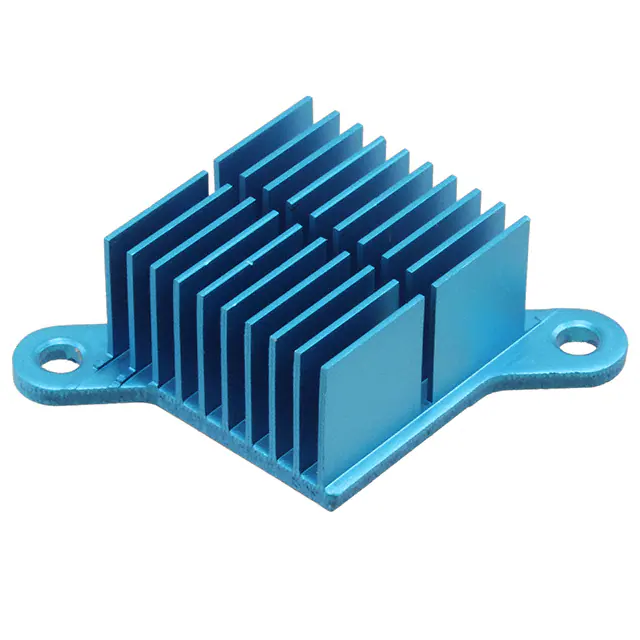

ATS-FPX025025015-74-C2-R0HEATSINK 25X25X15MM R-TAB FP |
1 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.590" (15.00mm) | - | 20.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX054054025-20-C1-R0HEATSINK 54X54X25MM XCUT FP |
21 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.984" (25.00mm) | - | 7.13°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX045045035-192-C1-R0HEATSINK 45X45X35MM R-TAB CP |
1 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.378" (35.00mm) | - | 2.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX030030030-53-C3-R0HEATSINK 30X30X30MM L-TAB FP |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.181" (30.00mm) | - | 8.76°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX050050015-13-C3-R0HEATSINK 50X50X15MM XCUT FP |
10 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.590" (15.00mm) | - | 13.78°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
CR301-25VEALUMINUM HEATSINK 25MM DEGREASED |
25 |
|
Технический лист |
CR | Box | Active | Board Level, Vertical | TO-301 | 2 Clips and PC Pin | Rectangular, Fins | 0.984" (25.00mm) | 2.362" (60.00mm) | - | - | - | - | 8.10°C/W | Aluminum Alloy | Degreased |
|
ATS-CPX040040015-182-C3-R0HEATSINK 40X40X15MM R-TAB CP |
24 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.61°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX045045010-67-C3-R0HEATSINK 45X45X10MM L-TAB FP |
22 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 20.39°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-FPX045045010-97-C3-R0HEATSINK 45X45X10MM R-TAB FP |
21 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 20.39°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX035035030-151-C3-R0HEATSINK 35X35X30MM L-TAB CP |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.181" (30.00mm) | - | 4.07°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX040040030-65-C1-R0HEATSINK 40X40X30MM L-TAB FP |
24 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.181" (30.00mm) | - | 7.27°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-FPX040040030-95-C1-R0HEATSINK 40X40X30MM R-TAB FP |
24 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.181" (30.00mm) | - | 7.27°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-CPX035035030-179-C3-R0HEATSINK 35X35X30MM R-TAB CP |
17 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.181" (30.00mm) | - | 4.07°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX025025020-167-C1-R0HEATSINK 25X25X20MM R-TAB CP |
3 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.790" (20.00mm) | - | 9.03°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-FPX045045010-06-C1-R0HEATSINK 45X45X10MM XCUT FP |
23 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 20.15°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX040040020-183-C3-R0HEATSINK 40X40X20MM R-TAB CP |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | - | 5.47°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-CPX040040020-155-C3-R0HEATSINK 40X40X20MM L-TAB CP |
19 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | - | 5.47°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-CPX040040015-114-C1-R0HEATSINK 40X40X15MM XCUT CP |
19 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.38°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX054054010-16-C3-R0HEATSINK 54X54X10MM XCUT FP |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.394" (10.00mm) | - | 18.14°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
