Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-54270K-C0-R0HEATSINK 27X27X14.5MM W/OUT TIM |
100 |
|
- |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.571" (14.50mm) | - | 7.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS-52350B-C0-R0HEATSINK 35X35X7.5MM W/OUT TIM |
100 |
|
- |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.295" (7.50mm) | - | 5.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-168-C2-R0HEATSINK 25X25X25MM R-TAB T766 |
100 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 7.01°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-52325B-C1-R0HEAT SINK 32.5 X 32.5 X 7.5MM |
67 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.280" (32.51mm) | 1.280" (32.51mm) | - | 0.295" (7.50mm) | - | 5.90°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-54310K-C1-R0HEAT SINK 31MM X 31MM X 14.5MM |
39 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.571" (14.50mm) | - | 6.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

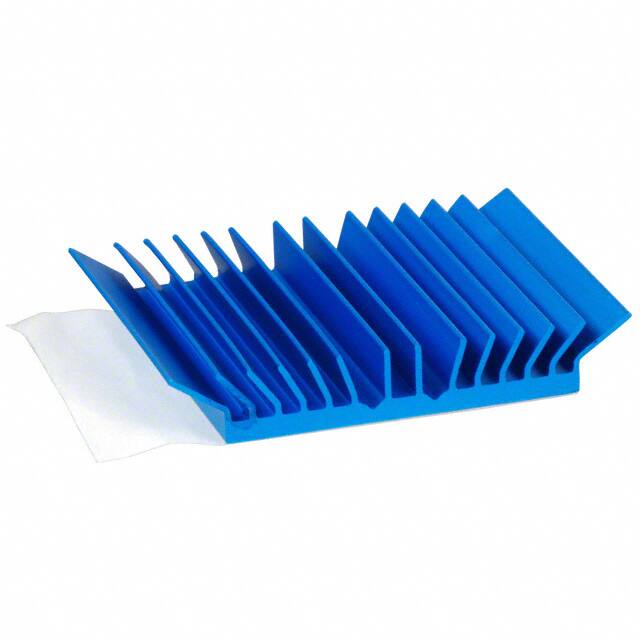

ATS-52350B-C1-R0HEAT SINK 35MM X 35MM X 7.5MM |
43 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.295" (7.50mm) | - | 5.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-21-C2-R0HEATSINK 60X60X10MM XCUT T766 |
130 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 16.28°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

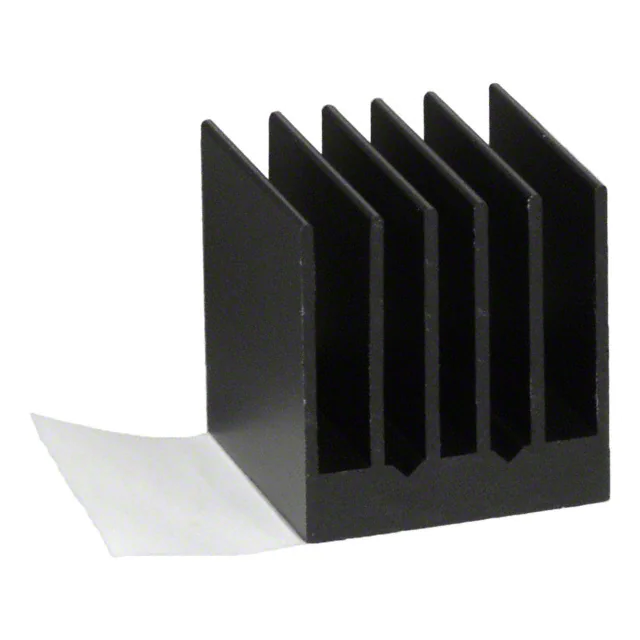

ATS-54190R-C1-R0HEAT SINK 19MM X 19MM X 19.5MM |
26 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.768" (19.50mm) | 0.3W @ 20°C | 8.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-P1-28-C2-R0HEATSINK 70X70X15MM XCUT T766 |
62 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.590" (15.00mm) | - | 10.58°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-54450K-C1-R0HEAT SINK 45MM X 45MM X 14.5MM |
99 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.571" (14.50mm) | - | 4.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-16E-25-C2-R0HEATSINK 60X60X25MM XCUT T766 |
93 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 6.26°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-16F-34-C2-R0HEATSINK 57.9X36.83X22.86MM T766 |
75 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 1.450" (36.83mm) | - | 0.900" (22.86mm) | - | 14.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

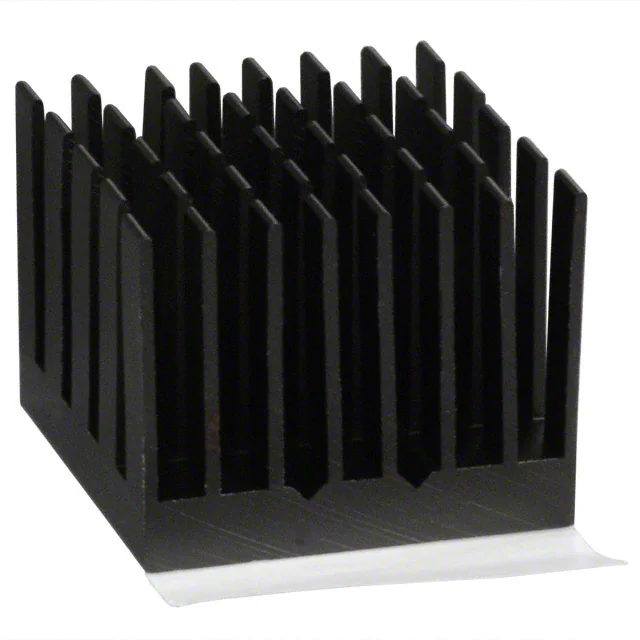

ATS-55250R-C1-R0HEAT SINK 25MM X 25MM X 19.5MM |
33 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.768" (19.50mm) | - | 6.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-52230G-C1-R0HEAT SINK 23MM X 23MM X 12.5MM |
74 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.492" (12.50mm) | - | 6.70°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
908-35-2-23-2-B-0HEATSINK 35X35X23MM PIN |
81 |
|
Технический лист |
908 | Tray | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.892" (22.65mm) | - | 2.10°C/W @ 200 LFM | 8.80°C/W | Aluminum | Black Anodized |
|

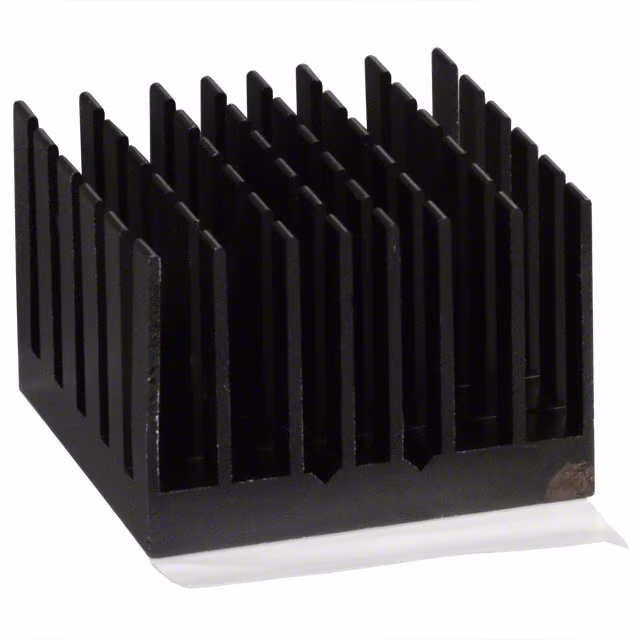

ATS-55290R-C1-R0HEAT SINK 29MM X 29MM X 19.5MM |
0 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.768" (19.50mm) | - | 5.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-CPX070070020-135-C2-R0HEATSINK 70X70X20MM XCUT CP |
16 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.790" (20.00mm) | - | 3.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-54170W-C0-R0HEATSINK 17X17X24.5MM W/OUT TIM |
100 |
|
- |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.965" (24.50mm) | - | 7.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

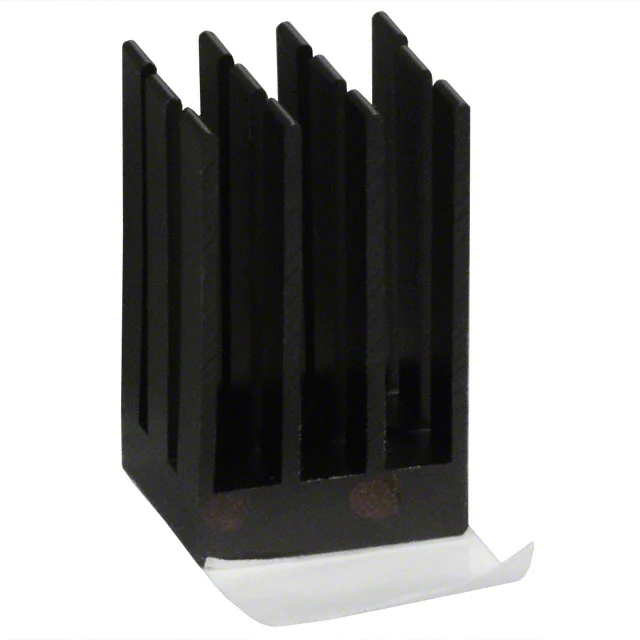

ATS-55150W-C1-R0HEAT SINK 15MM X 15MM X 24.5MM |
25 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.591" (15.00mm) | 0.591" (15.00mm) | - | 0.965" (24.50mm) | - | 11.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

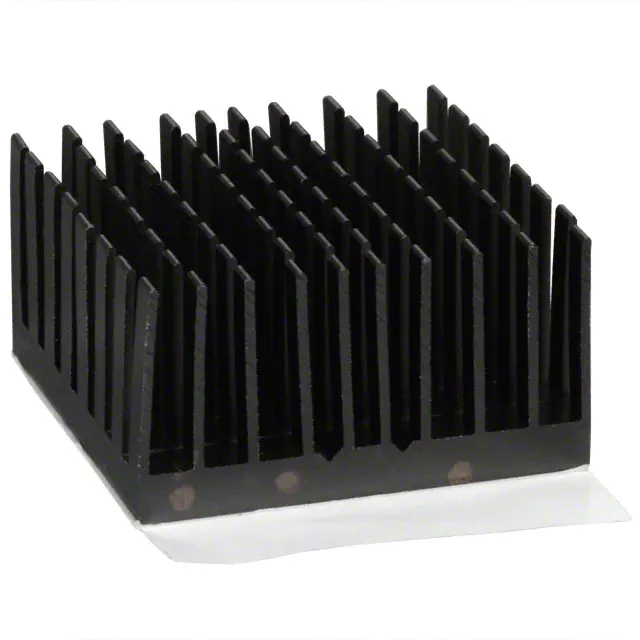

ATS-55375R-C1-R0HEAT SINK 37.5 X 37.5 X 19.5MM |
88 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.476" (37.50mm) | 1.476" (37.50mm) | - | 0.768" (19.50mm) | - | 3.90°C/W @ 200 LFM | - | Aluminum | Black Anodized |
