Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
322400B00000GHEAT SINK TO-18 1W BLK |
5,978 |
|
Технический лист |
- | Bag | Active | Top Mount | TO-18 | Press Fit | Cylindrical | - | - | 0.180" (4.57mm) ID, 0.500" (12.70mm) OD | 0.235" (5.97mm) | 0.6W @ 60°C | 30.00°C/W @ 500 LFM | 100.00°C/W | Aluminum | Black Anodized |
|

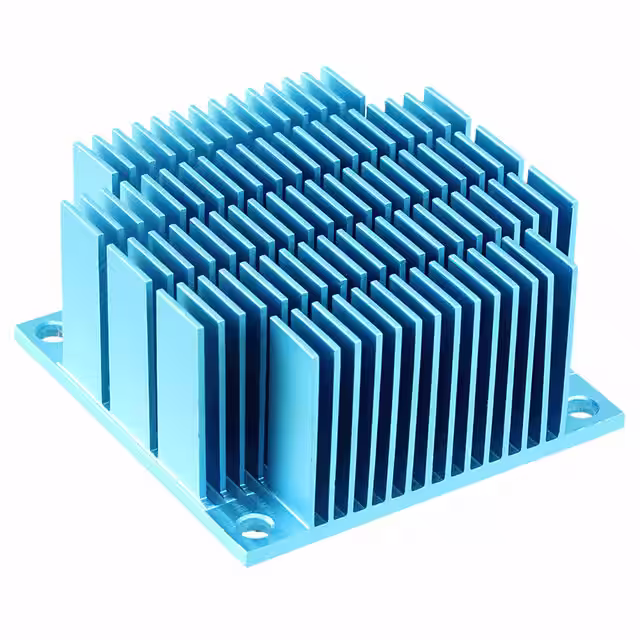

ATS-FPX050050025-15-C2-R0HEATSINK 50X50X25MM XCUT FP |
337 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.984" (25.00mm) | - | 7.44°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
APF30-30-06CBHEATSINK LOW-PROFILE FORGED |
220 |
|
Технический лист |
APF | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.250" (6.35mm) | - | 4.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

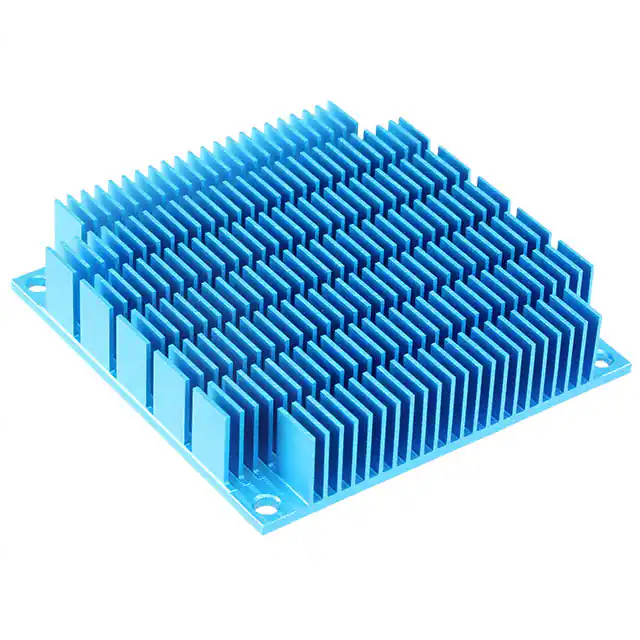

ATS-FPX070070015-28-C2-R0HEATSINK 70X70X15MM XCUT FP |
4,724 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.590" (15.00mm) | - | 10.58°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
7025B-MTGHEATSINK TO-220 TAB FOLD 28.7MM |
3,093 |
|
Технический лист |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.130" (28.70mm) | 1.900" (48.26mm) | - | 0.950" (24.13mm) | 6.0W @ 50°C | 4.00°C/W @ 300 LFM | 6.80°C/W | Aluminum | Black Anodized |
|

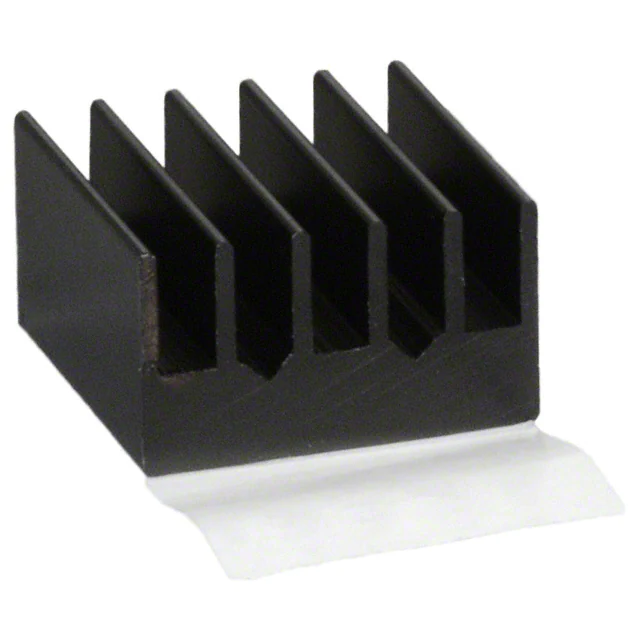

ATS-54170D-C1-R0HEAT SINK 17MM X 17MM X 9.5MM |
2,834 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.374" (9.50mm) | - | 24.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

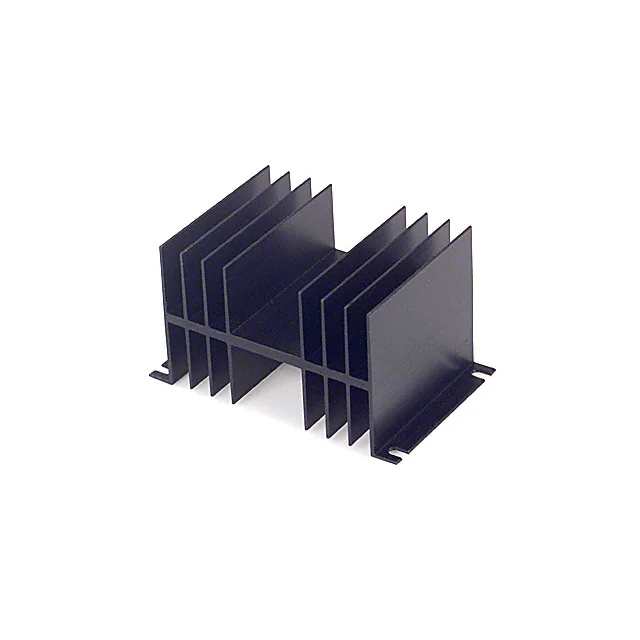

421KHEATSINK POWER NO MNT HOLES BLK |
625 |
|
Технический лист |
421 | Bulk | Active | Board Level | TO-3, DO-5, Stud Mount | Press Fit | Rectangular, Fins | 3.000" (76.20mm) | 4.750" (120.65mm) | - | 2.625" (66.67mm) | 50.0W @ 58°C | 0.70°C/W @ 250 LFM | 1.16°C/W | Aluminum | Black Anodized |
|
530402B00150GHEAT SINK 1.75" HIGH RISE TO-220 |
5,440 |
|
Технический лист |
- | Bulk | Active | Board Level, Vertical | TO-220 | Clip and Board Mounts | Rectangular, Fins | 1.750" (44.45mm) | 0.750" (19.05mm) | - | 1.750" (44.45mm) | 4.0W @ 30°C | 2.00°C/W @ 400 LFM | 6.30°C/W | Aluminum | Black Anodized |
|

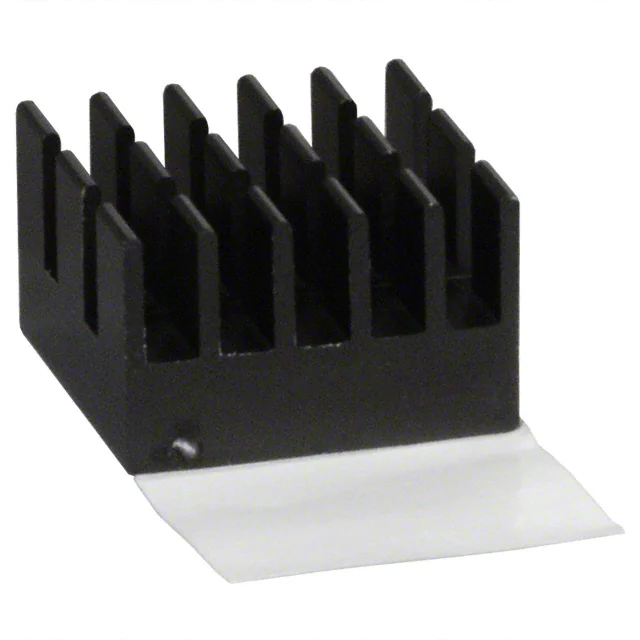

ATS-55150D-C1-R0HEAT SINK 15MM X 15MM X 9.5MM |
1,215 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.591" (15.00mm) | 0.591" (15.00mm) | - | 0.374" (9.50mm) | - | 29.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
PF750GHTSK-AL-PF750 REV A-G |
241 |
|
Технический лист |
- | Bulk | Active | Board Level, Vertical | TO-220 | Clip and PC Pin | Rectangular | 0.866" (22.00mm) | 0.433" (11.00mm) | - | 0.748" (19.00mm) | - | - | - | Aluminum | Tin |
|

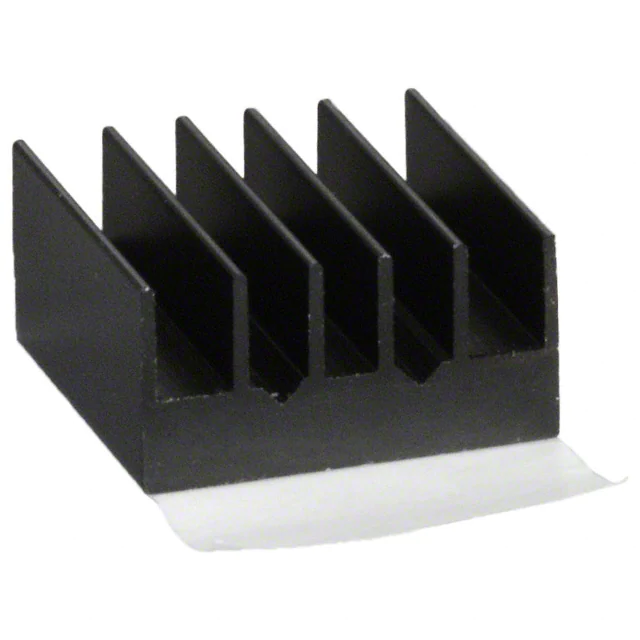

ATS-54190D-C1-R0HEAT SINK 19MM X 19MM X 9.5MM |
280 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.374" (9.50mm) | - | 22.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

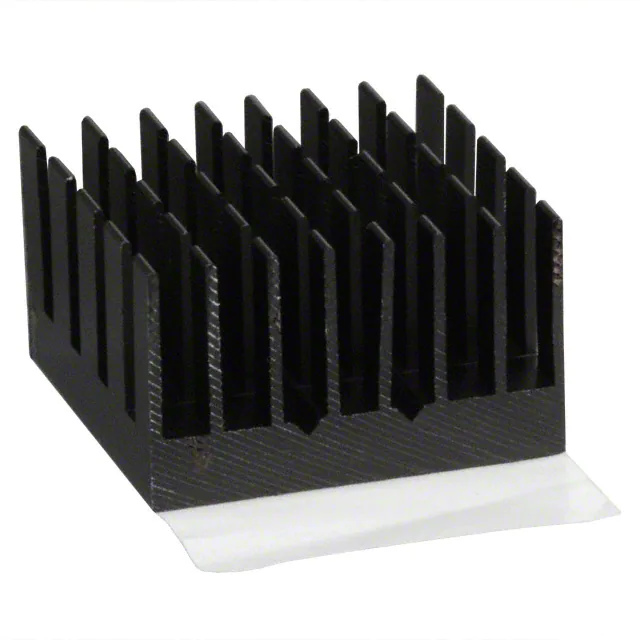

ATS-55250K-C1-R0HEAT SINK 25MM X 25MM X 14.5MM |
657 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.571" (14.50mm) | - | 8.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
901-19-1-12-2-B-0HEATSINK 19X19X12MM ELLIPTICAL |
329 |
|
Технический лист |
901 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.457" (11.60mm) | - | 6.60°C/W @ 200 LFM | 14.70°C/W | Aluminum | Black Anodized |
|

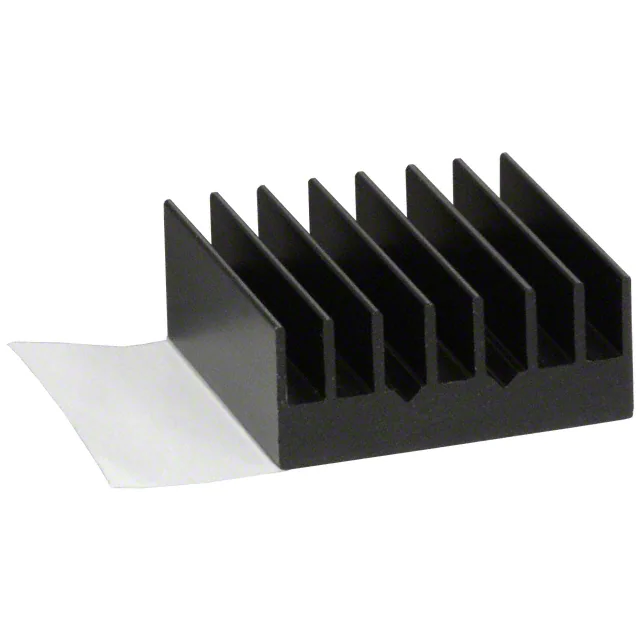

ATS-54230D-C1-R0HEAT SINK 23MM X 23MM X 9.5MM |
198 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.374" (9.50mm) | 0.3W @ 20°C | 16.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

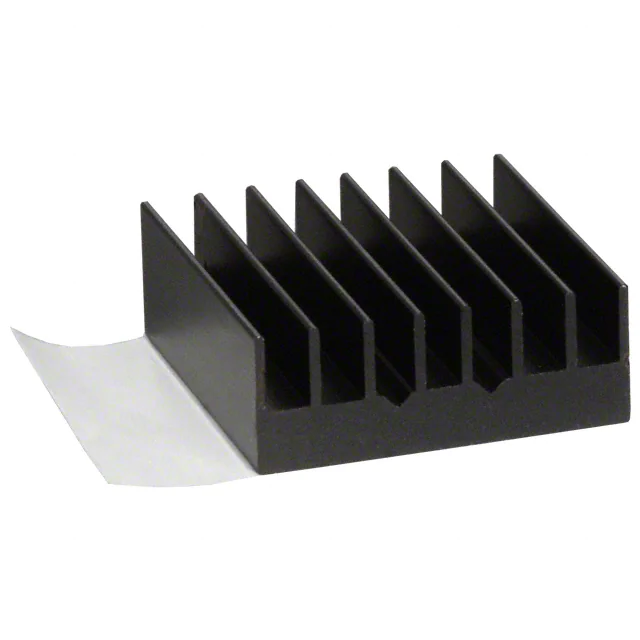

ATS-54250D-C1-R0HEAT SINK 25MM X 25MM X 9.5MM |
1,376 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.374" (9.50mm) | - | 15.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

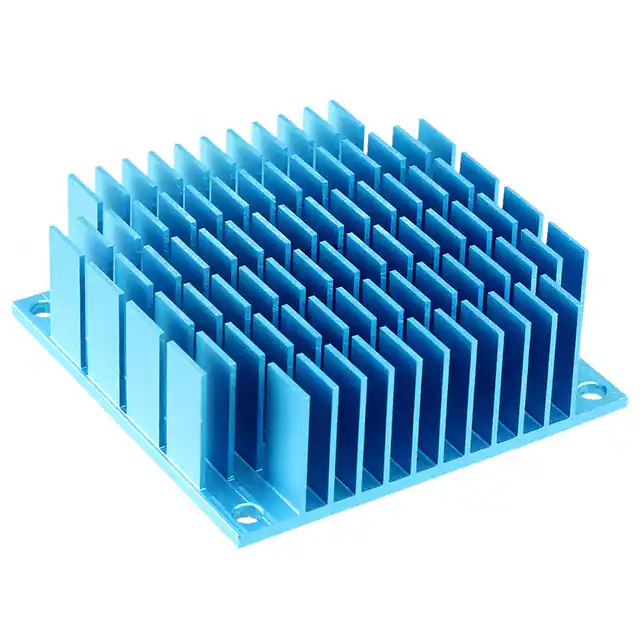

ATS-CPX060060020-131-C2-R0HEATSINK 60X60X20MM XCUT CP |
230 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.790" (20.00mm) | - | 3.60°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
APF303010CBA01HEATSINK FORGED W/ADHESIVE TAPE |
144 |
|
Технический лист |
APF | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.370" (9.40mm) | - | 3.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS-TI1OP-563-C1-R0HEATSINK TI TAS5612 AND TAS5614 |
571 |
|
Технический лист |
- | Bulk | Active | Top Mount | - | Bolt On | Rectangular, Fins | 2.126" (54.00mm) | 1.417" (36.00mm) | - | 1.402" (35.60mm) | - | 2.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
960-31-33-F-AB-0HEATSINK 31X33MM FRONT PUSH PIN |
1,630 |
|
Технический лист |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 1.299" (33.00mm) | - | 2.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

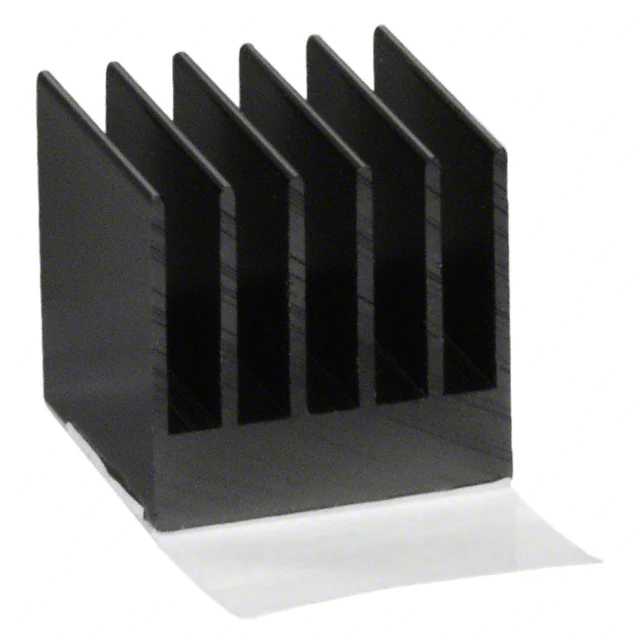

ATS-54150K-C1-R0HEAT SINK 15MM X 15MM X 14.5MM |
997 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.591" (15.00mm) | 0.591" (15.00mm) | - | 0.571" (14.50mm) | - | 19.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
