Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

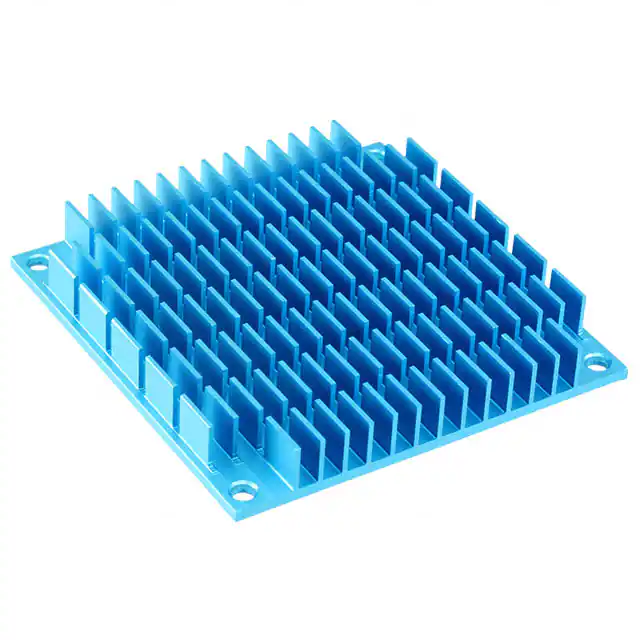

ATS-CPX070070010-209-C1-R0HEATSINK 70X70X10MM XCUT CP |
844 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.394" (10.00mm) | - | 6.26°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
960-19-23-S-AB-0HEATSINK 19X23MM SIDE PUSH PIN |
497 |
|
Технический лист |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.905" (23.00mm) | - | 4.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
678-39-SHEATSINK TO-220/TO-247 SCREW |
1,603 |
|
Технический лист |
678 | Box | Active | Board Level, Vertical | Assorted (BGA, LGA, CPU, ASIC...) | Bolt On and Board Mounts | Rectangular, Fins | 2.362" (60.00mm) | 0.984" (25.00mm) | - | 1.520" (38.61mm) | - | 0.60°C/W @ 600 LFM | - | Aluminum | Black Anodized |
|
6222BGBRIDGE RECTIFIER HEATSINK 0.142" |
2,028 |
|
Технический лист |
- | Bulk | Active | Board Level | Bridge Rectifiers | Bolt On | Square, Fins | 1.060" (26.92mm) | 1.060" (26.92mm) | - | 1.250" (31.75mm) | 3.0W @ 30°C | 3.00°C/W @ 400 LFM | 9.40°C/W | Aluminum | Black Anodized |
|

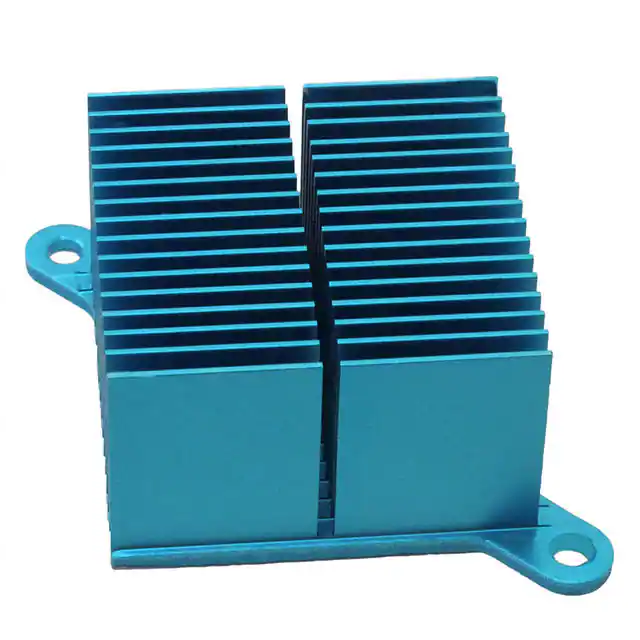

ATS-FPX040040025-94-C2-R0HEATSINK 40X40X25MM R-TAB FP |
302 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.984" (25.00mm) | - | 9.39°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
CR201-50VEALUMINUM HEATSINK 50MM DEGREASED |
118 |
|
Технический лист |
CR | Box | Active | Board Level, Vertical | TO-201 | 3 Clips and PC Pin | Rectangular, Fins | 1.969" (50.00mm) | 2.953" (75.00mm) | - | - | - | - | 3.30°C/W | Aluminum Alloy | Degreased |
|
ATS-CPX040040035-186-C2-R0HEATSINK 40X40X35MM R-TAB CP |
238 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 2.80°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
6021BGHEATSINK TO-220 TABS BLACK |
3,507 |
|
Технический лист |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 2.0W @ 30°C | 5.00°C/W @ 500 LFM | 12.50°C/W | Aluminum | Black Anodized |
|
TGH-0450-01ALUMINIUM HEAT SINK 45X45MM |
664 |
|
Технический лист |
TGH | Bulk | Active | Top Mount | - | - | Square, Pin Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | - | - | Aluminum | Black Anodized |
|
7022B-MTGHEATSINK TO-220 TAB FOLD 55.12MM |
1,552 |
|
Технический лист |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.968" (49.99mm) | 1.986" (50.44mm) | - | 0.375" (9.52mm) | 10.0W @ 70°C | 1.75°C/W @ 800 LFM | 6.50°C/W | Aluminum | Black Anodized |
|

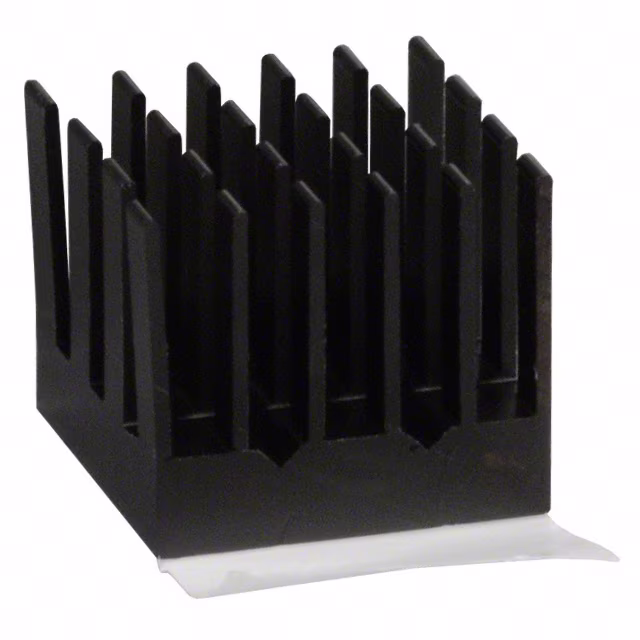

ATS-55170K-C1-R0HEAT SINK 17MM X 17MM X 14.5MM |
5,564 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.571" (14.50mm) | - | 15.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
374724B00035GHEATSINK BGA 35X35X18MM W/ADH |
211 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.709" (18.00mm) | 3.0W @ 50°C | 5.20°C/W @ 200 LFM | 15.30°C/W | Aluminum | Black Anodized |
|
ATS-CPX060060025-132-C1-R0HEATSINK 60X60X25MM XCUT CP |
373 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 2.65°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

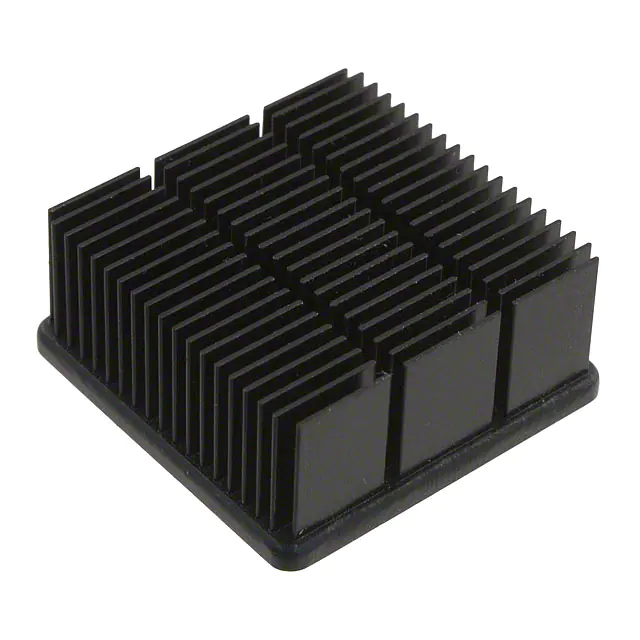

APF30-30-13CBHEATSINK LOW-PROFILE FORGED |
196 |
|
Технический лист |
APF | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.500" (12.70mm) | - | 2.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
960-19-33-F-AB-0HEATSINK 19X33MM FRONT PUSH PIN |
265 |
|
Технический лист |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 1.299" (33.00mm) | - | - | - | Aluminum | Black Anodized |
|
TGH-0522-01ALUMINIUM HEAT SINK 52.2X52.2MM |
989 |
|
Технический лист |
TGH | Bulk | Active | Top Mount | - | - | Square, Fins | 2.055" (52.20mm) | 2.055" (52.20mm) | - | 0.905" (23.00mm) | - | - | - | Aluminum | - |
|

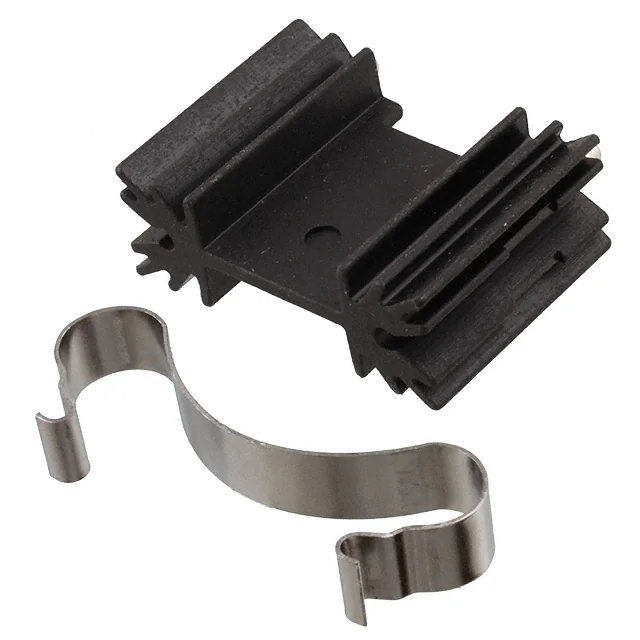

533002B02551GHEATSINK TO-220 SOLDERPIN/CLIP |
1,438 |
|
Технический лист |
- | Bulk | Active | Board Level, Vertical | TO-220 | Clip and PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 1.375" (34.93mm) | - | 0.500" (12.70mm) | 2.0W @ 30°C | 4.00°C/W @ 400 LFM | 13.00°C/W | Aluminum | Black Anodized |
|
902-21-2-12-2-B-0HEATSINK 21X21X12MM PIN |
5,631 |
|
Технический лист |
902 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.457" (11.60mm) | - | 5.80°C/W @ 200 LFM | 14.30°C/W | Aluminum | Black Anodized |
|

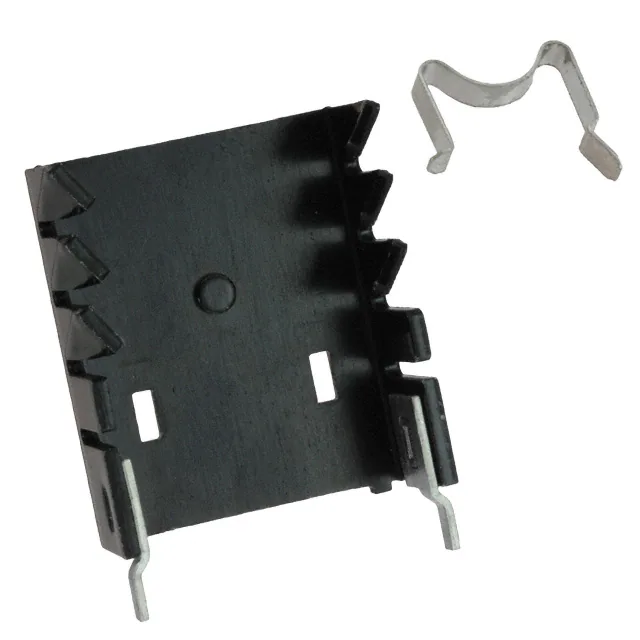

534202B03453GBOARD LEVEL HEATSINK .5" TO-220 |
659 |
|
Технический лист |
- | Bulk | Active | Board Level, Vertical | TO-220 | Clip and Board Locks | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 1.0W @ 20°C | 6.00°C/W @ 300 LFM | 13.40°C/W | Aluminum | Black Anodized |
|
371824B00032GHEATSINK BGA W/ADHESIVE TAPE |
351 |
|
Технический лист |
- | Tray | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.275" (7.00mm) | 1.5W @ 50°C | 9.70°C/W @ 200 LFM | 31.90°C/W | Aluminum | Black Anodized |
