Динамики
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Технология | Тип | Диапазон частот | Частота - саморезонансная | Импеданс | Эффективность - дБА | Эффективность - тестирование | Эффективность - тип | Мощность - Номинальная | Мощность - макс. | Расположение порта | Форма | Материал - конус | Материал - Магнит | Защита от проникновения | Номинальные значения | Оконечная нагрузка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

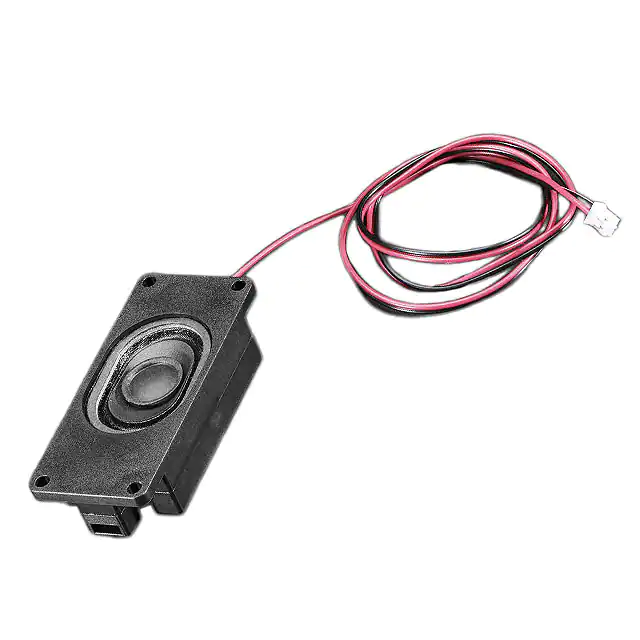

3351SPEAKER 4OHM TOP PORT |
0 |
|
Технический лист |
- | Bulk | Active | - | General Purpose | - | - | 4 Ohms | - | - | - | - | 3 W | Top | Oval, Rectangular Frame | - | - | - | - | Wire Leads | 2.756" L x 1.181" W (70.00mm x 30.00mm) | 0.669" (17.00mm) |
|
4445SPEAKER 4OHM TOP PORT |
0 |
|
Технический лист |
- | Bulk | Active | - | General Purpose | - | - | 4 Ohms | - | - | - | - | 3 W | Top | Oval, Rectangular Frame | - | - | - | - | - | 2.800" L x 1.200" W (71.12mm x 30.48mm) | 0.701" (17.80mm) |
|
GA0576SPEAKER 8OHM 250MW TOP PORT 88DB |
0 |
|
Технический лист |
GA | Bag | Active | Magnetic | General Purpose | 400 Hz ~ 4 kHz | 400Hz | 8 Ohms | 88.00 | 1W/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round, Square Frame | Paper | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 2.244" L x 2.244" W (57.00mm x 57.00mm) | 0.768" (19.50mm) |
|
CC36V165AN436mm speaker; 4 ohms, high SPL |
11 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 220 Hz ~ 13 kHz | 220Hz | 4 Ohms | 78.00 | 1W/1m | Sensitivity | 2 W | 3 W | Top | Round | Paper | Nd-Fe-B | - | - | Solder Pads | 1.417" Dia (36.00mm) | 0.650" (16.50mm) |
|
|
AS04004PO-2-LWC102-2-RSPEAKER 4OHM 3W TOP PORT 82DB |
0 |
|
Технический лист |
AS | Bag | Active | Magnetic | General Purpose | 450 Hz ~ 20 kHz | 450Hz | 4 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Round, Rectangular Frame | Paper | Nd-Fe-B | - | - | Wire Leads | 1.575" L x 1.122" W (40.00mm x 28.50mm) | 0.453" (11.50mm) |
|

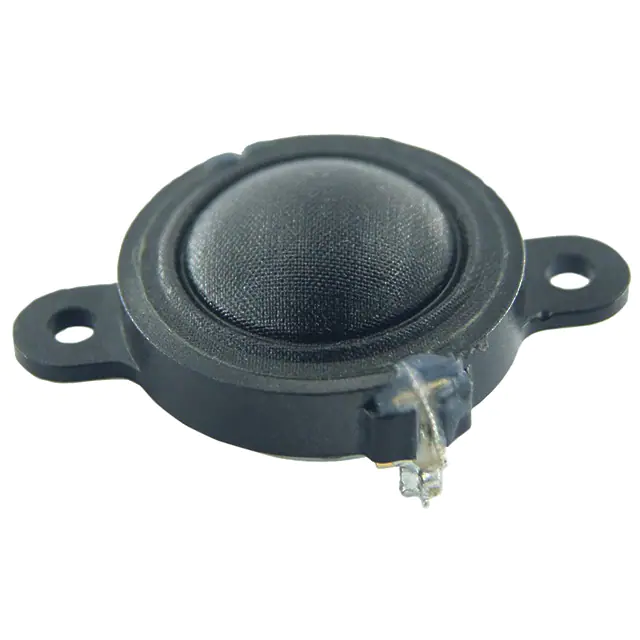

OC16SC04-04SPEAKR 4.18OHM 100W TOP 83.7DB |
0 |
|
Технический лист |
OC | Bulk | Active | Magnetic | Tweeter | 2.5 kHz ~ 20 kHz | 2152.63Hz | 4.18 Ohms | 83.70 | 1W/1M | Half Space Sensitivity | 100 W | - | Top | Round | Cloth | Nd | - | - | Solder Eyelet(s) | 1.024" Dia (26.00mm) | 0.520" (13.20mm) |
|
PSR3520F08S7KSPEAKER 8OHM 2W TOP PORT 75DB |
0 |
|
Технический лист |
PSR | Bulk | Obsolete | Magnetic | General Purpose | 670 Hz ~ 10 kHz | 670Hz | 8 Ohms | 75.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.378" L x 0.787" W (35.00mm x 20.00mm) | 0.272" (6.90mm) |
|
2949K 50 FL 16 OHM |
0 |
|
Технический лист |
- | Retail Package | Active | - | General Purpose | 150 Hz ~ 20 kHz | - | 16 Ohms | 80.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Plastic | - | - | - | Solder Pads | 1.969" Dia (50.00mm) | 0.276" (7.00mm) |
|
|
2950K 50 FL 50 OHM |
0 |
|
Технический лист |
- | Retail Package | Active | - | General Purpose | 150 Hz ~ 20 kHz | - | 50 Ohms | 80.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Plastic | - | - | - | Solder Pads | 1.969" Dia (50.00mm) | 0.276" (7.00mm) |
|
|
2952K 57 FL 8 OHM |
0 |
|
Технический лист |
- | Retail Package | Active | - | General Purpose | 220 Hz ~ 16 kHz | 350Hz | 8 Ohms | 83.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | - | - | IP65 - Dust Tight, Water Resistant | - | None | 2.244" Dia (57.00mm) | 0.323" (8.20mm) |
|
|
2948K 50 FL 8 OHM |
0 |
|
Технический лист |
- | Retail Package | Active | - | General Purpose | 150 Hz ~ 20 kHz | 340Hz | 8 Ohms | 80.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | - | - | IP65 - Dust Tight, Water Resistant | - | None | 1.969" Dia (50.00mm) | 0.315" (8.00mm) |
|

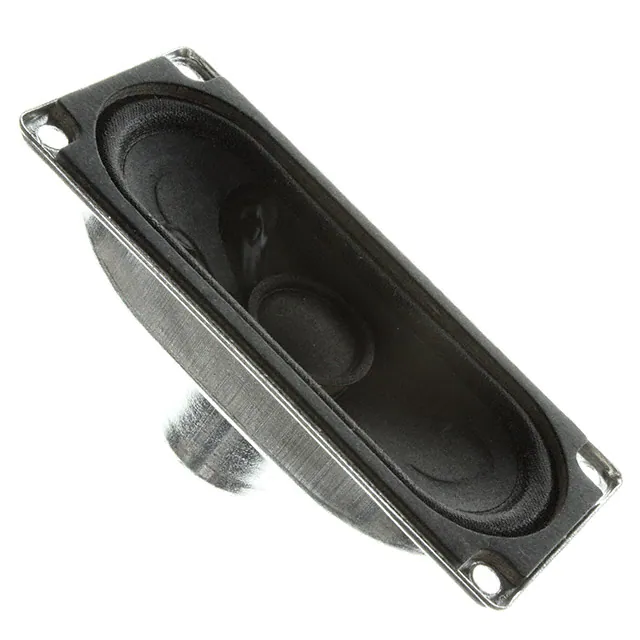

AS07008PO-2-RSPEAKER 8OHM 2W TOP PORT 85DB |
1 |
|
- |
AS | Bulk | Obsolete | Magnetic | General Purpose | 450 Hz ~ 20 kHz | 450Hz | 8 Ohms | 85.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 5 W | Top | Oval, Rectangular Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.756" L x 1.201" W (70.00mm x 30.50mm) | 0.925" (23.50mm) |
|
SM160508-1SPEAKER 8OHM 500MW TOP PORT 87DB |
0 |
|
Технический лист |
- | Tray | Obsolete | Magnetic | General Purpose | 550 Hz ~ 20 kHz | 550Hz | 8 Ohms | 87.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Rectangular | Polyester | - | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) | 0.118" (3.00mm) |
|
SZ300812-1SPEAKER TOP PORT 80DB RECT |
0 |
|
Технический лист |
- | Tray | Active | Piezo | General Purpose | 300 Hz ~ 20 kHz | 1300Hz | - | 80.00 | 100mm | Sound Pressure Level (SPL) | 5 W | 16 W | Top | Rectangular | - | - | - | - | Solder Pads | 1.181" L x 0.787" W (30.00mm x 20.00mm) | 0.071" (1.80mm) |
|
SW401404-1SPEAKER 4OHM 2W TOP PORT 97DB |
0 |
|
Технический лист |
SW | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 10 kHz | - | 4 Ohms | 97.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.575" L x 0.787" W (40.00mm x 20.00mm) | 0.256" (6.50mm) |
|
BR1511L035UN6-WPGDA2SPEAKER 6OHM 1W TOP PORT 72DB |
18 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 900 Hz ~ 5 kHz | 900Hz | 6 Ohms | 72.00 | 1W/1M | Sensitivity | 1 W | 1.2 W | Top | Rectangular | Plastic | Nd-Fe-B | IPX7 | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.138" (3.50mm) |
|
BR815S15YN32WPGDA-3SPEAKER 32OHM 10MW TOP PORT 69DB |
18 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 300Hz | 32 Ohms | 69.00 | 1W/1m | Sensitivity | 10 mW | 30 mW | Top | Rectangular | - | Nd-Fe-B | IPX7 | - | Spring Contacts | 0.591" L x 0.315" W (15.00mm x 8.00mm) | 0.059" (1.50mm) |
|
TR1206L020UN32WPSPEAKER 32OHM 10MW TOP PORT 63DB |
10 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 350 Hz ~ 8 kHz | 350Hz | 32 Ohms | 63.00 | 1W/1m | Sensitivity | 10 mW | 20 mW | Top | Rectangular | - | Nd-Fe-B | IPx7, Water Resistant | - | Spring Contacts | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.079" (2.00mm) |
|
LR1508L025YN8WPSPEAKER 8OHM 500MW TOP PT 71.5DB |
9 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 850 Hz ~ 20 kHz | 850Hz | 8 Ohms | 71.50 | 1W/1m | Sensitivity | 500 mW | 1 W | Top | Rectangular | - | Nd-Fe-B | IPX8 | - | Spring Contacts | 0.591" L x 0.315" W (15.00mm x 8.00mm) | 0.098" (2.50mm) |
|
SOR4020C08Z4SPEAKER 4OHM 1W TOP PORT 86DB |
4 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 700 Hz ~ 10 kHz | 700Hz | 4 Ohms | 86.00 | 1W/1M | Sensitivity | 1 W | 2 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads with Connector | 1.575" L x 0.787" W (40.00mm x 20.00mm) | 0.315" (8.00mm) |
