Динамики
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Технология | Тип | Диапазон частот | Частота - саморезонансная | Импеданс | Эффективность - дБА | Эффективность - тестирование | Эффективность - тип | Мощность - Номинальная | Мощность - макс. | Расположение порта | Форма | Материал - конус | Материал - Магнит | Защита от проникновения | Номинальные значения | Оконечная нагрузка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM500808-1SPEAKER 8OHM 1.5W TOP PORT 105DB |
0 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 7 kHz | 800Hz | 8 Ohms | 105.00 | 100mm | Sound Pressure Level (SPL) | 1.5 W | 3 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Eyelet(s) | 1.988" L x 1.988" W (50.50mm x 50.50mm) | 0.472" (12.00mm) |
|
SP-1813S-1Speaker |
0 |
|
Технический лист |
- | Bulk | Active | Magnetic | General Purpose | 700 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Solder Pads | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.134" (3.40mm) |
|
SM150506-1SPEAKER 6OHM 700MW TOP PORT 92DB |
0 |
|
Технический лист |
- | Tray | Obsolete | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 500Hz | 6 Ohms | 92.00 | 100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.134" (3.40mm) |
|
GA0876SPEAKER 8OHM 1W TOP PORT 90DB |
0 |
|
Технический лист |
GA | Box | Active | Magnetic | General Purpose | 200 Hz ~ 14 kHz | 200Hz | 8 Ohms | 90.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 3 W | Top | Round, Square Frame | Paper | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 3.425" L x 3.425" W (87.00mm x 87.00mm) | 1.280" (32.50mm) |
|
2809K 28 WPC, 8 OHM |
0 |
|
- |
- | Retail Package | Active | - | General Purpose | 300 Hz ~ 20 kHz | 700Hz | 8 Ohms | 75.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | - | - | IP65 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | 1.102" Dia (28.00mm) | 0.213" (5.40mm) |
|
2909K 28 WP 8 OHM |
0 |
|
Технический лист |
- | Retail Package | Active | - | General Purpose | 300 Hz ~ 20 kHz | 700Hz | 8 Ohms | 76.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | - | - | IP65 - Dust Tight, Water Resistant | - | None | 1.063" Dia (27.00mm) | 0.146" (3.70mm) |
|
|
2910K 28 WP 50 OHM |
0 |
|
Технический лист |
- | Retail Package | Active | - | General Purpose | 300 Hz ~ 20 kHz | 600Hz | 50 Ohms | 76.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.102" Dia (28.00mm) | 0.217" (5.50mm) |
|
|
COM1601SPEAKER 4OHM 3W TOP PORT |
0 |
|
Технический лист |
- | Bulk | Obsolete | Magnetic | General Purpose | - | - | 4 Ohms | - | - | - | 3 W | - | Top | Round, Square Frame | - | - | - | - | Wire Leads | 1.575" L x 1.575" W (40.00mm x 40.00mm) | 0.787" (20.00mm) |
|
|
SMS-1508-2SPEAKER 8OHM 300MW TOP PORT 87DB |
0 |
|
- |
SMS | Tape & Reel (TR) | Obsolete | Magnetic | General Purpose | 850 Hz ~ 20 kHz | 850Hz | 8 Ohms | 87.00 | 300mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Square | - | - | - | - | Solder Pads | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.197" (5.00mm) |
|

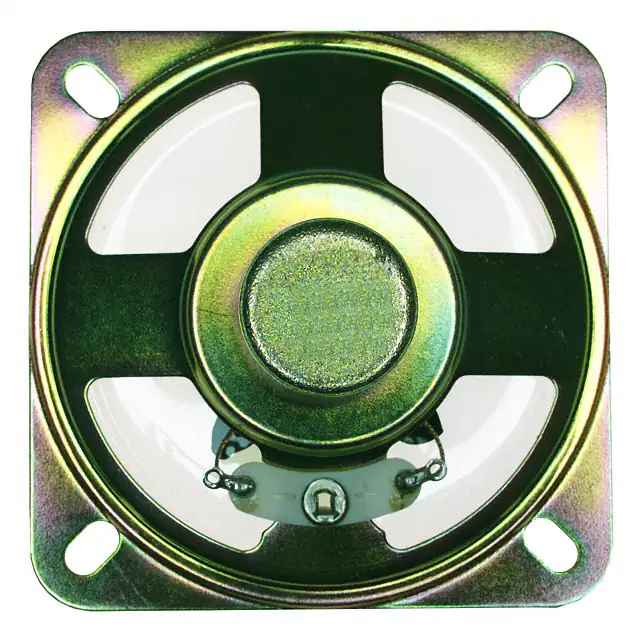

GA0776MSPEAKER 8OHM 1W TOP PORT 90DB |
0 |
|
Технический лист |
GA | Bag | Active | Magnetic | General Purpose | 320 Hz ~ 25 kHz | 320Hz | 8 Ohms | 90.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 3.032" L x 3.032" W (77.00mm x 77.00mm) | 0.988" (25.10mm) |
|
SM160508-2SPEAKER 8OHM 700MW TOP PORT 80DB |
0 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 500Hz | 8 Ohms | 80.00 | 100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 0.630" L x 0.354" W (16.00mm x 9.00mm) | 0.118" (3.00mm) |
|

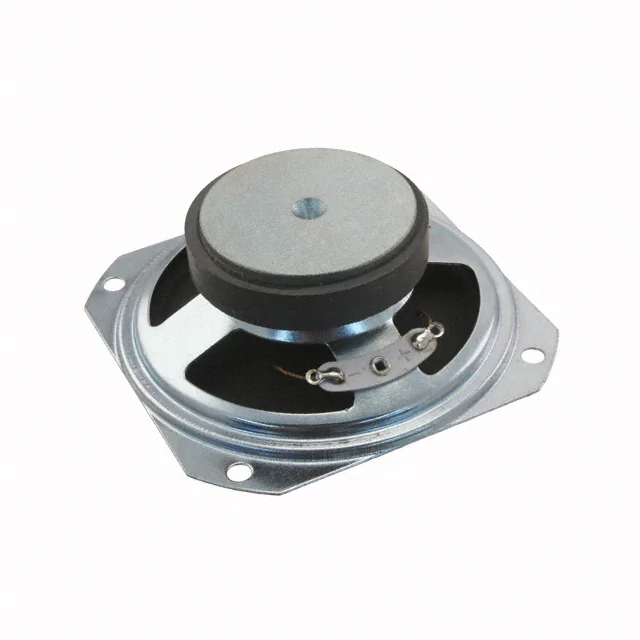

AS07708PS-2-WR-RSPEAKER 8OHM 4W TOP PORT 90DB |
0 |
|
- |
AS | Bulk | Obsolete | Magnetic | General Purpose | 250 Hz ~ 10 kHz | 250Hz | 8 Ohms | 90.00 | 1W/500mm | Sound Pressure Level (SPL) | 4 W | 8 W | Top | Round, Square Frame | Paper, Coated | Ferrite | Water Resistant | - | Solder Eyelet(s) | 3.032" L x 3.032" W (77.00mm x 77.00mm) | 1.102" (28.00mm) |
|
2810K 28 WPC, 50 OHM |
0 |
|
Технический лист |
- | Retail Package | Active | - | General Purpose | 300 Hz ~ 20 kHz | 800Hz | 50 Ohms | 75.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.102" Dia (28.00mm) | 0.213" (5.40mm) |
|
SP400208-1SPEAKER 8OHM 5W TOP PORT 87DB |
0 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 230 Hz ~ 20 kHz | 230Hz | 8 Ohms | 87.00 | 100mm | Sound Pressure Level (SPL) | 5 W | 6 W | Top | Round, Square Frame | - | - | - | - | Solder Eyelet(s) | 1.575" L x 1.575" W (40.00mm x 40.00mm) | 0.748" (19.00mm) |
|
SC400508-1SPEAKER 8OHM 2W TOP PORT 86DB |
0 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 600Hz | 8 Ohms | 86.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Cloth | - | - | - | Solder Pads | 1.575" L x 0.787" W (40.00mm x 20.00mm) | 0.228" (5.80mm) |
|
|
GA0876MSPEAKER 8OHM 1W TOP PORT 85DB |
0 |
|
Технический лист |
GA | Box | Active | Magnetic | General Purpose | 260 Hz ~ 22 kHz | 260Hz | 8 Ohms | 85.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 3 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 3.425" L x 3.425" W (87.00mm x 87.00mm) | 1.280" (32.50mm) |
|
|
2806K 28 WPC BL, 8 OHM |
0 |
|
- |
- | Retail Package | Active | Magnetic | General Purpose | 300 Hz ~ 20 kHz | 700Hz | 8 Ohms | 76.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | - | Top | Round | - | - | IP65 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | 1.102" Dia (28.00mm) | 0.146" (3.70mm) |
|
WD11903Y8HSPEAKER 8OHM 500MW TOP PT 86.5DB |
19 |
|
Технический лист |
- | Tray | Active | Magnetic | Low Profile | 450 Hz ~ 8 kHz | 700Hz | 8 Ohms | 86.50 | 1W/1M | Sensitivity | 500 mW | 1 W | Top | Round | Polyarylate (PAR) | Nd-Fe-B | Water Resistant | - | Spring Type | 1.102" Dia (28.00mm) | 0.236" (6.00mm) |
|
|
2816K 16, 50 OHM |
0 |
|
Технический лист |
- | Retail Package | Active | - | General Purpose | 700 Hz ~ 20 kHz | 1.005kHz | 50 Ohms | 71.00 | 1W/1M | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | - | - | - | - | Wire Leads | 0.630" Dia (16.00mm) | 0.138" (3.50mm) |
|
|
2815K 16, 8 OHM |
0 |
|
Технический лист |
- | Retail Package | Active | - | General Purpose | 700 Hz ~ 20 kHz | 1.1kHz | 8 Ohms | 71.00 | 1W/1M | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | - | - | - | - | Wire Leads | 0.512" Dia (13.00mm) | 0.138" (3.50mm) |
