Динамики
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Технология | Тип | Диапазон частот | Частота - саморезонансная | Импеданс | Эффективность - дБА | Эффективность - тестирование | Эффективность - тип | Мощность - Номинальная | Мощность - макс. | Расположение порта | Форма | Материал - конус | Материал - Магнит | Защита от проникновения | Номинальные значения | Оконечная нагрузка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS06504PS-X-RSPEAKER 4OHM 10W TOP PORT 88DB |
525 |
|
Технический лист |
Xtreme | Tray | Active | Magnetic | General Purpose | 80 Hz ~ 20 kHz | - | 4 Ohms | 88.00 | 1W/500mm | Sound Pressure Level (SPL) | 10 W | 20 W | Top | Round, Square Frame | Aluminum (AI) | Nd-Fe-B | IP65 - Dust Tight, Water Resistant | IEC 60601-1-8 | Solder Eyelet(s) | 2.559" L x 2.559" W (65.00mm x 65.00mm) | - |
|
AS05308AS-RSPEAKER 8OHM 10W TOP PORT 78DB |
189 |
|
Технический лист |
Copperhead | Box | Active | Magnetic | Full Range | 100 Hz ~ 40 kHz | 230Hz | 8 Ohms | 78.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 20 W | Top | Round, Square Frame | Aluminum (AI) | Nd-Fe-B | - | IEC 60601-1-8 | Quick Connect | 2.087" L x 2.087" W (53.00mm x 53.00mm) | 1.339" (34.00mm) |
|
BF 45 - 4 OHMSPEAKER 4OHM 4W TOP PORT 79DB |
206 |
|
Технический лист |
Miniature Speaker | Bulk | Active | - | General Purpose | 90 Hz ~ 20 kHz | 158Hz | 4 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 4 W | 8 W | Top | Round, Square Frame | - | - | - | - | Quick Connect | - | 1.024" (26.00mm) |
|
XT25SC90-04SPEAKR 3.72OHM 100W TOP 86.8DB |
5,046 |
|
Технический лист |
XT | Bulk | Active | Magnetic | Tweeter | 800 Hz ~ 20 kHz | 824.75Hz | 3.72 Ohms | 86.80 | 1W/1M | Half Space Sensitivity | 100 W | - | Top | Round | Cloth | Nd | - | - | Solder Eyelet(s) | 2.559" Dia (65.00mm) | 1.299" (33.00mm) |
|
PLS-P830985SPEAKR 3.95OHM 30W TOP PT 82.3DB |
2,166 |
|
Технический лист |
PLS | Bulk | Active | Magnetic | Full Range | 100 Hz ~ 20 kHz | 117.16Hz | 3.95 Ohms | 82.30 | 1W/1M | Half Space Sensitivity | 30 W | - | Top | Round, Square Frame | Aluminum (AI) | Nd | - | - | Solder Eyelet(s) | 2.717" L x 2.717" W (69.00mm x 69.00mm) | 1.583" (40.20mm) |
|
FR 8 WP - 4 OHM (BLACK)SPEAKER 4OHM 15W TOP PORT 84DB |
231 |
|
Технический лист |
- | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 158Hz | 4 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 15 W | 25 W | Top | Round | Plastic | - | Waterproof | - | Quick Connect | 3.543" Dia (90.00mm) | 1.929" (49.00mm) |
|
FR 8 WP - 8 OHM (WHITE)SPEAKER 8OHM 15W TOP PORT 84DB |
149 |
|
Технический лист |
- | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | - | 8 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 15 W | 25 W | Top | Round | Plastic | - | Waterproof | - | Quick Connect | 3.543" Dia (90.00mm) | 1.929" (49.00mm) |
|
PLS-P830986SPEAKR 6.62OHM 25W TOP PT 83.2DB |
7,087 |
|
Технический лист |
PLS | Bulk | Active | Magnetic | Full Range | 100 Hz ~ 20 kHz | 105.05Hz | 8 Ohms | 83.20 | 1W/1M | Half Space Sensitivity | 25 W | - | Top | Round, Square Frame | Aluminum (AI) | Nd | - | - | Solder Eyelet(s) | 3.071" L x 3.071" W (78.00mm x 78.00mm) | 2.138" (54.30mm) |
|

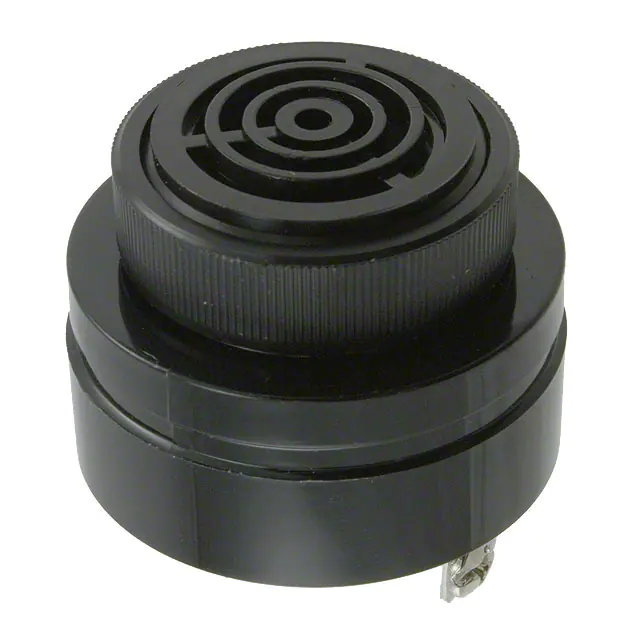

SCS300MDSSPEAKER 8OHM 250MW TOP PORT 90DB |
307 |
|
Технический лист |
- | Bulk | Active | - | General Purpose | 951 Hz ~ 999 Hz | - | 8 Ohms | 90.00 | 100mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Terminal Block | 1.687" Dia (42.85mm) | 1.511" (38.39mm) |
|
D27TG35-06SPEAKR 5.49OHM 100W TOP 91.1DB |
1,470 |
|
Технический лист |
D | Bulk | Active | Magnetic | Tweeter | 2.5 kHz ~ 20 kHz | 911.7Hz | 5.49 Ohms | 91.10 | 1W/1M | Half Space Sensitivity | 100 W | - | Top | Round | Cloth | Ferrite | - | - | Solder Eyelet(s) | 4.094" Dia (104.00mm) | 1.728" (43.90mm) |
|
ASX05408-HD-RSPEAKER 8OHM 20W TOP PORT 104DB |
232 |
|
Технический лист |
ASX | Tray | Active | Magnetic | Exciter | 60 Hz ~ 20 kHz | 480Hz | 8 Ohms | 104.00 | 100mm | Sound Pressure Level (SPL) | 20 W | 40 W | Top | Round | - | Nd-Fe-B | - | - | Quick Connect | 2.106" Dia (53.50mm) | 0.787" (20.00mm) |
|
ASX05404-HD-RSPEAKER 4OHM 20W TOP PORT 107DB |
115 |
|
Технический лист |
ASX | Tray | Active | Magnetic | Exciter | 60 Hz ~ 20 kHz | 480Hz | 4 Ohms | 107.00 | 100mm | Sound Pressure Level (SPL) | 20 W | 40 W | Top | Round | - | Nd-Fe-B | - | - | Quick Connect | 2.106" Dia (53.50mm) | 0.787" (20.00mm) |
|
SR-32453-000SPEAKER 46OHM TOP PORT 105DB |
3,387 |
|
Технический лист |
SR | Tray | Active | Magnetic | Receiver, Balanced Armature | 20 Hz ~ 8.8 kHz | - | 46 Ohms | 105.00 | - | Sound Pressure Level (SPL) | - | - | Top | Round | - | - | - | - | Solder Pads | 0.252" Dia (6.40mm) | 0.157" (4.00mm) |
|
EX 45 S - 4 OHMSPEAKER 4OHM TOP PORT |
176 |
|
Технический лист |
- | Bulk | Active | - | Exciter | - | - | 4 Ohms | - | - | - | - | 10 W | Top | Round, Square Frame | - | - | - | - | Quick Connect | 1.811" L x 1.811" W (46.00mm x 46.00mm) | 0.669" (17.00mm) |
|

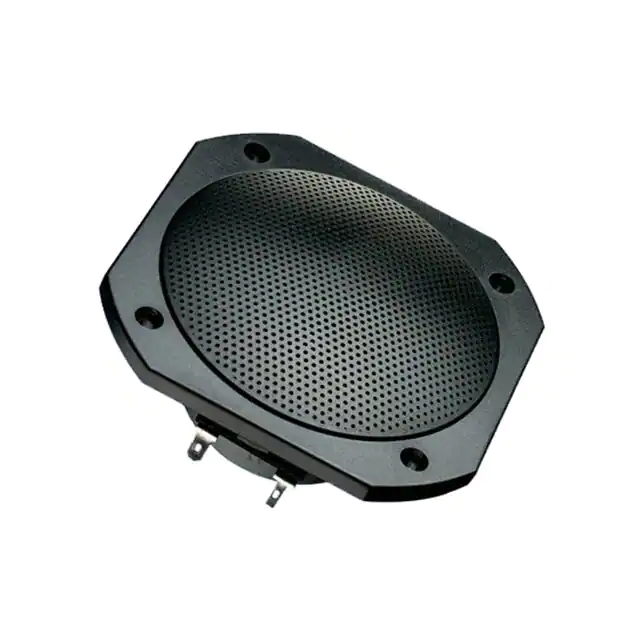

FRS 10 WP - 8 OHM (BLACK)SPEAKER 8OHM 25W TOP PORT 90DB |
73 |
|
Технический лист |
- | Bulk | Active | Magnetic | General Purpose | 90 Hz ~ 19 kHz | 190Hz | 8 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | 25 W | 50 W | Top | Round, Square Frame | Glass Fiber Composite | - | Water Resistant | - | Quick Connect | 4.528" L x 4.528" W (115.00mm x 115.00mm) | 2.323" (59.00mm) |
|

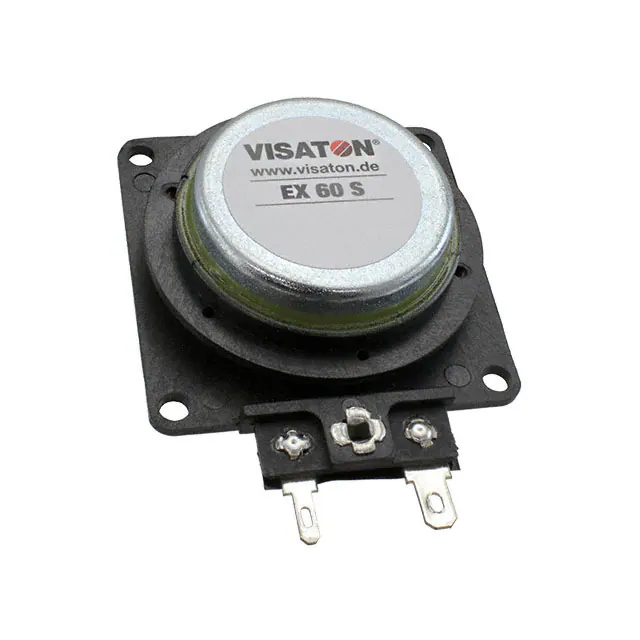

EX 60 S - 8 OHMSPEAKER 8OHM TOP PORT |
162 |
|
Технический лист |
- | Bulk | Active | - | Exciter | - | - | 8 Ohms | - | - | - | - | 25 W | Top | Round, Square Frame | - | - | - | - | Quick Connect | - | 0.827" (21.00mm) |
|
DK 97 - 8 OHMSPEAKER 8OHM 6W TOP PORT 100DB |
408 |
|
Технический лист |
- | Bulk | Active | - | General Purpose | 380 Hz ~ 20 kHz | - | 8 Ohms | 100.00 | 1W/1M | Sound Pressure Level (SPL) | 6 W | 10 W | Top | Round | - | - | Waterproof | - | Wire Leads | 3.819" Dia (97.00mm) | 2.618" (66.50mm) |
|
MR-23333-000SPEAKER 21OHM TOP PORT 103DB |
713 |
|
Технический лист |
MR | Bulk | Active | Magnetic | Receiver, Balanced Armature | 300 Hz ~ 3.5 kHz | 300Hz | 21 Ohms | 103.00 | - | Sensitivity | - | - | Top | Round | - | - | Waterproof | - | Wire Leads | 0.871" Dia (22.12mm) | 0.366" (9.30mm) |
|
RQU-35066-000RECEIVER |
81 |
|
Технический лист |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
GV-32830-000SPEAKR 28.125OHM TOP DL 113.25DB |
98 |
|
Технический лист |
GV | Tray | Active | Magnetic | Receiver, Balanced Armature | 70 Hz ~ 12.5 kHz | - | 28.125 Ohms | 113.25 | - | Sound Pressure Level (SPL) | - | - | Top, Dual Port | Rectangular | - | - | - | - | Solder Pads | 0.310" L x 0.220" W (7.87mm x 5.59mm) | 0.310" (7.87mm) |
