Динамики
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Технология | Тип | Диапазон частот | Частота - саморезонансная | Импеданс | Эффективность - дБА | Эффективность - тестирование | Эффективность - тип | Мощность - Номинальная | Мощность - макс. | Расположение порта | Форма | Материал - конус | Материал - Магнит | Защита от проникновения | Номинальные значения | Оконечная нагрузка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS07108PO-RSPEAKER 8OHM 3W TOP PORT 86DB |
765 |
|
Технический лист |
AS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 250Hz | 8 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Oval, Rectangular Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.795" L x 1.614" W (71.00mm x 41.00mm) | 0.984" (25.00mm) |
|

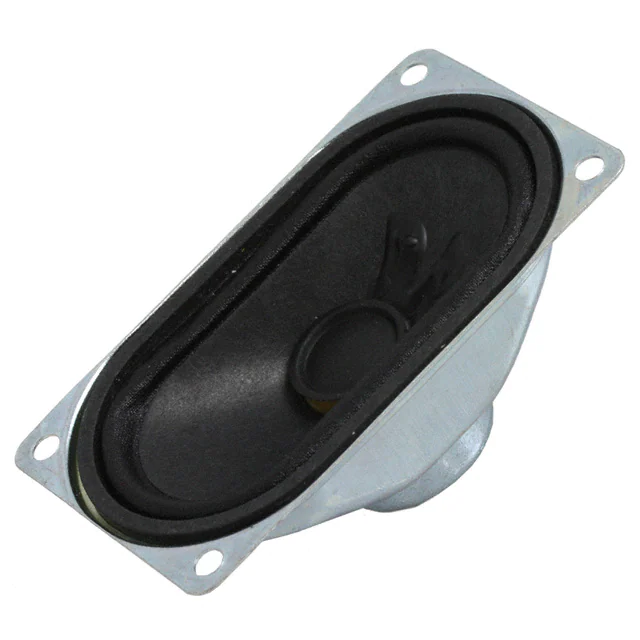

AS07104PO-RSPEAKER 4OHM 3W TOP PORT 86DB |
683 |
|
Технический лист |
AS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 250Hz | 4 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Oval, Rectangular Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.795" L x 1.614" W (71.00mm x 41.00mm) | 0.984" (25.00mm) |
|
AS04008PO-2-RSPEAKER 8OHM 1W TOP PORT 84DB |
707 |
|
Технический лист |
AS | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 20 kHz | 450Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Oval, Rectangular Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 1.114" W (40.00mm x 28.30mm) | 0.472" (12.00mm) |
|

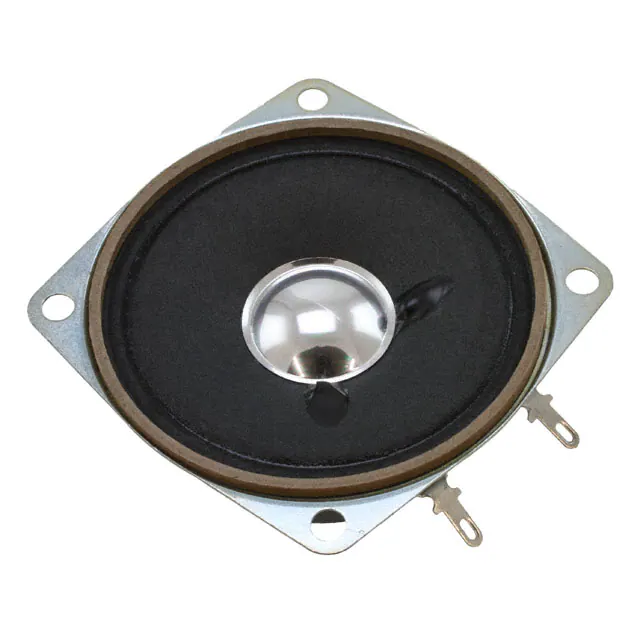

GF0668SPEAKER 8OHM 3W TOP PORT 90DB |
7,814 |
|
Технический лист |
GF | Box | Active | Magnetic | General Purpose | 240 Hz ~ 20 kHz | 300Hz | 8 Ohms | 91.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 2.598" L x 2.598" W (66.00mm x 66.00mm) | 1.161" (29.50mm) |
|
CLS0281MAE-L152SPEAKER 8OHM 2W TOP PORT 87DB |
2,045 |
|
Технический лист |
CLS | Tray | Active | Magnetic | Low Profile | 780 Hz ~ 7.5 kHz | 780Hz | 8 Ohms | 87.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.102" Dia (28.00mm) | 0.205" (5.20mm) |
|
ASE03008MR-LW150-RSPEAKER 8OHM 1W TOP PORT 83DB |
3,158 |
|
Технический лист |
ASE | Tray | Active | Magnetic | General Purpose, Enclosure Included | 550 Hz ~ 18 kHz | 800Hz | 8 Ohms | 83.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Rare Earth | - | - | Wire Leads | 1.181" L x 0.984" W (30.00mm x 25.00mm) | 0.236" (6.00mm) |
|

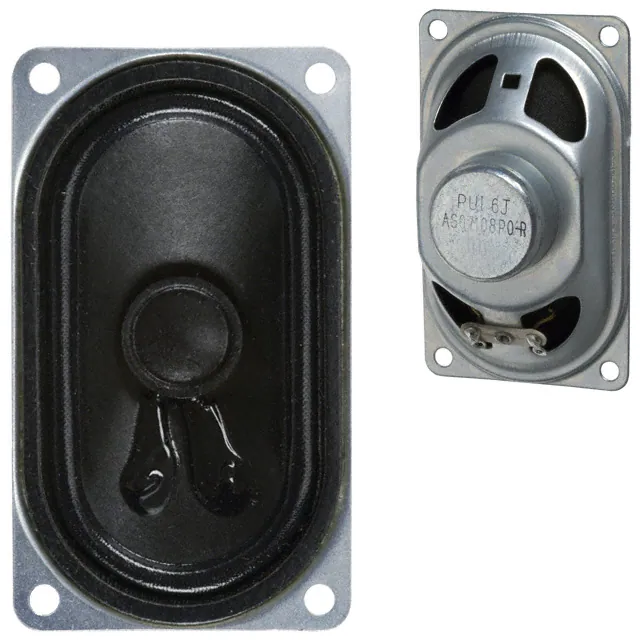

AS07108PO-WR-RSPEAKER 8OHM 3W TOP PORT 86DB |
3,232 |
|
Технический лист |
AS | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 250Hz | 8 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Oval, Rectangular Frame | Paper, Coated | Nd-Fe-B | Water Resistant | - | Solder Eyelet(s) | 2.795" L x 1.614" W (71.00mm x 41.00mm) | 0.984" (25.00mm) |
|
CLS0402MA-1-L152SPEAKER 8OHM 500MW TOP PORT 90DB |
2,552 |
|
Технический лист |
CLS | Tray | Active | Magnetic | Low Profile | 530 Hz ~ 6 kHz | 530Hz | 8 Ohms | 90.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.575" Dia (40.00mm) | 0.209" (5.30mm) |
|
CLS0401MAE-L152SPEAKER 4OHM 1W TOP PORT 91DB |
1,789 |
|
Технический лист |
CLS | Tray | Active | Magnetic | Low Profile | 500 Hz ~ 7 kHz | 500Hz | 4 Ohms | 91.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.575" Dia (40.00mm) | 0.197" (5.00mm) |
|

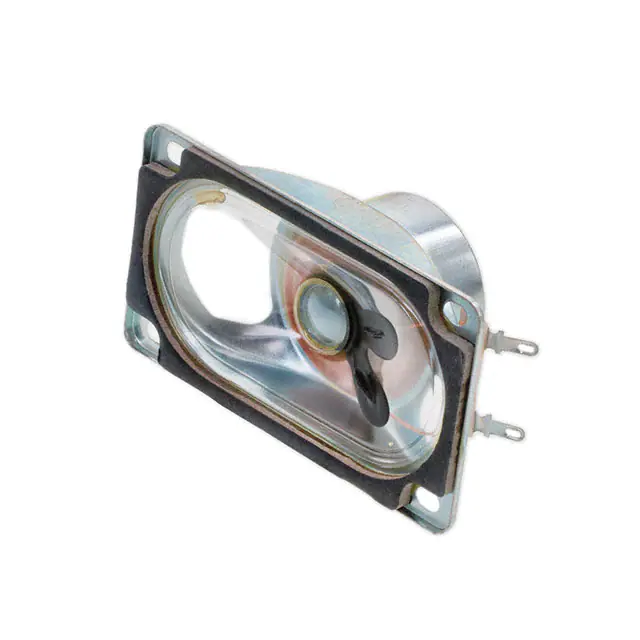

WSP-5090-4SPEAKER 4OHM 10W TOP PORT 96DB |
2,096 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 0 Hz ~ 20 kHz | - | 4 Ohms | 96.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 12 W | Top | Oval, Rectangular Frame | - | - | IP65 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | - | 1.236" (31.40mm) |
|

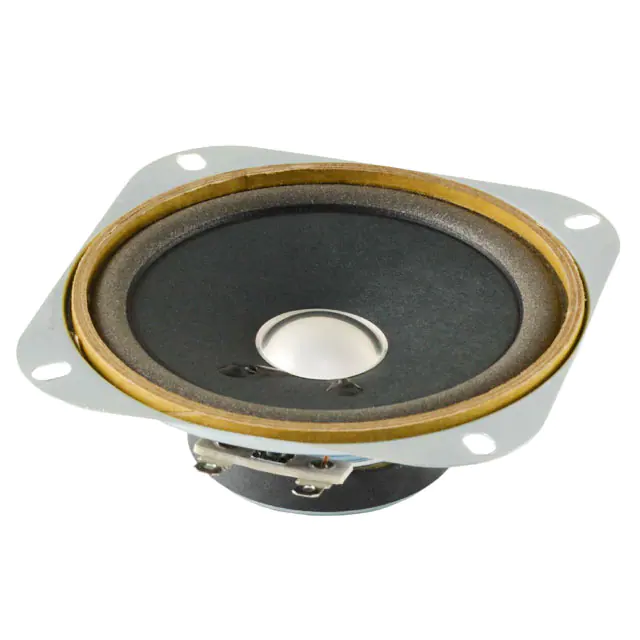

CSS-1021028NSPEAKER 8OHM 10W TOP PORT 107DB |
12,852 |
|
Технический лист |
CSS | Box | Active | Magnetic | General Purpose | 92 Hz ~ 7.8 kHz | 115Hz | 8 Ohms | 107.00 | 1W/100mm | Sound Pressure Level (SPL) | 10 W | 12 W | Top | Round, Square Frame | Paper/Foam | Nd-Fe-B | - | - | Solder Eyelet(s) | 4.016" L x 4.016" W (102.00mm x 102.00mm) | 1.398" (35.50mm) |
|
AS04004PO-2-RSPEAKER 4OHM 3W TOP PORT 82DB |
2,286 |
|
Технический лист |
AS | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 420Hz | 4 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Oval, Rectangular Frame | Paper | Rare Earth | - | - | Solder Eyelet(s) | 1.575" L x 1.122" W (40.00mm x 28.50mm) | 0.461" (11.70mm) |
|
AS04008CO-2-RSPEAKER 8OHM 1.5W TOP PORT 84DB |
650 |
|
Технический лист |
AS | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 550Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 1.5 W | 3 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 0.787" W (40.00mm x 20.00mm) | 0.315" (8.00mm) |
|
GF0666MSPEAKER 8OHM 500MW TOP PORT 88DB |
8,524 |
|
Технический лист |
GF | Box | Active | Magnetic | General Purpose | 420 Hz ~ 12 kHz | 420Hz | 8 Ohms | 88.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Eyelet(s) | 2.598" L x 2.598" W (66.00mm x 66.00mm) | 0.768" (19.50mm) |
|
AS07104PO-WR-RSPEAKER 4OHM 3W TOP PORT 86DB |
1,272 |
|
Технический лист |
AS | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 250Hz | 4 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Oval, Rectangular Frame | Paper, Coated | Nd-Fe-B | Water Resistant | - | Solder Eyelet(s) | 2.795" L x 1.614" W (71.00mm x 41.00mm) | 0.984" (25.00mm) |
|
GC0351NSPEAKER 8OHM 1W TOP PORT 82DB |
2,673 |
|
Технический лист |
GC | Tray | Active | Magnetic | General Purpose | 650 Hz ~ 20 kHz | 650Hz | 8 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Pads | 1.378" L x 0.630" W (35.00mm x 16.00mm) | 0.165" (4.20mm) |
|

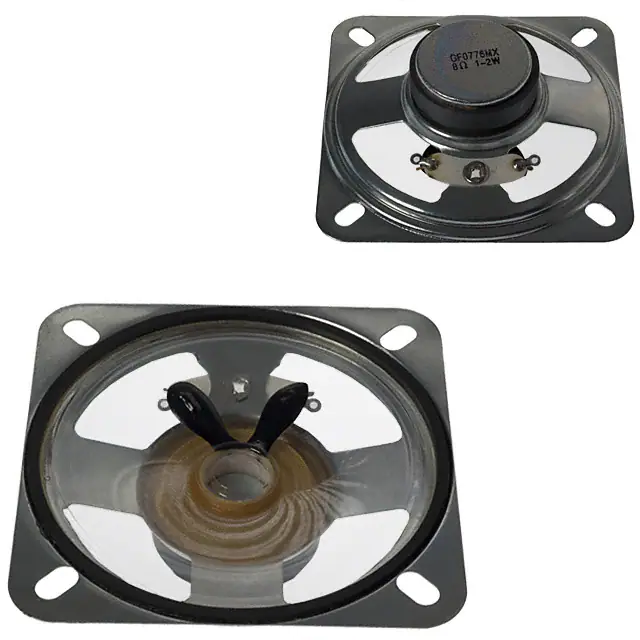

GF0776MSPEAKER 8OHM 1W TOP PORT 91DB |
13,003 |
|
Технический лист |
GF | Box | Active | Magnetic | General Purpose | 360 Hz ~ 11 kHz | 360Hz | 8 Ohms | 91.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Eyelet(s) | 3.032" L x 3.032" W (77.00mm x 77.00mm) | 0.945" (24.00mm) |
|
GF0573SPEAKER 8OHM 3W TOP PORT 92DB |
2,595 |
|
Технический лист |
GF | Box | Active | Magnetic | General Purpose | 450 Hz ~ 21 kHz | 450Hz | 8 Ohms | 92.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) | 1.063" (27.00mm) |
|
CDS-40304-L100SPEAKER 4OHM 2W TOP PORT 79DB |
5,110 |
|
Технический лист |
CDS | Tray | Active | Magnetic | General Purpose | 320 Hz ~ 20 kHz | 400Hz | 4 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Wire Leads | 1.575" L x 1.181" W (40.00mm x 30.00mm) | 0.280" (7.10mm) |
|
CES-603318-24PMSPEAKER 4OHM 2W TOP PORT 104DB |
943 |
|
Технический лист |
CES | Bag | Active | Magnetic | General Purpose, Enclosure Included | 200 Hz ~ 20 kHz | 800Hz | 4 Ohms | 104.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP66 - Dust Tight, Water Resistant | - | Wire Leads | 2.835" L x 1.299" W (72.00mm x 33.00mm) | 0.701" (17.80mm) |
