Твердотельные реле (SSR)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Тип выхода | Напряжение - Вход | Напряжение - нагрузка | Ток нагрузки | Сопротивление в открытом состоянии (макс.) | Тип вывода | Рабочая температура | Устройство поставщика Упаковка | Сертифицирующее агентство | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CWD2410-10SSR RELAY SPST-NO 10A 24-280V |
29 |
|
Технический лист |
CW | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 3 ~ 32VDC | 24 V ~ 280 V | 10 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
DR2224D30USSR RELAY SPST-NO 30A 24-280V |
47 |
|
Технический лист |
DR22 | Box | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 280 V | 30 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, cURus, EMC, IEC | - | - |
|
ASR-SV240D30RW-LSSR RELAY SPST-NO 30A 24-280V |
28 |
|
Технический лист |
SV | Box | Active | DIN Rail | SPST-NO (1 Form A) | AC | 4 ~ 32VDC | 24 V ~ 280 V | 30 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, cURus | - | - |
|
DRA1-CX380D5SSR RELAY SPST-NO 5A 48-530V |
47 |
|
Технический лист |
DRA | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 15VDC | 48 V ~ 530 V | 5 A | - | Screw Terminal | -20°C ~ 80°C | - | CE, cURus | - | - |
|

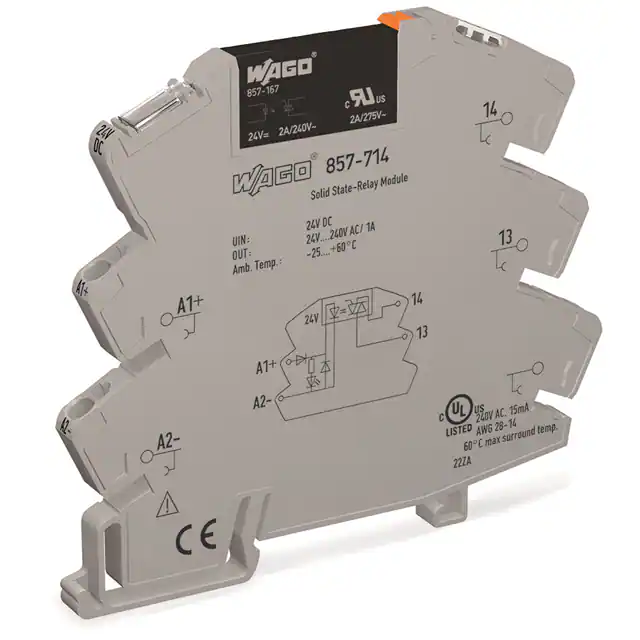

857-714SSR RELAY SPST-NO 2A 24-240V |
43 |
|
Технический лист |
857 | Box | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 24VDC | 24 V ~ 240 V | 2 A | - | Spring Terminal | -20°C ~ 60°C | - | EAC, UL | - | - |
|
DR24D06XSSR RELAY SPST-NO 6A 24-280V |
30 |
|
Технический лист |
DR | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 24 V ~ 280 V | 6 A | - | Screw Terminal | -20°C ~ 40°C | - | CE, cULus | - | - |
|
84134210SSR RELAY SPST-NO 25A 24-280V |
336 |
|
Технический лист |
GN | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 3 ~ 32VDC | 24 V ~ 280 V | 25 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
|
ASR-SV480D30ZW-LMSSR RELAY SPST-NO 30A 24-530V |
32 |
|
Технический лист |
SV | Box | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 24 V ~ 530 V | 30 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, cURus | - | - |
|
D2450KSSR RELAY SPST-NO 50A 24-280V |
212 |
|
Технический лист |
1 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 280 V | 50 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, TUV, UL | - | - |
|
D2425FG-BSSR RELAY SPST-NC 25A 24-280V |
12 |
|
Технический лист |
1 | Bulk | Active | Chassis Mount | SPST-NC (1 Form B) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 280 V | 25 A | - | Quick Connect - 0.187"/0.250" | -40°C ~ 80°C | - | CE, CSA, TUV, UL | - | - |
|

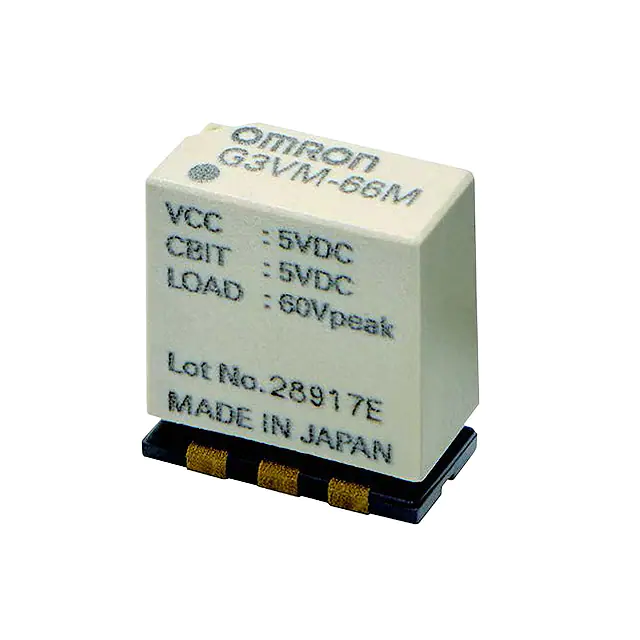

G3VM-66MSSR RELAY SPDT 400MA 0-60V |
45 |
|
Технический лист |
G3VM | Tube | Active | Surface Mount | SPDT (1 Form C) | AC, DC | 5VDC | 0 V ~ 60 V | 400 mA | 1.5 Ohms | SMD (SMT) Tab | -40°C ~ 85°C | Module | - | - | - |
|
SO867970SSR RELAY SPST-NO 75A 24-510V |
44 |
|
Технический лист |
okpac® | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 20 ~ 265VAC/DC | 24 V ~ 510 V | 75 A | 4.5 mOhms | Screw Terminal | -40°C ~ 90°C | - | CE | - | - |
|

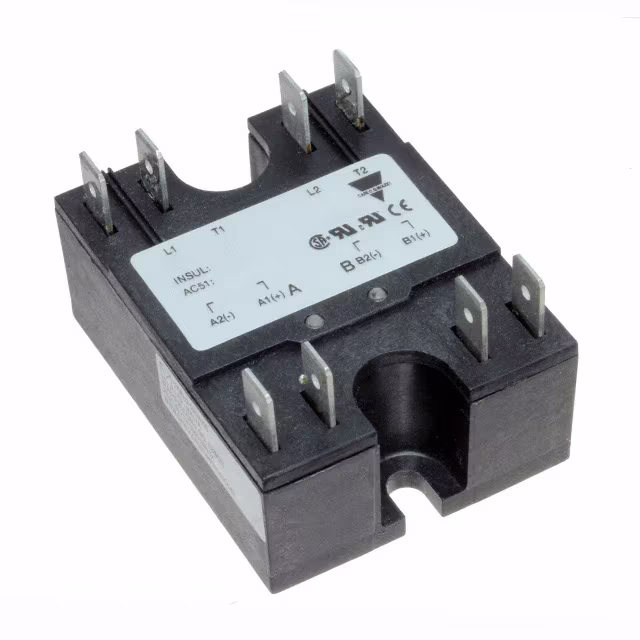

RA2A23D40SSR RELAY SPST-NO 40A 24-265V |
33 |
|
Технический лист |
RA | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) x 2 | AC, Zero Cross | 4.5 ~ 32VDC | 24 V ~ 265 V | 40 A | - | Quick Connect - 0.250" (6.3mm) | -20°C ~ 70°C | - | CE, CSA, cURus, EAC | - | - |
|
CKRD2410-10SSR RELAY SPST-NO 10A 24-280V |
88 |
|
Технический лист |
CKR | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC | 4 ~ 32VDC | 24 V ~ 280 V | 10 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, TUV, UR | - | - |
|
GNR30BCZHSSR RELAY SPST-NO 30A 48-660V |
164 |
|
Технический лист |
GNR | Box | Active | Chassis Mount, DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 80 ~ 140VAC | 48 V ~ 660 V | 30 A | - | Screw Terminal | -40°C ~ 80°C | Module | CE, cURus, VDE | - | - |
|
CWD4850PSSR RELAY SPST-NO 50A 48-660V |
61 |
|
Технический лист |
CW | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 48 V ~ 660 V | 50 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
DRA1-CMX100D6SSR RELAY SPST-NO 6A 1-100V |
36 |
|
Технический лист |
DRA | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 3 ~ 10VDC | 1 V ~ 100 V | 6 A | 40 mOhms | Screw Terminal | -20°C ~ 80°C | - | CE, cURus | - | - |
|
DRA1-CMX200D3SSR RELAY SPST-NO 3A 1-200V |
74 |
|
Технический лист |
DRA | Box | Active | DIN Rail | SPST-NO (1 Form A) | DC | 3 ~ 10VDC | 1 V ~ 200 V | 3 A | 200 mOhms | Screw Terminal | -20°C ~ 80°C | - | CE, cURus | - | - |
|
CWA4850SSR RELAY SPST-NO 50A 48-660V |
26 |
|
Технический лист |
CW | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 90 ~ 280VAC | 48 V ~ 660 V | 50 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|

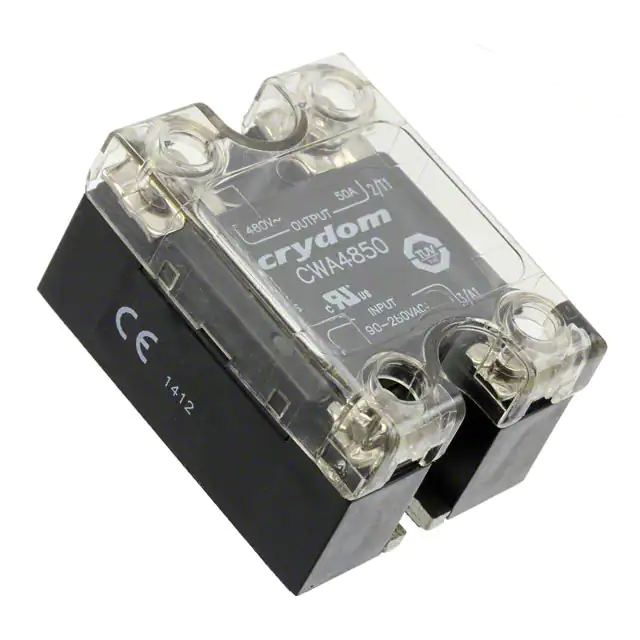

CWA4850HSSR RELAY SPST-NO 50A 48-660V |
80 |
|
Технический лист |
CW | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 90 ~ 280VAC | 48 V ~ 660 V | 50 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
