Твердотельные реле (SSR)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Тип выхода | Напряжение - Вход | Напряжение - нагрузка | Ток нагрузки | Сопротивление в открытом состоянии (макс.) | Тип вывода | Рабочая температура | Устройство поставщика Упаковка | Сертифицирующее агентство | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AQW654ARELAY SPST-NO/NC 120MA 0-400V |
800 |
|
Технический лист |
PhotoMOS™ AQW | Tube | Active | Surface Mount | SPST-NO + SPST-NC (1 Form A and B) | AC, DC | 1.14VDC | 0 V ~ 400 V | 120 mA | 16 Ohms | Gull Wing | -40°C ~ 85°C | 8-SMD | UR, VDE | - | - |
|
AQY221R6TWSSR RELAY SPST-NO 800MA 0-30V |
2,599 |
|
Технический лист |
PhotoMOS™ AQY2 | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.14VDC | 0 V ~ 30 V | 800 mA | 350 mOhms | SMD (SMT) Tab | -40°C ~ 85°C | 4-VSSOP | - | - | - |
|
AQZ207DSSR RELAY SPST-NO 900MA 0-200V |
460 |
|
Технический лист |
PhotoMOS™ AQZ | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.4VDC | 0 V ~ 200 V | 900 mA | 1.1 Ohms | PC Pin | -40°C ~ 85°C | 4-SIL | UR, VDE | - | - |
|
G3VM-354FSSR RELAY SPST-NC 120MA 0-350V |
383 |
|
Технический лист |
G3VM | Tube | Active | Surface Mount | SPST-NC (1 Form B) x 2 | AC, DC | 1.15VDC | 0 V ~ 350 V | 120 mA | 35 Ohms | Gull Wing | -40°C ~ 85°C | 8-SMD | - | - | - |
|

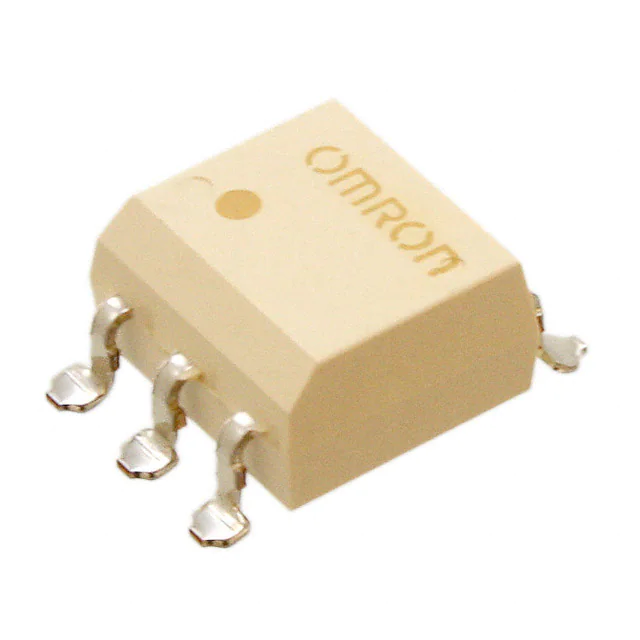

G3VM-21ERTRSSR RELAY SPST-NO 4A 0-20V |
731 |
|
Технический лист |
G3VM | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.33VDC | 0 V ~ 20 V | 4 A | 50 mOhms | Gull Wing | -40°C ~ 85°C | 6-SMD | - | - | - |
|
AQY2C1R2P1XSSR RELAY SPST-NO 300MA 0-40V |
1,018 |
|
Технический лист |
PhotoMOS™ AQY | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.8VDC | 0 V ~ 40 V | 300 mA | 1.5 Ohms | SMD (SMT) Tab | -40°C ~ 85°C | 4-TSON | BSI, cURus | - | - |
|
G3VM-101ER(TR)SSR RELAY SPST-NO 2A 0-100V |
2,133 |
|
Технический лист |
G3VM | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.33VDC | 0 V ~ 100 V | 2 A | 200 mOhms | Gull Wing | -40°C ~ 85°C | 6-SMD | - | - | - |
|
G3VM-31QVL(TR05)SSR RELAY SPST-NO 1.5A 0-30V |
1,422 |
|
Технический лист |
G3VM | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.2VDC | 0 V ~ 30 V | 1.5 A | 200 mOhms | SMD (SMT) Tab | -40°C ~ 85°C | S-VSON4T | - | - | - |
|
AQY274ASSR RELAY SPST-NO 350MA 0-400V |
1,662 |
|
Технический лист |
PhotoMOS™ AQY | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.16VDC | 0 V ~ 400 V | 350 mA | 3.2 Ohms | Gull Wing | -40°C ~ 85°C | 4-SMD | BSI, cURus | - | - |
|
PVAZ172NPBFSSR RELAY SPST-NO 1A 0-60V |
147 |
|
Технический лист |
PVA, HEXFET® | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.2VDC | 0 V ~ 60 V | 1 A | 500 mOhms | PC Pin | -40°C ~ 85°C | 8-DIP Modified | UL | - | - |
|
|
AQY2C2R2P1XSSR RELAY SPST-NO 300MA 0-60V |
1,000 |
|
Технический лист |
PhotoMOS™ AQY | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.7VDC | 0 V ~ 60 V | 300 mA | 1.5 Ohms | SMD (SMT) Tab | -40°C ~ 85°C | 4-TSON | BSI, cURus | - | - |
|
CPC1927JSSR RELAY SPST-NO 2.7A 0-250V |
106 |
|
Технический лист |
CPC, OptoMOS® | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.2VDC | 0 V ~ 250 V | 2.7 A | 200 mOhms | PC Pin | -40°C ~ 85°C | ISOPLUS264™ | CSA, TUV, UL | - | - |
|
ASO241RSSR RELAY SPST-NO 1.5A 12-280V |
663 |
|
Технический лист |
ASO | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC | 4 ~ 10VDC | 12 V ~ 280 V | 1.5 A | - | PC Pin | -30°C ~ 80°C | 4-Mini SIP | CE, CSA, UR | - | - |
|
SLA03220LSSR RELAY SPST-NO 2A 12-280V |
233 |
|
Технический лист |
- | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 24VDC | 12 V ~ 280 V | 2 A | - | PC Pin | -40°C ~ 85°C | 4-SIP | CE, cURus | - | - |
|
CXE240A5SSR RELAY SPST-NO 5A 12-280V |
453 |
|
Технический лист |
CX | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 18 ~ 36VAC | 12 V ~ 280 V | 5 A | - | PC Pin | -10°C ~ 80°C | 4-SIP | CE, CSA, cURus, TUV | - | - |
|
|
CXE380D5SSR RELAY SPST-NO 5A 48-530V |
829 |
|
Технический лист |
CX | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 15 ~ 32VDC | 48 V ~ 530 V | 5 A | - | PC Pin | -10°C ~ 80°C | 4-SIP | CE, CSA, cURus, TUV | - | - |
|
|
CX380D5RSSR RELAY SPST-NO 5A 48-530V |
205 |
|
Технический лист |
CX | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC | 4 ~ 15VDC | 48 V ~ 530 V | 5 A | - | PC Pin | -10°C ~ 80°C | 4-SIP | CE, CSA, cURus, TUV | - | - |
|
GNB4D2ASSR RELAY SPST-NO 4A 12-460V |
114 |
|
Технический лист |
GNB | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 30VDC | 12 V ~ 460 V | 4 A | - | PC Pin | -40°C ~ 80°C | 4-SIP | CE, cURus, UKCA | - | - |
|

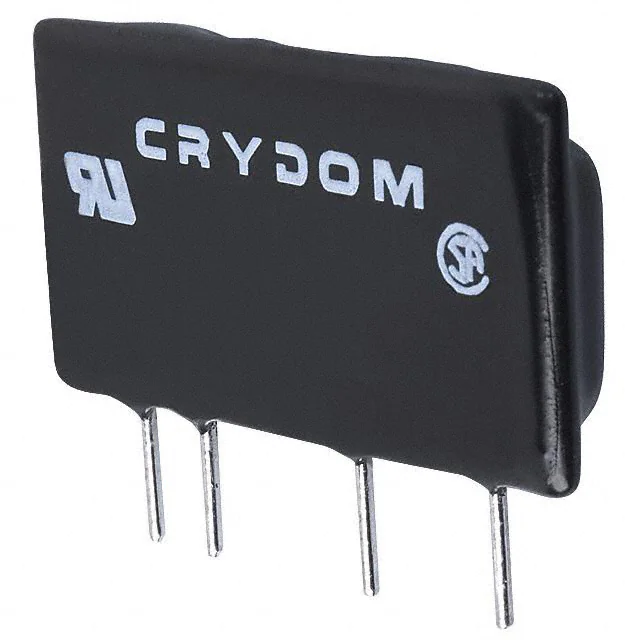

D2W203FSSR RELAY SPST-NO 3A 24-280V |
159 |
|
Технический лист |
D2W | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 280 V | 3 A | - | PC Pin | -30°C ~ 80°C | 4-SIP | CE, CSA, cURus | - | - |
|
SSRMP-480D16RSSR RELAY SPST-NO 16A 48-480V |
0 |
|
Технический лист |
SSRMP | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 4 ~ 32VDC | 48 V ~ 480 V | 16 A | - | Quick Connect - 0.250" (6.3mm) | -30°C ~ 80°C | Mini Puck | CE, cURus | - | - |
