Твердотельные реле (SSR)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Тип выхода | Напряжение - Вход | Напряжение - нагрузка | Ток нагрузки | Сопротивление в открытом состоянии (макс.) | Тип вывода | Рабочая температура | Устройство поставщика Упаковка | Сертифицирующее агентство | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AQ3A2-C2-ZT5VDCSSR RELAY SPST-NO 3A 75-250V |
956 |
|
Технический лист |
AQ8 | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 6VDC | 75 V ~ 250 V | 3 A | - | PC Pin | -30°C ~ 80°C | 4-SIL | cURus, VDE | - | - |
|
|
AQ3A2-ZT4/32VDCSSR RELAY SPST-NO 3A 75-250V |
724 |
|
Технический лист |
AQ1 | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 75 V ~ 250 V | 3 A | - | PC Pin | -30°C ~ 80°C | 4-SIP | cURus, VDE | - | - |
|
G3SD-Z01P-PD DC24SSR RELAY SPST-NO 1.1A 3-26V |
216 |
|
Технический лист |
G3SD | Bulk | Active | Through Hole | SPST-NO (1 Form A) | DC | 19.2 ~ 28.8VDC | 3 V ~ 26 V | 1.1 A | - | PC Pin | -30°C ~ 100°C | - | CSA, UR | - | - |
|
DPA4111SSR RELAY SPST-NO 1A 20-140V |
804 |
|
Технический лист |
DPA | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | - | 20 V ~ 140 V | 1 A | - | PC Pin | -30°C ~ 80°C | 16-DIP | CE, CSA, UL | - | - |
|
AQZ205GSSR RELAY SPST-NO 4A 0-100V |
489 |
|
Технический лист |
PhotoMOS™ AQZ | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.25VDC | 0 V ~ 100 V | 4 A | 60 mOhms | PC Pin | -40°C ~ 85°C | 4-SIL | UR, VDE | - | - |
|
TLP3412SRHA4(TPESSR RELAY SPST-NO 250MA 0-60V |
1,601 |
|
Технический лист |
TLP3412S | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.5VDC | 0 V ~ 60 V | 250 mA | 1.5 Ohms | SMD (SMT) Tab | -40°C ~ 110°C | S-VSON16T (2x6.25) | - | - | - |
|
AQS221N2SXSSR RELAY SPST-NO 60MA 0-40V |
1,760 |
|
Технический лист |
PhotoMOS™ AQS | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) x 4 | AC, DC (RF) | 1.25VDC | 0 V ~ 40 V | 60 mA | 12.5 Ohms | Gull Wing | -40°C ~ 85°C | 16-SOP | BSI, CSA, TUV, UR | - | - |
|
CPC1979JSSR RELAY SPST-NO 1.4A 0-600V |
254 |
|
Технический лист |
CPC, OptoMOS® | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.2VDC | 0 V ~ 600 V | 1.4 A | 750 mOhms | PC Pin | -40°C ~ 85°C | ISOPLUS264™ | CSA, TUV, UL | - | - |
|
SSRMP-240D10RSSR RELAY SPST-NO 10A 24-280V |
1,128 |
|
Технический лист |
SSRMP | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 4 ~ 32VDC | 24 V ~ 280 V | 10 A | - | Quick Connect - 0.250" (6.3mm) | -30°C ~ 80°C | Mini Puck | CE, cURus | - | - |
|
RP1A23D5SSR RELAY SPST-NO 5A 12-265V |
185 |
|
Технический лист |
RP1A | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 12 V ~ 265 V | 5 A | - | PC Pin | -30°C ~ 80°C | - | CE, cUR, UR | - | - |
|

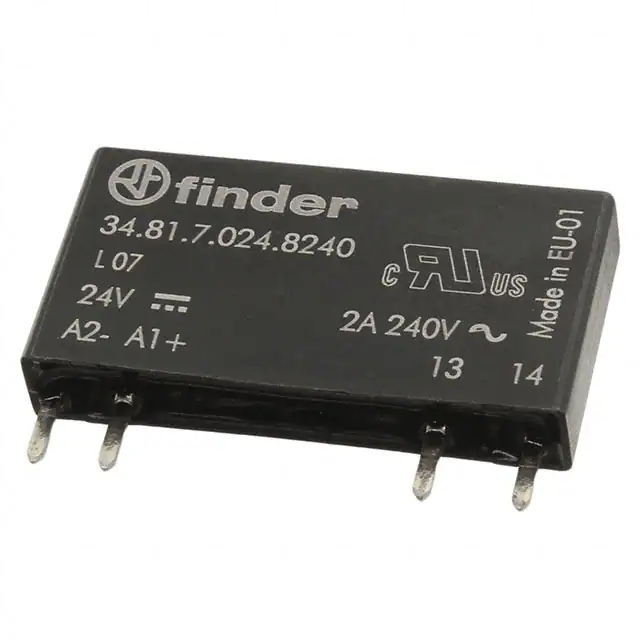

34.81.7.024.8240SSR RELAY SPST-NO 2A 12-275V |
124 |
|
Технический лист |
34 | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 24VDC | 12 V ~ 275 V | 2 A | - | PC Pin | -20°C ~ 50°C | 4-SIP | CE, cURus, EAC, UKCA | - | - |
|
GA8-6B02SSR RELAY SPST-NO 3.5A 24-280V |
685 |
|
Технический лист |
GA8 | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 28VDC | 24 V ~ 280 V | 3.5 A | - | PC Pin | -30°C ~ 80°C | - | CE, cURus | - | - |
|
SSRMP-240D16RSSR RELAY SPST-NO 16A 24-280V |
171 |
|
Технический лист |
SSRMP | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 4 ~ 32VDC | 24 V ~ 280 V | 16 A | - | Quick Connect - 0.250" (6.3mm) | -30°C ~ 80°C | Mini Puck | CE, cURus | - | - |
|
CX240D5-BSSR RELAY SPST-NC 5A 12-280V |
547 |
|
Технический лист |
CX | Bulk | Active | Through Hole | SPST-NC (1 Form B) | AC, Zero Cross | 4 ~ 28VDC | 12 V ~ 280 V | 5 A | - | PC Pin | -10°C ~ 80°C | 4-SIP | CE, CSA, cURus, TUV | - | - |
|
2982100SSR RELAY SPST-NO 5A 3-33V |
182 |
|
Технический лист |
OPT | Bulk | Active | Through Hole | SPST-NO (1 Form A) | DC | 24VDC | 3 V ~ 33 V | 5 A | - | PC Pin | -25°C ~ 60°C | - | cURus, GL | - | - |
|
SSR-240A25SSR RELAY SPST-NO 25A 24-280V |
686 |
|
Технический лист |
SSR | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 90 ~ 280VAC | 24 V ~ 280 V | 25 A | - | Screw Terminal | -30°C ~ 80°C | - | cURus | - | - |
|

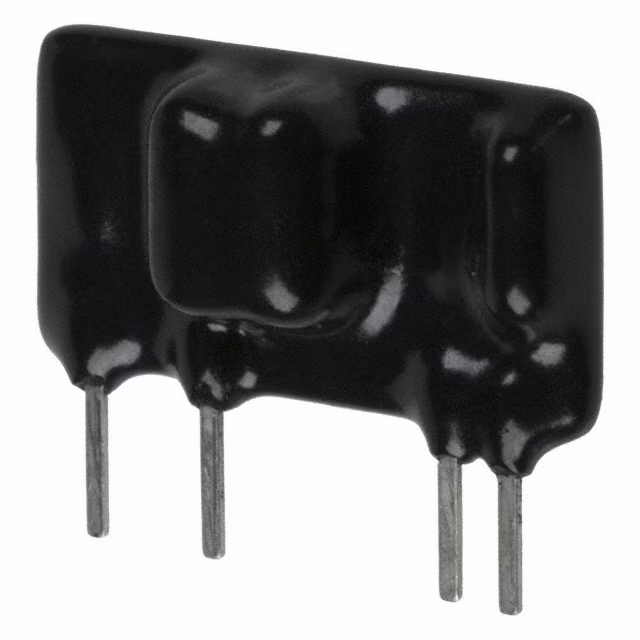

DO061ASSR RELAY SPST-NO 1A 3-60V |
191 |
|
Технический лист |
DO | Bulk | Active | Through Hole | SPST-NO (1 Form A) | DC | 3 ~ 9VDC | 3 V ~ 60 V | 1 A | - | PC Pin | -30°C ~ 80°C | 4-Mini SIP | - | - | - |
|
SDI2415SSR RELAY SPST-NO 1.5A 12-280V |
285 |
|
Технический лист |
SDI | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | - | 12 V ~ 280 V | 1.5 A | - | PC Pin | -30°C ~ 80°C | 16-DIP | CE | - | - |
|
MP240D4SSR RELAY SPST-NO 4A 24-280V |
173 |
|
Технический лист |
MP | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 280 V | 4 A | - | PC Pin | -40°C ~ 80°C | 4-SIP | CE, cURus | - | - |
|
PF240D25RSSR RELAY SPST-NO 25A 12-280V |
1,873 |
|
Технический лист |
PF, PowerFin™ | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC | 3 ~ 15VDC | 12 V ~ 280 V | 25 A | - | PC Pin | -30°C ~ 80°C | 4-SIP | CE, cURus, TUV | - | - |
