Твердотельные реле (SSR)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Тип выхода | Напряжение - Вход | Напряжение - нагрузка | Ток нагрузки | Сопротивление в открытом состоянии (макс.) | Тип вывода | Рабочая температура | Устройство поставщика Упаковка | Сертифицирующее агентство | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PVDZ172NPBFSSR RELAY SPST-NO 1.5A 0-60V |
1,182 |
|
Технический лист |
PVD, HEXFET® | Tube | Active | Through Hole | SPST-NO (1 Form A) | DC | 1.2VDC | 0 V ~ 60 V | 1.5 A | 250 mOhms | PC Pin | -40°C ~ 85°C | 8-DIP Modified | UL | - | - |
|
G3VM-61ER(TR)SSR RELAY SPST-NO 2.5A 0-60V |
333 |
|
Технический лист |
G3VM | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.33VDC | 0 V ~ 60 V | 2.5 A | 100 mOhms | Gull Wing | -40°C ~ 85°C | 6-SMD | - | - | - |
|
G3VM-41ARSSR RELAY SPST-NO 2.5A 0-40V |
509 |
|
Технический лист |
G3VM | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.33VDC | 0 V ~ 40 V | 2.5 A | 150 mOhms | PC Pin | -40°C ~ 85°C | 4-DIP | - | - | - |
|
PAA132SSSR RELAY SPST-NO 600MA 0-60V |
150 |
|
Технический лист |
PAA, OptoMOS® | Tube | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.2VDC | 0 V ~ 60 V | 600 mA | 1 Ohms | Gull Wing | -40°C ~ 85°C | 8-SMD | CSA, EN, IEC, TUV, UL | - | - |
|
|
PVA3354NPBFSSR RELAY SPST-NO 150MA 0-300V |
886 |
|
Технический лист |
PVA, HEXFET® | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.2VDC | 0 V ~ 300 V | 150 mA | 24 Ohms | PC Pin | -40°C ~ 85°C | 8-DIP Modified | UL | - | - |
|
AQW227NSSR RELAY SPST-NO 50MA 0-200V |
639 |
|
Технический лист |
PhotoMOS™ AQW | Tube | Active | Through Hole | SPST-NO (1 Form A) x 2 | AC, DC (RF) | 1.14VDC | 0 V ~ 200 V | 50 mA | 50 Ohms | PC Pin | -40°C ~ 85°C | 8-DIP | UR, VDE | - | - |
|
G3VM-101PR(TR05)SSR RELAY SPST-NO 100MA 0-100V |
2,181 |
|
Технический лист |
G3VM | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 100 V | 100 mA | 14 Ohms | SMD (SMT) Tab | -40°C ~ 85°C | 4-USOP | - | - | - |
CR.jpg)
|
G3VM-101FRSSR RELAY SPST-NO 3A 0-100V |
162 |
|
Технический лист |
G3VM | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.64VDC | 0 V ~ 100 V | 3 A | 150 mOhms | Gull Wing | -40°C ~ 85°C | 8-SMD | - | - | - |
|
AQY272SSR RELAY SPST-NO 2A 0-60V |
609 |
|
Технический лист |
PhotoMOS™ AQY | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.16VDC | 0 V ~ 60 V | 2 A | 180 mOhms | PC Pin | -40°C ~ 85°C | 4-DIP | BSI, cURus | - | - |
|
AQY217GSSSR RELAY SPST-NO 400MA 0-200V |
464 |
|
Технический лист |
PhotoMOS™ AQY | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.32VDC | 0 V ~ 200 V | 400 mA | 2.5 Ohms | Gull Wing | -40°C ~ 85°C | 4-SOP | BSI, cURus | - | - |
|

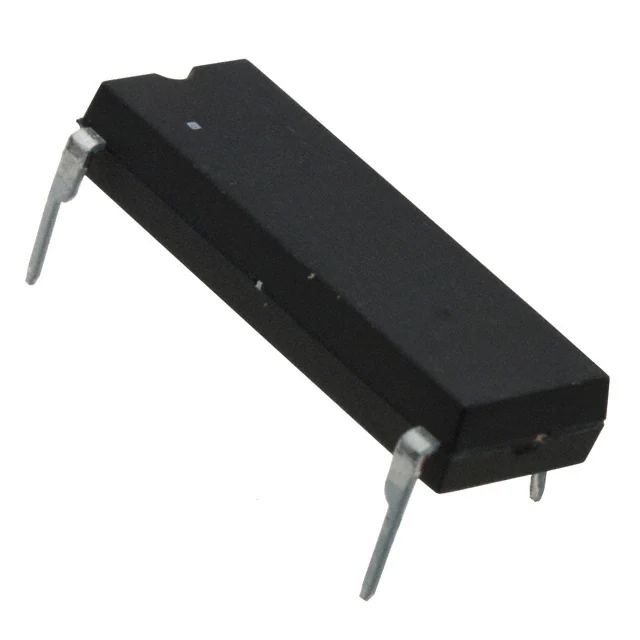

PD1201SSR RELAY SPST-NO 1A 0-400V |
349 |
|
Технический лист |
PD | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 1.2VDC | 0 V ~ 400 V | 1 A | - | PC Pin | -40°C ~ 85°C | 16-DIP | CSA, UL | - | - |
|
AQZ107SSR RELAY SPST-NO 1.3A 0-200V |
227 |
|
Технический лист |
PhotoMOS™ AQZ | Box | Active | Through Hole | SPST-NO (1 Form A) | DC | 1.16VDC | 0 V ~ 200 V | 1.3 A | 550 mOhms | PC Pin | -40°C ~ 85°C | 4-SIL | UR, VDE | - | - |
FR.jpg)
|
G3VM-101FR(TR05)SSR RELAY SPST-NO 3A 0-100V |
2,401 |
|
Технический лист |
G3VM | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.64VDC | 0 V ~ 100 V | 3 A | 150 mOhms | Gull Wing | -40°C ~ 85°C | 8-SMD | - | - | - |
|
G3VM-41LR4(TR05)SSR RELAY SPST-NO 250MA 0-40V |
453 |
|
Технический лист |
G3VM | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 40 V | 250 mA | 3 Ohms | SMD (SMT) Tab | -40°C ~ 85°C | 4-SSOP | - | - | - |
|
|
AQZ205SSR RELAY SPST-NO 2A 0-100V |
1,093 |
|
Технический лист |
PhotoMOS™ AQZ | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.16VDC | 0 V ~ 100 V | 2 A | 340 mOhms | PC Pin | -40°C ~ 85°C | 4-SIL | UR, VDE | - | - |
|
CS326SSR RELAY SPST-NO 2A 0-40V |
2,949 |
|
Технический лист |
COTOMOS™ | Tube | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.37VDC | 0 V ~ 40 V | 2 A | 500 mOhms | Gull Wing | -40°C ~ 85°C | 8-SMD | - | - | - |
|
|
AQY277ASSR RELAY SPST-NO 650MA 0-200V |
250 |
|
Технический лист |
PhotoMOS™ AQY | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.16VDC | 0 V ~ 200 V | 650 mA | 1.1 Ohms | Gull Wing | -40°C ~ 85°C | 4-SMD | BSI, cURus | - | - |
 HEXFET Series 8-SMD 4 Leads.JPG)
|
PVDZ172NSPBFSSR RELAY SPST-NO 1.5A 0-60V |
1,444 |
|
Технический лист |
PVD, HEXFET® | Tube | Active | Surface Mount | SPST-NO (1 Form A) | DC | 1.2VDC | 0 V ~ 60 V | 1.5 A | 250 mOhms | Gull Wing | -40°C ~ 85°C | 8-SMD | UL | - | - |
|
|
LAA710SSSR RELAY SPST-NO 1A 0-60V |
258 |
|
Технический лист |
LAA, OptoMOS® | Tube | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.2VDC | 0 V ~ 60 V | 1 A | 500 mOhms | Gull Wing | -40°C ~ 85°C | 8-SMD | CSA, EN, UL | - | - |
|
G3VM-21UV11SSR RELAY SPST-NO 1A 0-20V |
6,799 |
|
Технический лист |
G3VM | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.27VDC | 0 V ~ 20 V | 1 A | 220 mOhms | SMD (SMT) Tab | -40°C ~ 85°C | 4-VSON | - | - | - |
