Твердотельные реле (SSR)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Тип выхода | Напряжение - Вход | Напряжение - нагрузка | Ток нагрузки | Сопротивление в открытом состоянии (макс.) | Тип вывода | Рабочая температура | Устройство поставщика Упаковка | Сертифицирующее агентство | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CL240D05SSR RELAY SPST-NO 5A 24-280V |
33 |
|
Технический лист |
CL | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 280 V | 5 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, cURus | - | - |
|
RV8S-S-D24-D24SSR RELAY SPST-NO 3.5A 0-24V |
45 |
|
Технический лист |
RV8 | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 19.6 ~ 30VDC | 0 V ~ 24 V | 3.5 A | - | Spring Terminal | -20°C ~ 60°C | - | CE, cULus | - | - |
|
EL240A10R-24SSR RELAY SPST-NO 10A 24-280V |
40 |
|
Технический лист |
EL | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 21 ~ 27VDC | 24 V ~ 280 V | 10 A | - | Quick Connect - 0.187"/0.250" | -30°C ~ 80°C | - | CE, cURus, TUV | - | - |
|
1990980000SSR RELAY SPST-NO 5A 3-33V |
12 |
|
Технический лист |
TERMSERIES | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 3 V ~ 33 V | 5 A | - | Spring Terminal | -20°C ~ 60°C | - | CE, cULus, DNV, UKCA | - | - |
|
ESR10-NC2A4HB-00-D2-17ASSR RELAY SPST-NO 17A 10-32V |
48 |
|
Технический лист |
ESR10 | Bulk | Active | Socketable | SPST-NO (1 Form A) | DC | 24VDC | 10 V ~ 32 V | 17 A | - | Plug In | -40°C ~ 85°C | ISO Micro | KBA | - | - |
|
SPFE480D25RSSR RELAY SPST-NO 25A 48-660V |
0 |
|
Технический лист |
SPF, PowerFin™ | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC | 15 ~ 32VDC | 48 V ~ 660 V | 25 A | - | PC Pin | -30°C ~ 80°C | 4-SIP | CE, cURus | - | - |
|
2900363SSR RELAY SPST-NO 50MA 4.5-6V |
8 |
|
Технический лист |
PLC | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 4.5 V ~ 6 V | 50 mA | - | Spring Terminal | -25°C ~ 60°C | - | CE, UKCA | - | - |
|
SO843070SSR RELAY SPST-NO 35A 12-275V |
13 |
|
Технический лист |
okpac® | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 12 V ~ 275 V | 35 A | 14 mOhms | Screw Terminal | -40°C ~ 90°C | - | CE | - | - |
|

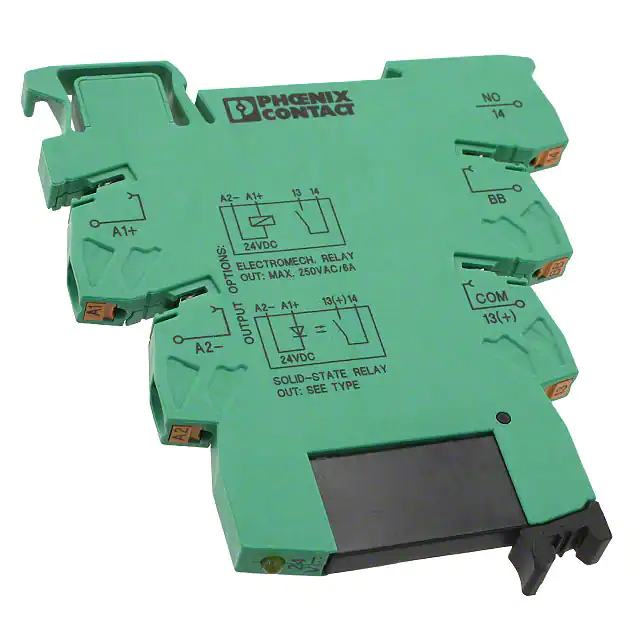

2900376SSR RELAY SPST-NO 3A 3-33V |
60 |
|
Технический лист |
PLC-OPT | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 3 V ~ 33 V | 3 A | - | Spring Terminal | -25°C ~ 60°C | - | CE, DNV, UKCA | - | - |
|
2967840SSR RELAY SPST-NO 750MA 24-253V |
39 |
|
Технический лист |
PLC-OSC | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC | 24VDC | 24 V ~ 253 V | 750 mA | - | Screw Terminal | -20°C ~ 60°C | - | EN, IEC | - | - |
|
|
EL240A30R-24SSR RELAY SPST-NO 30A 24-280V |
20 |
|
Технический лист |
EL | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 21 ~ 27VDC | 24 V ~ 280 V | 30 A | - | Quick Connect - 0.187"/0.250" | -30°C ~ 80°C | - | CE, cURus, TUV | - | - |
|
G3H-203SLN-VD DC24SSR RELAY SPST-NO 3A 75-264V |
6 |
|
Технический лист |
G3H | Bulk | Active | Socketable | SPST-NO (1 Form A) | AC | 19.2 ~ 28.8VDC | 75 V ~ 264 V | 3 A | - | Plug In | -30°C ~ 80°C | - | CE, CSA, UR, VDE | - | - |
|
DR48D03SSR RELAY SPST-NO 3A 48-600V |
68 |
|
Технический лист |
DR | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 48 V ~ 600 V | 3 A | - | Screw Terminal | -20°C ~ 40°C | - | CE, cULus | - | - |
|

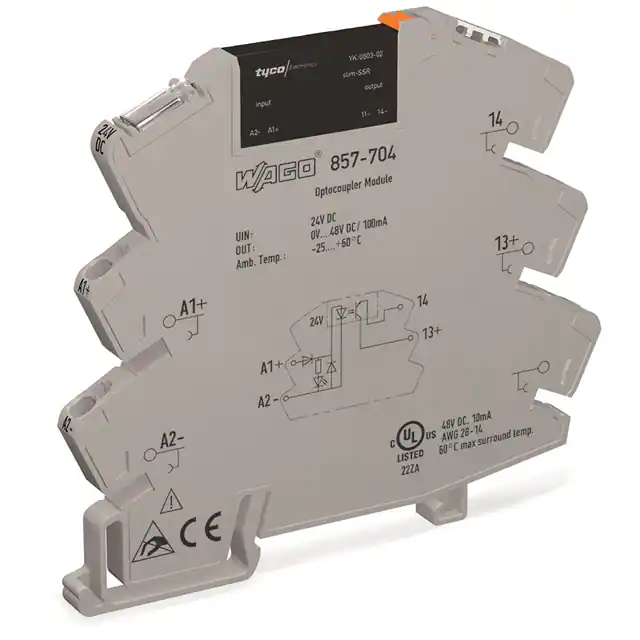

857-704SSR RELAY SPST-NO 100MA 0-48V |
6 |
|
Технический лист |
857 | Box | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 0 V ~ 48 V | 100 mA | - | Spring Terminal | -20°C ~ 60°C | - | EAC, UL | - | - |
|
CL240D10RCSSR RELAY SPST-NO 10A 24-280V |
21 |
|
Технический лист |
CL | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 3 ~ 32VDC | 24 V ~ 280 V | 10 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, cURus | - | - |
|
SA942460SSR RELAY SPST-NO 25A 12-280V |
30 |
|
Технический лист |
celpac 2G® | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 12 V ~ 280 V | 25 A | 16 mOhms | - | -55°C ~ 100°C | - | CE, cURus | - | - |
|
G3HD-X03SN-VD DC5-24SSR RELAY SPST-NO 3A 3-52.8V |
12 |
|
Технический лист |
G3HD | Bulk | Active | Socketable | SPST-NO (1 Form A) | DC | 4 ~ 28VDC | 3 V ~ 52.8 V | 3 A | - | Plug In | -30°C ~ 80°C | - | CE, CSA, UR, VDE | - | - |
|
|
EL240A30-24NSSR RELAY SPST-NO 30A 24-280V |
10 |
|
Технический лист |
EL | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 21 ~ 27VDC | 24 V ~ 280 V | 30 A | - | Quick Connect - 0.187"/0.250" | -30°C ~ 80°C | - | CE, cURus, TUV | - | - |
|
DRA-CN048D24SSR RELAY SPST-NO 100MA 0-48V |
40 |
|
Технический лист |
DRACN | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 16 ~ 30VDC | 0 V ~ 48 V | 100 mA | - | Screw Terminal | -25°C ~ 60°C | - | CE, cURus, UR | - | - |
|
G3F-202SN-VD AC200/220SSR RELAY SPST-NO 2A 75-264V |
9 |
|
Технический лист |
G3F | Bulk | Active | Socketable | SPST-NO (1 Form A) | AC, Zero Cross | 150 ~ 250VAC | 75 V ~ 264 V | 2 A | - | Plug In | -30°C ~ 80°C | - | CE, CSA, UR, VDE | - | - |
