Твердотельные реле (SSR)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Тип выхода | Напряжение - Вход | Напряжение - нагрузка | Ток нагрузки | Сопротивление в открытом состоянии (макс.) | Тип вывода | Рабочая температура | Устройство поставщика Упаковка | Сертифицирующее агентство | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDV2415RSSR RELAY SPST-NO 1.5A 12-280V |
49 |
|
Технический лист |
SDV | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC | 3.5 ~ 10VDC | 12 V ~ 280 V | 1.5 A | - | PC Pin | -30°C ~ 80°C | 16-DIP | CE, CSA, UR | - | - |
|
AQJ112VSSR RELAY SPST-NO 10A 75-264V |
9 |
|
Технический лист |
AQ-J | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 6VDC | 75 V ~ 264 V | 10 A | - | Quick Connect - 0.110"/0.250" | -30°C ~ 80°C | - | cURus, VDE | - | - |
|
ED24E5SSR RELAY SPST-NO 5A 24-280V |
10 |
|
Технический лист |
LifePlus ED | Bulk | Active | Socketable | SPST-NO (1 Form A) | AC, Zero Cross | 18 ~ 36VAC | 24 V ~ 280 V | 5 A | - | Plug In, Quick Connect - 0.187" (4.7mm) | -30°C ~ 80°C | - | CE, cURus, IEC | - | - |
|
G3NE-205TL-US DC5SSR RELAY SPST-NO 5A 75-264V |
12 |
|
Технический лист |
G3NE | Tray | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 4 ~ 6VDC | 75 V ~ 264 V | 5 A | - | Quick Connect - 0.110"/0.250" | -30°C ~ 80°C | - | CE, CSA, TUV, UR | - | - |
|
ASR-SI240D25ZW-LSSR RELAY SPST-NO 25A 48-280V |
16 |
|
Технический лист |
SI | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 48 V ~ 280 V | 25 A | - | Screw Terminal | -30°C ~ 80°C | - | CCC, CE, cURus, TUV | - | - |
|
1126940000SSR RELAY SPST-NO 100MA 0-48V |
21 |
|
Технический лист |
TERMSERIES | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 0 V ~ 48 V | 100 mA | - | Screw Terminal | -20°C ~ 60°C | - | CE, cULus, DNV, UKCA | - | - |
|
|
ED06B5SSR RELAY SPST-NO 5A 1-48V |
57 |
|
Технический лист |
LifePlus ED | Bulk | Active | Socketable | SPST-NO (1 Form A) | DC | 90 ~ 140VAC | 1 V ~ 48 V | 5 A | - | Plug In, Quick Connect - 0.187" (4.7mm) | -30°C ~ 80°C | - | CE, cURus, IEC | - | - |
|
|
ED06E5SSR RELAY SPST-NO 5A 1-48V |
29 |
|
Технический лист |
LifePlus ED | Bulk | Active | Socketable | SPST-NO (1 Form A) | DC | 18 ~ 36VAC | 1 V ~ 48 V | 5 A | - | Plug In, Quick Connect - 0.187" (4.7mm) | -30°C ~ 80°C | - | CE, cURus, IEC | - | - |
|
RV8S-L-A240-A240SSR RELAY SPST-NO 2A 24-280V |
14 |
|
Технический лист |
RV8 | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC | 192 ~ 264VAC | 24 V ~ 280 V | 2 A | - | Screw Terminal | -20°C ~ 60°C | - | CE, cULus | - | - |
|
|
G3NE-205T-US DC12SSR RELAY SPST-NO 5A 75-264V |
38 |
|
Технический лист |
G3NE | Tray | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 9.6 ~ 14.4VDC | 75 V ~ 264 V | 5 A | - | Quick Connect - 0.110"/0.250" | -30°C ~ 80°C | - | CE, CSA, TUV, UR | - | - |
|
|
RV8S-L-A240-D24SSR RELAY SPST-NO 2A 24-280V |
21 |
|
Технический лист |
RV8 | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC | 19.6 ~ 30VDC | 24 V ~ 280 V | 2 A | - | Screw Terminal | -20°C ~ 60°C | - | CE, cULus | - | - |
|
|
ED10F5SSR RELAY SPST-NO 5A 1-80V |
9 |
|
Технический лист |
LifePlus ED | Bulk | Active | Socketable | SPST-NO (1 Form A) | DC | 48 ~ 72VDC | 1 V ~ 80 V | 5 A | - | Plug In, Quick Connect - 0.187" (4.7mm) | -30°C ~ 80°C | - | CE, cURus, IEC | - | - |
|
|
ASR-SI480A25RY-LVSSR RELAY SPST-NO 25A 48-530V |
19 |
|
Технический лист |
SI | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 90 ~ 280VAC | 48 V ~ 530 V | 25 A | - | Screw Terminal | -30°C ~ 80°C | - | CCC, CE, cURus, TUV | - | - |
|
|
ASR-SI480A25ZY-LVSSR RELAY SPST-NO 25A 48-530V |
17 |
|
Технический лист |
SI | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 90 ~ 280VAC | 48 V ~ 530 V | 25 A | - | Screw Terminal | -30°C ~ 80°C | - | CCC, CE, cURus, TUV | - | - |
|
MCX240D5RSSR RELAY SPST-NO 5A 12-280V |
40 |
|
Технический лист |
MCX | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC | 3 ~ 15VDC | 12 V ~ 280 V | 5 A | - | PC Pin | -40°C ~ 80°C | 4-SIP | CE, cURus | - | - |
|

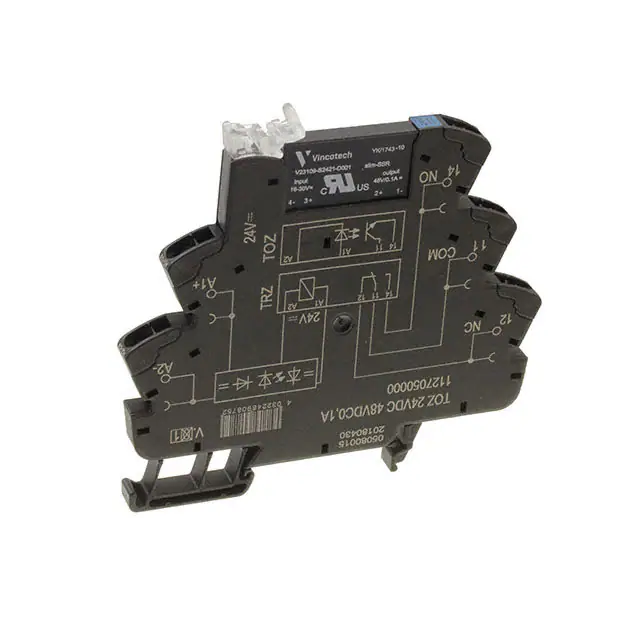

1127050000SSR RELAY SPST-NO 100MA 0-48V |
7 |
|
Технический лист |
TERMSERIES | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 0 V ~ 48 V | 100 mA | - | Spring Terminal | -20°C ~ 60°C | - | CE, cULus, DNV, UKCA | - | - |
|
2905295SSR RELAY SPST-NO 750MA 24-253V |
6 |
|
Технический лист |
RIF | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC | 24VDC | 24 V ~ 253 V | 750 mA | - | Plug In | -25°C ~ 60°C | - | DNV, EAC | - | - |
|

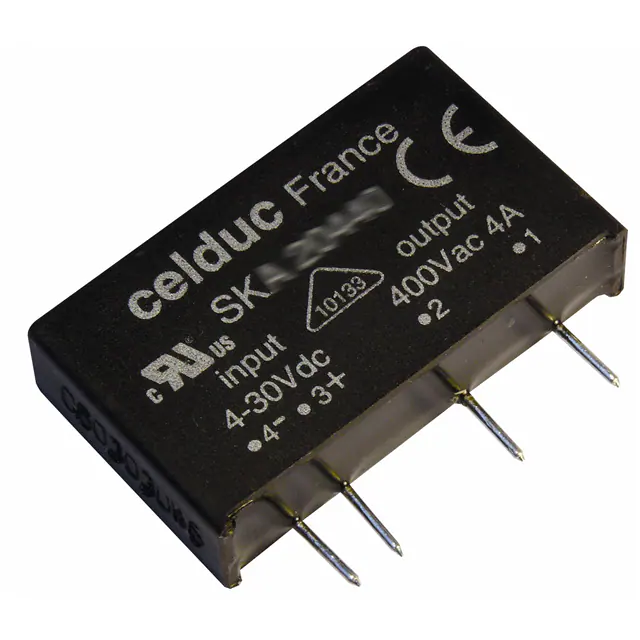

SKD10306SSR RELAY SPST-NO 3A 2-60V |
31 |
|
Технический лист |
- | Tube | Active | Through Hole | SPST-NO (1 Form A) | DC | 3 ~ 30VDC | 2 V ~ 60 V | 3 A | - | PC Pin | -40°C ~ 80°C | 4-SIP | - | - | - |
|
2908172SSR RELAY SPST-NO 3MA 5-30V |
6 |
|
Технический лист |
PLC-OPT | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 5 V ~ 30 V | 3 mA | - | Spring Terminal | -25°C ~ 60°C | Module | CE, DNV, UKCA | - | - |
|
|
ASR-SI240D40RW-LSSR RELAY SPST-NO 40A 48-280V |
44 |
|
Технический лист |
SI | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 4 ~ 32VDC | 48 V ~ 280 V | 40 A | - | Screw Terminal | -30°C ~ 80°C | - | CCC, CE, cURus, TUV | - | - |
