Сигнальные реле, до 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J102K1CS124VDC.36RELAY GEN PURPOSE SPDT 1A 24V |
0 |
|
Технический лист |
J102 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | cURus | General Purpose | - | - |
|
|
J102K1CS124VDC.20RELAY GEN PURPOSE SPDT 1A 24V |
0 |
|
Технический лист |
J102 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | cURus | General Purpose | - | - |
|
|
J102K1CS124VDC.45RELAY GEN PURPOSE SPDT 1A 24V |
0 |
|
Технический лист |
J102 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | cURus | General Purpose | - | - |
|
|
J102K1AS124VDC.45RELAY GEN PURPOSE SPST 1A 24V |
0 |
|
Технический лист |
J102 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | cURus | General Purpose | - | - |
|
|
J102K1AS124VDC.36RELAY GEN PURPOSE SPST 1A 24V |
0 |
|
Технический лист |
J102 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | cURus | General Purpose | - | - |
|
|
J102K1AS124VDC.20RELAY GEN PURPOSE SPST 1A 24V |
0 |
|
Технический лист |
J102 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | cURus | General Purpose | - | - |
|
AZ952-1C-24DSERELAY GEN PURPOSE SPDT 1A 24V |
0 |
|
- |
AZ952 | Box | Active | Through Hole | 24VDC | SPDT (1 Form C) | 1 A | 220VAC, 60VDC - Max | 125VA, 30W | 8.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 5 ms | 1 ms | -25°C ~ 75°C | Silver (Ag), Gold (Au) | cURus, UL | General Purpose | - | - |
|
|
AZ951-1C-24DERELAY GEN PURPOSE SPDT 1A 24V |
0 |
|
- |
AZ951 | Box | Active | Through Hole | 24VDC | SPDT (1 Form C) | 1 A | 220VAC, 60VDC - Max | 220VA, 60W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 5 ms | 1 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | cURus, UL | General Purpose | - | - |
|
|
AZ952-1C-24DERELAY GEN PURPOSE SPDT 1A 24V |
0 |
|
- |
AZ952 | Box | Active | Through Hole | 24VDC | SPDT (1 Form C) | 1 A | 220VAC, 60VDC - Max | 125VA, 30W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 5 ms | 1 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | cURus, UL | General Purpose | - | - |
|
|
AZ951-1C-24DSERELAY GEN PURPOSE SPDT 1A 24V |
0 |
|
- |
AZ951 | Box | Active | Through Hole | 24VDC | SPDT (1 Form C) | 1 A | 220VAC, 60VDC - Max | 220VA, 60W | 8.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 5 ms | 1 ms | -25°C ~ 75°C | Silver (Ag), Gold (Au) | cURus, UL | General Purpose | - | - |
|
|
AZ952-1C-9DSERELAY GENERAL PURPOSE SPDT 1A 9V |
0 |
|
- |
AZ952 | Box | Active | Through Hole | 9VDC | SPDT (1 Form C) | 1 A | 220VAC, 60VDC - Max | 125VA, 30W | 22.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 5 ms | 1 ms | -25°C ~ 75°C | Silver (Ag), Gold (Au) | cURus, UL | General Purpose | - | - |
|
|
J1021CS16VDC.36RELAY GENERAL PURPOSE SPDT 1A 6V |
0 |
|
Технический лист |
J102 | Tube | Active | Through Hole | 6VDC | SPDT (1 Form C) | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | cURus | General Purpose | - | - |
|
|
J102K1CS112VDC.20RELAY GEN PURPOSE SPDT 1A 12V |
0 |
|
Технический лист |
J102 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | cURus | General Purpose | - | - |
|
|
AZ826-2C-12DSERELAY GEN PURPOSE DPDT 2A 12V |
0 |
|
Технический лист |
AZ826 | Box | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 220VAC, 150VDC - Max | 440VA, 300W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 6 ms | 5 ms | -40°C ~ 80°C | Silver (Ag), Gold (Au) | CUR, UL | General Purpose | - | - |
|
|
J1021AS124VDC.20RELAY GEN PURPOSE SPST 1A 24V |
0 |
|
Технический лист |
J102 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | cURus | General Purpose | - | - |
|
|
AZ826-2C-12DMERELAY GEN PURPOSE DPDT 2A 12V |
0 |
|
Технический лист |
AZ826 | Box | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 220VAC, 150VDC - Max | 440VA, 300W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 6 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CUR, UL | General Purpose | - | - |
|

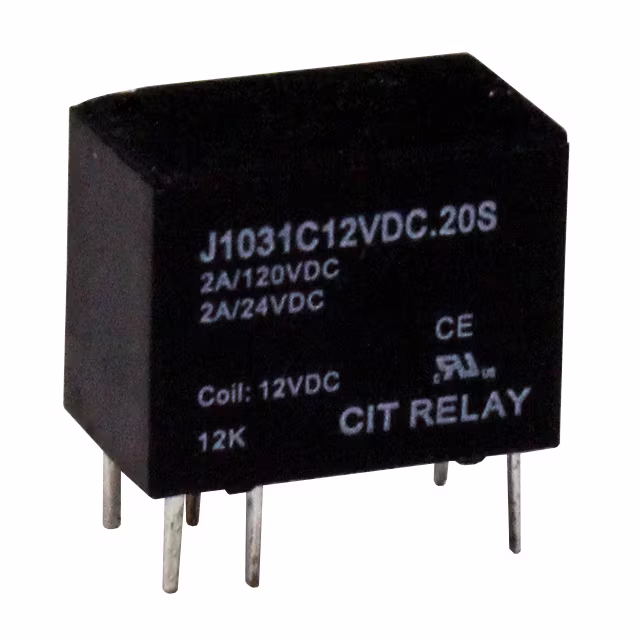

J1031C12VDC.20SRELAY GEN PURPOSE SPDT 2A 12V |
0 |
|
Технический лист |
J103 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 2 A | 125VAC, 60VDC - Max | 250VA, 120W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 4.5 ms | 1.5 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | cURus | General Purpose | - | - |
|
J1031C5VDC.20SRELAY GENERAL PURPOSE SPDT 2A 5V |
0 |
|
Технический лист |
J103 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 2 A | 125VAC, 60VDC - Max | 250VA, 120W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 4.5 ms | 1.5 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | cURus | General Purpose | - | - |
|
J104D2C3VDC.36SRELAY GENERAL PURPOSE DPDT 2A 3V |
0 |
|
Технический лист |
J104D | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 100VDC - Max | 500VA, 200W | 120 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 6 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | General Purpose | - | - |
|
|
J1031C6VDC.20SRELAY GENERAL PURPOSE SPDT 2A 6V |
0 |
|
Технический лист |
J103 | Tube | Active | Through Hole | 6VDC | SPDT (1 Form C) | 2 A | 125VAC, 60VDC - Max | 250VA, 120W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 4.5 ms | 1.5 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | cURus | General Purpose | - | - |
