Сигнальные реле, до 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

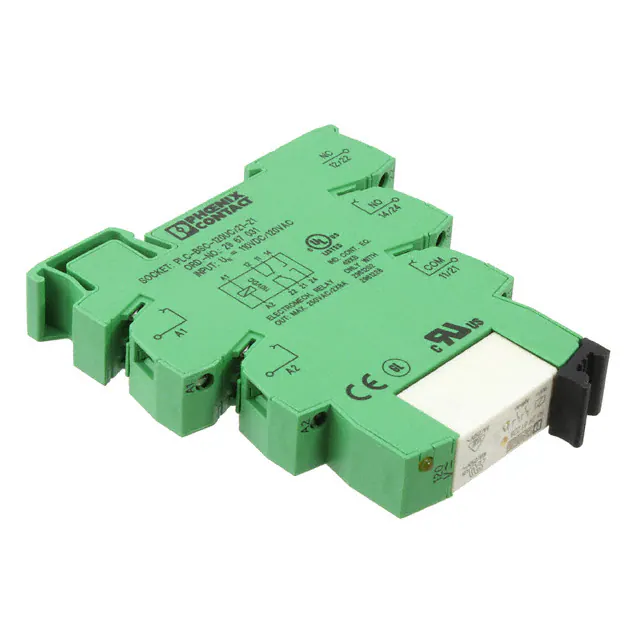

2967138RELAY GEN PURPOSE DPDT 50MA 120V |
2 |
|
Технический лист |
PLC-RSC | Bulk | Active | DIN Rail | 120VAC/DC | DPDT (2 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 4.5 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 7 ms | 10 ms | -25°C ~ 60°C | Silver (Ag), Gold (Au) | cULus, DNV, EAC, UL | General Purpose | - | - |
|

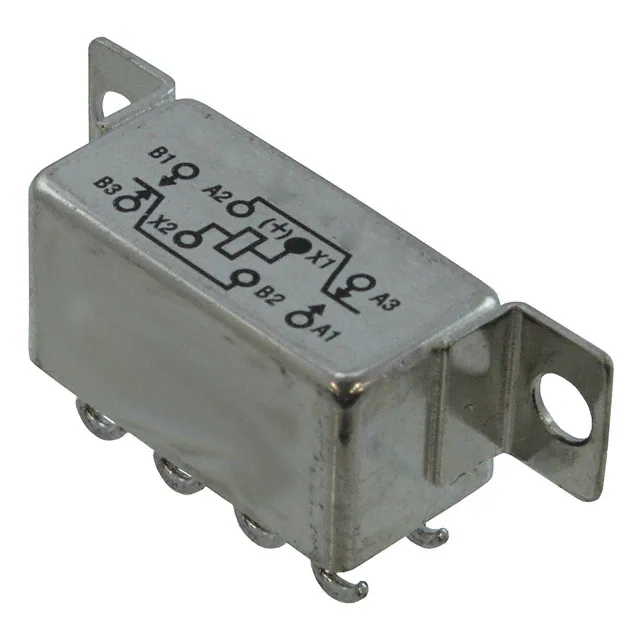

HFW1131K05MRELAY GEN PURPOSE DPDT 2A 26.5V |
0 |
|
Технический лист |
HFW, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | - | - | -65°C ~ 125°C | - | - | General Purpose | Military | MIL-R-39016/6 |
|

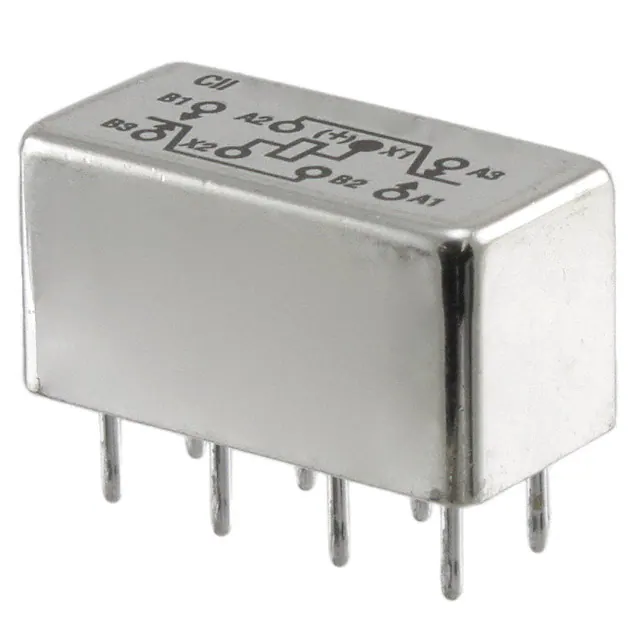

HFW1201K46RELAY GEN PURPOSE DPDT 2A 26.5V |
0 |
|
Технический лист |
HFW, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | - | General Purpose | Military | MIL-R-39016/6 |
|

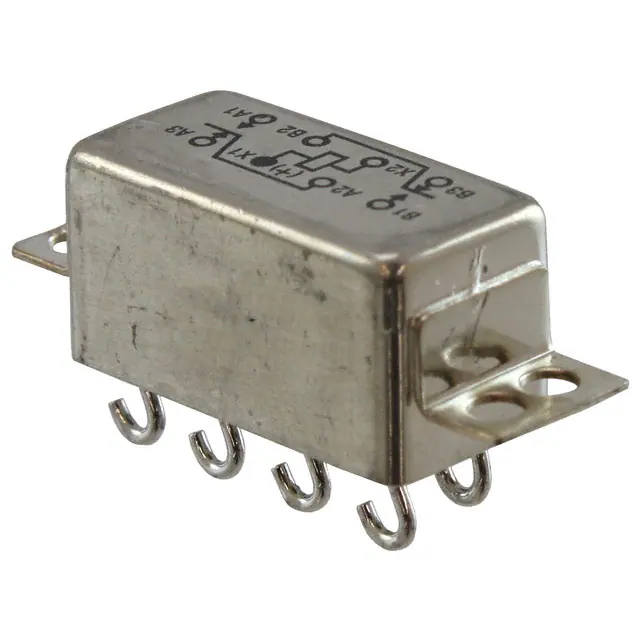

HFW1106K12RELAY GEN PURPOSE DPDT 2A 26.5V |
0 |
|
Технический лист |
HFW, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | - | - | -65°C ~ 125°C | - | - | General Purpose | Military | MIL-R-39016/6 |
|
J1MACD-26XMRELAY GEN PURPOSE SPDT 1A 26.5V |
0 |
|
Технический лист |
1MAD, CII | Bulk | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 13.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/23 |
|
JMACD-5XPRELAY GENERAL PURPOSE DPDT 1A 5V |
0 |
|
Технический лист |
MAD, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 100 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.22 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/15 |
|

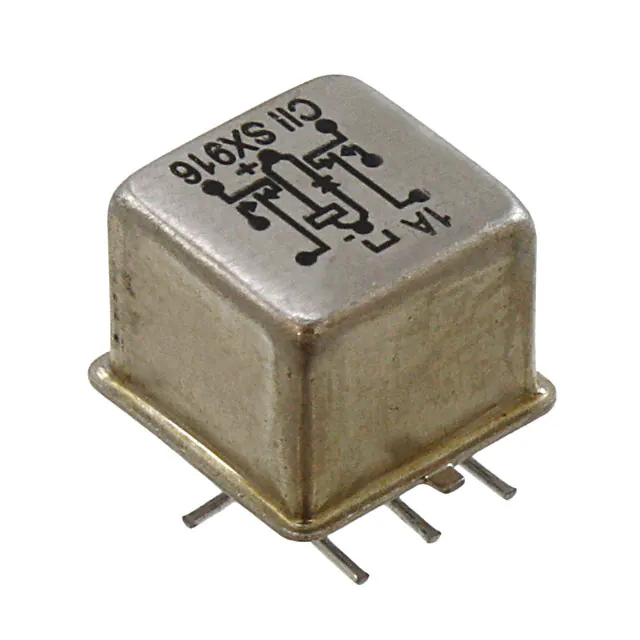

SMGAD-5RELAY GENERAL PURPOSE DPDT 1A 5V |
1 |
|
Технический лист |
SMGAD, CII | Bulk | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 100 mA | Non Latching | - | - | Sealed - Hermetically | - | 2.7 VDC | 0.23 VDC | 2 ms | 4 ms | -65°C ~ 125°C | - | - | General Purpose | - | - |
|
HFW1230K11MRELAY GEN PURPOSE DPDT 2A 26.5V |
1 |
|
Технический лист |
HFW, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | - | General Purpose | Military | MIL-R-39016/6 |
|
|
JMACD-26XPRELAY GEN PURPOSE DPDT 1A 26.5V |
1 |
|
Технический лист |
MAD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/15 |
|
HMS1201S004RELAY GEN PURPOSE DPDT 2A 26.5V |
0 |
|
Технический лист |
HMS, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 25.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 11.4 VDC | 1.1 VDC | 6 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|

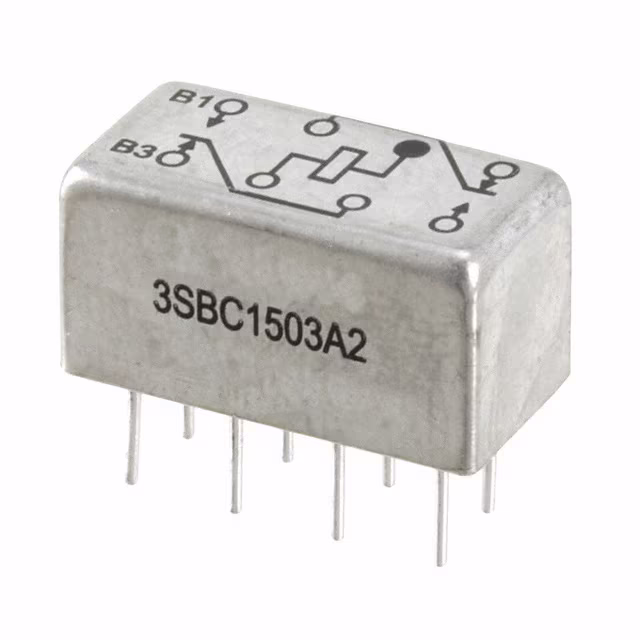

3SBC1503A2RELAY GEN PURPOSE DPDT 2A 26.5V |
0 |
|
Технический лист |
3SBC, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 19.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | - | General Purpose | Military | MIL-R-39016/13 |
|
AZ8222-2C-5DSERELAY GENERAL PURPOSE DPDT 2A 5V |
0 |
|
Технический лист |
AZ8222 | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 240VAC, 120VDC - Max | 480VA, 240W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.8 VDC | 0.5 VDC | 7 ms | 4 ms | -40°C ~ 80°C | Silver Nickel (AgNi), Gold (Au) | CUR, UL | General Purpose | - | - |
|
EB2-12TNU-LRELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
Технический лист |
EB2 | Tape & Reel (TR) | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 11.7 mA | Latching, Dual Coil | - | Gull Wing | - | - | 9 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | CSA, UR | General Purpose | - | - |
|

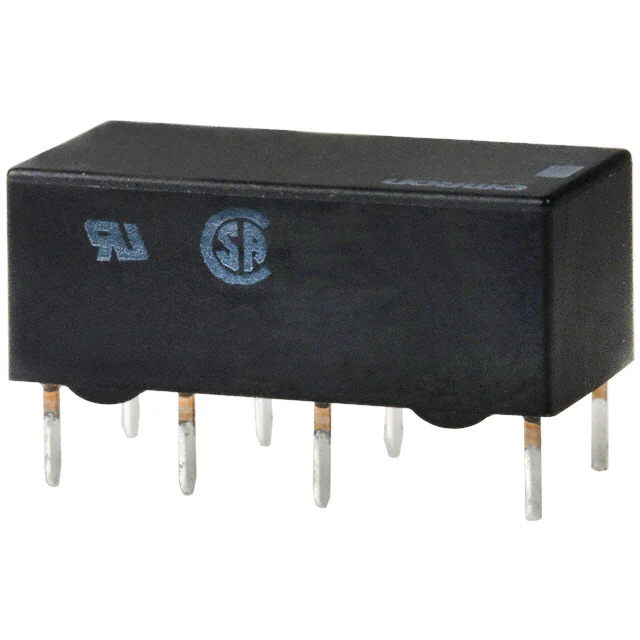

G6A-234P-ST-US DC5RELAY GENERAL PURPOSE DPDT 1A 5V |
0 |
|
Технический лист |
G6A | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 40 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
|
TX2SA-LT-5V-1RELAY TELECOM DPDT 1A 5V |
15 |
|
Технический лист |
TX-S | Tube | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 1 A | 220VDC - Max | 220W | 40 mA | Latching, Dual Coil | - | Gull Wing | Sealed - Fully | - | 3.75 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd) | BSI, cURus | Telecom | - | - |
|
|
IMB06ITSRELAY TELECOM SPST 2A 12V |
0 |
|
Технический лист |
IM, AXICOM | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 400VDC - Max | 500VA, 440W | 11.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 9 VDC | 1.2 VDC | 3 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | UR | Telecom | - | - |
|
2900310RELAY GEN PURPOSE SPDT 50MA 120V |
0 |
|
Технический лист |
PLC-RPT | Bulk | Active | DIN Rail | 120VAC/DC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 3.5 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 6 ms | 15 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO), Gold (Au) | cULus, DNV, EAC, UL | General Purpose | - | - |
|
|
2940087RELAY GEN PURPOSE SPST 50MA 24V |
1 |
|
Технический лист |
- | Bulk | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) | 50 mA | 30VAC, 36VDC - Max | - | 21 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 7 ms | 11 ms | -20°C ~ 40°C | Silver Palladium (AgPd), Gold (Au) | cURus, EAC, UR | General Purpose | - | - |
|

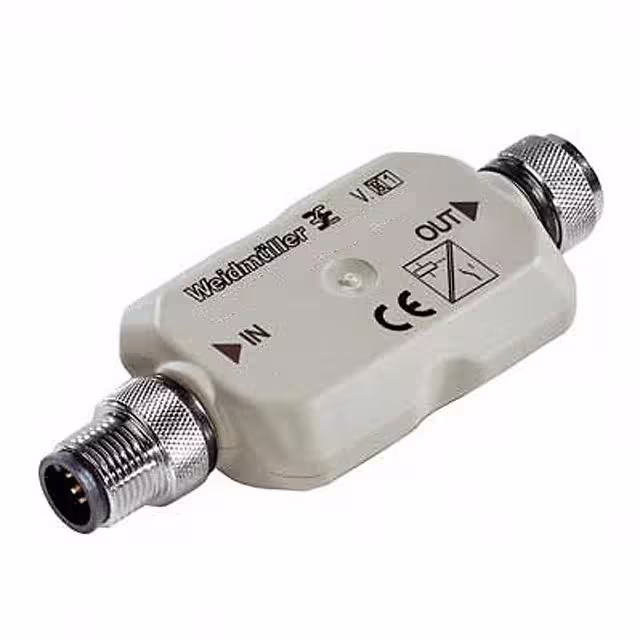

8771420000RELAY GEN PURPOSE SPDT 2A 24V |
0 |
|
Технический лист |
JPR | Bulk | Active | Free Hanging (In-Line) | 24VDC | SPDT (1 Form C) | 2 A | - | - | 8 mA | Non Latching | - | Connector | - | - | 16.8 VDC | 1.2 VDC | - | - | -25°C ~ 70°C | Silver Tin Oxide (AgSnO) | cULus | General Purpose | - | - |
|
|
JMGSCD-12MWRELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
Технический лист |
MGSD, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 15 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.64 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/42 |
