Сигнальные реле, до 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TQ2SA-L-5V-XRELAY TELECOM DPDT 2A 5V |
0 |
|
Технический лист |
TQ-SMD | Tape & Reel (TR) | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 250VA, 440W | 14 mA | Latching, Single Coil | - | Gull Wing | - | - | 3.75 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | Telecom | - | - |
|
TX2SA-L2-6VRELAY TELECOM DPDT 2A 6V |
0 |
|
Технический лист |
TX | Tube | Active | Surface Mount | 6VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 33.3 mA | Latching, Dual Coil | - | Gull Wing | Sealed - Fully | - | 4.5 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | BSI, cURus | Telecom | - | - |
|
TXS2SA-L-24VRELAY GEN PURPOSE DPDT 1A 24V |
0 |
|
Технический лист |
TX-S | Tube | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 1 A | 110VDC - Max | 110W | 2.1 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 19.2 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | BSI, cURus | General Purpose | - | - |
|
TXS2SA-L2-9VRELAY GENERAL PURPOSE DPDT 1A 9V |
17 |
|
Технический лист |
TX-S | Tube | Active | Surface Mount | 9VDC | DPDT (2 Form C) | 1 A | 110VDC - Max | 110W | 7.8 mA | Latching, Dual Coil | - | Gull Wing | Sealed - Fully | - | 7.2 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | BSI, cURus | General Purpose | - | - |
|
G6JU-2P-Y DC12RELAY TELECOM DPDT 1A 12V |
3 |
|
Технический лист |
G6J-Y | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 9 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 9 VDC | - | 3 ms | 3 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | cURus | Telecom | - | - |
|
DS1E-SL-DC5VRELAY GENERAL PURPOSE SPDT 2A 5V |
0 |
|
Технический лист |
DS | Box | Active | Through Hole | 5VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 18 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 4 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|
TXD2-2M-3VRELAY GENERAL PURPOSE DPDT 1A 3V |
23 |
|
Технический лист |
TX-D | Tube | Active | Through Hole | 3VDC | DPDT (2 Form D) | 1 A | 110VDC - Max | 110W | 83.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | BSI, cURus | General Purpose | - | - |
|
|
TXD2-L-24VRELAY GEN PURPOSE DPDT 2A 24V |
8 |
|
Технический лист |
TX-D | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440W | 7.1 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 18 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | BSI, cURus | General Purpose | - | - |
|
G6EK-134PL-ST-US DC24RELAY GEN PURPOSE SPDT 2A 24V |
0 |
|
Технический лист |
G6E | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 16.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 16.8 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
DS1E-M-DC5V-RRELAY GENERAL PURPOSE SPDT 2A 5V |
8 |
|
Технический лист |
DS | Box | Active | Through Hole | 5VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 80 mA | Non Latching | Reverse Polarity | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|
AGN260S03RELAY TELECOM DPDT 1A 3V |
16 |
|
Технический лист |
AGN | Tube | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 33.3 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 2.4 VDC | 0.3 VDC | 4 ms | 4 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | BSI, cURus | Telecom | - | - |
|
AGQ260S12RELAY TELECOM DPDT 2A 12V |
24 |
|
Технический лист |
AGQ | Tube | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 2 A | 125VAC, 110VDC - Max | 125VA, 110W | 8.3 mA | Non Latching | - | Gull Wing | - | - | 9.6 VDC | 1.2 VDC | 4 ms | 4 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | BSI, cURus | Telecom | - | - |
|
|
DS1E-SL2-DC12VRELAY GEN PURPOSE SPDT 2A 12V |
5 |
|
- |
DS | Box | Active | Through Hole | 12VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 15 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 9.6 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|
AGQ21TS24XRELAY GEN PURPOSE DPDT 2A 24V |
0 |
|
Технический лист |
AGQ TH | Tape & Reel (TR) | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 2 A | 125VAC, 110VDC - Max | 250VA, 220W | 5 mA | Latching, Single Coil | - | Gull Wing | - | - | 18 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | BSI, cURus | General Purpose | - | - |
|
TXS2-LT-12VRELAY GEN PURPOSE DPDT 1A 12V |
7 |
|
Технический лист |
TX-S | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 110VDC - Max | 110W | 5.8 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 9.6 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | BSI, cURus | General Purpose | - | - |
|
|
DS1E-SL2-DC24VRELAY GEN PURPOSE SPDT 2A 24V |
0 |
|
- |
DS | Box | Active | Through Hole | 24VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 7.5 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 19.2 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
DS1E-S-DC6VRELAY GENERAL PURPOSE SPDT 2A 6V |
2 |
|
Технический лист |
DS | Box | Active | Through Hole | 6VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.8 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|
MYQ4N AC110/120RELAY GEN PURPOSE 4PDT 1A 120V |
2 |
|
Технический лист |
MY | Bulk | Active | Socketable | 120VAC | 4PDT (4 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 9.2 mA | Non Latching | Lighted Indicator | Plug In | Sealed - Fully | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -55°C ~ 60°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|

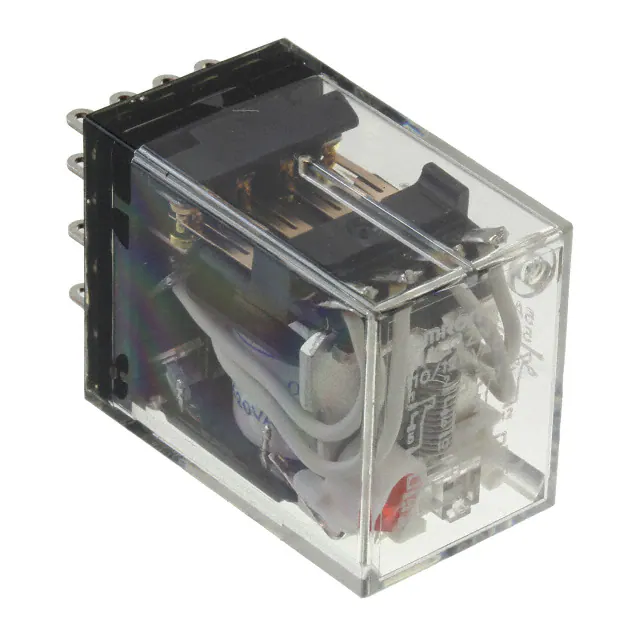

MYQ4ZN AC110/120RELAY GEN PURPOSE 4PDT 1A 120V |
1 |
|
Технический лист |
MY | Bulk | Active | Socketable | 120VAC | 4PDT (4 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 9.2 mA | Non Latching | Lighted Indicator | Plug In | Sealed - Fully | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -55°C ~ 60°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|
2900309RELAY GEN PURPOSE SPDT 50MA 60V |
1 |
|
Технический лист |
PLC-RPT | Bulk | Active | DIN Rail | 60VDC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 4.8 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 5 ms | 8 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO), Gold (Au) | cULus, DNV, EAC, UL | General Purpose | - | - |
