Сигнальные реле, до 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1617120-4RELAY GEN PURPOSE SPDT 1A 26.5V |
0 |
|
Технический лист |
1MS, CII | Bulk | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 6.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 4 ms | 2.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/10 |
|
|
J1MSC-12XLRELAY GEN PURPOSE SPDT 1A 12V |
0 |
|
Технический лист |
1MS, CII | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 11.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 4 ms | 2.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
1617151-3RELAY GENERAL PURPOSE DPDT 1A 5V |
0 |
|
Технический лист |
MGS, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 50 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.23 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
|
J1MSWD-5XMRELAY GENERAL PURPOSE SPDT 1A 5V |
0 |
|
Технический лист |
1MS, CII | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 40 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.8 VDC | 0.23 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|

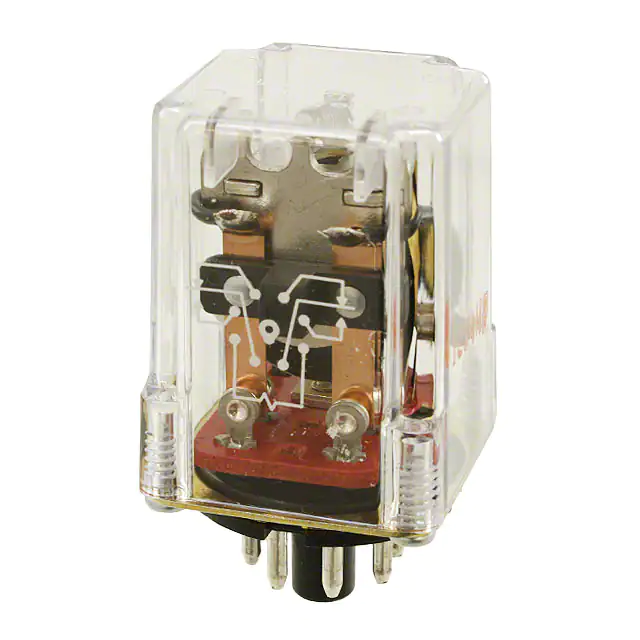

KCP-11-2500RELAY GENERAL PURPOSE DPDT 2A |
3 |
|
Технический лист |
KCP | Bulk | Obsolete | Socketable | - | DPDT (2 Form C) | 2 A | 120VAC - Max | 240VA | - | - | - | Plug In, 8 Pin (Octal) | - | - | - | - | 20 ms | 10 ms | -45°C ~ 70°C | Silver (Ag) | - | General Purpose | - | - |
|
|
2-1617121-3RELAY GENERAL PURPOSE DPDT 1A 9V |
0 |
|
Технический лист |
MAC | Bulk | Active | Through Hole | 9VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 40.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 5.3 VDC | 0.54 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
|
JMAC-9XMRELAY |
4 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
J1MAWD-26XPRELAY GEN PURPOSE SPDT 1A 26.5V |
0 |
|
Технический лист |
1MA, CII | Bulk | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 13.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
|
JMSPD-12XPRELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
Технический лист |
MSD, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 14.1 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.64 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/16 |
|
|
JMSC-12XPSRELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
Технический лист |
MS, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 14.1 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.64 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/11 |
|
|
1617118-7RELAY GEN PURPOSE SPDT 1A 26.5V |
0 |
|
Технический лист |
1MA, CII | Bulk | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 13.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/7 |
|
|
7-1617533-1RELAY GENERAL PURPOSE DPDT 2A 5V |
16 |
|
Технический лист |
HFW, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 185.2 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.29 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
1-1617033-8RELAY GEN PURPOSE DPDT 2A 26.5V |
0 |
|
- |
HFW, CII | Bulk | Active | - | 26.5VDC | DPDT (2 Form C) | 2 A | - | - | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | - | General Purpose | - | - |
|
|
JMSCD-5XPRELAY GENERAL PURPOSE DPDT 1A 5V |
0 |
|
Технический лист |
MSD, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 50 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.23 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/16 |
|
|
PR1MSPD-5XRELAY GENERAL PURPOSE SPDT 1A 5V |
0 |
|
Технический лист |
MS, CII | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 28VDC - Max | 28W | 40 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.22 VDC | 3.5 ms | 7.5 ms | -65°C ~ 125°C | - | - | General Purpose | - | - |
|
|
1-1617598-7RELAY GENERAL PURPOSE SPDT 1A 5V |
13 |
|
Технический лист |
MS, CII | Box | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 28VDC - Nom | - | 40 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.8 VDC | 0.23 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | - | - | General Purpose | - | - |
|
|
HFW1230K07MRELAY GEN PURPOSE DPDT 2A 26.5V |
0 |
|
Технический лист |
HFW, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | - | - | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
3-1617033-2RELAY GEN PURPOSE DPDT 2A 26.5V |
24 |
|
Технический лист |
HFW | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | - | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
JMSW-26XMRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
Технический лист |
MS, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.4 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/11 |
|
|
JMGSCDDG-26MWRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
Технический лист |
MGSDD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 9 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 15.2 VDC | 1.7 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/43 |
